DB4
Brakes and Pedal Gear

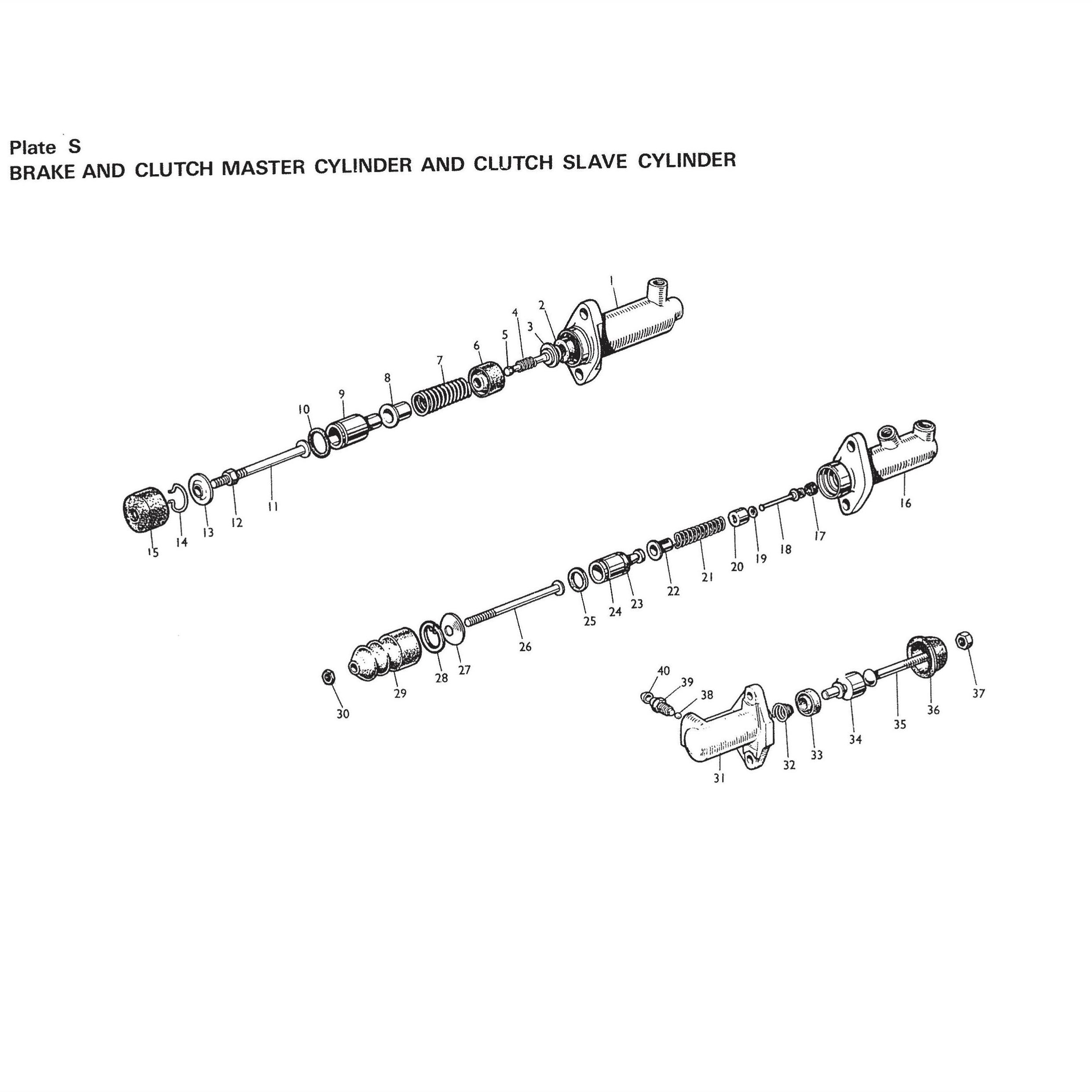

View DiagramBrake and Clutch Master Cylinder
| Ill. No. | Part No. | product name | Car Total |
Stock | Price | Quantity |
|---|---|---|---|---|---|---|
| - | 20-33-101 | Brake Master Cylinder Complete, 7/8" bore | 1 | 20 | £30.00 | - + |
| 1 | 20-33-724 | Body | 1 | 18 | £30.00 | - + |
| 2 | 20-33-741 | Cup Seal | 1 | 3 | £30.00 | - + |
| 3 | 20-33-727 | Support, Return Spring, Inner | 1 | 20 | £30.00 | - + |
| 4 | 20-33-730 | Spring, Valve | 1 | 3 | £30.00 | - + |
| 5 | 20-33-726 | Valve | 1 | 12 | £30.00 | - + |
| 6 | 20-33-731 | Seal, Piston | 1 | 3 | £30.00 | - + |
| 7 | 20-33-729 | Return Spring | 1 | 11 | £30.00 | - + |
| 8 | 20-33-728 | Support, Return Spring, Outer | 1 | 7 | £30.00 | - + |
| 9 | 20-33-725 | Piston | 1 | 15 | £30.00 | - + |
| 10 | 20-33-736 | Recuperating Seal | 1 | 19 | £30.00 | - + |
| 11 | 20-33-733 | Push Rod | 1 | 1 | £30.00 | - + |
| 12 | 20-33-737 | Locknut, 5/16" UNF | 1 | 16 | £30.00 | - + |
| 13 | 20-33-734 | Retaining Washer | 1 | 2 | £30.00 | - + |
| 14 | 20-33-735 | Circlip, Internal | 1 | 4 | £30.00 | - + |
| 15 | 20-33-732 | Dust Excluder | 1 | 4 | £30.00 | - + |
| - | 20-33-732 | Service and Modification Kit, Brake Master Cylinder | 1 | 8 | £30.00 | - + |
| - | 20-33-104 | Clutch Master Cylinder Complete, 3/4" bore | 1 | 1 | £30.00 | - + |
| - | 20-33-753 | Kit - Clutch Master Cylinder | 1 | 10 | £30.00 | - + |
| 16 | 20-33-706 | Body | 1 | 15 | £30.00 | - + |
| 17 | 20-33-714 | Seal, Valve | 1 | 12 | £30.00 | - + |
| 18 | 20-33-712 | Stem, Valve | 1 | 1 | £30.00 | - + |
| 19 | 20-33-715 | Curved Spring Washer | 1 | 20 | £30.00 | - + |
| 20 | 20-33-713 | Spacer, Valve | 1 | 3 | £30.00 | - + |
| 21 | 20-33-711 | Return Spring | 1 | 9 | £30.00 | - + |
| 22 | 20-33-710 | Retainer, Spring | 1 | 7 | £30.00 | - + |
| 23 | 20-33-709 | Taper Seal | 1 | 4 | £30.00 | - + |
| 24 | 20-33-707 | Plunger | 1 | 11 | £30.00 | - + |
| 25 | 20-33-708 | Seal, Plunger | 1 | 17 | £30.00 | - + |
| 26 | 20-33-716 | Push Rod | 1 | 6 | £30.00 | - + |
| 27 | 20-33-717 | Retaining Washer | 1 | 11 | £30.00 | - + |
| 28 | 20-33-718 | Circlip, Internal | 1 | 3 | £30.00 | - + |
| 29 | 20-33-719 | Dust Cover | 1 | 19 | £30.00 | - + |
| - | 20-33-720 | Clip | 1 | 11 | £30.00 | - + |
| - | 20-33-721 | Retaining Band | 1 | 17 | £30.00 | - + |
| 30 | 20-33-722 | Locknut, 5/16" UNF | 1 | 18 | £30.00 | - + |
| - | 20-33-105 | Clutch Slave Cylinder Complete, 7/8" bore | 1 | 16 | £30.00 | - + |
| - | 54914 | Kit - Clutch Slave Cylinder | 1 | 13 | £30.00 | - + |
| 31 | 20-33-746 | Body | 1 | 10 | £30.00 | - + |
| 32 | 20-33-751 | Spring | 1 | 11 | £30.00 | - + |
| 33 | 20-33-747 | Seal | 1 | 10 | £30.00 | - + |
| 34 | 20-33-749 | Piston | 1 | 17 | £30.00 | - + |
| 35 | 20-33-170 | Pushrod | 1 | 12 | £30.00 | - + |
| 36 | 20-33-748 | Dust Cover | 1 | 18 | £30.00 | - + |
| 37 | 110202 | Locknut, 5/16" UNF | 1 | 13 | £30.00 | - + |
| 38 | 20-33-752 | 3/16" diam. | 1 | 14 | £30.00 | - + |
| 39 | 20-33-750 | Bleed Screw | 1 | 2 | £30.00 | - + |
| 40 | 20-33-715 | Dust Cap | 1 | 4 | £30.00 | - + |

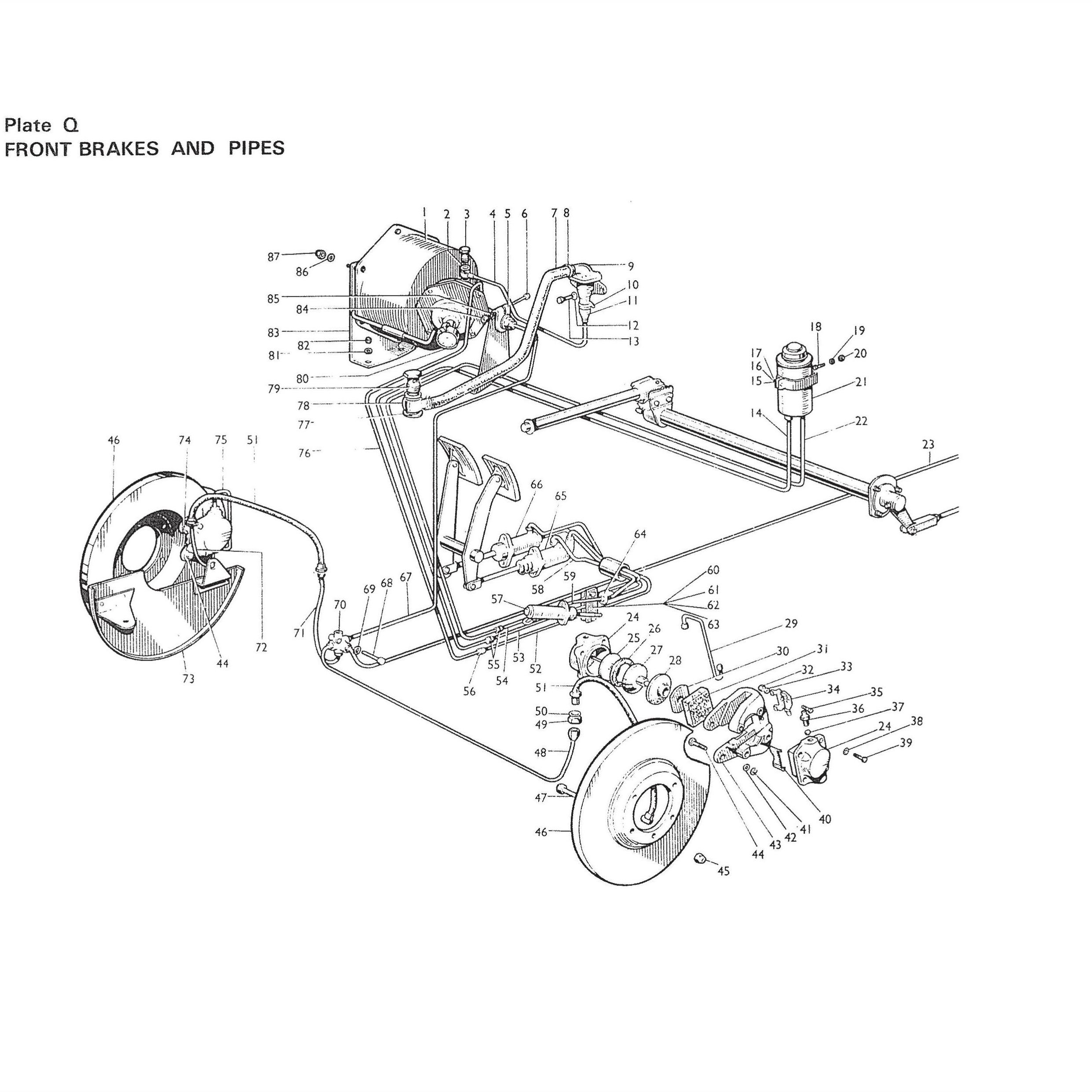

Front Brakes

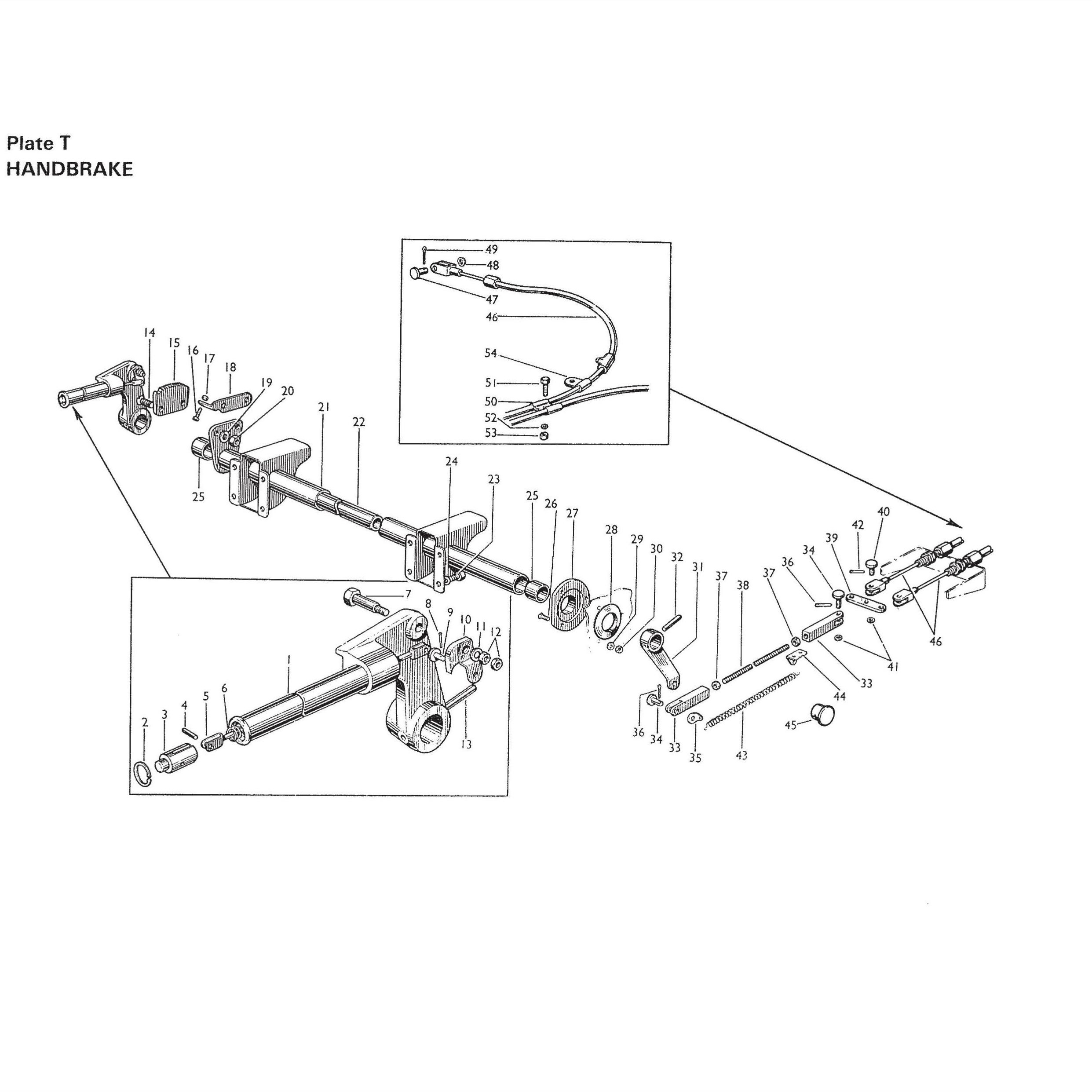

Handbrake
| Ill. No. | Part No. | product name | Car Total |
Stock | Price | Quantity |
|---|---|---|---|---|---|---|
| 1 | 20-30-001 | Hand Brake Lever Assembly - R.H.D. | 1 | 12 | £30.00 | - + |
| - | 20-30-002 | Hand Brake Lever Assembly - L.H.D. | 1 | 20 | £30.00 | - + |
| 2 | 690144 | Circlip, Internal | 1 | 5 | £30.00 | - + |
| 3 | 20-30-120 | Lock Plunger | 1 | 7 | £30.00 | - + |
| 4 | 20-30-123 | Link Pin | 1 | 19 | £30.00 | - + |
| 5 | 20-30-003 | Pawl Link Assembly | 1 | 10 | £30.00 | - + |
| 6 | 690423 | Spring - Lock Plunger | 1 | 19 | £30.00 | - + |
| 7 | 20-30-124 | Pawl Pivot Bolt | 1 | 6 | £30.00 | - + |
| 8 | 110822 | Split Pin, 1/32" diam. × 3/8" | 1 | 18 | £30.00 | - + |
| 9 | 20-30-122 | Pivot Pin - Pawl Link | 1 | 20 | £30.00 | - + |
| 10 | 20-30-004 | Pawl Assembly - R.H.D. | 1 | 11 | £30.00 | - + |
| - | 20-30-005 | Pawl Assembly - L.H.D. | 1 | 5 | £30.00 | - + |
| 11 | 122442 | Plain Washer, 3/16", Chromed | 1 | 20 | £30.00 | - + |
| 12 | 112941 | Locknut, 2 BA | 2 | 11 | £30.00 | - + |
| 13 | 690504 | Tension Pin, 1/4" diam. × 1 1/2" | 1 | 8 | £30.00 | - + |
| 14 | 690143 | Screw, 5/16" UNF × 3/4", C'sk. Hd. | 2 | 20 | £30.00 | - + |
| 15 | 20-30-153 | Ratchet - R.H.D. | 1 | 8 | £30.00 | - + |
| - | 20-30-154 | Ratchet - L.H.D. | 1 | 6 | £30.00 | - + |
| 16 | 690384 | Bolt, 2 BA × 5/8" | 1 | 15 | £30.00 | - + |
| 17 | 112941 | Locknut, 2 BA | 1 | 2 | £30.00 | - + |
| 18 | 20-30-011 | Stop Bracket Assembly - R.H.D. | 1 | 3 | £30.00 | - + |
| - | 20-30-012 | Stop Bracket Assembly - L.H.D. | 1 | 13 | £30.00 | - + |
| 19 | 119481 | Spring Washer, 5/16" | 2 | 16 | £30.00 | - + |
| 20 | 125557 | Plain Nut, 5/16" UNF | 2 | 19 | £30.00 | - + |
| 21 | 20-30-013 | Mounting Tube Assembly - R.H.D. | 1 | 16 | £30.00 | - + |
| - | 20-30-014 | Mounting Tube Assembly - L.H.D. | 1 | 20 | £30.00 | - + |
| 22 | 20-30-126 | Cross Tube | 1 | 9 | £30.00 | - + |
| 24 | 119480 | Spring Washer, 1/4" | 8 | 13 | £30.00 | - + |
| 25 | 690145 | Bush | 2 | 10 | £30.00 | - + |
| 26 | 111732 | Screw, 2 BA × 1/2", C'sk. Hd. | 3 | 9 | £30.00 | - + |
| 27 | 20-30-155 | Tunnell Socket | 1 | 8 | £30.00 | - + |
| 28 | 20-30-127 | Sealing Grommet | 1 | 11 | £30.00 | - + |
| 29 | 122442 | Plain Washer, 3/16", Chromed | 3 | 10 | £30.00 | - + |
| 30 | 122315 | Nut, Nyloc, 2 BA | 3 | 7 | £30.00 | - + |
| 31 | 20-30-128 | Lever - Crosstube | 1 | 12 | £30.00 | - + |
| 32 | 690504 | Tension Pin, 1/4" diam. × 1 1/2" | 1 | 7 | £30.00 | - + |
| 33 | 20-30-139 | Fork End | 2 | 12 | £30.00 | - + |
| 34 | 20-30-129 | Pivot Pin, Long | 2 | 12 | £30.00 | - + |
| 35 | 20-30-119 | Cleat - Return Spring | 1 | 16 | £30.00 | - + |
| 36 | 110823 | Split Pin, 3/64 " diam. × 1/2" | 2 | 9 | £30.00 | - + |
| 37 | 125583 | Plain Nut, 1/4" UNF | 2 | 12 | £30.00 | - + |
| 38 | 20-30-140 | Threaded Rod | 1 | 1 | £30.00 | - + |
| 39 | 20-30-121 | Compensating Arm | 1 | 9 | £30.00 | - + |
| 40 | 20-30-130 | Pivot Pin, Short | 2 | 13 | £30.00 | - + |
| 41 | 119470 | Plain Washer, 1/4" | 3 | 10 | £30.00 | - + |
| 42 | 110823 | Split Pin, 3/64" diam. × 1/2" | 2 | 3 | £30.00 | - + |
| 43 | 20-30-161 | Return Spring | 1 | 20 | £30.00 | - + |
| 44 | 20-30-163 | Anchor Bracket | 1 | 10 | £30.00 | - + |
| - | 690076 | Screw, 4 BA × 3/8", Ch. Hd. | 2 | 17 | £30.00 | - + |
| - | 110856 | Spring Washer, 4 BA | 2 | 2 | £30.00 | - + |
| 45 | 122375 | Bung | 1 | 2 | £30.00 | - + |
| 46 | 20-30-010 | Cable, Hand Brake, Assembly | 2 | 11 | £30.00 | - + |
| 47 | 20-30-152 | Pivot Pin, 5/16" - Caliper Lever Arm | 2 | 20 | £30.00 | - + |
| 48 | 119471 | Plain Washer, 5/16" | 2 | 7 | £30.00 | - + |
| 49 | 110823 | Split Pin, 3/64" diam. × 1/2" | 2 | 8 | £30.00 | - + |
| 50 | 20-30-156 | Cable Clip, Dual | 1 | 13 | £30.00 | - + |
| 51 | 114666 | Bolt, 2 BA × 1/4" | 1 | 9 | £30.00 | - + |
| 52 | 122442 | Plain Washer, 3/16" | 1 | 16 | £30.00 | - + |
| 53 | 122315 | Nut, Nyloc, 2 BA | 1 | 6 | £30.00 | - + |
| 54 | 20-37-191 | Cable Clip, Single | 2 | 7 | £30.00 | - + |
| 20-30-749 | Grease Nipple, Special | 2 | 10 | £30.00 | - + |

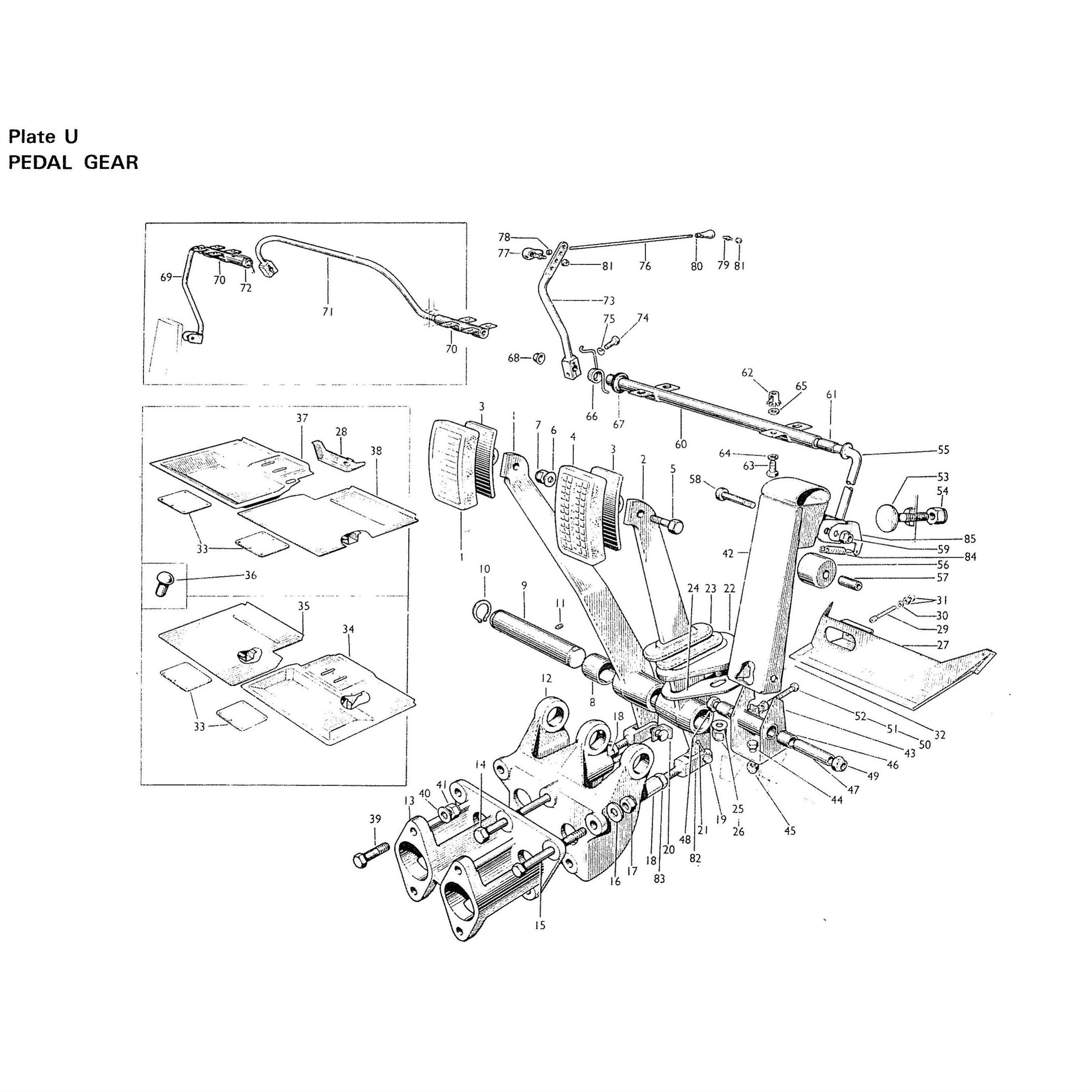

Pedals and Pedal Gear
| Ill. No. | Part No. | product name | Car Total |
Stock | Price | Quantity |
|---|---|---|---|---|---|---|
| 1 | 20-29-113 | Clutch Pedal Lever | 1 | 20 | £30.00 | - + |
| 2 | 20-29-111 | Brake Pedal Lever | 1 | 5 | £30.00 | - + |
| - | 20-29-156 | Pedal Return Spring | 2 | 14 | £30.00 | - + |
| 3 | 20-29-114 | Pedal Pad | 2 | 8 | £30.00 | - + |
| 4 | 20-29-141 | Rubber Pad | 2 | 6 | £30.00 | - + |
| 5 | 123131 | Bolt, 5/16" UNF × 1" | 2 | 12 | £30.00 | - + |
| 6 | 119471 | Plain Washer, 5/16" | 2 | 20 | £30.00 | - + |
| 7 | 123115 | Nut, Nyloc, 5/16" UNF | 2 | 4 | £30.00 | - + |
| 8 | 690041 | Bush, Pedal Levers | 4 | 3 | £30.00 | - + |
| 9 | 20-29-117 | Pivot Pin, Pedals | 1 | 8 | £30.00 | - + |
| - | 21-29-117 | Pivot Pin, Pedals | 1 | 13 | £30.00 | - + |
| 10 | 111290 | Circlip, External, 3/4" | 2 | 1 | £30.00 | - + |
| 11 | 690552 | Socket Setscrew, 2 BA × 1/2" | 1 | 1 | £30.00 | - + |
| 12 | 20-29-116 | Support Bracket - Pedals | 1 | 3 | £30.00 | - + |
| 13 | 20-29-144 | Mounting Bracket - Master Cylinders | 1 | 11 | £30.00 | - + |
| 14 | 690347 | Bolt, 5/16" UNF × 6 1/2" | 1 | 20 | £30.00 | - + |
| 15 | 690062 | Bolt, 5/16" UNF × 3 1/2" | 4 | 19 | £30.00 | - + |
| - | 690062 | Bolt, 5/16" UNF × 3 1/2" | 3 | 14 | £30.00 | - + |
| - | 690458 | Stud, 5/16" UNC/UNF × 6.55" | 2 | 7 | £30.00 | - + |
| 16 | 119471 | Plain Washer, 5/16" | 5 | 16 | £30.00 | - + |
| 17 | 123115 | Nut, Nyloc, 5/16" UNF | 5 | 15 | £30.00 | - + |
| 18 | 20-29-145 | Push Rod Assembly | 2 | 11 | £30.00 | - + |
| - | 125557 | Locknut, 5/16" UNF | 2 | 12 | £30.00 | - + |
| 19 | 122340 | Headed Pin | 2 | 10 | £30.00 | - + |
| 20 | 20-29-148 | Spring Anchor | 2 | 15 | £30.00 | - + |
| 21 | 119527 | Split Pin, 3/32" diam. × 3/4" | 2 | 6 | £30.00 | - + |
| 22 | 20-29-004 | Cover Plate Assembly | 2 | 7 | £30.00 | - + |
| 23 | 20-29-120 | Gaiter | 2 | 14 | £30.00 | - + |
| 24 | 20-29-119 | Stop Plate | 2 | 9 | £30.00 | - + |
| 25 | 119471 | Plain Washer, 5/16" | 4 | 19 | £30.00 | - + |
| 26 | 123115 | Nut, Nyloc, 5/16" UNF | 4 | 3 | £30.00 | - + |
| 27 | 21-29-149 | Shield Assembly - Pedal Gear - R.H.D. | 1 | 4 | £30.00 | - + |
| 28 | 21-29-150 | Shield Assembly - Pedal Gear - L.H.D. | 1 | 17 | £30.00 | - + |
| - | 122013 | Screw, P. K. No. 6 Hex. Hd. | 11 | 14 | £30.00 | - + |
| 29 | 20-29-167 | Adjuster - Return Spring | 2 | 9 | £30.00 | - + |
| 30 | 119470 | Plain Washer, 1/4" | 2 | 3 | £30.00 | - + |
| 31 | 690402 | Locknut, 1/4" UNF | 4 | 19 | £30.00 | - + |
| 32 | 20-29-156 | Spring Pedal Return | 2 | 13 | £30.00 | - + |
| 33 | 20-29-182 | Access Panel - Master Cylinders | 2 | 9 | £30.00 | - + |
| 34 | 20-29-160 | Footwell Assembly | 1 | 13 | £30.00 | - + |
| 35 | 20-29-157 | Blanking Cover Assembly | 1 | 4 | £30.00 | - + |
| 36 | 119650 | Rivet, 1/2" | 108 | 7 | £30.00 | - + |
| 37 | 20-29-158 | Footwell | 1 | 1 | £30.00 | - + |
| 38 | 20-29-159 | Blanking Cover Assembly | 1 | 17 | £30.00 | - + |
| 39 | 123132 | Bolt, 5/16" UNF × 1 3/8" - for Master Cylinder | 4 | 20 | £30.00 | - + |
| 40 | 119471 | Plain Washer, 5/16" | 4 | 6 | £30.00 | - + |
| 41 | 123115 | Nut, Nyloc, 5/16" UNF | 4 | 7 | £30.00 | - + |
| 42 | 20-29-006 | Accelerator Pedal Assembly | 1 | 14 | £30.00 | - + |
| 43 | 20-29-005 | Bearing Bracket Assembly | 1 | 16 | £30.00 | - + |
| 44 | 123127 | Bolt, 1/4" UNF × 3/4" | 2 | 15 | £30.00 | - + |
| 45 | 690046 | Nut, Nyloc, 1/4" UNF - R.H.D. | 2 | 12 | £30.00 | - + |
| - | 125566 | Nut, Nyloc, 1/4" UNF - L.H.D. | 2 | 6 | £30.00 | - + |
| - | 119480 | Spring Washer, 1/4 - L.H.D. | 2 | 19 | £30.00 | - + |
| 46 | 20-29-132 | Bush | 2 | 1 | £30.00 | - + |
| 47 | 20-29-131 | Bearing Spindle | 1 | 16 | £30.00 | - + |
| 48 | 690044 | Pivot Bolt, 1/4" UNF × 2" | 1 | 13 | £30.00 | - + |
| 49 | 690046 | Nut, Nyloc, 1/4" UNF | 1 | 8 | £30.00 | - + |
| 50 | 110807 | Screw, 2 BA × 1", Hex. HD. | 1 | 2 | £30.00 | - + |
| 51 | 112941 | Locknut, 2 BA | 1 | 4 | £30.00 | - + |
| 52 | 119496 | Plain Washer, 3/16" | 1 | 12 | £30.00 | - + |
| 53 | 20-29-142 | Stop - Accelerator Pedal | 1 | 9 | £30.00 | - + |
| 54 | 123115 | Nut, Nyloc, 5/16" UNF | 1 | 13 | £30.00 | - + |
| 55 | 20-29-007 | Accelerator Pedal Lever Assembly - R.H.D. | 1 | 18 | £30.00 | - + |
| 56 | 20-29-134 | Roller | 1 | 18 | £30.00 | - + |
| 57 | 20-29-133 | Distance Sleeve | 1 | 19 | £30.00 | - + |
| 58 | 112135 | Screw, 2 BA × 1 3/8" Ch. Hd. | 1 | 1 | £30.00 | - + |
| 59 | 122315 | Nut, Nyloc, 2 BA | 1 | 13 | £30.00 | - + |
| 60 | 20-29-136 | Pedal Lever Support Tube Assembly | 1 | 2 | £30.00 | - + |
| 61 | 690049 | Bush | 2 | 7 | £30.00 | - + |
| 62 | 125566 | Nut, Avlok, 1/4" UNF | 4 | 9 | £30.00 | - + |
| 63 | 125581 | Bolt, 1/4" UNF × 1 1/8" | 4 | 12 | £30.00 | - + |
| 64 | 119480 | Spring Washer, 1/4" | 4 | 1 | £30.00 | - + |
| 65 | 690150 | Special Washer, 1/4" | 4 | 7 | £30.00 | - + |
| 66 | 20-29-139 | Spring, Pedal Lever, RH | 1 | 12 | £30.00 | - + |
| 67 | 690149 | Grommet | 1 | 20 | £30.00 | - + |
| 68 | 690306 | Rubber Plug | 1 | 7 | £30.00 | - + |
| 69 | 20-29-008 | Accelerator Pedal Lever Assembly | 1 | 7 | £30.00 | - + |
| 70 | 20-29-137 | Pedal Lever Support Tube Assembly | 2 | 20 | £30.00 | - + |
| 62 | 125566 | Nut, Avloc, 1/4" UNF | 8 | 3 | £30.00 | - + |
| 66 | 20-29-139 | Spring Pedal Lever, RH | 1 | 20 | £30.00 | - + |
| 71 | 20-29-009 | Transverse Rod Assembly | 1 | 4 | £30.00 | - + |
| 72 | 20-29-143 | Spring, Pedal Lever, L.H. | 1 | 12 | £30.00 | - + |
| 73 | 20-29-010 | Throttle Linkage Lever Assembly | 1 | 4 | £30.00 | - + |
| 74 | 123127 | Setscrew, 1/4" UNF × 3/4" - R.H.D. | 1 | 18 | £30.00 | - + |
| - | 123127 | Setscrew, 1/4" UNF × 3/4" - L.H.D. | 2 | 20 | £30.00 | - + |
| 75 | 119480 | Spring Washer, 1/4" - R.H.D. | 1 | 7 | £30.00 | - + |
| - | 119480 | Spring Washer, 1/4" - L.H.D. | 2 | 2 | £30.00 | - + |
| 76 | 20-29-140 | Operating Rod | 1 | 3 | £30.00 | - + |
| 77 | 125526 | Ball Joint, LH Thread | 1 | 5 | £30.00 | - + |
| 78 | 110980 | Locknut, 2 BA, LH Thread | 1 | 14 | £30.00 | - + |
| 79 | 125525 | Ball joint, RH Thread | 1 | 13 | £30.00 | - + |
| 80 | 112941 | Locknut, 2 BA RH Thread | 1 | 9 | £30.00 | - + |
| 81 | 122315 | Nut, Nyloc, 2 BA | 2 | 20 | £30.00 | - + |
| 82 | 21-29-146 | Fork End | 2 | 17 | £30.00 | - + |
| - | 21-29-147 | Thrust Bar - Push Rod | 2 | 6 | £30.00 | - + |
| 83 | 125557 | Locknut, 5/16" UNF | 4 | 3 | £30.00 | - + |
| 84 | 20-29-186 | Anti-Rattle Spring - Accelerator Pedal | 1 | 11 | £30.00 | - + |
| 85 | 20-29-187 | Retainer Plate - Anti-Rattle Spring | 1 | 17 | £30.00 | - + |

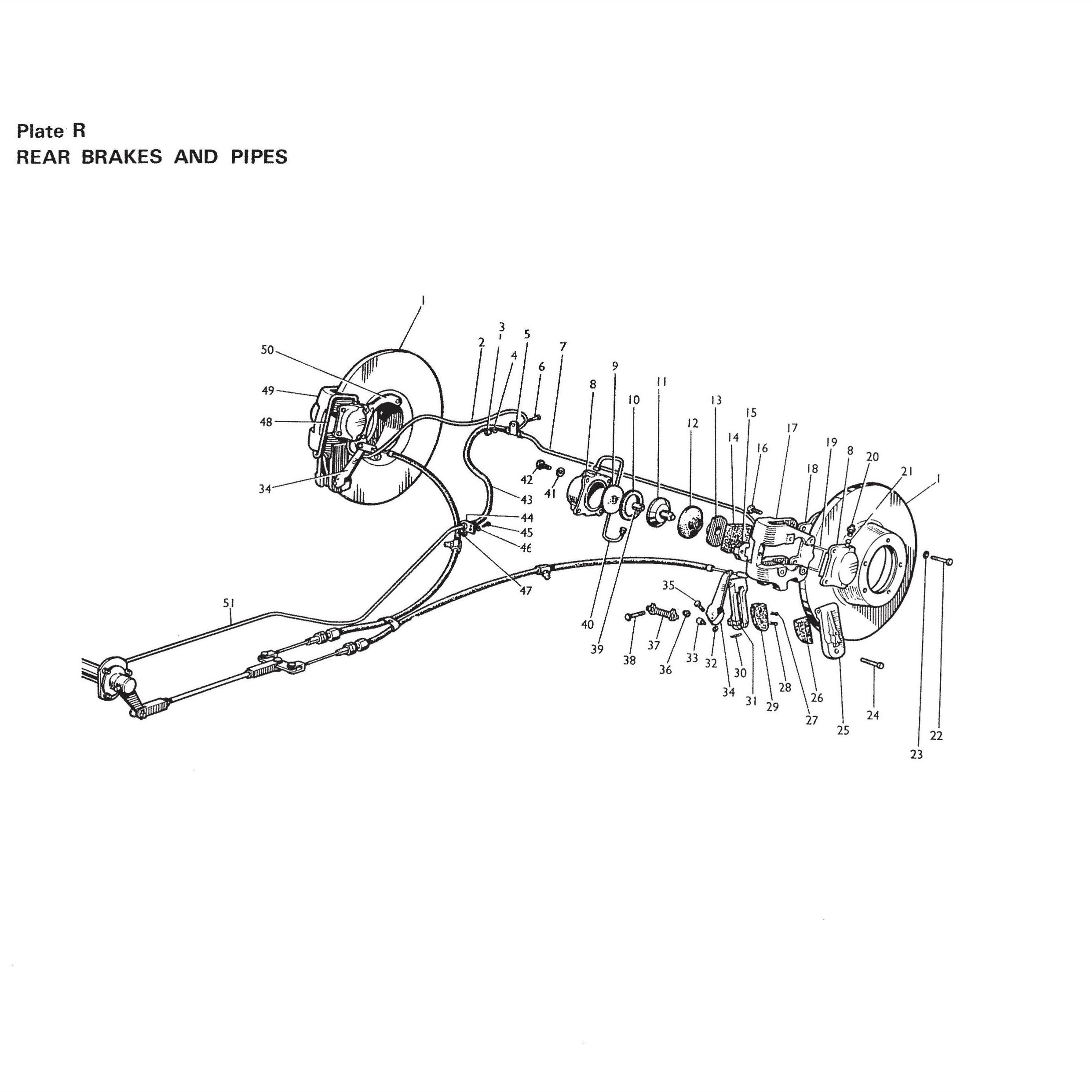

Rear Brakes
Technical Publications
For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.
DB2/4 MkIII
90222 Parts Catalogue90222 Parts Catalogue
90222 Parts Catalogue
£ 29 EA
Can't Find What You're Looking For?
INTERNATIONAL SHIPPING AVAILABLE
All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
