DB4

View Diagram

Brakes and Pedal Gear

Ill. No. Part No. product name Car
Total
Stock Price Quantity

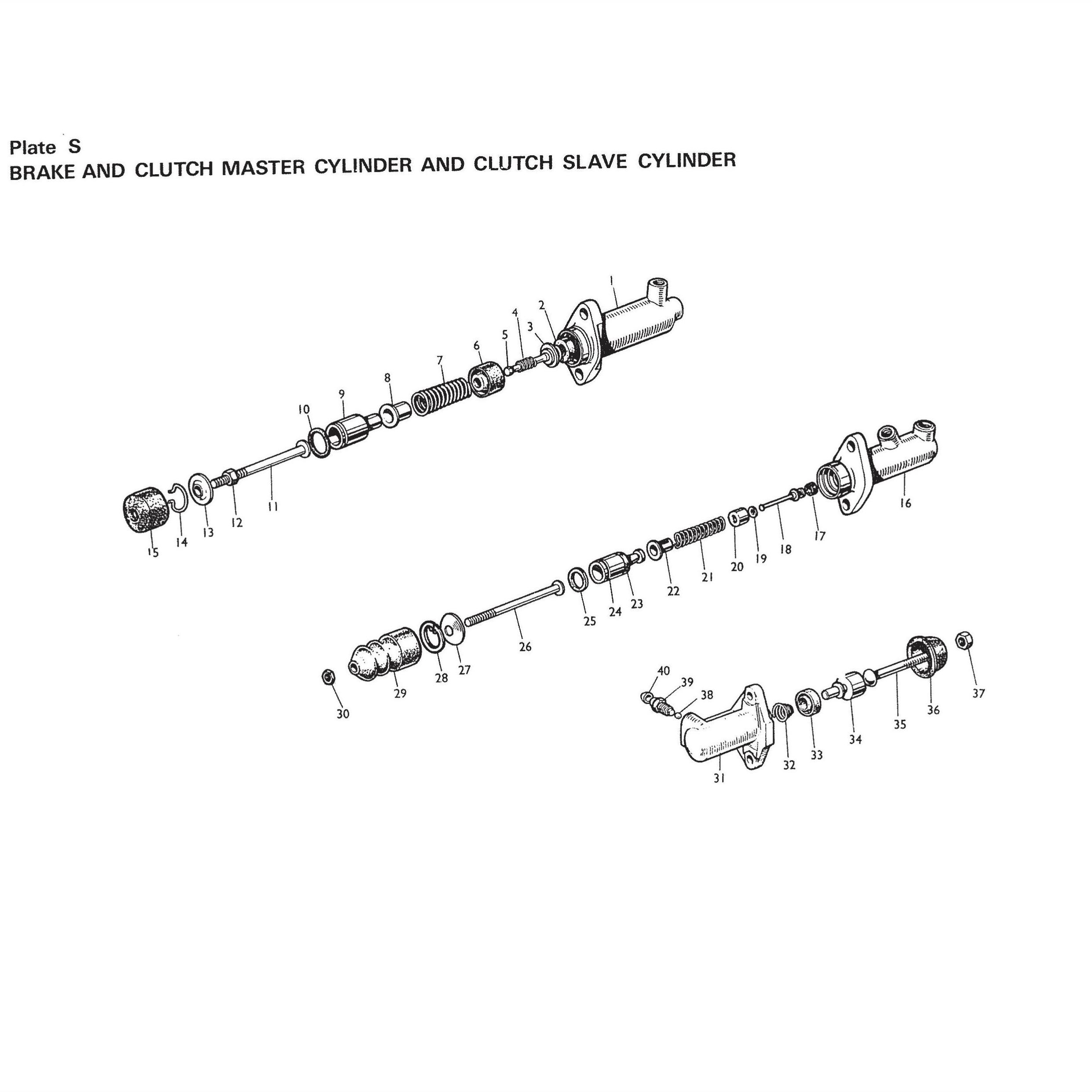

-20-33-101 Brake Master Cylinder Complete, 7/8" bore11£30.00- +
120-33-724 Body115£30.00- +
220-33-741 Cup Seal119£30.00- +
320-33-727 Support, Return Spring, Inner18£30.00- +
420-33-730 Spring, Valve116£30.00- +
520-33-726 Valve119£30.00- +
620-33-731 Seal, Piston111£30.00- +
720-33-729 Return Spring111£30.00- +
820-33-728 Support, Return Spring, Outer111£30.00- +
920-33-725 Piston12£30.00- +
1020-33-736 Recuperating Seal18£30.00- +
1120-33-733 Push Rod16£30.00- +
1220-33-737 Locknut, 5/16" UNF117£30.00- +
1320-33-734 Retaining Washer114£30.00- +
1420-33-735 Circlip, Internal12£30.00- +
1520-33-732 Dust Excluder16£30.00- +
-20-33-732 Service and Modification Kit, Brake Master Cylinder118£30.00- +
-20-33-104 Clutch Master Cylinder Complete, 3/4" bore16£30.00- +
-20-33-753 Kit - Clutch Master Cylinder113£30.00- +
1620-33-706 Body12£30.00- +
1720-33-714 Seal, Valve12£30.00- +
1820-33-712 Stem, Valve117£30.00- +
1920-33-715 Curved Spring Washer15£30.00- +
2020-33-713 Spacer, Valve16£30.00- +
2120-33-711 Return Spring15£30.00- +
2220-33-710 Retainer, Spring15£30.00- +
2320-33-709 Taper Seal17£30.00- +
2420-33-707 Plunger15£30.00- +
2520-33-708 Seal, Plunger114£30.00- +
2620-33-716 Push Rod12£30.00- +
2720-33-717 Retaining Washer13£30.00- +
2820-33-718 Circlip, Internal115£30.00- +
2920-33-719 Dust Cover112£30.00- +
-20-33-720 Clip17£30.00- +
-20-33-721 Retaining Band110£30.00- +
3020-33-722 Locknut, 5/16" UNF117£30.00- +
-20-33-105 Clutch Slave Cylinder Complete, 7/8" bore110£30.00- +
-54914 Kit - Clutch Slave Cylinder19£30.00- +
3120-33-746 Body119£30.00- +
3220-33-751 Spring116£30.00- +
3320-33-747 Seal15£30.00- +
3420-33-749 Piston15£30.00- +
3520-33-170 Pushrod16£30.00- +
3620-33-748 Dust Cover118£30.00- +
37110202 Locknut, 5/16" UNF14£30.00- +
3820-33-752 3/16" diam.12£30.00- +
3920-33-750 Bleed Screw19£30.00- +
4020-33-715 Dust Cap15£30.00- +
b7df297c3e84 A different Brake System is used from Chassis No.19£30.00- +
c9e82dac8663 251 onwards.4£30.00- +
a22bd0afc9cb The letter A denotes a part or assembly used only7£30.00- +
d3852da463a3 on the earlier system.16£30.00- +
3801d3f86f80 The letter B denotes a part or assembly used only19£30.00- +
a640325f6295 on the later system.8£30.00- +
d64bb12166d1 Where no letter is shown, the part is common to17£30.00- +
ea035e30dd37 either system15£30.00- +

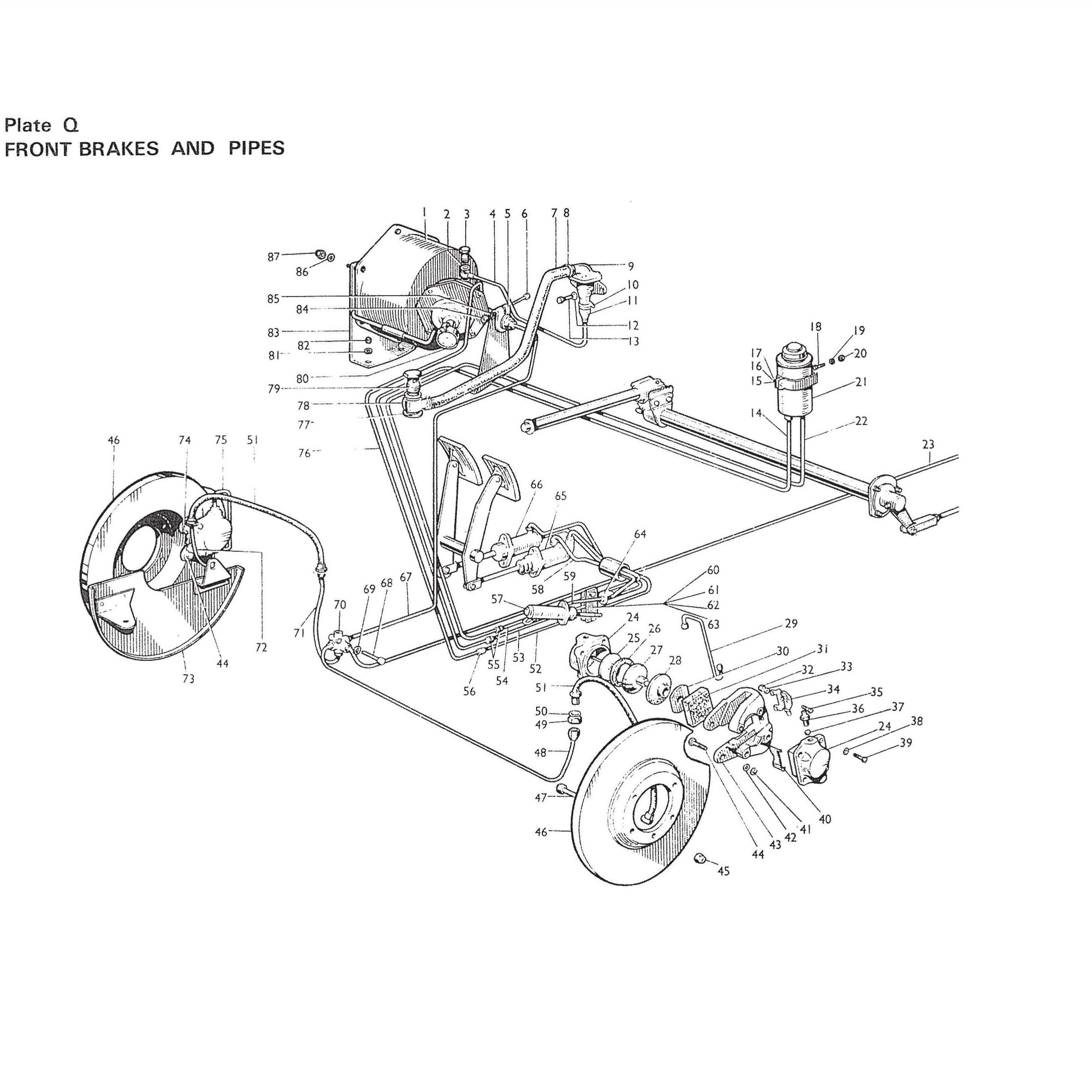

20-26-001 Front Brake Assembly, R. H. CompleteA 120£30.00- +
20-27-002 Front Brake Assembly, L. H. CompleteA 119£30.00- +
20-46-002 Front Brake Assembly, L. H. CompleteB 110£30.00- +
a92e102a2c72 Comprise all Brake Parts less Fixings for Calipers4£30.00- +
1691777fbb5d and Discs, and Shields.8£30.00- +
120-33-107 Vacuum Servo Unit Complete113£30.00- +
220-33-168 Washer, Banjo Bolt21£30.00- +
320-33-167 Banjo Bolt - Servo17£30.00- +
420-33-169 Pipe Assembly - Check Valve to ServoA 112£30.00- +
-20-33-240 Pipe Assembly - Valve to ServoB 120£30.00- +
520-33-121 Inner Support Clamp - ServoA 13£30.00- +
-20-33-001 Inner Support Clamp Assembly - ServoB 117£30.00- +
6690372 Balt, 1/4" UNF × 2 1/4" - Servo Clamp14£30.00- +
7690451 House, Vacuum - Manifold to Check ValveA 19£30.00- +
-20-33-227 Reinforcing Tube - Vacuum HoseA 15£30.00- +
-20-33-228 Hase, Vacuum - Manifold to Check ValveB 111£30.00- +
8114679 Hase Clip27£30.00- +
920-33-106 Check Valve Complete14£30.00- +
10114679 Hase Clip213£30.00- +
1120-33-165 Hase Connection - Check Valve to Pipe19£30.00- +
12122192 Plain Washer, 1/4" diam. - Check Valve28£30.00- +
13123130 Bolt, 1/4" UNF × 5/8" - Check Valve218£30.00- +
-125566 Nut, Avlok, 1/4" UNFA 217£30.00- +
-123116 Nut, Nyloc 1/4" UNFB 213£30.00- +
1420-33-179 Pipe Assembly, Brake -Supply Tank to Union - R. H. D.113£30.00- +
-20-33-180 Pipe Assembly, Brake -Supply Tank to Union - L. H. D.17£30.00- +
1520-33-231 Bracket - Supply Tank115£30.00- +
1620-33-229 Screw 2 BA × 3/4", Ch. Hd.119£30.00- +
1720-33-230 Nut, Nyloc 2 BA13£30.00- +
18123130 Bolt, 1/4" UNF × 5/8" - Supply Tank119£30.00- +
19122192 Plain Washer, 1/4" diam. -Supply Tank118£30.00- +
20125583 Plain Nut, 1/4" UNF - Supply Tank110£30.00- +
2120-33-108 Dual Supply Tank Complete112£30.00- +
2220-33-188 Pipe Assembly, Clutch - Supply Tank to Union - R. H. D.12£30.00- +
-20-33-186 Pipe Assembly, Clutch - Supply Tank to Union - L. H. D.114£30.00- +
2320--33-131 Pipe Assembly, Brake - Five way to Rear Hose120£30.00- +
-20-27-796 Wheel Cylinder and Piston AssemblyA 119£30.00- +
-20-46-730 Wheel Cylinder and Piston AssemblyB 11£30.00- +
2420-27-727 Cylinder, Front - CaliperA 414£30.00- +
-20-46-703 Cylinder, Front - CaliperB 48£30.00- +
-20-27-728 Cap415£30.00- +
-20-27-772 Spring Washer816£30.00- +
-20-27-729 Retractor Pin416£30.00- +
-20-27-730 Retractor Stop Bush416£30.00- +
2520-27-733 Piston Plate413£30.00- +
-20-27-735 Retractor Bush45£30.00- +
2620-27-734 Piston Seal414£30.00- +
2720-27-736 PistonA 412£30.00- +
-20-46-708 PistonB 48£30.00- +
-110862 Screw, 4 BA × 1/4", C'sk. Hd. - Plate to Piston817£30.00- +
-690348 Shakeproof Washer, Internal, 4 BA, C'sk.816£30.00- +
2820-27-738 Dust Seal44£30.00- +
2920-27-712 Bridge Pipe Assembly, Front - L.H.A 110£30.00- +
-20-46-716 Bridge Pipe Assembly, Front - R.H.B 16£30.00- +
-20-27-705 Friction Pad Assembly410£30.00- +
3020-27-745 Securing Plate-13£30.00- +
3120-27-744 Pad-2£30.00- +
-20-46-713 Friction Pad Assembly44£30.00- +
-20-46-715 Securing Plate-20£30.00- +
-20-46-714 Pad-1£30.00- +
-20-27-745 Securing Plate-5£30.00- +
-20-27-744 Pad-9£30.00- +
32125583 Plain Nut, 1/4" UNF - Keep Plate219£30.00- +
33111524 Shakeproof Washer, 1/4" diam.217£30.00- +
3420-27-732 Keep PlateA 216£30.00- +
-20-46-705 Keep PlateB 29£30.00- +
35690349 Bolt, 1/4" UNF × 1" - Keep Plate22£30.00- +
3620-27-742 Bleed Screw21£30.00- +
37111483 Ball, 3/16" diam.210£30.00- +
38111524 Shakeproof Washer, Internal, 1/4"A 1618£30.00- +
-111517 Shakeproof Washer, Internal 5/16"B 164£30.00- +
3920-27-773 Bolt, Special - CylinderA 1617£30.00- +
-20-46-712 Bolt, Special - CylinderB 1618£30.00- +
4020-27-731 Support PlateA 48£30.00- +
-20-46-704 Support PlateB 413£30.00- +
4120-27-774 Shim, .005" - Caliper Mounting, Front88£30.00- +
4220-27-775 Shim, .020" - Caliper Mounting, Front48£30.00- +
-20-27-001 Front Caliper Assembly - R. H.12£30.00- +
4320-27-002 Front Caliper Assembly - L. H.16£30.00- +
-20-46-001 Front Caliper Assembly - R. H.110£30.00- +
-23-46-002 Front Caliper Assembly - L. H.19£30.00- +
-23-46-001 Front Caliper Assembly - R. H.113£30.00- +
-42-27-100 Front Caliper Assembly - R. H.111£30.00- +
-42-27-102 Front Caliper Assembly - L. H.118£30.00- +
4420-27-179 Bolt, Special - Caliper Mounting, FrontA 48£30.00- +
-20-46-102 Bolt, Special - Caliper Mounting, FrontB 416£30.00- +
-13488 Locking WireA/R1£30.00- +
-20-46-100 Adaptor Plate, Front - R. H.B 18£30.00- +
-20-46-101 Adaptor Plate, Front - L. H.B 11£30.00- +
-20-46-103 Bolt, Special - Adaptor Plate to King PinB 46£30.00- +
-119472 Plain Washer, 3/8"1018£30.00- +
45690353 Nut, Pinnacle, 3/8" UNF - Disc to Front Hub1015£30.00- +
4620-27-101 Disc, FrontA 22£30.00- +
-20-46-107 Disc, FrontB 218£30.00- +
4720-27-177 Bolt, Special, 3/8" UNF × 1 3/4" - Disc to Front Hub1012£30.00- +
4820-33-133 Pipe Assembly, Brake-to LH Front Hose14£30.00- +
-20-33-171 Grommet - Valance Panel26£30.00- +
4920-33-160 Locknut, 5/8" diam. × 26 TPI, Inner-Hose to Lug216£30.00- +
5020-33-162 Shakeproof Washer, 5/8" diam.219£30.00- +
-20-33-155 Bracket, Front Hose, - L.H.115£30.00- +
-20-33-161 Locknut, 3/8" UNF, Outer - Hose to Bracket212£30.00- +
-20-33-163 Shakeproof Waher, 5/8" diam.27£30.00- +
5120-33-102 Flexible Hose Assembly - Front Brake219£30.00- +
5220-33-177 Pipe Assembly, Brake-Master Cylinder to Union - R.H.D13£30.00- +
-20-33-182 Pipe Assembly, Brake-Master Cylinder to Union - L.H.D17£30.00- +
5320-33-178 Pipe Assembly Brake - Union to Master Cylinder - R.H.D.117£30.00- +
-20-33-181 Pipe Assembly Brake - Union to Master Cylinder - L.H.D.11£30.00- +
5420-33-189 Pipe Assembly, Clutch-Union to Master Cylinder - R.H.D.120£30.00- +
-20-33-187 Pipe Assembly, Clutch-Union to Master Cylinder - L.H.D.119£30.00- +
5520-33-125 Union, 7/16" UNF217£30.00- +
5620-33--126 Union, 3/8" UNF117£30.00- +
5720-33-105 Slave Cylinder Assembly, Clutch120£30.00- +
5820-33-149 Pipe Assembly, Clutch-Master Cylinder to Hose - R.H.D.110£30.00- +
-20-33-184 Pipe Assembly, Clutch-Master Cylinder to Hose - L.H.D.116£30.00- +
-20-33-126 Union, 3/8" UNF - L.H.D.114£30.00- +
-20-33-185 Pipe Assembly, Clutch-Union to Hose - L.H.D.17£30.00- +
5920-33-153 Flexible Hose Assembly, Clutch117£30.00- +
6020-33-150 Clamp Strip, Long37£30.00- +
6120-33-151 Clamp Block, 3 Pipe619£30.00- +
-20-34-134 Clamp strip, Short - L.H.D.120£30.00- +
-20-33-174 Clamp Block, 2 Pipe - L.H.D.24£30.00- +
62121701 Bolt, 2 BA × 1 1/4" - Clamp Block - R.H.D.610£30.00- +
-121701 Bolt, 2 BA × 1 1/4" - Clamp Block - L.H.D.73£30.00- +
63119488 Spring Washer, 3/16" - Clamp Block - R.H.D.619£30.00- +
-119488 Spring Washer, 3/16" - Clamp Block - L.H.D.76£30.00- +
-20-33-176 Pipe Clip. Twin - R.H.D.26£30.00- +
-20-37-191 Pipe Clip, Single64£30.00- +
-122013 Screw, PK No 6 × 3-16" - R.H.D818£30.00- +
-122013 Screw, PK No 6 × 3-16" - L.H.D62£30.00- +
6420-33-157 Bracket, Clutch Hose115£30.00- +
-113457 Bolt, 2 BA × 1/2" - Bracket25£30.00- +
-119488 Spring Washer, 3/16"211£30.00- +
-111109 Plain Nut. 2 BA26£30.00- +
6520-33-104 Master Cylinder Clutch117£30.00- +
6620-33-101 Master Cylinder, Brake13£30.00- +
6720-33-132 Pipe Assembly, Brake-Servo to Five-way Connection113£30.00- +
68125470 Bolt, 1/4" UNF × 1 1/4" - Five-way Connection119£30.00- +
69119480 Spring Washer, 1/4"115£30.00- +
7020-33-156 Five-way Connection119£30.00- +
7120-33-134 Pipe Assembly, Brake-to RH Front Hose16£30.00- +
7220-33-138 Riser Pipe Assembly - R.H.15£30.00- +
-20-33-137 Riser Pipe Assembly - L.H.111£30.00- +
7320-27-185 Disc Shield Assembly - R.H.12£30.00- +
-20-46-005 Disc Shield Assembly - R.H.12£30.00- +
-20-27-186 Disc Shield Assembly - L.H.111£30.00- +
-20-46-006 Disc Shield Assembly - L.H.120£30.00- +
7420-33-154 Bracket, Front Hose, - R.H.18£30.00- +
7520-27-711 Bridge Pipe Assembly - Front - R.H.120£30.00- +
-20-46-710 Bridge Pipe Assembly - Front - R.H.16£30.00- +
7620-33-128 Pipe Assembly, Brake-Union to Servo - R.H.D16£30.00- +
-20-33-183 Pipe Assembly, Brake-Union to Servo - L.H.D118£30.00- +
77690418 Copper Washer, for 3/8" BSP-Manifold Banjo217£30.00- +
7820-33-123 Banjo Connection - Manifold120£30.00- +
7920-33-122 Banjo Bolt, 5/8" UNF15£30.00- +
8020-33-164 Air Cleaner - Servo18£30.00- +
81122192 Plain Washer, 1/4" - Servo Brackets519£30.00- +
82123116 Nut, Nyloc. 1/4" UNF - Servo Brackets52£30.00- +
8320-33-120 Outer Support Bracket - Servo116£30.00- +
84123116 Nut, Nyloc, 1/4" UNF - Clamp Bolt18£30.00- +
85122192 Plain Washer, 1/4" - Clamp Bolt213£30.00- +
86690404 Plain Washer, Special, Cad. Pl.317£30.00- +
87123116 Nut, Nyloc, 1/4" UNF - Servo311£30.00- +
-20-27-701 Service Kit, Wheel Cylinder, Front2£30.00- +
-20-33-743 Service Kit, Servo Piston Packing10£30.00- +
-20-33-745 Service Kit, Servo11£30.00- +
-20-33-744 Service Kit, Air Control Valve17£30.00- +
d29ebf1c3212 Service Kit, Brake Master Cylinder12£30.00- +

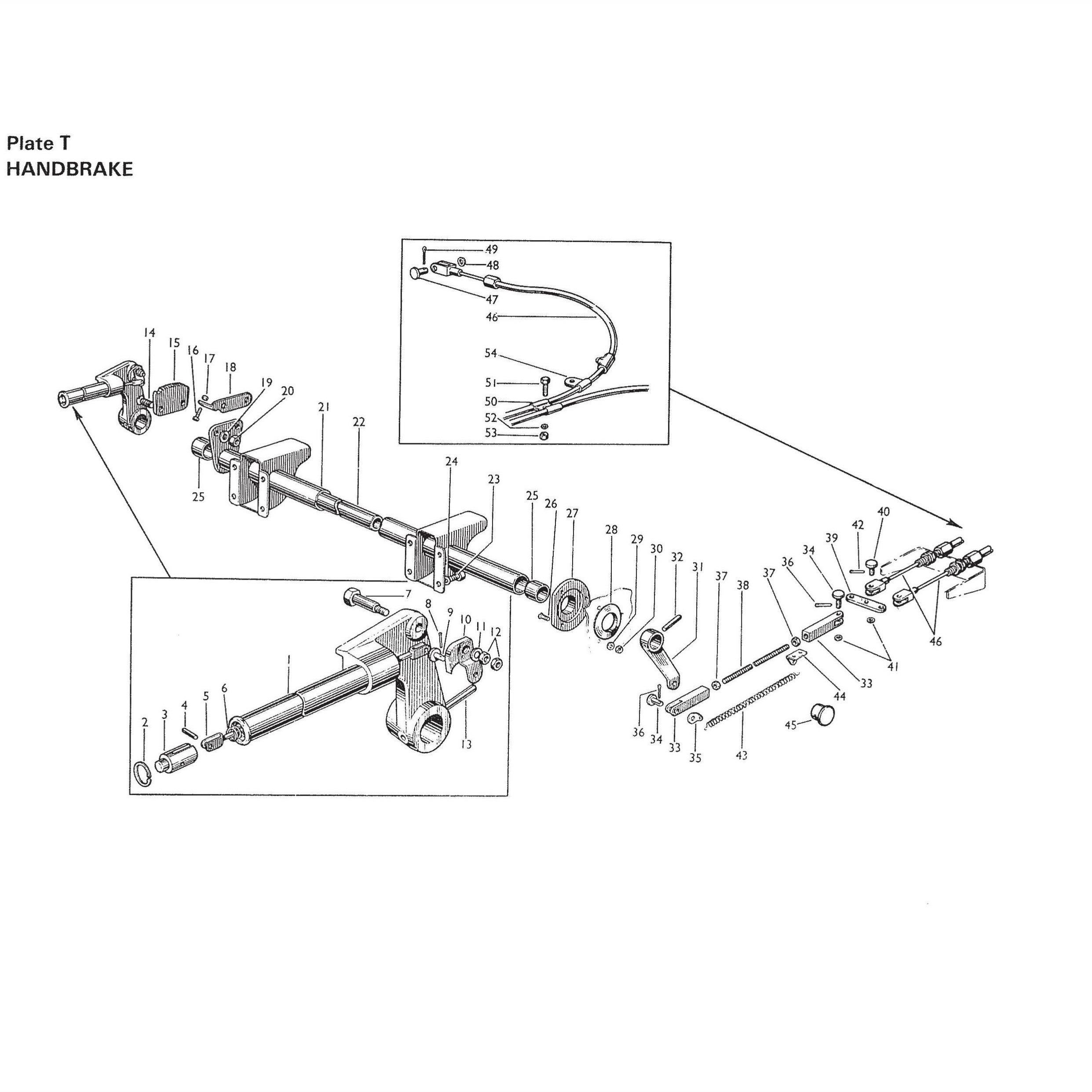

120-30-001 Hand Brake Lever Assembly - R.H.D.117£30.00- +
-20-30-002 Hand Brake Lever Assembly - L.H.D.117£30.00- +
2690144 Circlip, Internal17£30.00- +
320-30-120 Lock Plunger111£30.00- +
420-30-123 Link Pin13£30.00- +
520-30-003 Pawl Link Assembly19£30.00- +
6690423 Spring - Lock Plunger18£30.00- +
720-30-124 Pawl Pivot Bolt117£30.00- +
8110822 Split Pin, 1/32" diam. × 3/8"11£30.00- +
920-30-122 Pivot Pin - Pawl Link116£30.00- +
1020-30-004 Pawl Assembly - R.H.D.114£30.00- +
-20-30-005 Pawl Assembly - L.H.D.14£30.00- +
11122442 Plain Washer, 3/16", Chromed113£30.00- +
12112941 Locknut, 2 BA213£30.00- +
13690504 Tension Pin, 1/4" diam. × 1 1/2"12£30.00- +
14690143 Screw, 5/16" UNF × 3/4", C'sk. Hd.25£30.00- +
1520-30-153 Ratchet - R.H.D.12£30.00- +
-20-30-154 Ratchet - L.H.D.115£30.00- +
16690384 Bolt, 2 BA × 5/8"110£30.00- +
17112941 Locknut, 2 BA119£30.00- +
1820-30-011 Stop Bracket Assembly - R.H.D.115£30.00- +
-20-30-012 Stop Bracket Assembly - L.H.D.115£30.00- +
19119481 Spring Washer, 5/16"28£30.00- +
20125557 Plain Nut, 5/16" UNF22£30.00- +
2120-30-013 Mounting Tube Assembly - R.H.D.13£30.00- +
-20-30-014 Mounting Tube Assembly - L.H.D.12£30.00- +
2220-30-126 Cross Tube12£30.00- +
24119480 Spring Washer, 1/4"84£30.00- +
25690145 Bush219£30.00- +
26111732 Screw, 2 BA × 1/2", C'sk. Hd.311£30.00- +
2720-30-155 Tunnell Socket114£30.00- +
2820-30-127 Sealing Grommet15£30.00- +
29122442 Plain Washer, 3/16", Chromed38£30.00- +
30122315 Nut, Nyloc, 2 BA315£30.00- +
3120-30-128 Lever - Crosstube11£30.00- +
32690504 Tension Pin, 1/4" diam. × 1 1/2"17£30.00- +
3320-30-139 Fork End216£30.00- +
3420-30-129 Pivot Pin, Long26£30.00- +
3520-30-119 Cleat - Return Spring118£30.00- +
36110823 Split Pin, 3/64 " diam. × 1/2"21£30.00- +
37125583 Plain Nut, 1/4" UNF25£30.00- +
3820-30-140 Threaded Rod18£30.00- +
3920-30-121 Compensating Arm14£30.00- +
4020-30-130 Pivot Pin, Short211£30.00- +
41119470 Plain Washer, 1/4"320£30.00- +
42110823 Split Pin, 3/64" diam. × 1/2"216£30.00- +
4320-30-161 Return Spring117£30.00- +
4420-30-163 Anchor Bracket18£30.00- +
-690076 Screw, 4 BA × 3/8", Ch. Hd.27£30.00- +
-110856 Spring Washer, 4 BA219£30.00- +
45122375 Bung114£30.00- +
4620-30-010 Cable, Hand Brake, Assembly220£30.00- +
4720-30-152 Pivot Pin, 5/16" - Caliper Lever Arm26£30.00- +
48119471 Plain Washer, 5/16"219£30.00- +
49110823 Split Pin, 3/64" diam. × 1/2"29£30.00- +
5020-30-156 Cable Clip, Dual114£30.00- +
51114666 Bolt, 2 BA × 1/4"116£30.00- +
52122442 Plain Washer, 3/16"18£30.00- +
53122315 Nut, Nyloc, 2 BA116£30.00- +
5420-37-191 Cable Clip, Single21£30.00- +
20-30-749 Grease Nipple, Special25£30.00- +

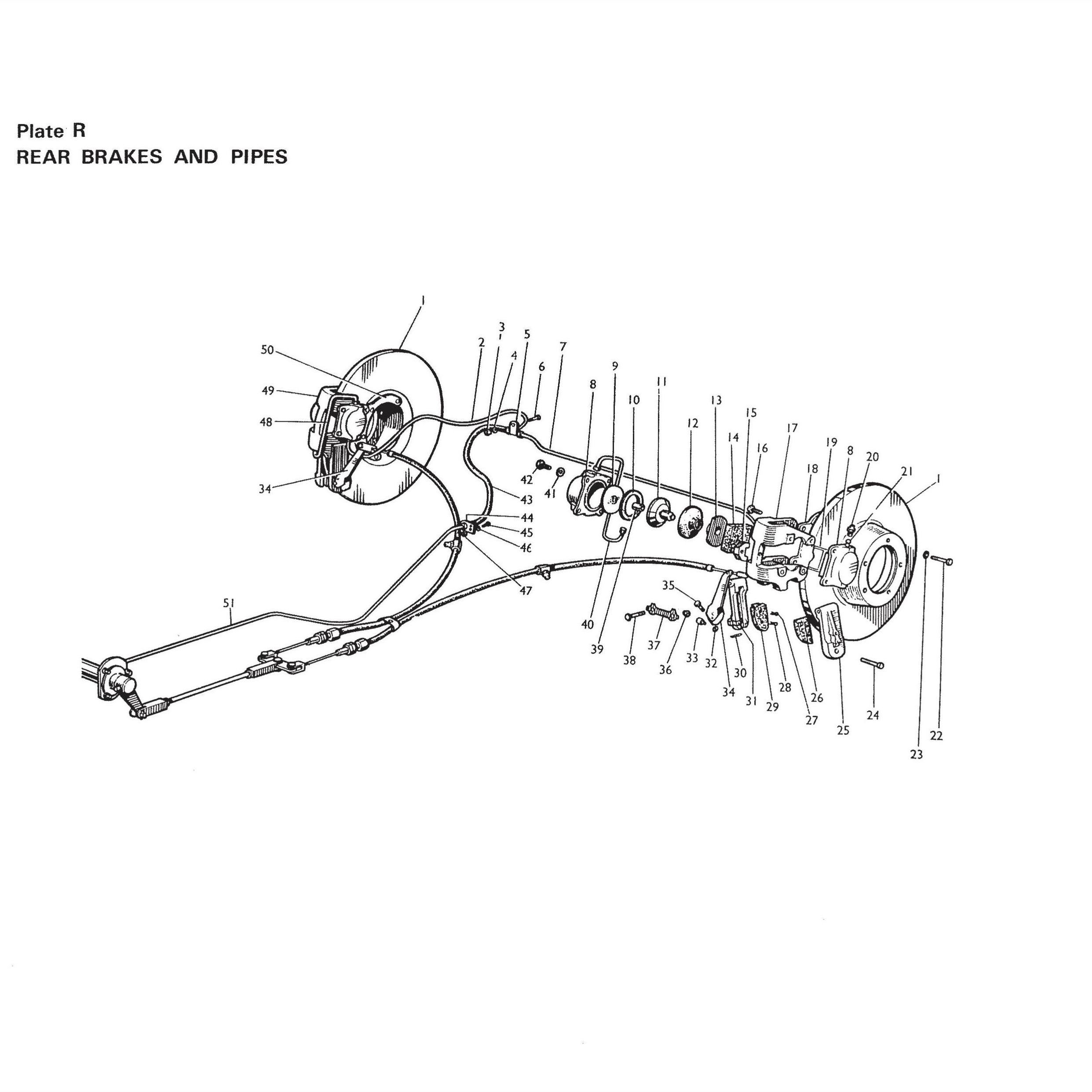

20-27-003 Rear Brake Assembly, R.H. CompleteA 115£30.00- +
20-27-004 Rear Brake Assembly, L.H. CompleteA 113£30.00- +
20-46-003 Rear Brake Assembly, R.H. CompleteB 13£30.00- +
20-46-004 Rear Brake Assembly, L.H. CompleteB118£30.00- +
0f6d381dbc26 Comprise all Brake Parts less Hand Brake Parts,20£30.00- +
e0220ad4837a Shields and Fixongs for Calipers and Discs.2£30.00- +
-20-27-006 Hand Brake, RH Complete17£30.00- +
-20-27-007 Hand Brake, LH Complete19£30.00- +
120-27-104 Disc, Rear21£30.00- +
220-33-135 Pipe Assembly, Brake-T Piece to RH Rear Caliper120£30.00- +
3125583 Plain Nut, 1/4" UNF - T Piece17£30.00- +
4122192 Plain Washer, 1/4" - T Piece17£30.00- +
520-33-124 T Piece Connection17£30.00- +
6690045 Bolt, 1/4" UNF × 1" - T Piece12£30.00- +
720-33-136 Pipe Assembly, Brake-T Piece to LH Rear Caliper114£30.00- +
820-27-795 Cylinder Rear - CaliperA 43£30.00- +
-20-46-729 Cylinder Rear - CaliperB 45£30.00- +
-20-27-728 Cap420£30.00- +
-20-27-772 Spring Washer85£30.00- +
-20-27-729 Retractor Pin418£30.00- +
-20-27-730 Retractor Stop Bush43£30.00- +
920-27-752 Piston PlateA 48£30.00- +
-20-46-722 Piston PlateB 420£30.00- +
1020-27-751 Piston SealA 45£30.00- +
-20-46-721 Piston SealB 45£30.00- +
1120-27-753 PistonA 46£30.00- +
-20-46-723 PistonB 417£30.00- +
-110862 Screw, 4 BA × 1/4", C'sk. Head - Plate to Piston820£30.00- +
-690348 Shakeproof Washer, 4 BA. C'sk.87£30.00- +
1220-27-754 Dust Seal42£30.00- +
1320-27-737 Backing Plate416£30.00- +
1420-27-705 Friction Pad AssemblyA 419£30.00- +
-20-46-725 Friction Pad AssemblyB 413£30.00- +
1520-27-732 Keep Plate210£30.00- +
-690349 Bolt, 1/4" UNF × 1" - Keep Plate25£30.00- +
-111524 Shakeproof Washer, Internal, 1/4"24£30.00- +
-125583 Plain Nut, 1/4" UNF220£30.00- +
1620-27-181 Bolt, Special, 7/16" UNF × 1 1/4" - Caliper Mounting, Rear46£30.00- +
-13488 Locking WireA/R4£30.00- +
-20-27-793 Shim, .005" - Caliper Mounting Rear88£30.00- +
-20-27-794 Shim, .020" - Caliper Mounting, Rear411£30.00- +
1720-27-004 Rear Caliper Assembly - L.H.119£30.00- +
-20-46-004 Rear Caliper Assembly - L.H.16£30.00- +
-23-46-004 Rear Caliper Assembly - L.H.13£30.00- +
-42-27-106 Rear Caliper Assembly - L.H.110£30.00- +
1820-27-156 Adapter Plate. Rear - L.H.13£30.00- +
-20-27-195 Shim, .056" - Rear Adaptor PlateA/R14£30.00- +
1920-27-731 Support Plate417£30.00- +
2020-27-742 Bleed Screw218£30.00- +
21111483 Ball, 3/16" diam.218£30.00- +
2220-27-742 Bolt, Special, 3/8" UNF × 1 1/8" - Disc to Rear Hub1019£30.00- +
23111483 Spring Washer, Thin, 3/8"1017£30.00- +
2420-27-771 Bolt, Hand Brake219£30.00- +
2520-27-764 Pad Carrier - Outer211£30.00- +
26/2920-27-705 Friction Pad Assembly410£30.00- +
-20-27-744 Pad-4£30.00- +
-20-27-745 Securing Plate-14£30.00- +
27690350 Bifurcated Rivet, Short45£30.00- +
28690351 Bifurcated Rivet, Long415£30.00- +
30690352 Split Pin, 1/16" diam. × 1/2" - Hinge Pin27£30.00- +
-20-27-719 Pad Carrier, Inner Assembly - R.H.19£30.00- +
3120-27-722 Pad Carrier, Inner Assembly - L.H.18£30.00- +
32119470 Plain Washer, 1/4" - Hinge Pin29£30.00- +
3320-27-762 Pivot Seat26£30.00- +
3420-27-724 Lever Assembly, Hand Brake215£30.00- +
3520-27-784 Hinge Pin24£30.00- +
36122364 Nut, Philidas, 5/16" UNF - Hand Brake Bolt27£30.00- +
3720-27-776 Tab Washer - Pad Carrier Bolt215£30.00- +
3820-27-770 Bolt - Pad Carrier49£30.00- +
3920-27-735 Retractor Bush412£30.00- +
4020-27-717 Bridge Pipe Assembly, Rear - L.H.A 118£30.00- +
-20-46-727 Bridge Pipe Assembly, Rear - R.H.B 118£30.00- +
41111524 Shakeproof Washer, Internal, 1/4"165£30.00- +
4220-27-773 Bolt, Special - Cylinders162£30.00- +
4320-33-103 Flexible Hose Assembly15£30.00- +
4420-38-158 Lug - Rear Brake Hose118£30.00- +
-20-33-161 Loocknut, 3/8" UNF - Hose to Lug120£30.00- +
-20-33-163 Shakerproof Washer, 3/8" diam.113£30.00- +
-20-33-159 Cooper Washer - Hose to T Piece11£30.00- +
45113457 Bolt, 2 BA × 1/2" - Lug215£30.00- +
46119488 Spring Washer, 3/16"27£30.00- +
47111109 Plain Nut, 2 BA210£30.00- +
4820-27-716 Bridge Pipe Assembly, Rear - R.H.A 115£30.00- +
4920-27-003 Bridge Pipe Assembly, Rear - R.H.B 14£30.00- +
-20-46-003 Rear Caliper Assembly - R.H.11£30.00- +
-23-46-003 Rear Caliper Assembly - R.H.114£30.00- +
-42-27-105 Rear Caliper Assembly - R.H.120£30.00- +
5020-27-148 Adaptor Plate, Rear - R.H.117£30.00- +
511a5b8b279975 Pipe Assembly, Brake - Five-way to Rear Hose3£30.00- +
-20-27-702 Service Kit, Wheel Cylinder, Rear7£30.00- +
-20-27-703 Service Kit, Hand Brake19£30.00- +
120-29-113 Clutch Pedal Lever11£30.00- +
220-29-111 Brake Pedal Lever116£30.00- +
-20-29-156 Pedal Return Spring216£30.00- +
320-29-114 Pedal Pad26£30.00- +
420-29-141 Rubber Pad25£30.00- +
5123131 Bolt, 5/16" UNF × 1"213£30.00- +
6119471 Plain Washer, 5/16"27£30.00- +
7123115 Nut, Nyloc, 5/16" UNF29£30.00- +
8690041 Bush, Pedal Levers49£30.00- +
920-29-117 Pivot Pin, Pedals18£30.00- +
-21-29-117 Pivot Pin, Pedals12£30.00- +
10111290 Circlip, External, 3/4"220£30.00- +
11690552 Socket Setscrew, 2 BA × 1/2"18£30.00- +
1220-29-116 Support Bracket - Pedals118£30.00- +
1320-29-144 Mounting Bracket - Master Cylinders115£30.00- +
14690347 Bolt, 5/16" UNF × 6 1/2"16£30.00- +
15690062 Bolt, 5/16" UNF × 3 1/2"417£30.00- +
-690062 Bolt, 5/16" UNF × 3 1/2"319£30.00- +
-690458 Stud, 5/16" UNC/UNF × 6.55"24£30.00- +
16119471 Plain Washer, 5/16"53£30.00- +
17123115 Nut, Nyloc, 5/16" UNF513£30.00- +
1820-29-145 Push Rod Assembly217£30.00- +
-125557 Locknut, 5/16" UNF212£30.00- +
19122340 Headed Pin28£30.00- +
2020-29-148 Spring Anchor23£30.00- +
21119527 Split Pin, 3/32" diam. × 3/4"218£30.00- +
2220-29-004 Cover Plate Assembly25£30.00- +
2320-29-120 Gaiter213£30.00- +
2420-29-119 Stop Plate27£30.00- +
25119471 Plain Washer, 5/16"414£30.00- +
26123115 Nut, Nyloc, 5/16" UNF417£30.00- +
2721-29-149 Shield Assembly - Pedal Gear - R.H.D.110£30.00- +
2821-29-150 Shield Assembly - Pedal Gear - L.H.D.17£30.00- +
-122013 Screw, P. K. No. 6 Hex. Hd.119£30.00- +
2920-29-167 Adjuster - Return Spring21£30.00- +
30119470 Plain Washer, 1/4"219£30.00- +
31690402 Locknut, 1/4" UNF48£30.00- +
3220-29-156 Spring Pedal Return29£30.00- +
3320-29-182 Access Panel - Master Cylinders214£30.00- +
3420-29-160 Footwell Assembly114£30.00- +
3520-29-157 Blanking Cover Assembly118£30.00- +
36119650 Rivet, 1/2"1084£30.00- +
3720-29-158 Footwell16£30.00- +
3820-29-159 Blanking Cover Assembly17£30.00- +
39123132 Bolt, 5/16" UNF × 1 3/8" - for Master Cylinder418£30.00- +
40119471 Plain Washer, 5/16"419£30.00- +
41123115 Nut, Nyloc, 5/16" UNF43£30.00- +
4220-29-006 Accelerator Pedal Assembly116£30.00- +
4320-29-005 Bearing Bracket Assembly120£30.00- +
44123127 Bolt, 1/4" UNF × 3/4"219£30.00- +
45690046 Nut, Nyloc, 1/4" UNF - R.H.D.27£30.00- +
-125566 Nut, Nyloc, 1/4" UNF - L.H.D.217£30.00- +
-119480 Spring Washer, 1/4 - L.H.D.219£30.00- +
4620-29-132 Bush212£30.00- +
4720-29-131 Bearing Spindle111£30.00- +
48690044 Pivot Bolt, 1/4" UNF × 2"118£30.00- +
49690046 Nut, Nyloc, 1/4" UNF115£30.00- +
50110807 Screw, 2 BA × 1", Hex. HD.11£30.00- +
51112941 Locknut, 2 BA116£30.00- +
52119496 Plain Washer, 3/16"17£30.00- +
5320-29-142 Stop - Accelerator Pedal13£30.00- +
54123115 Nut, Nyloc, 5/16" UNF18£30.00- +
5520-29-007 Accelerator Pedal Lever Assembly - R.H.D.14£30.00- +
5620-29-134 Roller119£30.00- +
5720-29-133 Distance Sleeve119£30.00- +
58112135 Screw, 2 BA × 1 3/8" Ch. Hd.113£30.00- +
59122315 Nut, Nyloc, 2 BA19£30.00- +
6020-29-136 Pedal Lever Support Tube Assembly14£30.00- +
61690049 Bush210£30.00- +
62125566 Nut, Avlok, 1/4" UNF415£30.00- +
63125581 Bolt, 1/4" UNF × 1 1/8"419£30.00- +
64119480 Spring Washer, 1/4"419£30.00- +
65690150 Special Washer, 1/4"410£30.00- +
6620-29-139 Spring, Pedal Lever, RH110£30.00- +
67690149 Grommet17£30.00- +
68690306 Rubber Plug12£30.00- +
6920-29-008 Accelerator Pedal Lever Assembly120£30.00- +
7020-29-137 Pedal Lever Support Tube Assembly25£30.00- +
62125566 Nut, Avloc, 1/4" UNF89£30.00- +
6620-29-139 Spring Pedal Lever, RH15£30.00- +
7120-29-009 Transverse Rod Assembly12£30.00- +
7220-29-143 Spring, Pedal Lever, L.H.16£30.00- +
7320-29-010 Throttle Linkage Lever Assembly17£30.00- +
74123127 Setscrew, 1/4" UNF × 3/4" - R.H.D.15£30.00- +
-123127 Setscrew, 1/4" UNF × 3/4" - L.H.D.21£30.00- +
75119480 Spring Washer, 1/4" - R.H.D.115£30.00- +
-119480 Spring Washer, 1/4" - L.H.D.213£30.00- +
7620-29-140 Operating Rod16£30.00- +
77125526 Ball Joint, LH Thread16£30.00- +
78110980 Locknut, 2 BA, LH Thread117£30.00- +
79125525 Ball joint, RH Thread119£30.00- +
80112941 Locknut, 2 BA RH Thread111£30.00- +
81122315 Nut, Nyloc, 2 BA219£30.00- +
8221-29-146 Fork End27£30.00- +
-21-29-147 Thrust Bar - Push Rod219£30.00- +
83125557 Locknut, 5/16" UNF420£30.00- +
8420-29-186 Anti-Rattle Spring - Accelerator Pedal12£30.00- +
8520-29-187 Retainer Plate - Anti-Rattle Spring116£30.00- +

Brake and Clutch Master Cylinder

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-33-101 Brake Master Cylinder Complete, 7/8" bore17£30.00- +
120-33-724 Body16£30.00- +
220-33-741 Cup Seal120£30.00- +
320-33-727 Support, Return Spring, Inner13£30.00- +
420-33-730 Spring, Valve110£30.00- +
520-33-726 Valve111£30.00- +
620-33-731 Seal, Piston119£30.00- +
720-33-729 Return Spring16£30.00- +
820-33-728 Support, Return Spring, Outer114£30.00- +
920-33-725 Piston111£30.00- +
1020-33-736 Recuperating Seal14£30.00- +
1120-33-733 Push Rod117£30.00- +
1220-33-737 Locknut, 5/16" UNF118£30.00- +
1320-33-734 Retaining Washer120£30.00- +
1420-33-735 Circlip, Internal110£30.00- +
1520-33-732 Dust Excluder12£30.00- +
-20-33-732 Service and Modification Kit, Brake Master Cylinder115£30.00- +
-20-33-104 Clutch Master Cylinder Complete, 3/4" bore11£30.00- +
-20-33-753 Kit - Clutch Master Cylinder15£30.00- +
1620-33-706 Body14£30.00- +
1720-33-714 Seal, Valve117£30.00- +
1820-33-712 Stem, Valve12£30.00- +
1920-33-715 Curved Spring Washer13£30.00- +
2020-33-713 Spacer, Valve111£30.00- +
2120-33-711 Return Spring112£30.00- +
2220-33-710 Retainer, Spring16£30.00- +
2320-33-709 Taper Seal111£30.00- +
2420-33-707 Plunger111£30.00- +
2520-33-708 Seal, Plunger112£30.00- +
2620-33-716 Push Rod17£30.00- +
2720-33-717 Retaining Washer11£30.00- +
2820-33-718 Circlip, Internal14£30.00- +
2920-33-719 Dust Cover114£30.00- +
-20-33-720 Clip117£30.00- +
-20-33-721 Retaining Band112£30.00- +
3020-33-722 Locknut, 5/16" UNF114£30.00- +
-20-33-105 Clutch Slave Cylinder Complete, 7/8" bore110£30.00- +
-54914 Kit - Clutch Slave Cylinder119£30.00- +
3120-33-746 Body114£30.00- +
3220-33-751 Spring116£30.00- +
3320-33-747 Seal114£30.00- +
3420-33-749 Piston110£30.00- +
3520-33-170 Pushrod15£30.00- +
3620-33-748 Dust Cover16£30.00- +
37110202 Locknut, 5/16" UNF113£30.00- +
3820-33-752 3/16" diam.112£30.00- +
3920-33-750 Bleed Screw14£30.00- +
4020-33-715 Dust Cap19£30.00- +

Front Brakes

Ill. No. Part No. product name Car
Total
Stock Price Quantity
b7df297c3e84 A different Brake System is used from Chassis No.1£30.00- +
c9e82dac8663 251 onwards.11£30.00- +
a22bd0afc9cb The letter A denotes a part or assembly used only19£30.00- +
d3852da463a3 on the earlier system.7£30.00- +
3801d3f86f80 The letter B denotes a part or assembly used only11£30.00- +
a640325f6295 on the later system.18£30.00- +
d64bb12166d1 Where no letter is shown, the part is common to11£30.00- +
ea035e30dd37 either system5£30.00- +
20-26-001 Front Brake Assembly, R. H. CompleteA 110£30.00- +
20-27-002 Front Brake Assembly, L. H. CompleteA 119£30.00- +
20-46-002 Front Brake Assembly, L. H. CompleteB 120£30.00- +
a92e102a2c72 Comprise all Brake Parts less Fixings for Calipers4£30.00- +
1691777fbb5d and Discs, and Shields.3£30.00- +
120-33-107 Vacuum Servo Unit Complete11£30.00- +
220-33-168 Washer, Banjo Bolt217£30.00- +
320-33-167 Banjo Bolt - Servo117£30.00- +
420-33-169 Pipe Assembly - Check Valve to ServoA 112£30.00- +
-20-33-240 Pipe Assembly - Valve to ServoB 13£30.00- +
520-33-121 Inner Support Clamp - ServoA 13£30.00- +
-20-33-001 Inner Support Clamp Assembly - ServoB 14£30.00- +
6690372 Balt, 1/4" UNF × 2 1/4" - Servo Clamp119£30.00- +
7690451 House, Vacuum - Manifold to Check ValveA 118£30.00- +
-20-33-227 Reinforcing Tube - Vacuum HoseA 119£30.00- +
-20-33-228 Hase, Vacuum - Manifold to Check ValveB 11£30.00- +
8114679 Hase Clip218£30.00- +
920-33-106 Check Valve Complete14£30.00- +
10114679 Hase Clip212£30.00- +
1120-33-165 Hase Connection - Check Valve to Pipe112£30.00- +
12122192 Plain Washer, 1/4" diam. - Check Valve25£30.00- +
13123130 Bolt, 1/4" UNF × 5/8" - Check Valve213£30.00- +
-125566 Nut, Avlok, 1/4" UNFA 28£30.00- +
-123116 Nut, Nyloc 1/4" UNFB 215£30.00- +
1420-33-179 Pipe Assembly, Brake -Supply Tank to Union - R. H. D.15£30.00- +
-20-33-180 Pipe Assembly, Brake -Supply Tank to Union - L. H. D.111£30.00- +
1520-33-231 Bracket - Supply Tank11£30.00- +
1620-33-229 Screw 2 BA × 3/4", Ch. Hd.120£30.00- +
1720-33-230 Nut, Nyloc 2 BA120£30.00- +
18123130 Bolt, 1/4" UNF × 5/8" - Supply Tank116£30.00- +
19122192 Plain Washer, 1/4" diam. -Supply Tank14£30.00- +
20125583 Plain Nut, 1/4" UNF - Supply Tank12£30.00- +
2120-33-108 Dual Supply Tank Complete17£30.00- +
2220-33-188 Pipe Assembly, Clutch - Supply Tank to Union - R. H. D.19£30.00- +
-20-33-186 Pipe Assembly, Clutch - Supply Tank to Union - L. H. D.14£30.00- +
2320--33-131 Pipe Assembly, Brake - Five way to Rear Hose17£30.00- +
-20-27-796 Wheel Cylinder and Piston AssemblyA 119£30.00- +
-20-46-730 Wheel Cylinder and Piston AssemblyB 119£30.00- +
2420-27-727 Cylinder, Front - CaliperA 411£30.00- +
-20-46-703 Cylinder, Front - CaliperB 418£30.00- +
-20-27-728 Cap418£30.00- +
-20-27-772 Spring Washer83£30.00- +
-20-27-729 Retractor Pin414£30.00- +
-20-27-730 Retractor Stop Bush44£30.00- +
2520-27-733 Piston Plate417£30.00- +
-20-27-735 Retractor Bush41£30.00- +
2620-27-734 Piston Seal414£30.00- +
2720-27-736 PistonA 420£30.00- +
-20-46-708 PistonB 414£30.00- +
-110862 Screw, 4 BA × 1/4", C'sk. Hd. - Plate to Piston82£30.00- +
-690348 Shakeproof Washer, Internal, 4 BA, C'sk.813£30.00- +
2820-27-738 Dust Seal412£30.00- +
2920-27-712 Bridge Pipe Assembly, Front - L.H.A 13£30.00- +
-20-46-716 Bridge Pipe Assembly, Front - R.H.B 18£30.00- +
-20-27-705 Friction Pad Assembly49£30.00- +
3020-27-745 Securing Plate-10£30.00- +
3120-27-744 Pad-9£30.00- +
-20-46-713 Friction Pad Assembly416£30.00- +
-20-46-715 Securing Plate-6£30.00- +
-20-46-714 Pad-13£30.00- +
-20-27-745 Securing Plate-1£30.00- +
-20-27-744 Pad-20£30.00- +
32125583 Plain Nut, 1/4" UNF - Keep Plate216£30.00- +
33111524 Shakeproof Washer, 1/4" diam.219£30.00- +
3420-27-732 Keep PlateA 214£30.00- +
-20-46-705 Keep PlateB 216£30.00- +
35690349 Bolt, 1/4" UNF × 1" - Keep Plate214£30.00- +
3620-27-742 Bleed Screw22£30.00- +
37111483 Ball, 3/16" diam.210£30.00- +
38111524 Shakeproof Washer, Internal, 1/4"A 166£30.00- +
-111517 Shakeproof Washer, Internal 5/16"B 1614£30.00- +
3920-27-773 Bolt, Special - CylinderA 1619£30.00- +
-20-46-712 Bolt, Special - CylinderB 1616£30.00- +
4020-27-731 Support PlateA 43£30.00- +
-20-46-704 Support PlateB 413£30.00- +
4120-27-774 Shim, .005" - Caliper Mounting, Front814£30.00- +
4220-27-775 Shim, .020" - Caliper Mounting, Front411£30.00- +
-20-27-001 Front Caliper Assembly - R. H.16£30.00- +
4320-27-002 Front Caliper Assembly - L. H.114£30.00- +
-20-46-001 Front Caliper Assembly - R. H.16£30.00- +
-23-46-002 Front Caliper Assembly - L. H.14£30.00- +
-23-46-001 Front Caliper Assembly - R. H.16£30.00- +
-42-27-100 Front Caliper Assembly - R. H.11£30.00- +
-42-27-102 Front Caliper Assembly - L. H.114£30.00- +
4420-27-179 Bolt, Special - Caliper Mounting, FrontA 420£30.00- +
-20-46-102 Bolt, Special - Caliper Mounting, FrontB 417£30.00- +
-13488 Locking WireA/R7£30.00- +
-20-46-100 Adaptor Plate, Front - R. H.B 14£30.00- +
-20-46-101 Adaptor Plate, Front - L. H.B 12£30.00- +
-20-46-103 Bolt, Special - Adaptor Plate to King PinB 45£30.00- +
-119472 Plain Washer, 3/8"1011£30.00- +
45690353 Nut, Pinnacle, 3/8" UNF - Disc to Front Hub1014£30.00- +
4620-27-101 Disc, FrontA 219£30.00- +
-20-46-107 Disc, FrontB 213£30.00- +
4720-27-177 Bolt, Special, 3/8" UNF × 1 3/4" - Disc to Front Hub1017£30.00- +
4820-33-133 Pipe Assembly, Brake-to LH Front Hose17£30.00- +
-20-33-171 Grommet - Valance Panel29£30.00- +
4920-33-160 Locknut, 5/8" diam. × 26 TPI, Inner-Hose to Lug212£30.00- +
5020-33-162 Shakeproof Washer, 5/8" diam.21£30.00- +
-20-33-155 Bracket, Front Hose, - L.H.11£30.00- +
-20-33-161 Locknut, 3/8" UNF, Outer - Hose to Bracket214£30.00- +
-20-33-163 Shakeproof Waher, 5/8" diam.22£30.00- +
5120-33-102 Flexible Hose Assembly - Front Brake210£30.00- +
5220-33-177 Pipe Assembly, Brake-Master Cylinder to Union - R.H.D117£30.00- +
-20-33-182 Pipe Assembly, Brake-Master Cylinder to Union - L.H.D119£30.00- +
5320-33-178 Pipe Assembly Brake - Union to Master Cylinder - R.H.D.11£30.00- +
-20-33-181 Pipe Assembly Brake - Union to Master Cylinder - L.H.D.13£30.00- +
5420-33-189 Pipe Assembly, Clutch-Union to Master Cylinder - R.H.D.119£30.00- +
-20-33-187 Pipe Assembly, Clutch-Union to Master Cylinder - L.H.D.116£30.00- +
5520-33-125 Union, 7/16" UNF210£30.00- +
5620-33--126 Union, 3/8" UNF17£30.00- +
5720-33-105 Slave Cylinder Assembly, Clutch115£30.00- +
5820-33-149 Pipe Assembly, Clutch-Master Cylinder to Hose - R.H.D.120£30.00- +
-20-33-184 Pipe Assembly, Clutch-Master Cylinder to Hose - L.H.D.15£30.00- +
-20-33-126 Union, 3/8" UNF - L.H.D.13£30.00- +
-20-33-185 Pipe Assembly, Clutch-Union to Hose - L.H.D.116£30.00- +
5920-33-153 Flexible Hose Assembly, Clutch119£30.00- +
6020-33-150 Clamp Strip, Long37£30.00- +
6120-33-151 Clamp Block, 3 Pipe62£30.00- +
-20-34-134 Clamp strip, Short - L.H.D.116£30.00- +
-20-33-174 Clamp Block, 2 Pipe - L.H.D.219£30.00- +
62121701 Bolt, 2 BA × 1 1/4" - Clamp Block - R.H.D.69£30.00- +
-121701 Bolt, 2 BA × 1 1/4" - Clamp Block - L.H.D.713£30.00- +
63119488 Spring Washer, 3/16" - Clamp Block - R.H.D.68£30.00- +
-119488 Spring Washer, 3/16" - Clamp Block - L.H.D.75£30.00- +
-20-33-176 Pipe Clip. Twin - R.H.D.219£30.00- +
-20-37-191 Pipe Clip, Single615£30.00- +
-122013 Screw, PK No 6 × 3-16" - R.H.D81£30.00- +
-122013 Screw, PK No 6 × 3-16" - L.H.D615£30.00- +
6420-33-157 Bracket, Clutch Hose16£30.00- +
-113457 Bolt, 2 BA × 1/2" - Bracket23£30.00- +
-119488 Spring Washer, 3/16"22£30.00- +
-111109 Plain Nut. 2 BA29£30.00- +
6520-33-104 Master Cylinder Clutch16£30.00- +
6620-33-101 Master Cylinder, Brake19£30.00- +
6720-33-132 Pipe Assembly, Brake-Servo to Five-way Connection12£30.00- +
68125470 Bolt, 1/4" UNF × 1 1/4" - Five-way Connection12£30.00- +
69119480 Spring Washer, 1/4"13£30.00- +
7020-33-156 Five-way Connection111£30.00- +
7120-33-134 Pipe Assembly, Brake-to RH Front Hose116£30.00- +
7220-33-138 Riser Pipe Assembly - R.H.110£30.00- +
-20-33-137 Riser Pipe Assembly - L.H.116£30.00- +
7320-27-185 Disc Shield Assembly - R.H.17£30.00- +
-20-46-005 Disc Shield Assembly - R.H.119£30.00- +
-20-27-186 Disc Shield Assembly - L.H.19£30.00- +
-20-46-006 Disc Shield Assembly - L.H.13£30.00- +
7420-33-154 Bracket, Front Hose, - R.H.118£30.00- +
7520-27-711 Bridge Pipe Assembly - Front - R.H.111£30.00- +
-20-46-710 Bridge Pipe Assembly - Front - R.H.112£30.00- +
7620-33-128 Pipe Assembly, Brake-Union to Servo - R.H.D12£30.00- +
-20-33-183 Pipe Assembly, Brake-Union to Servo - L.H.D112£30.00- +
77690418 Copper Washer, for 3/8" BSP-Manifold Banjo218£30.00- +
7820-33-123 Banjo Connection - Manifold113£30.00- +
7920-33-122 Banjo Bolt, 5/8" UNF16£30.00- +
8020-33-164 Air Cleaner - Servo19£30.00- +
81122192 Plain Washer, 1/4" - Servo Brackets57£30.00- +
82123116 Nut, Nyloc. 1/4" UNF - Servo Brackets56£30.00- +
8320-33-120 Outer Support Bracket - Servo15£30.00- +
84123116 Nut, Nyloc, 1/4" UNF - Clamp Bolt16£30.00- +
85122192 Plain Washer, 1/4" - Clamp Bolt212£30.00- +
86690404 Plain Washer, Special, Cad. Pl.318£30.00- +
87123116 Nut, Nyloc, 1/4" UNF - Servo317£30.00- +
-20-27-701 Service Kit, Wheel Cylinder, Front8£30.00- +
-20-33-743 Service Kit, Servo Piston Packing14£30.00- +
-20-33-745 Service Kit, Servo16£30.00- +
-20-33-744 Service Kit, Air Control Valve15£30.00- +
d29ebf1c3212 Service Kit, Brake Master Cylinder14£30.00- +

Handbrake

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-30-001 Hand Brake Lever Assembly - R.H.D.16£30.00- +
-20-30-002 Hand Brake Lever Assembly - L.H.D.13£30.00- +
2690144 Circlip, Internal15£30.00- +
320-30-120 Lock Plunger114£30.00- +
420-30-123 Link Pin15£30.00- +
520-30-003 Pawl Link Assembly112£30.00- +
6690423 Spring - Lock Plunger117£30.00- +
720-30-124 Pawl Pivot Bolt113£30.00- +
8110822 Split Pin, 1/32" diam. × 3/8"13£30.00- +
920-30-122 Pivot Pin - Pawl Link15£30.00- +
1020-30-004 Pawl Assembly - R.H.D.114£30.00- +
-20-30-005 Pawl Assembly - L.H.D.116£30.00- +
11122442 Plain Washer, 3/16", Chromed11£30.00- +
12112941 Locknut, 2 BA211£30.00- +
13690504 Tension Pin, 1/4" diam. × 1 1/2"13£30.00- +
14690143 Screw, 5/16" UNF × 3/4", C'sk. Hd.215£30.00- +
1520-30-153 Ratchet - R.H.D.119£30.00- +
-20-30-154 Ratchet - L.H.D.15£30.00- +
16690384 Bolt, 2 BA × 5/8"117£30.00- +
17112941 Locknut, 2 BA118£30.00- +
1820-30-011 Stop Bracket Assembly - R.H.D.15£30.00- +
-20-30-012 Stop Bracket Assembly - L.H.D.14£30.00- +
19119481 Spring Washer, 5/16"27£30.00- +
20125557 Plain Nut, 5/16" UNF28£30.00- +
2120-30-013 Mounting Tube Assembly - R.H.D.118£30.00- +
-20-30-014 Mounting Tube Assembly - L.H.D.19£30.00- +
2220-30-126 Cross Tube118£30.00- +
24119480 Spring Washer, 1/4"816£30.00- +
25690145 Bush220£30.00- +
26111732 Screw, 2 BA × 1/2", C'sk. Hd.39£30.00- +
2720-30-155 Tunnell Socket13£30.00- +
2820-30-127 Sealing Grommet16£30.00- +
29122442 Plain Washer, 3/16", Chromed38£30.00- +
30122315 Nut, Nyloc, 2 BA36£30.00- +
3120-30-128 Lever - Crosstube114£30.00- +
32690504 Tension Pin, 1/4" diam. × 1 1/2"110£30.00- +
3320-30-139 Fork End213£30.00- +
3420-30-129 Pivot Pin, Long28£30.00- +
3520-30-119 Cleat - Return Spring14£30.00- +
36110823 Split Pin, 3/64 " diam. × 1/2"218£30.00- +
37125583 Plain Nut, 1/4" UNF27£30.00- +
3820-30-140 Threaded Rod118£30.00- +
3920-30-121 Compensating Arm17£30.00- +
4020-30-130 Pivot Pin, Short211£30.00- +
41119470 Plain Washer, 1/4"38£30.00- +
42110823 Split Pin, 3/64" diam. × 1/2"220£30.00- +
4320-30-161 Return Spring16£30.00- +
4420-30-163 Anchor Bracket15£30.00- +
-690076 Screw, 4 BA × 3/8", Ch. Hd.215£30.00- +
-110856 Spring Washer, 4 BA218£30.00- +
45122375 Bung116£30.00- +
4620-30-010 Cable, Hand Brake, Assembly22£30.00- +
4720-30-152 Pivot Pin, 5/16" - Caliper Lever Arm25£30.00- +
48119471 Plain Washer, 5/16"218£30.00- +
49110823 Split Pin, 3/64" diam. × 1/2"21£30.00- +
5020-30-156 Cable Clip, Dual12£30.00- +
51114666 Bolt, 2 BA × 1/4"14£30.00- +
52122442 Plain Washer, 3/16"120£30.00- +
53122315 Nut, Nyloc, 2 BA17£30.00- +
5420-37-191 Cable Clip, Single27£30.00- +
20-30-749 Grease Nipple, Special215£30.00- +

Pedals and Pedal Gear

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-29-113 Clutch Pedal Lever120£30.00- +
220-29-111 Brake Pedal Lever116£30.00- +
-20-29-156 Pedal Return Spring214£30.00- +
320-29-114 Pedal Pad23£30.00- +
420-29-141 Rubber Pad211£30.00- +
5123131 Bolt, 5/16" UNF × 1"29£30.00- +
6119471 Plain Washer, 5/16"24£30.00- +
7123115 Nut, Nyloc, 5/16" UNF217£30.00- +
8690041 Bush, Pedal Levers46£30.00- +
920-29-117 Pivot Pin, Pedals14£30.00- +
-21-29-117 Pivot Pin, Pedals120£30.00- +
10111290 Circlip, External, 3/4"211£30.00- +
11690552 Socket Setscrew, 2 BA × 1/2"18£30.00- +
1220-29-116 Support Bracket - Pedals113£30.00- +
1320-29-144 Mounting Bracket - Master Cylinders18£30.00- +
14690347 Bolt, 5/16" UNF × 6 1/2"115£30.00- +
15690062 Bolt, 5/16" UNF × 3 1/2"48£30.00- +
-690062 Bolt, 5/16" UNF × 3 1/2"316£30.00- +
-690458 Stud, 5/16" UNC/UNF × 6.55"212£30.00- +
16119471 Plain Washer, 5/16"57£30.00- +
17123115 Nut, Nyloc, 5/16" UNF511£30.00- +
1820-29-145 Push Rod Assembly215£30.00- +
-125557 Locknut, 5/16" UNF217£30.00- +
19122340 Headed Pin29£30.00- +
2020-29-148 Spring Anchor217£30.00- +
21119527 Split Pin, 3/32" diam. × 3/4"213£30.00- +
2220-29-004 Cover Plate Assembly26£30.00- +
2320-29-120 Gaiter210£30.00- +
2420-29-119 Stop Plate21£30.00- +
25119471 Plain Washer, 5/16"47£30.00- +
26123115 Nut, Nyloc, 5/16" UNF45£30.00- +
2721-29-149 Shield Assembly - Pedal Gear - R.H.D.112£30.00- +
2821-29-150 Shield Assembly - Pedal Gear - L.H.D.113£30.00- +
-122013 Screw, P. K. No. 6 Hex. Hd.1114£30.00- +
2920-29-167 Adjuster - Return Spring220£30.00- +
30119470 Plain Washer, 1/4"214£30.00- +
31690402 Locknut, 1/4" UNF413£30.00- +
3220-29-156 Spring Pedal Return220£30.00- +
3320-29-182 Access Panel - Master Cylinders218£30.00- +
3420-29-160 Footwell Assembly15£30.00- +
3520-29-157 Blanking Cover Assembly14£30.00- +
36119650 Rivet, 1/2"10813£30.00- +
3720-29-158 Footwell17£30.00- +
3820-29-159 Blanking Cover Assembly111£30.00- +
39123132 Bolt, 5/16" UNF × 1 3/8" - for Master Cylinder416£30.00- +
40119471 Plain Washer, 5/16"42£30.00- +
41123115 Nut, Nyloc, 5/16" UNF410£30.00- +
4220-29-006 Accelerator Pedal Assembly17£30.00- +
4320-29-005 Bearing Bracket Assembly115£30.00- +
44123127 Bolt, 1/4" UNF × 3/4"21£30.00- +
45690046 Nut, Nyloc, 1/4" UNF - R.H.D.210£30.00- +
-125566 Nut, Nyloc, 1/4" UNF - L.H.D.211£30.00- +
-119480 Spring Washer, 1/4 - L.H.D.216£30.00- +
4620-29-132 Bush210£30.00- +
4720-29-131 Bearing Spindle113£30.00- +
48690044 Pivot Bolt, 1/4" UNF × 2"16£30.00- +
49690046 Nut, Nyloc, 1/4" UNF117£30.00- +
50110807 Screw, 2 BA × 1", Hex. HD.15£30.00- +
51112941 Locknut, 2 BA110£30.00- +
52119496 Plain Washer, 3/16"118£30.00- +
5320-29-142 Stop - Accelerator Pedal119£30.00- +
54123115 Nut, Nyloc, 5/16" UNF112£30.00- +
5520-29-007 Accelerator Pedal Lever Assembly - R.H.D.113£30.00- +
5620-29-134 Roller113£30.00- +
5720-29-133 Distance Sleeve13£30.00- +
58112135 Screw, 2 BA × 1 3/8" Ch. Hd.17£30.00- +
59122315 Nut, Nyloc, 2 BA114£30.00- +
6020-29-136 Pedal Lever Support Tube Assembly119£30.00- +
61690049 Bush214£30.00- +
62125566 Nut, Avlok, 1/4" UNF46£30.00- +
63125581 Bolt, 1/4" UNF × 1 1/8"48£30.00- +
64119480 Spring Washer, 1/4"45£30.00- +
65690150 Special Washer, 1/4"413£30.00- +
6620-29-139 Spring, Pedal Lever, RH13£30.00- +
67690149 Grommet14£30.00- +
68690306 Rubber Plug112£30.00- +
6920-29-008 Accelerator Pedal Lever Assembly13£30.00- +
7020-29-137 Pedal Lever Support Tube Assembly215£30.00- +
62125566 Nut, Avloc, 1/4" UNF86£30.00- +
6620-29-139 Spring Pedal Lever, RH117£30.00- +
7120-29-009 Transverse Rod Assembly16£30.00- +
7220-29-143 Spring, Pedal Lever, L.H.12£30.00- +
7320-29-010 Throttle Linkage Lever Assembly17£30.00- +
74123127 Setscrew, 1/4" UNF × 3/4" - R.H.D.18£30.00- +
-123127 Setscrew, 1/4" UNF × 3/4" - L.H.D.23£30.00- +
75119480 Spring Washer, 1/4" - R.H.D.116£30.00- +
-119480 Spring Washer, 1/4" - L.H.D.21£30.00- +
7620-29-140 Operating Rod111£30.00- +
77125526 Ball Joint, LH Thread118£30.00- +
78110980 Locknut, 2 BA, LH Thread119£30.00- +
79125525 Ball joint, RH Thread114£30.00- +
80112941 Locknut, 2 BA RH Thread113£30.00- +
81122315 Nut, Nyloc, 2 BA218£30.00- +
8221-29-146 Fork End29£30.00- +
-21-29-147 Thrust Bar - Push Rod29£30.00- +
83125557 Locknut, 5/16" UNF416£30.00- +
8420-29-186 Anti-Rattle Spring - Accelerator Pedal14£30.00- +
8520-29-187 Retainer Plate - Anti-Rattle Spring110£30.00- +

Rear Brakes

Ill. No. Part No. product name Car
Total
Stock Price Quantity
20-27-003 Rear Brake Assembly, R.H. CompleteA 12£30.00- +
20-27-004 Rear Brake Assembly, L.H. CompleteA 119£30.00- +
20-46-003 Rear Brake Assembly, R.H. CompleteB 12£30.00- +
20-46-004 Rear Brake Assembly, L.H. CompleteB11£30.00- +
0f6d381dbc26 Comprise all Brake Parts less Hand Brake Parts,20£30.00- +
e0220ad4837a Shields and Fixongs for Calipers and Discs.2£30.00- +
-20-27-006 Hand Brake, RH Complete113£30.00- +
-20-27-007 Hand Brake, LH Complete15£30.00- +
120-27-104 Disc, Rear23£30.00- +
220-33-135 Pipe Assembly, Brake-T Piece to RH Rear Caliper113£30.00- +
3125583 Plain Nut, 1/4" UNF - T Piece14£30.00- +
4122192 Plain Washer, 1/4" - T Piece110£30.00- +
520-33-124 T Piece Connection12£30.00- +
6690045 Bolt, 1/4" UNF × 1" - T Piece18£30.00- +
720-33-136 Pipe Assembly, Brake-T Piece to LH Rear Caliper112£30.00- +
820-27-795 Cylinder Rear - CaliperA 45£30.00- +
-20-46-729 Cylinder Rear - CaliperB 411£30.00- +
-20-27-728 Cap419£30.00- +
-20-27-772 Spring Washer88£30.00- +
-20-27-729 Retractor Pin46£30.00- +
-20-27-730 Retractor Stop Bush43£30.00- +
920-27-752 Piston PlateA 419£30.00- +
-20-46-722 Piston PlateB 47£30.00- +
1020-27-751 Piston SealA 420£30.00- +
-20-46-721 Piston SealB 410£30.00- +
1120-27-753 PistonA 48£30.00- +
-20-46-723 PistonB 45£30.00- +
-110862 Screw, 4 BA × 1/4", C'sk. Head - Plate to Piston81£30.00- +
-690348 Shakeproof Washer, 4 BA. C'sk.813£30.00- +
1220-27-754 Dust Seal416£30.00- +
1320-27-737 Backing Plate417£30.00- +
1420-27-705 Friction Pad AssemblyA 419£30.00- +
-20-46-725 Friction Pad AssemblyB 416£30.00- +
1520-27-732 Keep Plate218£30.00- +
-690349 Bolt, 1/4" UNF × 1" - Keep Plate215£30.00- +
-111524 Shakeproof Washer, Internal, 1/4"220£30.00- +
-125583 Plain Nut, 1/4" UNF219£30.00- +
1620-27-181 Bolt, Special, 7/16" UNF × 1 1/4" - Caliper Mounting, Rear47£30.00- +
-13488 Locking WireA/R15£30.00- +
-20-27-793 Shim, .005" - Caliper Mounting Rear820£30.00- +
-20-27-794 Shim, .020" - Caliper Mounting, Rear414£30.00- +
1720-27-004 Rear Caliper Assembly - L.H.111£30.00- +
-20-46-004 Rear Caliper Assembly - L.H.116£30.00- +
-23-46-004 Rear Caliper Assembly - L.H.13£30.00- +
-42-27-106 Rear Caliper Assembly - L.H.110£30.00- +
1820-27-156 Adapter Plate. Rear - L.H.11£30.00- +
-20-27-195 Shim, .056" - Rear Adaptor PlateA/R19£30.00- +
1920-27-731 Support Plate411£30.00- +
2020-27-742 Bleed Screw218£30.00- +
21111483 Ball, 3/16" diam.218£30.00- +
2220-27-742 Bolt, Special, 3/8" UNF × 1 1/8" - Disc to Rear Hub1013£30.00- +
23111483 Spring Washer, Thin, 3/8"1020£30.00- +
2420-27-771 Bolt, Hand Brake29£30.00- +
2520-27-764 Pad Carrier - Outer219£30.00- +
26/2920-27-705 Friction Pad Assembly417£30.00- +
-20-27-744 Pad-11£30.00- +
-20-27-745 Securing Plate-7£30.00- +
27690350 Bifurcated Rivet, Short41£30.00- +
28690351 Bifurcated Rivet, Long418£30.00- +
30690352 Split Pin, 1/16" diam. × 1/2" - Hinge Pin29£30.00- +
-20-27-719 Pad Carrier, Inner Assembly - R.H.118£30.00- +
3120-27-722 Pad Carrier, Inner Assembly - L.H.119£30.00- +
32119470 Plain Washer, 1/4" - Hinge Pin219£30.00- +
3320-27-762 Pivot Seat24£30.00- +
3420-27-724 Lever Assembly, Hand Brake26£30.00- +
3520-27-784 Hinge Pin218£30.00- +
36122364 Nut, Philidas, 5/16" UNF - Hand Brake Bolt212£30.00- +
3720-27-776 Tab Washer - Pad Carrier Bolt29£30.00- +
3820-27-770 Bolt - Pad Carrier415£30.00- +
3920-27-735 Retractor Bush48£30.00- +
4020-27-717 Bridge Pipe Assembly, Rear - L.H.A 116£30.00- +
-20-46-727 Bridge Pipe Assembly, Rear - R.H.B 118£30.00- +
41111524 Shakeproof Washer, Internal, 1/4"1616£30.00- +
4220-27-773 Bolt, Special - Cylinders1612£30.00- +
4320-33-103 Flexible Hose Assembly116£30.00- +
4420-38-158 Lug - Rear Brake Hose18£30.00- +
-20-33-161 Loocknut, 3/8" UNF - Hose to Lug116£30.00- +
-20-33-163 Shakerproof Washer, 3/8" diam.120£30.00- +
-20-33-159 Cooper Washer - Hose to T Piece117£30.00- +
45113457 Bolt, 2 BA × 1/2" - Lug23£30.00- +
46119488 Spring Washer, 3/16"24£30.00- +
47111109 Plain Nut, 2 BA27£30.00- +
4820-27-716 Bridge Pipe Assembly, Rear - R.H.A 117£30.00- +
4920-27-003 Bridge Pipe Assembly, Rear - R.H.B 14£30.00- +
-20-46-003 Rear Caliper Assembly - R.H.18£30.00- +
-23-46-003 Rear Caliper Assembly - R.H.110£30.00- +
-42-27-105 Rear Caliper Assembly - R.H.17£30.00- +
5020-27-148 Adaptor Plate, Rear - R.H.12£30.00- +
511a5b8b279975 Pipe Assembly, Brake - Five-way to Rear Hose17£30.00- +
-20-27-702 Service Kit, Wheel Cylinder, Rear10£30.00- +
-20-27-703 Service Kit, Hand Brake4£30.00- +

Chassis Frame Body etc

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-30-04-04 Spring Retaining Bolt Assembly, Bonnet (Front)19£30.00- +
131-04-05 Spring Retaining Bolt Assembly, Bonnet (Rear)16£30.00- +
-30-04-26 Safety Catch Assembly, Bonnet (Front)18£30.00- +
-690037 Bolt, 1/4" UNF × 1/2"312£30.00- +
-119470 Plain Washer, 1/4"37£30.00- +
-119480 Spring Washer, 1/4"33£30.00- +
-30-04-05 Catch Plate Assembly, Bonnet (Front)19£30.00- +
-30-04-27 Release Cable Assembly - Bonnet Lock17£30.00- +
-31-04-04 Catch Plate and Safety Hook Assembly (Rear)117£30.00- +
-31-04-47 Catch Operating Assembly13£30.00- +
-31-04-40 Link Assembly18£30.00- +
-31-04-46 Release Cable Assembly11£30.00- +
230-17-42 Sealing Section, Bonnet Top116£30.00- +
330-17-16 Rubber Finisher, Bonnet Aperture119£30.00- +
-30-34-00 Bonnet Stay Assembly119£30.00- +
430-34-13 Bonnet Stay Assembly12£30.00- +
-30-34-06 Clip, Bonnet Stay17£30.00- +
530-34-08 Safety Cable Assembly - Bonnet17£30.00- +
630-06-43 Rotary Door Lock and ) Supplied - R.H.18£30.00- +
730-06-44 Remote Control Unit ) together19£30.00- +
830-05-40 Rotary Door Lock and ) Supplied - L.H.114£30.00- +
930-05-41 Remote Control Unit ) together13£30.00- +
1030-06-06 Frame, Window, Assembly-Chromed - R.H.15£30.00- +
1130-05-06 Frame, Window, Assembly-Chromed - L.H.13£30.00- +
12121536 Felt - Window Frame Channel215£30.00- +
1330-17-54 Sponge Rubber Seal - Window Frame28£30.00- +
1430-11-21 Weatherstrip - Door Waist Rail411£30.00- +
-30-27-164 Weatherstrip - Door Waist Rail - Saloon420£30.00- +
-37-27-164 Weatherstrip - Door Waist Rail - Coupe45£30.00- +
-30-20-35/34 End Cap - Door Waist Rail26£30.00- +
-125455 Sealing Rubber - Door Shut Piller21£30.00- +
-30-17-54 Sealing Rubber - Door Aperture - Upper214£30.00- +
-30-17-12 Sealing Rubber - Door Aperture21£30.00- +
-30-20-36 Finisher - Door Aperture - Upper - R.H.111£30.00- +
-30-20-37 Finisher - Door Aperture - Upper - L.H.116£30.00- +
1530-05-04 Check Assembly Door210£30.00- +
-30-05-46 Rubber Buffer - Door Check210£30.00- +
-30-05-51 Anti-Rattle Rubber - Door Check218£30.00- +
1630-17-43 Sponge Rubber Seal - Hinge Pillar, Body210£30.00- +
1730-17-19 Sealing Rubber - Hinge Piller, Body25£30.00- +
-30-17-24 Sealing Rubber, Door Glass - Quarter Piller, Body24£30.00- +
1830-17-58 Sponge Rubber Seal - Quarter Piller, Body219£30.00- +
1930-17-18 Sealing Rubber, Door, Rear - Body22£30.00- +
2030-17-22 Sealing Rubber, Door Trim Pad - R.H.110£30.00- +
2130-17-23 Sealing Rubber, Door Trim Pad - L.H.115£30.00- +
2230-17-20 Sponge Rubber Seal, Door, Bottom215£30.00- +
-30-16-12 Glass, Rear Window, Clear, Laminated110£30.00- +
2330-16-19 Glass, Rear Window, Sundym, Toughened117£30.00- +
-20-50-020 Glass, Rear Window, Clear, Demisting113£30.00- +
2430-17-32 Surround Rubber, Rear Window112£30.00- +
2530-17-33 Filler Strip Rubber, Rear Window Surround15£30.00- +
2630-18-24 Insert Rear Window Surround - R.H.118£30.00- +
-30-18-43 Insert, Finisher219£30.00- +
2730-18-25 Insert, Rear Window Surround - L.H.17£30.00- +
2830-07-25 Handle Assembly - Boot Lid Lifting14£30.00- +
-690075 Screw, 2 BA × 3/8" C"sk. Hd.110£30.00- +
-690712 Shapeproof Washer, 3/16" C'sk110£30.00- +
-690268 Special Nut, 1/8" Whit. R'sd. Hd.210£30.00- +
2930-07-24 Aston Martin Badge - Lifting Handle12£30.00- +
-119496 Plain Washer, 3/16"25£30.00- +
-112129 Nut, Simmonds, 2 BA212£30.00- +
30690248 Rubber Seal - Reverse Lamp18£30.00- +
3130-07-14 Staple, Boot Lid Lock, 1/4" UNF18£30.00- +
3230-17-17 Sealing Rubber, Boot Lid15£30.00- +
3330-07-19 Lock, Boot Lid, complete with 2 Keys19£30.00- +
3430-07-20 Escutcheon - Boot Lid Lock117£30.00- +
3530-39-06 Spring, Boot Lid Stay48£30.00- +
-20-25-31 Mat Boot Floor120£30.00- +
-30-25-40 Underfelt, Boot Floor Mat112£30.00- +
3630-25-56 Mat Boot Floor113£30.00- +
3730-25-61 Underfelt, Boot Floor Mat11£30.00- +
-30-08-06 Petol Filler Flap Assembly17£30.00- +
-30-08-22 Hinge110£30.00- +
-30-08-38 Nut111£30.00- +
-30-08-35 Pin13£30.00- +
-30-08-36 Cap Nut116£30.00- +
-30-08-32 Polysar Sealing Washer115£30.00- +
-30-08-37 Spring for Cap14£30.00- +
-30-08-34 Cable Assembly, Filler Catch Release118£30.00- +
-30-17-46 Rubber Hose - Filler Neck14£30.00- +
3830-17-40 Rubber Drain Tube - Filler Box111£30.00- +
3930-09-19 Ashtray - Front Facia16£30.00- +
4030-09-20 Surround, Ashtray19£30.00- +
-30-10-19 Ashtray, Swivelling - Rear Compartment24£30.00- +
4130-05-44 Handle, Door Lock, Interior29£30.00- +
42A59167 Handle Window Regulating216£30.00- +
-48-65-45 Handle Window Regulating21£30.00- +
-90677 Repair Kit - for Window Regulator17£30.00- +
-90678 Gear3£30.00- +
-90679 Rivet Bush11£30.00- +
43A59168 Escutcheon, Handle, Spring Loaded413£30.00- +
44475005 Striker Plate Assembly - R.H.116£30.00- +
45475217 Striker Plate Assembly - L.H.112£30.00- +
-125454 Screw, 1/4" ANF × 1/8" C'sk. Hd. - Striker Plate615£30.00- +
4630-20-39 Finisher, Door Trim, Stainless Steel - R.H.14£30.00- +
4730-20-38 Finisher, Door Trim, Stainless Steel - L.H.111£30.00- +
48475114 Cowl, Demister Outlet312£30.00- +
4930-18-05 Rear Number Plate Surround Assembly15£30.00- +
5030--13-00 Rear Bumper Assembly Complete115£30.00- +
5130-13-11 Blade Assembly, Rear Bumper120£30.00- +
-30-12-22 Grommet - Bumper Tubes415£30.00- +
5230-13- Over-rider Assembly, Rear Bumper - R.H.111£30.00- +
5330-13-19 Over-rider Assembly, Rear Bumper - L.H.13£30.00- +
5474403 Beading, Black Plastic - Over-riders216£30.00- +
130-11-11 Grille, Radiator118£30.00- +
-30-11-27 Grille, Radiator118£30.00- +
230-11-01 Surround Assembly, Radiator Grille - Chromed112£30.00- +
-113440 Plain Washer, 5/32"1310£30.00- +
-111885 Spring Washer, 5/32"1318£30.00- +
-119418 Plain Nut, 4 BA135£30.00- +
3475425 Aston Martin Bonnet Badge117£30.00- +
-119496 Plain Washer, 3/16"25£30.00- +
-119488 Spring Washer, 3/16"219£30.00- +
-111109 Plain Nut, 2 BA219£30.00- +
430-10-12 "Superleggera" Badge, complete with 6 Plain Nuts, 8 BA26£30.00- +
-30-04-28 Scoop Grille, Bonnet18£30.00- +
530-28-66 Scoop Grille Assembly, Bonnet119£30.00- +
-30-04-03 Hinge Assembly, Bonnet - R.H.19£30.00- +
-30-04-02 Hinge Assembly, Bonnet - L.H.14£30.00- +
-690280 Hinge Bolt, 1/4" UNF × 1 1/2" (supersedes Hinge Pin etc)23£30.00- +
-123116 Nut, Nyloc, 1/4" UNF217£30.00- +
631-04-33 Hinge Bracket Assembly, Bonnet - R. H.14£30.00- +
731-04-16 Hinge Bracket Assembly, Bonnet - L. H.11£30.00- +
-119394 Screw, 2 BA × 5/8" Hex. Hd.21£30.00- +
-119496 Plain Washer, 5/16"219£30.00- +
-111519 Shakeproof Washer, 3/16"213£30.00- +
830-17-35 Stop Buffer, Bonnet Side66£30.00- +
-30-17-38 Stop Buffer, Bonnet Front44£30.00- +
920-10-118 Stop Buffer, Bonnet Rear22£30.00- +
1030-16-11 Windscreen Glass110£30.00- +
-27-50-079 Windscreen Glass - Sundym13£30.00- +
1130-17-30 Surround Rubber, Windscreen117£30.00- +
1230-17-31 Filler Strip Rubber Windscreen Surround17£30.00- +
1330-18-22 Insert, Windscreen Surround, Chromed - R.H.111£30.00- +
1430-18-23 Insert, Windscreen Surround, Chromed - L.H.119£30.00- +
-30-18-43 Finisher213£30.00- +
-30-16-14 Window Glass, Door, Curved - R.H.15£30.00- +
-30-16-13 Window Glass, Door, Curved - L.H.112£30.00- +
1530-16-21 Window Glass, Door, Flat22£30.00- +
-30-16-16 Quarterlight Glass, Curved - R.H.115£30.00- +
-30-16-15 Quarterlight Glass, Curved - L.H.15£30.00- +
1630-17-22 Quarterlight Glass, Flat21£30.00- +
1730-24-11 Fastener Assembly, Quarterlight29£30.00- +
-37-17-65 Sealing Rubber - Hardtopfixing14£30.00- +
-37-17-01 Sealing Rubber - Shut Piller211£30.00- +
-37-24-01 Fastener Assembly - Hood Fixing37£30.00- +
1830-17-37 Rubber Hinging Channel, Quarterlight22£30.00- +
1930-17-14 Sealing Rubber, Quarterlight - R.H.15£30.00- +
2030-17-13 Sealing Rubber, Quarterlight - L.H.118£30.00- +
2130-17-47 Sponge Rubbre Cord, Quarterlight Rubber214£30.00- +
-30-19-12 Retainer, Aluminium, for 30-17-14 - R.H.117£30.00- +
-30-19-11 Retainer, Aluminium, for 30-17-13 - L.H.12£30.00- +
2230-19-15 Retainer, Aluminium, for 30-17-14 - R.H.12£30.00- +
2330-19-14 Retainer, Aluminium, for 30-17-13 - L.H.119£30.00- +
24475213 Locking Handle complete with 2 Keys - R.H.14£30.00- +
25475214 Locking Handle complete with 2 Keys - L.H.114£30.00- +
26475216 Fibre Pad, Large - Handle Packing23£30.00- +
27475299 Fibre Pad, small - Handle Packing24£30.00- +
-30-06-37 Arm, Remote Control, Long23£30.00- +
-30-06-57 Arm, Remote Control, Long217£30.00- +
-30-06-38 Arm, Remote Control, Short220£30.00- +
-30-06-45 Link, Handle Lock Control - R.H.116£30.00- +
-30-05-42 Link, Handle Lock Control - L.H.16£30.00- +
-30-06-42 Window Regulator and ) Supplied - R.H.15£30.00- +
-30-06-49 Channel, Window Lift ) together11£30.00- +
-30-05-27 Window Regulator and ) Supplied - L.H.12£30.00- +
-30-05-39 Channel, Window Lift ) together17£30.00- +
-30-06-56 Window Regulator and ) Supplied - R.H.113£30.00- +
-30-05-64 Window Regulator and ) Supplied - L.H.118£30.00- +
-30-17-41 Glazing Rubber, for Lift Channel211£30.00- +
-30-17-12 Sealing Rubber, Door Glass - Cant Rail, Body28£30.00- +
-30-17-26 Retainer, Cant Rail Sealing Rubber - R.H.17£30.00- +
-30-17-25 Retainer, Cant Rail Sealing Rubber - L.H.19£30.00- +
2830-15-44 Seat Runner Assembly - Inner - R.H.16£30.00- +
2930-14-54 Seat Runner Assembly - Inner - L.H.17£30.00- +
3030-14-56 Seat Runner Assembly - Outer217£30.00- +
31- Gaiter, Gear Lever117£30.00- +
32476093 Grommet Gear Lever Gaiter111£30.00- +
-- Pad, Cavity Sponge Rubber116£30.00- +
-30-17-44 Rubber Joint - Gearbox Cover to Floor119£30.00- +
3330-10-13 Sunvisor Complete216£30.00- +
3430-10-23 Licence Holder110£30.00- +
-30-32-02 Radio Housing113£30.00- +
3530-24-13 Mirror, Interior Driving11£30.00- +
-30-24-15 Mirror, Interior Driving - swivel116£30.00- +
-30-12-20 Front Number Plate Mounting Box117£30.00- +
3630-18-30 Side Vent Finisher, Front Wing - R.H.17£30.00- +
3730-18-29 Side Vent Finisher, Front Wing - L.H.111£30.00- +
3830-12-00 Front Bumper Assembly Complete11£30.00- +
3930-12-11 Blade Assembly, Front Bumper12£30.00- +
-30-12-22 Grommet - Bumper Tubes210£30.00- +
4030-12-24 Over-rider Assembly, Front Bumper - R.H.12£30.00- +
4130-12-23 Over-rider Assembly, Front Bumper - L.H.13£30.00- +
4274403 Beading, Black Plastic - Over-riders25£30.00- +
1030-03-0043 FRONT END PANEL - complete14£30.00- +
-055-61-0365 Half panel - front end - RH118£30.00- +
2055-61-0366 Half panel - front end - LH12£30.00- +
3030-03-0044 FRONT SUB ASSEMBLY13£30.00- +
-055-61-0363 Quarter panel - RH16£30.00- +
4055-61-0364 Quarter panel - LH118£30.00- +
5055-61-0372 Nose underpanel114£30.00- +
6030-03-0020 Nose top panel17£30.00- +
-055-61-0386 FRONT END PANEL - complete1)6£30.00- +
-055-61-0384 Half panel - front end - LH1)9£30.00- +
-055-61-0385 Half panel - front end - RH1)17£30.00- +
-055171-0035 FRONT SUB-ASSEMBLY1)11£30.00- +
-055-61-0382 Quarter panel - LH1)8£30.00- +
-055-61-0383 Quarter panel - RH1)1£30.00- +
-055-61-0372 Nose underpanel1)12£30.00- +
-030-03-0020 Nose top panel1)6£30.00- +
-031-033-0058 Oil cooler duct1)11£30.00- +
7030-03-0042 REAR END PANEL - complete12£30.00- +
-055-61-0361 Half panel - rear end - RH14£30.00- +
8055-61-0362 Half panel - rear end - LH18£30.00- +
9030-03-0002 ROOF PANEL118£30.00- +
10030-07-0031 BOOT LID PANEL115£30.00- +
11030-03-0027 Lower sill panel - LH11£30.00- +
-030-03-0028 Lower sill panel - RH16£30.00- +
12030-03-0026 DOOR PANEL - LH115£30.00- +
-030-03-0025 DOOR PANEL - RH18£30.00- +
13030-04-0334 BONNET PANEL113£30.00- +
14059-67-0026 BOOT LID PANEL1)1£30.00- +
15055-61-0117 REAR END PANEL - complete1)9£30.00- +
16059-61-0119 Half panel - rear end - LH1)3£30.00- +
-059-61-0118 Half panel - rear end - RH1)17£30.00- +
120-19-000 Chassis Frame Assembly Complete118£30.00- +
220-19-006 Front Cross Member Assembly13£30.00- +
320-20-708 Front Member Assembly, Front Portion - R.H.119£30.00- +
420-20-709 Front Member Assembly, Front Portion - L.H.116£30.00- +
520-19-003 Front Extension Side Panel Assembly - R.H.120£30.00- +
620-19-004 Front Extension Side Panel Assembly - L.H.120£30.00- +
720-19-005 Raditor Mounting Tube Assembly16£30.00- +
820-19-140 Strut, Radiator Mounting - R.H.120£30.00- +
920-19-141 Strut, Radiator Mounting - L.H.112£30.00- +
1020-19-013 Horn Bracket Assembly112£30.00- +
1120-22-011 Closing Channel Assembly, Boot Floor18£30.00- +
1220-22-159 Rear Extension Member - R.H.118£30.00- +
1320-22-160 Rear Extension Member - L.H.116£30.00- +
1420-22-161 Closing Piece, Rear Extension - R.H.19£30.00- +
1520-22-162 Closing Piece, Rear Extension - L.H.113£30.00- +
-20-43-105 Illustrated Parts Book16£30.00- +
-20-43-007 Gasket Set - Decarbonising13£30.00- +
-20-43-006 Gasket Set - Complete Overhaul with 20-43-00719£30.00- +
-20-43-102 Valve Timing Jig113£30.00- +
-20-43-101 Road Spring Sompression Tool119£30.00- +
-20-43-104 Front Wing Cover, RH - Felt Lined Fibreglass111£30.00- +
-20-43-103 Front Wing Cover, LH - Felt Lined Fibreglass118£30.00- +
-20-43-110 Retractor Tool, Piston - Brake Wheel Cylinder18£30.00- +
-20-43-108 Rear Axle Tooolkit117£30.00- +
-20-36-101 Road Wheel Assembly - Cadmium59£30.00- +
-20-36-113 Tyre - 6.00 × 16518£30.00- +
-20-50-111 Road Wheel Assembly - Chrome58£30.00- +
-20--50-112 Tyre - 6.00 × 16 - White Wall510£30.00- +
-20-36-115 Inner Tube59£30.00- +
-20-36-116 Rim Band511£30.00- +
-42-50-111 Road Wheel Assembly - Chrome58£30.00- +
-52-36-113 Tyre - 6.70 × 1554£30.00- +
-42-50-112 Tyre - 6.70 × 15 - White Wall514£30.00- +
-25-36-116 Rim Band518£30.00- +
-25-36-115 Inner Tube58£30.00- +
-20-36-119 Hub Cap - Left Hand Thread - R.H.219£30.00- +
-20-36-120 Hub Cap - Right Hand Thread - L.H.216£30.00- +
-20-50-032 Three Wing Hub Cap Set112£30.00- +
-21-36-119 Hub Cap, Octagonal - R.H.27£30.00- +
-21-36-120 Hub Cap, Octagonal - L.H.210£30.00- +
-20-50-031 Octagonal Hub Cap Set118£30.00- +
-20-50-118 Hub Cap, Octagonal - R.H.26£30.00- +
-20-50-119 Hub Cap, Octagonal - L.H.28£30.00- +
-20-50-120 Spanner, Octagonal119£30.00- +
-20-36-009 Spare Wheel Retaining Bolt Assembly13£30.00- +
-125493 Circlip, External, 1/2"117£30.00- +
-20-36-721 Adaptor, Spare Wheel Bolt119£30.00- +
-20-36-110 Retaining Collor, Spare Wheel120£30.00- +
-119474 Plain Washer, 1/2"114£30.00- +
-20-36-013 Lid Assembly, Spare Wheel Well114£30.00- +
-122374 Grommet Plug - Spare Wheel Well13£30.00- +
-20-36-717 Spoke, Wheel, Short Cadmium Plated489£30.00- +
-20-36-718 Spoke, Wheel, Long, Cadmium Plated242£30.00- +
-20-36-719 Spoke, Wheel, Short, Chromium Plated4811£30.00- +
-20-36-720 Spoke, Wheel, Long, Chromium Plated2410£30.00- +
-20-40-130 Jack, Lifting11£30.00- +
-20-40-132 Mallet Hide/Copper, Size 2114£30.00- +
-20-40-001 Tool Rool Assembly Complete16£30.00- +
-20-40-111 Tool Rool Case111£30.00- +
-20-40-112 Spanner, 0 BA × 2 BA15£30.00- +
-20-40-113- Spanner, 1/4" A/F × 5/16" A/F15£30.00- +
-20-40-114 Spanner, 3/8" A/F × 7/16" A/F120£30.00- +
-20-40-115 Spanner, 1/2" A/F × 9/16" A/F11£30.00- +
-20-40-116 Spanner, 5/8" A/F × 11/16" A/F114£30.00- +
-20-40-117 Spanner, 3/4" A/F × 7/8" A/F17£30.00- +
-20-40-118 Spanner, 13/16" A/F × 15/16" A/F120£30.00- +
-20-40-119 Screwdriver, Cabinet, 4"11£30.00- +
-20-40-120 Screwdriver, Pocket, 2"17£30.00- +
-20-40-121 Box Spanner, 14 m.m.17£30.00- +
-20-40-122 Tommy Bar - for 204012113£30.00- +
-20-40-123 Pliers, Combination, 6" - Plated19£30.00- +
-20-40-124 Feeler Gauge Set117£30.00- +
-20-40-125 Key, Brake Bleed Screw15£30.00- +
-20-40-002 Bleeder Tube Kit112£30.00- +
-20-40-126 Bleeder Tube - Brakets Part of 20-40-00211£30.00- +
-20-40-133 Container - Bleeder Tube Part of 20-40-002111£30.00- +
-20-40-127 Spanner, Adjustable 4" (45 Head)110£30.00- +
-20-40-128 Valve Core Set - SchraderSet of 58£30.00- +
-20-40-129 Valve Cap Set - SchraderSet of 513£30.00- +
-20-40-131 Instruction Book16£30.00- +
-20-43-008 Continental Touring Kit14£30.00- +
-21-43-008 Continental Touring Kit18£30.00- +
-20-43-009 Owners's Kit112£30.00- +
-21-43-009 Owners's Kit16£30.00- +

Body Fittings Front

Ill. No. Part No. product name Car
Total
Stock Price Quantity
130-11-11 Grille, Radiator110£30.00- +
-30-11-27 Grille, Radiator114£30.00- +
230-11-01 Surround Assembly, Radiator Grille - Chromed11£30.00- +
-113440 Plain Washer, 5/32"1316£30.00- +
-111885 Spring Washer, 5/32"1311£30.00- +
-119418 Plain Nut, 4 BA1314£30.00- +
3475425 Aston Martin Bonnet Badge17£30.00- +
-119496 Plain Washer, 3/16"23£30.00- +
-119488 Spring Washer, 3/16"28£30.00- +
-111109 Plain Nut, 2 BA25£30.00- +
430-10-12 "Superleggera" Badge, complete with 6 Plain Nuts, 8 BA219£30.00- +
-30-04-28 Scoop Grille, Bonnet111£30.00- +
530-28-66 Scoop Grille Assembly, Bonnet114£30.00- +
-30-04-03 Hinge Assembly, Bonnet - R.H.19£30.00- +
-30-04-02 Hinge Assembly, Bonnet - L.H.118£30.00- +
-690280 Hinge Bolt, 1/4" UNF × 1 1/2" (supersedes Hinge Pin etc)213£30.00- +
-123116 Nut, Nyloc, 1/4" UNF217£30.00- +
631-04-33 Hinge Bracket Assembly, Bonnet - R. H.117£30.00- +
731-04-16 Hinge Bracket Assembly, Bonnet - L. H.17£30.00- +
-119394 Screw, 2 BA × 5/8" Hex. Hd.25£30.00- +
-119496 Plain Washer, 5/16"29£30.00- +
-111519 Shakeproof Washer, 3/16"21£30.00- +
830-17-35 Stop Buffer, Bonnet Side67£30.00- +
-30-17-38 Stop Buffer, Bonnet Front48£30.00- +
920-10-118 Stop Buffer, Bonnet Rear24£30.00- +
1030-16-11 Windscreen Glass116£30.00- +
-27-50-079 Windscreen Glass - Sundym16£30.00- +
1130-17-30 Surround Rubber, Windscreen113£30.00- +
1230-17-31 Filler Strip Rubber Windscreen Surround110£30.00- +
1330-18-22 Insert, Windscreen Surround, Chromed - R.H.115£30.00- +
1430-18-23 Insert, Windscreen Surround, Chromed - L.H.17£30.00- +
-30-18-43 Finisher220£30.00- +
-30-16-14 Window Glass, Door, Curved - R.H.18£30.00- +
-30-16-13 Window Glass, Door, Curved - L.H.113£30.00- +
1530-16-21 Window Glass, Door, Flat215£30.00- +
-30-16-16 Quarterlight Glass, Curved - R.H.19£30.00- +
-30-16-15 Quarterlight Glass, Curved - L.H.17£30.00- +
1630-17-22 Quarterlight Glass, Flat21£30.00- +
1730-24-11 Fastener Assembly, Quarterlight27£30.00- +
-37-17-65 Sealing Rubber - Hardtopfixing116£30.00- +
-37-17-01 Sealing Rubber - Shut Piller214£30.00- +
-37-24-01 Fastener Assembly - Hood Fixing38£30.00- +
1830-17-37 Rubber Hinging Channel, Quarterlight218£30.00- +
1930-17-14 Sealing Rubber, Quarterlight - R.H.119£30.00- +
2030-17-13 Sealing Rubber, Quarterlight - L.H.17£30.00- +
2130-17-47 Sponge Rubbre Cord, Quarterlight Rubber21£30.00- +
-30-19-12 Retainer, Aluminium, for 30-17-14 - R.H.114£30.00- +
-30-19-11 Retainer, Aluminium, for 30-17-13 - L.H.115£30.00- +
2230-19-15 Retainer, Aluminium, for 30-17-14 - R.H.120£30.00- +
2330-19-14 Retainer, Aluminium, for 30-17-13 - L.H.114£30.00- +
24475213 Locking Handle complete with 2 Keys - R.H.116£30.00- +
25475214 Locking Handle complete with 2 Keys - L.H.110£30.00- +
26475216 Fibre Pad, Large - Handle Packing220£30.00- +
27475299 Fibre Pad, small - Handle Packing215£30.00- +
-30-06-37 Arm, Remote Control, Long28£30.00- +
-30-06-57 Arm, Remote Control, Long29£30.00- +
-30-06-38 Arm, Remote Control, Short215£30.00- +
-30-06-45 Link, Handle Lock Control - R.H.17£30.00- +
-30-05-42 Link, Handle Lock Control - L.H.120£30.00- +
-30-06-42 Window Regulator and ) Supplied - R.H.14£30.00- +
-30-06-49 Channel, Window Lift ) together19£30.00- +
-30-05-27 Window Regulator and ) Supplied - L.H.117£30.00- +
-30-05-39 Channel, Window Lift ) together6£30.00- +
-30-06-56 Window Regulator and ) Supplied - R.H.115£30.00- +
-30-05-64 Window Regulator and ) Supplied - L.H.13£30.00- +
-30-17-41 Glazing Rubber, for Lift Channel218£30.00- +
-30-17-12 Sealing Rubber, Door Glass - Cant Rail, Body22£30.00- +
-30-17-26 Retainer, Cant Rail Sealing Rubber - R.H.12£30.00- +
-30-17-25 Retainer, Cant Rail Sealing Rubber - L.H.113£30.00- +
2830-15-44 Seat Runner Assembly - Inner - R.H.16£30.00- +
2930-14-54 Seat Runner Assembly - Inner - L.H.11£30.00- +
3030-14-56 Seat Runner Assembly - Outer22£30.00- +
31- Gaiter, Gear Lever116£30.00- +
32476093 Grommet Gear Lever Gaiter119£30.00- +
-- Pad, Cavity Sponge Rubber112£30.00- +
-30-17-44 Rubber Joint - Gearbox Cover to Floor118£30.00- +
3330-10-13 Sunvisor Complete218£30.00- +
3430-10-23 Licence Holder13£30.00- +
-30-32-02 Radio Housing113£30.00- +
3530-24-13 Mirror, Interior Driving116£30.00- +
-30-24-15 Mirror, Interior Driving - swivel18£30.00- +
-30-12-20 Front Number Plate Mounting Box113£30.00- +
3630-18-30 Side Vent Finisher, Front Wing - R.H.12£30.00- +
3730-18-29 Side Vent Finisher, Front Wing - L.H.111£30.00- +
3830-12-00 Front Bumper Assembly Complete12£30.00- +
3930-12-11 Blade Assembly, Front Bumper16£30.00- +
-30-12-22 Grommet - Bumper Tubes210£30.00- +
4030-12-24 Over-rider Assembly, Front Bumper - R.H.16£30.00- +
4130-12-23 Over-rider Assembly, Front Bumper - L.H.120£30.00- +
4274403 Beading, Black Plastic - Over-riders215£30.00- +

Body Fittings Rear

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-30-04-04 Spring Retaining Bolt Assembly, Bonnet (Front)19£30.00- +
131-04-05 Spring Retaining Bolt Assembly, Bonnet (Rear)13£30.00- +
-30-04-26 Safety Catch Assembly, Bonnet (Front)120£30.00- +
-690037 Bolt, 1/4" UNF × 1/2"315£30.00- +
-119470 Plain Washer, 1/4"319£30.00- +
-119480 Spring Washer, 1/4"319£30.00- +
-30-04-05 Catch Plate Assembly, Bonnet (Front)113£30.00- +
-30-04-27 Release Cable Assembly - Bonnet Lock11£30.00- +
-31-04-04 Catch Plate and Safety Hook Assembly (Rear)115£30.00- +
-31-04-47 Catch Operating Assembly111£30.00- +
-31-04-40 Link Assembly16£30.00- +
-31-04-46 Release Cable Assembly16£30.00- +
230-17-42 Sealing Section, Bonnet Top116£30.00- +
330-17-16 Rubber Finisher, Bonnet Aperture11£30.00- +
-30-34-00 Bonnet Stay Assembly18£30.00- +
430-34-13 Bonnet Stay Assembly110£30.00- +
-30-34-06 Clip, Bonnet Stay116£30.00- +
530-34-08 Safety Cable Assembly - Bonnet113£30.00- +
630-06-43 Rotary Door Lock and ) Supplied - R.H.116£30.00- +
730-06-44 Remote Control Unit ) together11£30.00- +
830-05-40 Rotary Door Lock and ) Supplied - L.H.17£30.00- +
930-05-41 Remote Control Unit ) together18£30.00- +
1030-06-06 Frame, Window, Assembly-Chromed - R.H.17£30.00- +
1130-05-06 Frame, Window, Assembly-Chromed - L.H.111£30.00- +
12121536 Felt - Window Frame Channel214£30.00- +
1330-17-54 Sponge Rubber Seal - Window Frame220£30.00- +
1430-11-21 Weatherstrip - Door Waist Rail414£30.00- +
-30-27-164 Weatherstrip - Door Waist Rail - Saloon419£30.00- +
-37-27-164 Weatherstrip - Door Waist Rail - Coupe46£30.00- +
-30-20-35/34 End Cap - Door Waist Rail218£30.00- +
-125455 Sealing Rubber - Door Shut Piller211£30.00- +
-30-17-54 Sealing Rubber - Door Aperture - Upper26£30.00- +
-30-17-12 Sealing Rubber - Door Aperture27£30.00- +
-30-20-36 Finisher - Door Aperture - Upper - R.H.120£30.00- +
-30-20-37 Finisher - Door Aperture - Upper - L.H.14£30.00- +
1530-05-04 Check Assembly Door23£30.00- +
-30-05-46 Rubber Buffer - Door Check213£30.00- +
-30-05-51 Anti-Rattle Rubber - Door Check29£30.00- +
1630-17-43 Sponge Rubber Seal - Hinge Pillar, Body27£30.00- +
1730-17-19 Sealing Rubber - Hinge Piller, Body26£30.00- +
-30-17-24 Sealing Rubber, Door Glass - Quarter Piller, Body23£30.00- +
1830-17-58 Sponge Rubber Seal - Quarter Piller, Body29£30.00- +
1930-17-18 Sealing Rubber, Door, Rear - Body217£30.00- +
2030-17-22 Sealing Rubber, Door Trim Pad - R.H.120£30.00- +
2130-17-23 Sealing Rubber, Door Trim Pad - L.H.120£30.00- +
2230-17-20 Sponge Rubber Seal, Door, Bottom28£30.00- +
-30-16-12 Glass, Rear Window, Clear, Laminated16£30.00- +
2330-16-19 Glass, Rear Window, Sundym, Toughened13£30.00- +
-20-50-020 Glass, Rear Window, Clear, Demisting118£30.00- +
2430-17-32 Surround Rubber, Rear Window117£30.00- +
2530-17-33 Filler Strip Rubber, Rear Window Surround115£30.00- +
2630-18-24 Insert Rear Window Surround - R.H.16£30.00- +
-30-18-43 Insert, Finisher29£30.00- +
2730-18-25 Insert, Rear Window Surround - L.H.110£30.00- +
2830-07-25 Handle Assembly - Boot Lid Lifting119£30.00- +
-690075 Screw, 2 BA × 3/8" C"sk. Hd.14£30.00- +
-690712 Shapeproof Washer, 3/16" C'sk120£30.00- +
-690268 Special Nut, 1/8" Whit. R'sd. Hd.26£30.00- +
2930-07-24 Aston Martin Badge - Lifting Handle120£30.00- +
-119496 Plain Washer, 3/16"211£30.00- +
-112129 Nut, Simmonds, 2 BA23£30.00- +
30690248 Rubber Seal - Reverse Lamp115£30.00- +
3130-07-14 Staple, Boot Lid Lock, 1/4" UNF116£30.00- +
3230-17-17 Sealing Rubber, Boot Lid112£30.00- +
3330-07-19 Lock, Boot Lid, complete with 2 Keys112£30.00- +
3430-07-20 Escutcheon - Boot Lid Lock110£30.00- +
3530-39-06 Spring, Boot Lid Stay42£30.00- +
-20-25-31 Mat Boot Floor116£30.00- +
-30-25-40 Underfelt, Boot Floor Mat18£30.00- +
3630-25-56 Mat Boot Floor114£30.00- +
3730-25-61 Underfelt, Boot Floor Mat14£30.00- +
-30-08-06 Petol Filler Flap Assembly14£30.00- +
-30-08-22 Hinge19£30.00- +
-30-08-38 Nut120£30.00- +
-30-08-35 Pin118£30.00- +
-30-08-36 Cap Nut15£30.00- +
-30-08-32 Polysar Sealing Washer18£30.00- +
-30-08-37 Spring for Cap11£30.00- +
-30-08-34 Cable Assembly, Filler Catch Release11£30.00- +
-30-17-46 Rubber Hose - Filler Neck11£30.00- +
3830-17-40 Rubber Drain Tube - Filler Box13£30.00- +
3930-09-19 Ashtray - Front Facia13£30.00- +
4030-09-20 Surround, Ashtray13£30.00- +
-30-10-19 Ashtray, Swivelling - Rear Compartment27£30.00- +
4130-05-44 Handle, Door Lock, Interior217£30.00- +
42A59167 Handle Window Regulating211£30.00- +
-48-65-45 Handle Window Regulating220£30.00- +
-90677 Repair Kit - for Window Regulator2£30.00- +
-90678 Gear7£30.00- +
-90679 Rivet Bush10£30.00- +
43A59168 Escutcheon, Handle, Spring Loaded44£30.00- +
44475005 Striker Plate Assembly - R.H.18£30.00- +
45475217 Striker Plate Assembly - L.H.119£30.00- +
-125454 Screw, 1/4" ANF × 1/8" C'sk. Hd. - Striker Plate612£30.00- +
4630-20-39 Finisher, Door Trim, Stainless Steel - R.H.118£30.00- +
4730-20-38 Finisher, Door Trim, Stainless Steel - L.H.12£30.00- +
48475114 Cowl, Demister Outlet39£30.00- +
4930-18-05 Rear Number Plate Surround Assembly12£30.00- +
5030--13-00 Rear Bumper Assembly Complete19£30.00- +
5130-13-11 Blade Assembly, Rear Bumper119£30.00- +
-30-12-22 Grommet - Bumper Tubes416£30.00- +
5230-13- Over-rider Assembly, Rear Bumper - R.H.14£30.00- +
5330-13-19 Over-rider Assembly, Rear Bumper - L.H.12£30.00- +
5474403 Beading, Black Plastic - Over-riders22£30.00- +

Body Panels

Ill. No. Part No. product name Car
Total
Stock Price Quantity
1030-03-0043 FRONT END PANEL - complete110£30.00- +
-055-61-0365 Half panel - front end - RH115£30.00- +
2055-61-0366 Half panel - front end - LH116£30.00- +
3030-03-0044 FRONT SUB ASSEMBLY117£30.00- +
-055-61-0363 Quarter panel - RH119£30.00- +
4055-61-0364 Quarter panel - LH116£30.00- +
5055-61-0372 Nose underpanel18£30.00- +
6030-03-0020 Nose top panel12£30.00- +
-055-61-0386 FRONT END PANEL - complete1)7£30.00- +
-055-61-0384 Half panel - front end - LH1)19£30.00- +
-055-61-0385 Half panel - front end - RH1)1£30.00- +
-055171-0035 FRONT SUB-ASSEMBLY1)15£30.00- +
-055-61-0382 Quarter panel - LH1)4£30.00- +
-055-61-0383 Quarter panel - RH1)8£30.00- +
-055-61-0372 Nose underpanel1)6£30.00- +
-030-03-0020 Nose top panel1)11£30.00- +
-031-033-0058 Oil cooler duct1)17£30.00- +
7030-03-0042 REAR END PANEL - complete19£30.00- +
-055-61-0361 Half panel - rear end - RH15£30.00- +
8055-61-0362 Half panel - rear end - LH18£30.00- +
9030-03-0002 ROOF PANEL114£30.00- +
10030-07-0031 BOOT LID PANEL15£30.00- +
11030-03-0027 Lower sill panel - LH119£30.00- +
-030-03-0028 Lower sill panel - RH119£30.00- +
12030-03-0026 DOOR PANEL - LH113£30.00- +
-030-03-0025 DOOR PANEL - RH18£30.00- +
13030-04-0334 BONNET PANEL12£30.00- +
14059-67-0026 BOOT LID PANEL1)2£30.00- +
15055-61-0117 REAR END PANEL - complete1)20£30.00- +
16059-61-0119 Half panel - rear end - LH1)5£30.00- +
-059-61-0118 Half panel - rear end - RH1)17£30.00- +

Chassis Frame Assembly

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-19-000 Chassis Frame Assembly Complete117£30.00- +
220-19-006 Front Cross Member Assembly113£30.00- +
320-20-708 Front Member Assembly, Front Portion - R.H.17£30.00- +
420-20-709 Front Member Assembly, Front Portion - L.H.13£30.00- +
520-19-003 Front Extension Side Panel Assembly - R.H.13£30.00- +
620-19-004 Front Extension Side Panel Assembly - L.H.119£30.00- +
720-19-005 Raditor Mounting Tube Assembly12£30.00- +
820-19-140 Strut, Radiator Mounting - R.H.115£30.00- +
920-19-141 Strut, Radiator Mounting - L.H.17£30.00- +
1020-19-013 Horn Bracket Assembly14£30.00- +
1120-22-011 Closing Channel Assembly, Boot Floor11£30.00- +
1220-22-159 Rear Extension Member - R.H.16£30.00- +
1320-22-160 Rear Extension Member - L.H.112£30.00- +
1420-22-161 Closing Piece, Rear Extension - R.H.115£30.00- +
1520-22-162 Closing Piece, Rear Extension - L.H.17£30.00- +

Service Kits

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-43-105 Illustrated Parts Book119£30.00- +
-20-43-007 Gasket Set - Decarbonising15£30.00- +
-20-43-006 Gasket Set - Complete Overhaul with 20-43-00713£30.00- +
-20-43-102 Valve Timing Jig118£30.00- +
-20-43-101 Road Spring Sompression Tool119£30.00- +
-20-43-104 Front Wing Cover, RH - Felt Lined Fibreglass116£30.00- +
-20-43-103 Front Wing Cover, LH - Felt Lined Fibreglass15£30.00- +
-20-43-110 Retractor Tool, Piston - Brake Wheel Cylinder111£30.00- +
-20-43-108 Rear Axle Tooolkit116£30.00- +

Wheels, Tyres and Tool Kit

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-36-101 Road Wheel Assembly - Cadmium57£30.00- +
-20-36-113 Tyre - 6.00 × 16513£30.00- +
-20-50-111 Road Wheel Assembly - Chrome510£30.00- +
-20--50-112 Tyre - 6.00 × 16 - White Wall516£30.00- +
-20-36-115 Inner Tube514£30.00- +
-20-36-116 Rim Band519£30.00- +
-42-50-111 Road Wheel Assembly - Chrome52£30.00- +
-52-36-113 Tyre - 6.70 × 15514£30.00- +
-42-50-112 Tyre - 6.70 × 15 - White Wall52£30.00- +
-25-36-116 Rim Band520£30.00- +
-25-36-115 Inner Tube515£30.00- +
-20-36-119 Hub Cap - Left Hand Thread - R.H.216£30.00- +
-20-36-120 Hub Cap - Right Hand Thread - L.H.220£30.00- +
-20-50-032 Three Wing Hub Cap Set116£30.00- +
-21-36-119 Hub Cap, Octagonal - R.H.210£30.00- +
-21-36-120 Hub Cap, Octagonal - L.H.22£30.00- +
-20-50-031 Octagonal Hub Cap Set18£30.00- +
-20-50-118 Hub Cap, Octagonal - R.H.22£30.00- +
-20-50-119 Hub Cap, Octagonal - L.H.26£30.00- +
-20-50-120 Spanner, Octagonal112£30.00- +
-20-36-009 Spare Wheel Retaining Bolt Assembly116£30.00- +
-125493 Circlip, External, 1/2"111£30.00- +
-20-36-721 Adaptor, Spare Wheel Bolt111£30.00- +
-20-36-110 Retaining Collor, Spare Wheel116£30.00- +
-119474 Plain Washer, 1/2"13£30.00- +
-20-36-013 Lid Assembly, Spare Wheel Well14£30.00- +
-122374 Grommet Plug - Spare Wheel Well11£30.00- +
-20-36-717 Spoke, Wheel, Short Cadmium Plated489£30.00- +
-20-36-718 Spoke, Wheel, Long, Cadmium Plated244£30.00- +
-20-36-719 Spoke, Wheel, Short, Chromium Plated4812£30.00- +
-20-36-720 Spoke, Wheel, Long, Chromium Plated248£30.00- +
-20-40-130 Jack, Lifting111£30.00- +
-20-40-132 Mallet Hide/Copper, Size 219£30.00- +
-20-40-001 Tool Rool Assembly Complete14£30.00- +
-20-40-111 Tool Rool Case19£30.00- +
-20-40-112 Spanner, 0 BA × 2 BA16£30.00- +
-20-40-113- Spanner, 1/4" A/F × 5/16" A/F112£30.00- +
-20-40-114 Spanner, 3/8" A/F × 7/16" A/F114£30.00- +
-20-40-115 Spanner, 1/2" A/F × 9/16" A/F117£30.00- +
-20-40-116 Spanner, 5/8" A/F × 11/16" A/F113£30.00- +
-20-40-117 Spanner, 3/4" A/F × 7/8" A/F117£30.00- +
-20-40-118 Spanner, 13/16" A/F × 15/16" A/F111£30.00- +
-20-40-119 Screwdriver, Cabinet, 4"115£30.00- +
-20-40-120 Screwdriver, Pocket, 2"119£30.00- +
-20-40-121 Box Spanner, 14 m.m.11£30.00- +
-20-40-122 Tommy Bar - for 204012114£30.00- +
-20-40-123 Pliers, Combination, 6" - Plated19£30.00- +
-20-40-124 Feeler Gauge Set111£30.00- +
-20-40-125 Key, Brake Bleed Screw118£30.00- +
-20-40-002 Bleeder Tube Kit14£30.00- +
-20-40-126 Bleeder Tube - Brakets Part of 20-40-00213£30.00- +
-20-40-133 Container - Bleeder Tube Part of 20-40-002119£30.00- +
-20-40-127 Spanner, Adjustable 4" (45 Head)11£30.00- +
-20-40-128 Valve Core Set - SchraderSet of 59£30.00- +
-20-40-129 Valve Cap Set - SchraderSet of 518£30.00- +
-20-40-131 Instruction Book12£30.00- +
-20-43-008 Continental Touring Kit16£30.00- +
-21-43-008 Continental Touring Kit13£30.00- +
-20-43-009 Owners's Kit113£30.00- +
-21-43-009 Owners's Kit114£30.00- +

Electrical and Instruments

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-27-113 Headlamp Complete, PF.700 Le Mans (Lucas No. 58110A)216£30.00- +
-20-37-205 Headlamp Complete, F.700 Mk. 111 (Lucas No. 58576A)213£30.00- +
220-37-776 Rim, Headlamp (Lucas No. 556517)26£30.00- +
-20-37-775 Rim, Headlamp (Lucas No.)217£30.00- +
320-37-772 Light Unit, Headlamp (Lucas No. 554665)25£30.00- +
-20-37-211 Light Unit, Headlamp (Lucas No. 556452)23£30.00- +
-20-37-777 Light Unit, Headamp (Lucas No.)211£30.00- +
420-37-701 Bulb, Headlamp, 45/40W. (Lucas No. 370)212£30.00- +
-20-37-706 Bulb, Headlamp, 45/40W. Yellow (Lucas No. 371)212£30.00- +
520-37-114 Sidelamp (Lucs No. 52139)215£30.00- +
620-37-764 Rim, Sidelamp (Lucas No. 572776)217£30.00- +
720-37-761 Glass, Sidelamp (Lucas No.572772)219£30.00- +
820-37-765 Rubber Surround, Sidelamp (Lucas No. 572763)25£30.00- +
920-37-778 Bulbholder, Sidelamp (Lucas No. 572783)21£30.00- +
1020-37-702 Bulb, Sidelamp 6W. MCC (Lucas No. 989)214£30.00- +
1120-37-115 Flasher Lamp, Front, Amber (Lucas No. 53359)21£30.00- +
20-37-210 Flasher Lamp, Front,Clear (Lucas No.)214£30.00- +
1220-37-779 Rim, Front Flasher Lamp (Lucas No. 572734)27£30.00- +
1320-37-763 Glass, Amber, Front Flasher Lamp (Lucas No. 573266)24£30.00- +
20-37-760 Glass, Clear, Front Flasher Lamp (Lucas No. 572715)211£30.00- +
1420-37-780 Bulbholder, Front Flasher Lamp (Lucas No. 572727)24£30.00- +
1520-37-704 Bulb, Flasher, 21W, SCC (Lucas No. 382)24£30.00- +
1620-37-119 Stop/Tail/Flasher Lamp (Lucas No. 53527)28£30.00- +
-20-37-118 Stop/Tail/Flasher Lamp (Lucas No. 53689A)213£30.00- +
1720-37-769 Rim, Stop/Tail/Flasher Lamp (Lucas No. 574560)27£30.00- +
1820-37-766 Lens, Top, Amber (Lucas No. 574562)217£30.00- +
-20-37-767 Lens, Top, Red (Lucas No. 574546)28£30.00- +
1920-37-768 Lens, Bottom, Red (Lucas No. 574563)22£30.00- +
2020-37-770 Joint, Top (Lucas No. 574548)25£30.00- +
2120-37-771 Joint, Bottom (Lucas No. 574549)213£30.00- +
22- Screws, 2 BA2 sets12£30.00- +
2320-37-704 Bulb, Flasher, 21W, SCC (Lucas No. 382)216£30.00- +
2420-37-703 Bulb, Stop/Tail, 6/21W, SBC Offset Pin (Lucas No. 380)27£30.00- +
-2-37-230 Stop/Tail/Flasher Lamp Assembly211£30.00- +
-22-37-799 Lens and Rim - Amber Flasher211£30.00- +
-22-37-119 Stop/Tail Lamp - Red216£30.00- +
-22-37-798 Lens and Rim218£30.00- +
-22-37-232 Reflector Assembly26£30.00- +
-22-37-247 Rear Flasher Lamp Assembly - Amber211£30.00- +
-20-37-704 Bulb for 22-37-247 Lucas 382113£30.00- +
-22-37-828 Lens for 22-37-247 Amber11£30.00- +
-23-37-231 Rear Flasher Lamp Assembly - Red271£30.00- +
-20-37-704 Bulb for 22-37-231 Lucas 38219£30.00- +
-22-37-829 Lens for 22-37-231 Red111£30.00- +
-22-37-248 Stop/Tail Lamp Assembly215£30.00- +
-20-37-703 Bulb for 22-37-248 Lucas 380110£30.00- +
-22-37-829 Lens for 22-37-248 Red110£30.00- +
-40-37-120 Reverse Lamp Assembly212£30.00- +
-20-37-704 Bulb for 40-37-120 Lucas 38212£30.00- +
-40-37-813 Lens for 40-37-120 White16£30.00- +
2520-37-151 Switch, Stop Light (Lucas no.120£30.00- +
2620-37-120 Lamp, Noo. Plate Illuminating and Reversing Light (Lucas No. 52442E)19£30.00- +
2720-37-781 Glass - for Item 26 (Lucas No. 572328)119£30.00- +
2820-37-702 Bulb, No. Plate Light, 6W, MCC (Lucas No. 989)211£30.00- +
2920-37-705 Bulb, Reversing Light, 21W, SCC (Lucas No. 382)111£30.00- +
3020-37-107 Switch, Reversing Light and Heater Fan (Lucas No. 31077E)27£30.00- +
3120-37-710 Joint - for switch, Item 3029£30.00- +
3220-37-123 Interior Light (Hella Ref. 20/82)24£30.00- +
3320-37-121 Glove Box and Boot Light (Hella Ref. 30/3)29£30.00- +
3420-37-709 Bulb, 6W Festoon (Lucas No. 254)419£30.00- +
3520-37-112 Master Switch (Lucas No. 76604)16£30.00- +
3620-37-104 Rubber Terninal Boot (Lucas No. 858266A)15£30.00- +
3720-37-109 Control Box Regulatar (Lucas No. 37303)12£30.00- +
3820-37-105 Windtone Horn - Low Note (Lucas No. 69046A) Tuned13£30.00- +
3920-37-106 Windtone Horn - High Note (Lucas No. 69047A) Pair1 Pair4£30.00- +
-20-37-203 Windtone Horn - Low Note (Lucas No. 69087) Tuned15£30.00- +
-20-37-204 Windtone Horn - High Note (Lucas No. 69090) Pair1 Pair2£30.00- +
4020-25-136 Horn Push Assembly (Lucas No.)119£30.00- +
4120-37-101 Horn Relay (Lucas No. 33135B)11£30.00- +
4220-37-110 Fuse Box (Lucas No. 37137A)21£30.00- +
-20-37-111 Battery, 12 Volt (Lucas Model BT9A-No. 4048757F)13£30.00- +
4320-37-138 Flasher Unit (Lucas No. 35010A)17£30.00- +
4420-37-168 Clip, Flasher Unit (Terry No. 81/3A)18£30.00- +
-20-37-139 Terminal Relay, three-way (Lucas No. 33116B)111£30.00- +
4520-37-103 Solenoid Switch (Lucas No. 76411E)113£30.00- +
4620-37-104 Rubber Terminal Boot (Lucas No. 858266A)216£30.00- +
4720-37-148 Inspection Lamp Socket and Plug Assembly (Lucas No. 38604A)120£30.00- +
-20-37-206 Complete Harness Equipment12£30.00- +
-20-37-160 Main Harness, Part of 20-37-20619£30.00- +
-20-37-171 Panel Harness, Part of 20-37-20615£30.00- +
-20-37-207 Complete Harness Equipment18£30.00- +
-20-37-208 Main Harness, Part of 20-37-20715£30.00- +
-20-37-209 Panel Harness, Part of 20-37-20717£30.00- +
-20-37-170 Rear Harness, Part of 20-37-206 and 207110£30.00- +
-20-37-172 Chassis Harness, Part of 20-37-206 and 207112£30.00- +
-20-37-173 Boot Lid Harness, part of 20-37-206 and 207117£30.00- +
-20-37-174 Flasher Switch Harness, Part of 20-37-206 and 207116£30.00- +
-20-37-175 Dip Switch Harness, Part of 20-37-206 and 20714£30.00- +
-20-37-176 Link Cable - Petrol Pump11£30.00- +
-20-37-177 Cable - Battery Negative114£30.00- +
-20-37-178 Cable - Battery Positive19£30.00- +
-20-37-179 Cable - Starter to Solenoid14£30.00- +
-20-37-180 Earth Cable - Master Switch17£30.00- +
-20-37-181 Earth Bond - Engine112£30.00- +
-20-37-187 Wiring Clip, 7/16" diam.1217£30.00- +
-20-37188 Wiring Clip, 3/4" diam.818£30.00- +
-20-37-189 Wiring Clip, 5/8" diam.820£30.00- +
-20-37-190 Wiring Clip, 5/16" diam.154£30.00- +
-20-37-191 Wiring Clip, 3/8" diam.220£30.00- +
-20-37-192 Wiring Clip, 3/8" diam.28£30.00- +
-20-37-193 Wiring Clip2517£30.00- +
-123127 Bolt, 1/4" UNF × 3/4"811£30.00- +
-112189 Screw, 2 BA × 1/2" Mushroom Hd.363£30.00- +
-690510 Screw, 2 BA × 3/4" Pan Hd.420£30.00- +
-690511 Screw, 2 BA × 5/8" Pan Hd.1312£30.00- +
-690453 Screw, P. K. No.10 × 3/4" Mushroom Hd.68£30.00- +
-119470 Plain Washer, 1/2"88£30.00- +
-119496 Plain Washer, 3/16"4218£30.00- +
-119480 Spring Washer, 1/4"811£30.00- +
-20-37-214 Flasher Lamp, Front (Giuntini)213£30.00- +
-121874 Wiring Cable - Green with White Tracer8 ft.7£30.00- +
-475417 Tubing, Plastic7 ft.1£30.00- +
-121965 Cable End28£30.00- +
-122072 Snap Connector, Double210£30.00- +
-20-37-184 Grommet211£30.00- +
-20-37-190 Cable Clip214£30.00- +
-20-37-215 Lamp, Rear Number Plate Illuminating, Complete18£30.00- +
-20-37-212 Dip Switch - Foot113£30.00- +
-20-35-005 Support Bracket Assembly115£30.00- +
-112121 Screw. 2 BA × 1/2" Rd. Hd.23£30.00- +
-119488 Spring Washer, 3/16"216£30.00- +
-111109 Plain Nut, 2 BA29£30.00- +
-111942 Screw. 2 BA × 3/4" Rd. Hd.29£30.00- +
-20-37-123 Wiring Cable - Foot Dip Switch19£30.00- +
120-38-101 Speedometer, 160 MPH 3.54 Axle11£30.00- +
-20-38-111 Speedometer, 260 KPH 3.54 Axle19£30.00- +
-20-38-102 Speedometer, 160 MPH 3.31 Axle17£30.00- +
-20-38-112 Speedometer, 260 KPH 3.31 Axle117£30.00- +
-20-38-103 Speedometer, 160 MPH 3.77 Axle16£30.00- +
-20-38-113 Speedometer, 260 KPH 3.77 Axle111£30.00- +
220-38-151 Bezel, Chromium Plated - Speedometer120£30.00- +
-20-38-145 Fixing Strip - Speedometer120£30.00- +
320-38-121 Cable, Speedometer, 5' 10" long111£30.00- +
420-38-122 Revolution Counter18£30.00- +
-22-38-122 Revolution Counter - Electric115£30.00- +
-22-07-119 Revolution Counter Drive - Electric17£30.00- +
-22-07-164 Connecting Piece - Electric Rev. Counter110£30.00- +
520-38-151 Bezel, Chromium Plated - Revolution Counter113£30.00- +
-20-38-145 Fixing Strip - Revolution Counter18£30.00- +
620-38-124 Cable, Revolution Counter, 2' long - R. H. D.16£30.00- +
-20-38-141 Cable, Revolution Counter, 3' 11" long - L. H. D.117£30.00- +
-20-38-144 Clip, Revolution Counter Cable - L. H. D.29£30.00- +
-113457 Setscrew, 2 BA × 1/2" Hex. Hd. - L. H. D.217£30.00- +
-122315 Nut, Nyloc 2 BA - L. H. D.26£30.00- +
720-07-119 Right Angle Drive Box - Revolution Counter - L. H. D.13£30.00- +
820-38-125 Panel, 2-in-1, oil/ fuel Gauges111£30.00- +
-20-38-126 Gauge, Oil Pressure116£30.00- +
-20-38-127 Gauge, Fuel120£30.00- +
-42-38-130 Gauge -Oil Temperature113£30.00- +
-42-38-157 Gauge - Combined Water Temp/Fuel110£30.00- +
920-38-152 Bezel, Chromium Plated -2-in-1 Panel115£30.00- +
-20-38-146 Fixing Strip -2-in-1 Panel111£30.00- +
1020-38-035 Pipe Assembly, Oil Pressure Gauge - R. H. D.119£30.00- +
-20-38-036 Pipe Assembly, Oil Pressure Gauge - L. H. D.16£30.00- +
1120-38-139 Connection, Oil Pressure Gauge Pipe15£30.00- +
-690512 Screw, 4 BA × 1/2" Pan Hd.318£30.00- +
1220-38-140 Hose, Petro-flex, Oil Pressure Gauge11£30.00- +
1320-38-129 Panel, 2-in-1, Temperature/ Amperes16£30.00- +
-20-38-130 Gauge, Coolant Temperature114£30.00- +
-20-37-144 Ammeter (Lucas No. 36236A)12£30.00- +
1420-38-152 Bezel, Chroium Plated - 2 -in - 1 Panel114£30.00- +
-20-38-146 Fixing Strip - 2 - in - 1 Panel17£30.00- +
1520-38-128 Clock, Electric13£30.00- +
1620-38-149 Bezel, Chromium Plated - Clock119£30.00- +
-20-38-147 Fixing Strip - Clock15£30.00- +
-20-37-708 Bulb, Clock (Phillips No. 12829)17£30.00- +
1720-38-142 Chock Control and Cable110£30.00- +
-22-38-142 Chock Control and Cable116£30.00- +
1820-37-127 Switch, Lgnition and Starter110£30.00- +
1920-37-128 Bezel, Lgnition and Starter Switch (Lucas No. 315430)117£30.00- +
2020-37-145 Cigar Lighter, Gascotex (Magnatex No. L. 15082)116£30.00- +
-20-37-746 Element - for Cigar Lighter (Magnatex No. LHA. 30882)19£30.00- +
2120-37-130 Switch, Fuel Reserve (Lucas No. 031851A)119£30.00- +
2220-37-131 Switch, Fog Lamp (Lucas No. 031850A)112£30.00- +
2320-37-132 Switch, Lighting ( Spare) (Lucas No. 031852A)15£30.00- +
2420-37-133 Bezel, Chromium Plated - for Switches 21, 22 and 2337£30.00- +
2520-37-136 Switch, Head/Side Lamps (Lucas No. 031853A)13£30.00- +
2620-37-135 Switch, Wiper/Screen Spray (Lucas No.031854A)116£30.00- +
2720-37-134 Switch,Panel Lights (Lucas No.076696A)111£30.00- +
2820-37-137 Bezel, Chormium Plated - for Switches 25, 26 and 2733£30.00- +
2920-37-143 Switch, Headlamp Dip - R. H. D.13£30.00- +
-20-37-142 Switch - Headlamp Dip - L. H. D.119£30.00- +
3020-37-141 Switch, Direction Indicator110£30.00- +
-23-37-224 Dip/Indicator Switch Assembly112£30.00- +
-690113 Screw 6 BA × 2 3/8" Rd. Hd.416£30.00- +
3120-37-762 Handle Grip - Dip and Direction Indicator Switch Levers25£30.00- +
3220-37-140 Warning Light, Amber, Direction Indicator29£30.00- +
-20-37-707 Bulb, Panel and Warning Lights - Ignition, Indicators, High Beam, Fuel Reserve (Lucas No. 987)910£30.00- +
3320-37-169 Terminal Bar, Six way (Lucas No. 37101)18£30.00- +
120-37-124 Windscreen Wiper, Motor and Cable Rack (Lucas Model DR3 No. 54071011A) - R.H.D.116£30.00- +
-20-37-152 Windscreen Wiper, Motor and Cable Rack (Lucas Model DR3 No. 54071012) - L.H.D.19£30.00- +
220-37-147 Wheelbox (Lucas No. 727294)24£30.00- +
-20-37-810 Rubber Seal - Wheelbox to Bodyskin27£30.00- +
320-37-153 Outer Tube, Motor to Wheelbox (Lucas No. 54711248) - R.H.D.16£30.00- +
-20-37-154 Outer Tube, Motor to Wheelbox (Lucas No. 54711249) - L.H.D.114£30.00- +
420-37-155 Outer Tube, Wheelbox to Wheelbox (Lucas No. 54711250)110£30.00- +
520-37-156 Outer Tube, Small End (Lucas No. 740746)117£30.00- +
620-37-726 Arm. Wiper, 11 1/2" (Lucas No. 54710006) - R.H.D.24£30.00- +
-20-37-759 Arm. Wiper, 11 1/2" (Lucas No. 54710005) - L.H.D.220£30.00- +
720-37-725 Blade, Wiper, 12" (Lucas No. 737907)22£30.00- +
820-37-166 Windscreen Washer Unit Complete (Lucas No. 077006)110£30.00- +
920-37-782 Carrier - Washer Unit (Lucas No. 295061)113£30.00- +
-20-37-789 Sundry Items - Windscreen Washer (Lucas No. 295196)1 Set15£30.00- +
1020-37-783 Screw (Part of 20-37-789)31£30.00- +
1120-37-784 Glass Jar (Lucas No. 295058)117£30.00- +
-20-37-785 Joint, Rubber (Lucas No. 295042)11£30.00- +
120 Filler Cup (Lucas No. 295043)118£30.00- +
1320-37-787 Tubing (Part of 20-37-789)6 ft.9£30.00- +
1420-37-788 Tee Piece (Part of 20-37-789)16£30.00- +
1520-37-167 Jets - Windscreen Washer213£30.00- +
1620-37-060 Battery Carrier Assembly115£30.00- +
1720-37-063 Retaining, Strip Assembly118£30.00- +
18119470 Plain Washer, 1/4"219£30.00- +
19690402 Locknut, 1/4" UNF410£30.00- +
2020-37-182 Gronmet - Harness45£30.00- +
2120-37-183 Gronmet - Main Harness216£30.00- +
2220-37-184 Gronmet - Control Cables etc.411£30.00- +
2320-37-185 Grommet - Speedometer Cable and Temperature Gauge117£30.00- +
24113423 Grommet - Rev. Counter Cable13£30.00- +
2120-37-183 Grommet - Main Harness311£30.00- +
2220-37-184 Grommet - Control Cables etc.312£30.00- +
2520-37-186 Grommet Plate - Retains Item 2318£30.00- +

Electrical Units

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-27-113 Headlamp Complete, PF.700 Le Mans (Lucas No. 58110A)211£30.00- +
-20-37-205 Headlamp Complete, F.700 Mk. 111 (Lucas No. 58576A)213£30.00- +
220-37-776 Rim, Headlamp (Lucas No. 556517)211£30.00- +
-20-37-775 Rim, Headlamp (Lucas No.)24£30.00- +
320-37-772 Light Unit, Headlamp (Lucas No. 554665)21£30.00- +
-20-37-211 Light Unit, Headlamp (Lucas No. 556452)218£30.00- +
-20-37-777 Light Unit, Headamp (Lucas No.)25£30.00- +
420-37-701 Bulb, Headlamp, 45/40W. (Lucas No. 370)216£30.00- +
-20-37-706 Bulb, Headlamp, 45/40W. Yellow (Lucas No. 371)26£30.00- +
520-37-114 Sidelamp (Lucs No. 52139)210£30.00- +
620-37-764 Rim, Sidelamp (Lucas No. 572776)23£30.00- +
720-37-761 Glass, Sidelamp (Lucas No.572772)21£30.00- +
820-37-765 Rubber Surround, Sidelamp (Lucas No. 572763)210£30.00- +
920-37-778 Bulbholder, Sidelamp (Lucas No. 572783)23£30.00- +
1020-37-702 Bulb, Sidelamp 6W. MCC (Lucas No. 989)27£30.00- +
1120-37-115 Flasher Lamp, Front, Amber (Lucas No. 53359)215£30.00- +
20-37-210 Flasher Lamp, Front,Clear (Lucas No.)213£30.00- +
1220-37-779 Rim, Front Flasher Lamp (Lucas No. 572734)22£30.00- +
1320-37-763 Glass, Amber, Front Flasher Lamp (Lucas No. 573266)216£30.00- +
20-37-760 Glass, Clear, Front Flasher Lamp (Lucas No. 572715)220£30.00- +
1420-37-780 Bulbholder, Front Flasher Lamp (Lucas No. 572727)23£30.00- +
1520-37-704 Bulb, Flasher, 21W, SCC (Lucas No. 382)215£30.00- +
1620-37-119 Stop/Tail/Flasher Lamp (Lucas No. 53527)27£30.00- +
-20-37-118 Stop/Tail/Flasher Lamp (Lucas No. 53689A)215£30.00- +
1720-37-769 Rim, Stop/Tail/Flasher Lamp (Lucas No. 574560)29£30.00- +
1820-37-766 Lens, Top, Amber (Lucas No. 574562)29£30.00- +
-20-37-767 Lens, Top, Red (Lucas No. 574546)213£30.00- +
1920-37-768 Lens, Bottom, Red (Lucas No. 574563)212£30.00- +
2020-37-770 Joint, Top (Lucas No. 574548)25£30.00- +
2120-37-771 Joint, Bottom (Lucas No. 574549)217£30.00- +
22- Screws, 2 BA2 sets11£30.00- +
2320-37-704 Bulb, Flasher, 21W, SCC (Lucas No. 382)210£30.00- +
2420-37-703 Bulb, Stop/Tail, 6/21W, SBC Offset Pin (Lucas No. 380)218£30.00- +
-2-37-230 Stop/Tail/Flasher Lamp Assembly22£30.00- +
-22-37-799 Lens and Rim - Amber Flasher29£30.00- +
-22-37-119 Stop/Tail Lamp - Red219£30.00- +
-22-37-798 Lens and Rim218£30.00- +
-22-37-232 Reflector Assembly24£30.00- +
-22-37-247 Rear Flasher Lamp Assembly - Amber216£30.00- +
-20-37-704 Bulb for 22-37-247 Lucas 38218£30.00- +
-22-37-828 Lens for 22-37-247 Amber19£30.00- +
-23-37-231 Rear Flasher Lamp Assembly - Red2714£30.00- +
-20-37-704 Bulb for 22-37-231 Lucas 38212£30.00- +
-22-37-829 Lens for 22-37-231 Red16£30.00- +
-22-37-248 Stop/Tail Lamp Assembly24£30.00- +
-20-37-703 Bulb for 22-37-248 Lucas 38018£30.00- +
-22-37-829 Lens for 22-37-248 Red12£30.00- +
-40-37-120 Reverse Lamp Assembly28£30.00- +
-20-37-704 Bulb for 40-37-120 Lucas 38216£30.00- +
-40-37-813 Lens for 40-37-120 White17£30.00- +
2520-37-151 Switch, Stop Light (Lucas no.111£30.00- +
2620-37-120 Lamp, Noo. Plate Illuminating and Reversing Light (Lucas No. 52442E)118£30.00- +
2720-37-781 Glass - for Item 26 (Lucas No. 572328)14£30.00- +
2820-37-702 Bulb, No. Plate Light, 6W, MCC (Lucas No. 989)28£30.00- +
2920-37-705 Bulb, Reversing Light, 21W, SCC (Lucas No. 382)11£30.00- +
3020-37-107 Switch, Reversing Light and Heater Fan (Lucas No. 31077E)213£30.00- +
3120-37-710 Joint - for switch, Item 30210£30.00- +
3220-37-123 Interior Light (Hella Ref. 20/82)219£30.00- +
3320-37-121 Glove Box and Boot Light (Hella Ref. 30/3)218£30.00- +
3420-37-709 Bulb, 6W Festoon (Lucas No. 254)411£30.00- +
3520-37-112 Master Switch (Lucas No. 76604)12£30.00- +
3620-37-104 Rubber Terninal Boot (Lucas No. 858266A)115£30.00- +
3720-37-109 Control Box Regulatar (Lucas No. 37303)12£30.00- +
3820-37-105 Windtone Horn - Low Note (Lucas No. 69046A) Tuned13£30.00- +
3920-37-106 Windtone Horn - High Note (Lucas No. 69047A) Pair1 Pair3£30.00- +
-20-37-203 Windtone Horn - Low Note (Lucas No. 69087) Tuned6£30.00- +
-20-37-204 Windtone Horn - High Note (Lucas No. 69090) Pair1 Pair14£30.00- +
4020-25-136 Horn Push Assembly (Lucas No.)15£30.00- +
4120-37-101 Horn Relay (Lucas No. 33135B)119£30.00- +
4220-37-110 Fuse Box (Lucas No. 37137A)21£30.00- +
-20-37-111 Battery, 12 Volt (Lucas Model BT9A-No. 4048757F)14£30.00- +
4320-37-138 Flasher Unit (Lucas No. 35010A)17£30.00- +
4420-37-168 Clip, Flasher Unit (Terry No. 81/3A)13£30.00- +
-20-37-139 Terminal Relay, three-way (Lucas No. 33116B)12£30.00- +
4520-37-103 Solenoid Switch (Lucas No. 76411E)114£30.00- +
4620-37-104 Rubber Terminal Boot (Lucas No. 858266A)24£30.00- +
4720-37-148 Inspection Lamp Socket and Plug Assembly (Lucas No. 38604A)119£30.00- +
-20-37-206 Complete Harness Equipment15£30.00- +
-20-37-160 Main Harness, Part of 20-37-206112£30.00- +
-20-37-171 Panel Harness, Part of 20-37-20617£30.00- +
-20-37-207 Complete Harness Equipment14£30.00- +
-20-37-208 Main Harness, Part of 20-37-20713£30.00- +
-20-37-209 Panel Harness, Part of 20-37-20714£30.00- +
-20-37-170 Rear Harness, Part of 20-37-206 and 20711£30.00- +
-20-37-172 Chassis Harness, Part of 20-37-206 and 20719£30.00- +
-20-37-173 Boot Lid Harness, part of 20-37-206 and 207118£30.00- +
-20-37-174 Flasher Switch Harness, Part of 20-37-206 and 20719£30.00- +
-20-37-175 Dip Switch Harness, Part of 20-37-206 and 207111£30.00- +
-20-37-176 Link Cable - Petrol Pump12£30.00- +
-20-37-177 Cable - Battery Negative16£30.00- +
-20-37-178 Cable - Battery Positive111£30.00- +
-20-37-179 Cable - Starter to Solenoid16£30.00- +
-20-37-180 Earth Cable - Master Switch14£30.00- +
-20-37-181 Earth Bond - Engine17£30.00- +
-20-37-187 Wiring Clip, 7/16" diam.1211£30.00- +
-20-37188 Wiring Clip, 3/4" diam.82£30.00- +
-20-37-189 Wiring Clip, 5/8" diam.810£30.00- +
-20-37-190 Wiring Clip, 5/16" diam.1514£30.00- +
-20-37-191 Wiring Clip, 3/8" diam.220£30.00- +
-20-37-192 Wiring Clip, 3/8" diam.29£30.00- +
-20-37-193 Wiring Clip253£30.00- +
-123127 Bolt, 1/4" UNF × 3/4"813£30.00- +
-112189 Screw, 2 BA × 1/2" Mushroom Hd.368£30.00- +
-690510 Screw, 2 BA × 3/4" Pan Hd.410£30.00- +
-690511 Screw, 2 BA × 5/8" Pan Hd.1312£30.00- +
-690453 Screw, P. K. No.10 × 3/4" Mushroom Hd.617£30.00- +
-119470 Plain Washer, 1/2"85£30.00- +
-119496 Plain Washer, 3/16"429£30.00- +
-119480 Spring Washer, 1/4"86£30.00- +
-20-37-214 Flasher Lamp, Front (Giuntini)216£30.00- +
-121874 Wiring Cable - Green with White Tracer8 ft.15£30.00- +
-475417 Tubing, Plastic7 ft.20£30.00- +
-121965 Cable End26£30.00- +
-122072 Snap Connector, Double27£30.00- +
-20-37-184 Grommet212£30.00- +
-20-37-190 Cable Clip219£30.00- +
-20-37-215 Lamp, Rear Number Plate Illuminating, Complete17£30.00- +
-20-37-212 Dip Switch - Foot11£30.00- +
-20-35-005 Support Bracket Assembly120£30.00- +
-112121 Screw. 2 BA × 1/2" Rd. Hd.212£30.00- +
-119488 Spring Washer, 3/16"29£30.00- +
-111109 Plain Nut, 2 BA28£30.00- +
-111942 Screw. 2 BA × 3/4" Rd. Hd.210£30.00- +
-20-37-123 Wiring Cable - Foot Dip Switch116£30.00- +

Instruments and Controls

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-38-101 Speedometer, 160 MPH 3.54 Axle17£30.00- +
-20-38-111 Speedometer, 260 KPH 3.54 Axle114£30.00- +
-20-38-102 Speedometer, 160 MPH 3.31 Axle118£30.00- +
-20-38-112 Speedometer, 260 KPH 3.31 Axle117£30.00- +
-20-38-103 Speedometer, 160 MPH 3.77 Axle111£30.00- +
-20-38-113 Speedometer, 260 KPH 3.77 Axle11£30.00- +
220-38-151 Bezel, Chromium Plated - Speedometer11£30.00- +
-20-38-145 Fixing Strip - Speedometer114£30.00- +
320-38-121 Cable, Speedometer, 5' 10" long111£30.00- +
420-38-122 Revolution Counter111£30.00- +
-22-38-122 Revolution Counter - Electric13£30.00- +
-22-07-119 Revolution Counter Drive - Electric119£30.00- +
-22-07-164 Connecting Piece - Electric Rev. Counter16£30.00- +
520-38-151 Bezel, Chromium Plated - Revolution Counter112£30.00- +
-20-38-145 Fixing Strip - Revolution Counter16£30.00- +
620-38-124 Cable, Revolution Counter, 2' long - R. H. D.110£30.00- +
-20-38-141 Cable, Revolution Counter, 3' 11" long - L. H. D.17£30.00- +
-20-38-144 Clip, Revolution Counter Cable - L. H. D.216£30.00- +
-113457 Setscrew, 2 BA × 1/2" Hex. Hd. - L. H. D.25£30.00- +
-122315 Nut, Nyloc 2 BA - L. H. D.217£30.00- +
720-07-119 Right Angle Drive Box - Revolution Counter - L. H. D.114£30.00- +
820-38-125 Panel, 2-in-1, oil/ fuel Gauges114£30.00- +
-20-38-126 Gauge, Oil Pressure12£30.00- +
-20-38-127 Gauge, Fuel113£30.00- +
-42-38-130 Gauge -Oil Temperature117£30.00- +
-42-38-157 Gauge - Combined Water Temp/Fuel17£30.00- +
920-38-152 Bezel, Chromium Plated -2-in-1 Panel116£30.00-
