DB4

Engine

View Diagram

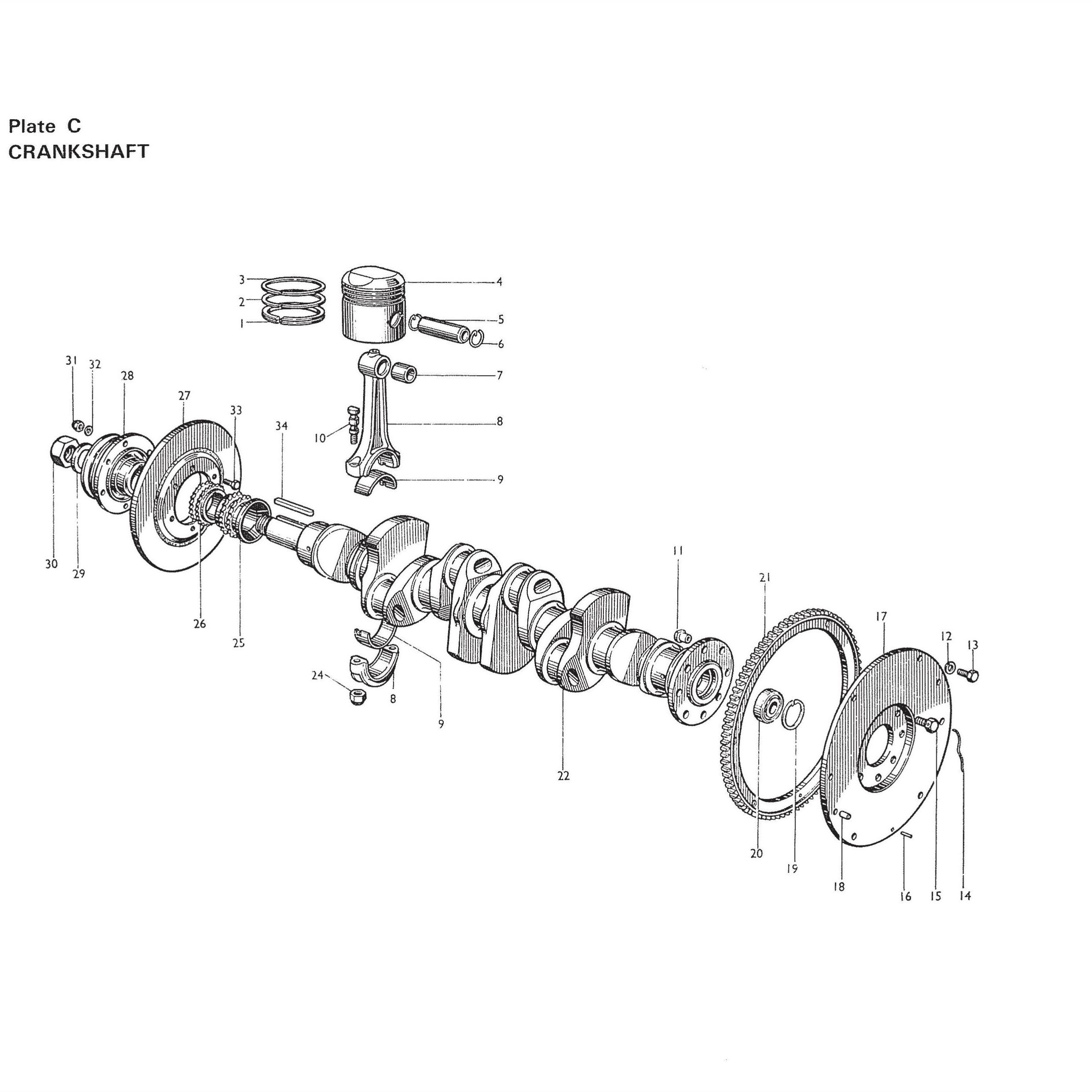

Crankshaft

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-23-50-163 Piston Assembly65£30.00- +
120-02-712 Scraper Ring - Twin Segment69£30.00- +
220-02-133 Compression Ring - Intermediate619£30.00- +
-21-02-133 Compression Ring - Intermediate67£30.00- +
320-02-132 Compression Ring - Top618£30.00- +
-21-02-132 Compression Ring - Top612£30.00- +
423-50-163 Piston620£30.00- +
520-02-130 Gudgeon Pin616£30.00- +
620-02-131 Circlip125£30.00- +
720-02-704 Small End Bush69£30.00- +
820-02-002 Connecting Rod Assembly617£30.00- +
920-02-128 Bearing Shell - Halves129£30.00- +
-20-02-701 Bearing Shell - Halves1212£30.00- +
-20-02-703 Bearing Shell - Halves121£30.00- +
1020-02-125 Bolt, Special, - Connecting Rod1220£30.00- +
1120-02-114 Dowel Nut - Crankshaft to Flywheel86£30.00- +
12119482 Spring Washer, 3/8"615£30.00- +
13125530 Bolt - Starter Ring And Clutch67£30.00- +
-21-11-159 Stud311£30.00- +
-21-11-157 Bolt34£30.00- +
14121841 Locking Wire, 16 SWGA/R6£30.00- +
1520-02-115 Bolt - Crankshafts to Flysheel820£30.00- +
16125529 Dowel - Timing Mark115£30.00- +
1720-02-112 Flywheel113£30.00- +
-21-02-112 Flywheel115£30.00- +
18125543 Dowel - Flywheel to Clutch214£30.00- +
19111744 Circlip, Intercal 1 7/8"117£30.00- +
20125442 Ball Bearing - Clutch Spigot112£30.00- +
2120-02-113 Starter Ring115£30.00- +
-21-02-113 Starter Ring120£30.00- +
2220-02-004 Crankshaft116£30.00- +
-48-02-111 Crankshaft19£30.00- +
-20-02-711 Crankshaft112£30.00- +
-20-02-702 Crankshaft114£30.00- +
-20-02-716 Crankshaft16£30.00- +
2420-02-135 Special Nut - Connecting Rod123£30.00- +
2520-02-117 Sprocket - Timing19£30.00- +
2620-02-118 Sprocket - Oil Pump113£30.00- +
-20-02-718 Torsional Vibration Damper Assembly16£30.00- +
2720-02-120 Torsional Vibration Damper115£30.00- +
-22-02-119 Flywheel114£30.00- +
2820-02-119 Pulley - Crankshaft110£30.00- +
-22-02-119 Pulley - Crankshaft113£30.00- +
2920-02-121 Special Washer - Crankshaft11£30.00- +
3020-02-122 Special Nut - Crankshaft13£30.00- +
-21-02-121 Special Washer - Crankshaft18£30.00- +
-21-02-122 Special Nut - Crankshaft114£30.00- +
31123113 Nut, Nyloc, 3//8" UNF67£30.00- +
32119472 Plain Washer, 3/8"613£30.00- +
33690400 Special Bolt - Torsional Vibration Damper61£30.00- +
3420-02-116 Key - Crankshaft19£30.00- +
d11671fbc702 Note: Some earlier engines are fitted with a different bolt and nut, utilising a split pin as a mean of locking. The earlier castellated nut must not be used with the later bolt and the later nut must not be used with the bolt that is drilled for a split4£30.00- +

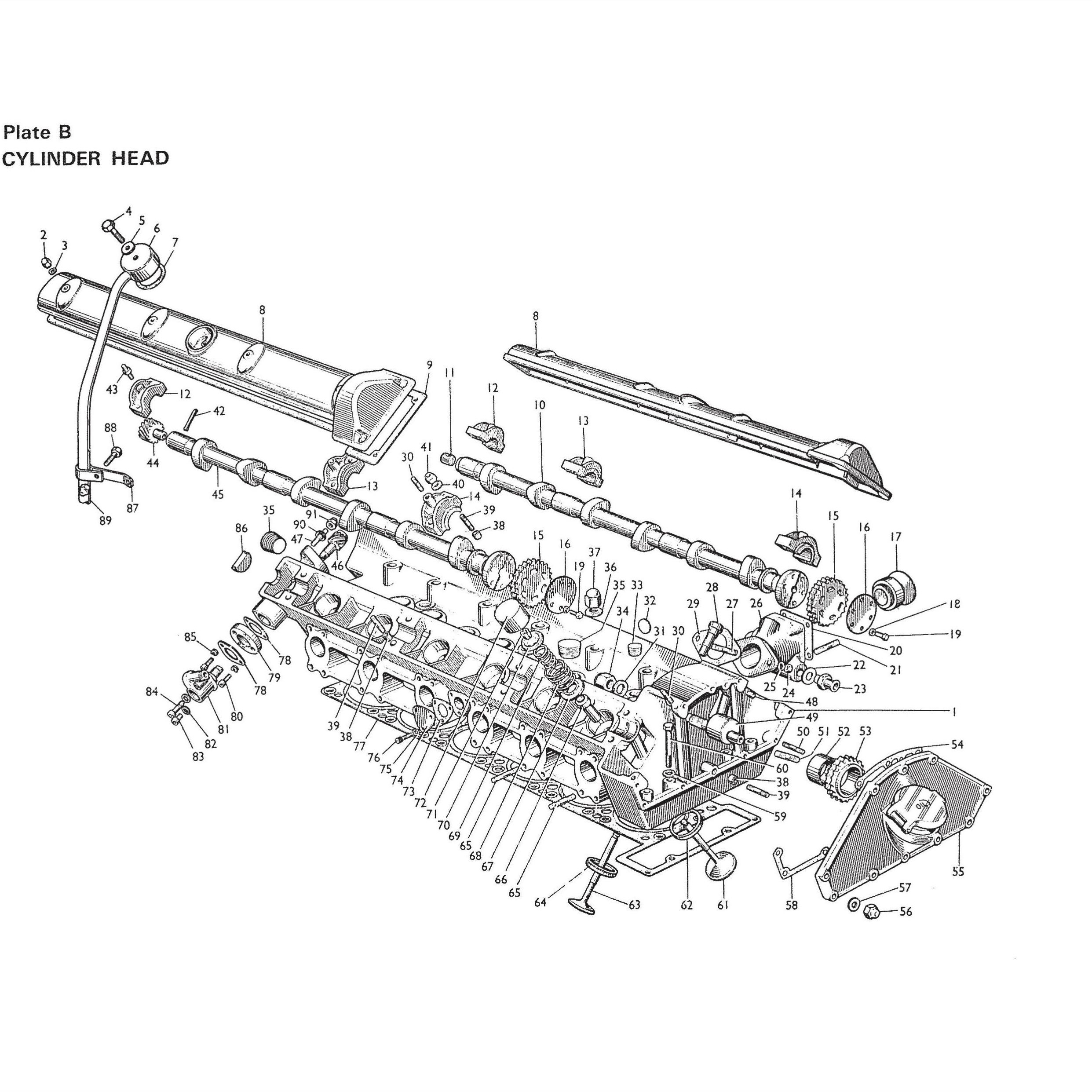

Cylinder Head

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-06-001 Cylinder Head Studded Assembly111£30.00- +
-21-06-001 Cylinder Head Studded Assembly118£30.00- +
-23-50-160 Cylinder Head Studded Assembly115£30.00- +
120-06-111 Cylinder Head14£30.00- +
-21-06-111 Cylinder Head110£30.00- +
-23-50-162 Cylinder Head18£30.00- +
220-07-130 Domed Nut, 1/4" UNF, Chr. Pl. - Camshaft Cover126£30.00- +
3690559 Plain Washer, Alum., 1/4"126£30.00- +
4690479 Bolt, 2 BA × 2", Chr. Pl. HD.217£30.00- +
5690448 Plain Washer, Alum, 3/16"211£30.00- +
620-07-005 Breather Cap Assembly - R.H.15£30.00- +
-21-07-005 Breather Cap Assembly - R.H.117£30.00- +
-23-50-200 Breather Cap Assembly - R.H.17£30.00- +
-20-07-009 Breather Cap Assembly - L.H.114£30.00- +
720-07-156 Joint - Breather Caps219£30.00- +
820-07-004 Camshaft Cover Assembly28£30.00- +
-23-07-004 Camshaft Cover Assembly24£30.00- +
-21-07-004 Camshaft Cover Assembly214£30.00- +
920-07-129 Joint - Camshaft Cover22£30.00- +
-21-07-129 Joint - Camshaft Cover219£30.00- +
1020-07-002 Exhaust Camshaft Assembly114£30.00- +
-48-07-002 Exhaust Camshaft Assembly115£30.00- +
-21-07-002 Exhaust Camshaft Assembly13£30.00- +
11114662 Taper Plug, 3/8" BSP16£30.00- +
1220-06-119 Camshaft Bearing Cap, Rear217£30.00- +
1320-06-118 Camshaft Bearing Cap, Centre413£30.00- +
1420-06-117 Camshaft Bearing Cap, Front210£30.00- +
-23-06-119 Camshaft Bearing Cap, Rear215£30.00- +
-23-06-118 Camshaft Bearing Cap, Centre46£30.00- +
-23-06-117 Camshaft Bearing Cap, Front217£30.00- +
-20-06-702 Camshaft Bearing Cap, Rear211£30.00- +
-20-06-701 Camshaft Bearing Cap, Centre414£30.00- +
-20-06-700 Camshaft Bearing Cap, Front214£30.00- +
-20-06-703 Camshaft Bearing Cap - Halves89£30.00- +
1520-07-115 Sprocket - Camshaft217£30.00- +
1620-07-116 Disc Washer, Sprocket220£30.00- +
1720-06-144 Thermostat, 68C - Standard119£30.00- +
-20-06-139 Thermostat, 80C - Alternative19£30.00- +
-52-06-139 Thermostat, 82C117£30.00- +
18119481 Spring Washer, 5/16"1214£30.00- +
19125519 Setscrew, 5/16" UNF × 5/8" - Camshaft Sprocket125£30.00- +
2020-06-140 Joint - Thermostat Housing117£30.00- +
21123186 Stud, 1/4" UNC/UNF × 1.575"43£30.00- +
22119500 Fibre Washer. For 3/8" BSP34£30.00- +
2320-06-141 Adaptor, Water Hose35£30.00- +
24123115 Nut, Nyloc, 5/16" UNF214£30.00- +
25119471 Plain Washer, 5/16"27£30.00- +
2620-06-137 Housing, Thermostat112£30.00- +
27123191 Stud, 5/16" UNC/UNF × 1 3/4"213£30.00- +
2820-06-115 Valve Guide - Exhaust67£30.00- +
2920-06-138 Joint - Water Outlet119£30.00- +
30123185 Stud, 1/4" UNC/UNF × 1.35"105£30.00- +
3120-06-136 Sealing Washer, 5/8"17£30.00- +
32122468 Welch Plug, 1" diam.16£30.00- +
33125408 Taper Plug, 1/2" BSP812£30.00- +
34123117 Nut, Nyloc, 5/8" UNF17£30.00- +
35125410 Taper Plug, 1" BSP315£30.00- +
36122008 Plain Washer, 1/2, Chr, Pl.1417£30.00- +
3720-06-132 Domed Nut, 1/2" UNF. Chr. Pl. - Cylinder Head1414£30.00- +
38125405 Ring Dowel1612£30.00- +
39123187 Stud, 1/4" UNC/UNF × 1 3/4"1611£30.00- +
40119470 Plain Washer, 1/4"1615£30.00- +
41123116 Nut, Nyloc, 1/4" UNF161£30.00- +
42690461 Tension Pin, 3/16" diam. × 1"117£30.00- +
4320-07-127 Rear Stud, Special212£30.00- +
4420-07-113 Gear- Distributor Driving11£30.00- +
-21-07-113 Gear- Distributor Driving17£30.00- +
-20-07-159 Plug, Special - Distributor Driving Gear15£30.00- +
4520-07-001 Inlet Camshaft Assembly19£30.00- +
-20-07-111 Inlet Camshaft (Less Distributor Driving Gear)11£30.00- +
-21-07-003 Inlet Camshaft Assembly12£30.00- +
-21-07-111 Inlet Camshaft (Less Distributor Driving Gear)16£30.00- +
4620-07-117 Gear- Distributor Driven110£30.00- +
-21-07-117 Gear- Distributor Driven18£30.00- +
47125412 Stud, 1/4" UNC/UNF × 1.2"216£30.00- +
48S. 41402 Dowel16£30.00- +
4920-06-135 Spindle - Top Tensioner118£30.00- +
-21-06-135 Spindle - Top Tensioner16£30.00- +
50123186 Stud, 1/4" UNC/UNF × 1.575"910£30.00- +
51690023 Stud, 5/16" UNC/UNF × 1.55", Sulfinuzed1213£30.00- +
5220--06-134 Bush - Tensioner Sprocket12£30.00- +
5320-06-133 Tensioner Sprocket13£30.00- +
-21-06-002 Bush and Tensioner Sprocket Assembly119£30.00- +
5420-07-125 Top Joint - Front Cover119£30.00- +
5520-07-003 Front Cover Assembly16£30.00- +
-21-07-003 Front Cover Assembly115£30.00- +
-20-07-123 Oil filler Cap - Magnetic110£30.00- +
-690114 Mills Pin, 1/8" diam. × 1/2"17£30.00- +
56123116 Nut, Nyloc, 1/4" UNF1012£30.00- +
57119470 Plain Washer, 1/4"108£30.00- +
5820-07-126 Bottom Joint - Front Cover120£30.00- +
59119471 Plain Washe, 5/16"41£30.00- +
60125426 Bolt, 5/16" UNF × 2 7/8"45£30.00- +
6120-06-120 Inlet Valve611£30.00- +
-21-06-120 Inlet Valve65£30.00- +
-23-50-165 Inlet Valve67£30.00- +
6220-06-112 Valve Seat Insert - Inlet613£30.00- +
-21-06-112 Valve Seat Insert - Inlet614£30.00- +
6320-06-121 Exhaust Valve67£30.00- +
-22-06-121 Exhaust Valve615£30.00- +
-21-06-121 Exhaust Valve619£30.00- +
-48-06-121 Exhaust Valve617£30.00- +
6420-06-113 Valve Seat Insert - Exhaust619£30.00- +
-21-06-113 Valve Seat Insert - Exhaust68£30.00- +
65123185 Stud, 1/4" UNC/UNF × 1.35"244£30.00- +
6620-06-114 Valve Guide - Inlet620£30.00- +
-21-06-114 Valve Guide - Inlet64£30.00- +
6720-06-128 Seating Washer - Valve Spring1214£30.00- +
-23-50-185 Seating Washer - Valve Spring1219£30.00- +
6820-06-122 Valve Spring, Outer123£30.00- +
-21-06-122 Valve Spring, Outer124£30.00- +
6920-06-123 Valve Spring, Inner125£30.00- +
-21-06-123 Valve Spring, Inner1220£30.00- +
7020-06-130 Cap - Valve Spring126£30.00- +
7120-06-129 Cotter, Valve244£30.00- +
7220-06-124 Tappet, .1270"/.1275" thickness - Yellow )14£30.00- +
-20-06-125 Tappet, .1290"/.1295" thickness - Black )3£30.00- +
-20-06-126 Tappet, .1310"/.1315" thickness - Green )1220£30.00- +
-20-06-127 Tappet, .1330"/.1335" thickness - Green )14£30.00- +
7320-06-143 Joint - Cover Plate117£30.00- +
7420-06-142 Cover Plate13£30.00- +
75111519 Shakeproof Washer, 3/16", External31£30.00- +
76123122 Socket Setscrew, 2BA × 5/8"39£30.00- +
7720-06-131 Gasket - Cylinder Head111£30.00- +
-20-06-145 Sealing Ring - Cylinder Head Gasket619£30.00- +
7820-07-120 Joint - Rev. Counter Drive Unit22£30.00- +
-22-07-120 Joint - Rev. Counter Drive Unit15£30.00- +
-20-07-120 Joint - Rev. Counter Drive Unit12£30.00- +
7920-07-147 Adaptor - Rev. Counter Drive Unit11£30.00- +
-22-07-147 Adaptor - Rev. Counter Drive Unit13£30.00- +
-22-07-164 Coupling110£30.00- +
80123122 Socket Setscrew, 2BA × 5/8"24£30.00- +
8120-07-119 Drive Unit - Rev. Counter14£30.00- +
-22-07-119 Drive Unit - Rev. Counter14£30.00- +
82690557 Shakeproof Washer, 1/4", Internal212£30.00- +
83690327 Socket Setscrew, 1/4" UNC × 3/4"12£30.00- +
84690333 Socket Setscrew, 1/4" UNC × 1 1/24"116£30.00- +
85119489 Thackeray Spring Washer, 3/16"24£30.00- +
8620-07-121 Seal Plug25£30.00- +
8720-07-157 Pipe Clip - Breather - R.H.111£30.00- +
-20-07-158 Pipe Clip - Breather - L.H.115£30.00- +
88113457 Setscrew, 2BA × 1/2"218£30.00- +
89122315 Nut, Nyloc, 2BA215£30.00- +
90119470 Plain Washer, 1/4"218£30.00- +
91123116 Nut, Nyloc, 1/4" UNF212£30.00- +

Engine Electrical

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-07-143 Ignition Coil118£30.00- +
-22-07-143 Ignition Coil14£30.00- +
-23-07-143 Ignition Coil116£30.00- +
-23-07-165 Ballast Resistor110£30.00- +
2123127 Setscrew, 1/4" UNF × 3/4"220£30.00- +
3119480 Spring Washer, 1/4"21£30.00- +
4119470 Plain Washer, 1/4"21£30.00- +
520-07-118 Distributor Complete (anticlockwise) (Lucas No. 40697)19£30.00- +
-23-07-118 Distributor12£30.00- +
-24-07-118 Distributor112£30.00- +
620-07-704 Cap Assembly, Distributor (Lucas No. 418861)110£30.00- +
720-07-701 Rotor Arm (Lucas No. 418726)117£30.00- +
-20-07-703 Condenser (Lucas No. 423871)116£30.00- +
-20-07-700 Contact Breaker Set (Lucas No. 420197)111£30.00- +
-20-07-705 Spring, Auto Advance (Lucas No. 416048)1 Set10£30.00- +
-20-07-702 Sealing Ring, Distributor113£30.00- +
-20-08-178 Cap Nut - Diaphragm Blanking19£30.00- +
842-07-142 Ignition Lead - Coil to Distributor114£30.00- +
942-07-136 Ignition Lead to No. 1 Cylinder115£30.00- +
1042-07-137 Ignition Lead to No. 2 Cylinder17£30.00- +
1142-07-138 Ignition Lead to No. 3 Cylinder117£30.00- +
1242-07-139 Ignition Lead to No. 4 Cylinder112£30.00- +
1342-07-140 Ignition Lead to No. 5 Cylinder16£30.00- +
1442-07-141 Ignition Lead to No. 6 Cylinder115£30.00- +
1542-07-006 Ignition Lead Tube Assembly17£30.00- +
16114509 "O" Ring - Ignition Leads113£30.00- +
1748-07-148 Sparking Plug62£30.00- +
1820-07-146 Washer - Sparking Plug619£30.00- +
-90639 Sparking Plug64£30.00- +
1920-07-134 Terminal - Sparking Plug612£30.00- +
2020-07-135 Shroud - Sparking Plug63£30.00- +
2120-09-111 Dynamo (Lucas Type C 45 PVS-6, No. 22496)119£30.00- +
-23-09-111 Dynamo17£30.00- +
-690837 Neoprene Sleeve311£30.00- +
2220-09-112 Pulley, Dynamo18£30.00- +
-22-09-112 Pulley, Dynamo114£30.00- +
23119604 Woodruff Key, No. 5115£30.00- +
24119485 Spring Washer. 5/8"114£30.00- +
25- Nut, Special - Dynamo (Lucas No. 180620)11£30.00- +
2620-09-114 Bracket, Front - Dynamo Mounting112£30.00- +
2720-09-113 Bracket, Rear - Dynamo Mounting115£30.00- +
-21-09-113 Bracket, Rear - Dynamo Mounting119£30.00- +
28123129 Setscrew, 1/4" UNC × 3/4"49£30.00- +
29119470 Plain Washer, 1/4"412£30.00- +
30119480 Spring Washer, 1/4"419£30.00- +
3120-09-115 Link, Adjusting - Dynamo15£30.00- +
32123115 Nut, Nyloc 5/16" UNF34£30.00- +
33690028 Bolt, 5/16" UNF × 1 1/8"23£30.00- +
34119471 Plain Washer, 5/16"317£30.00- +
35121888 Bolt, Special, 5/16" Whit. (Lucas No. 112557)112£30.00- +
36119481 Spring Washer, 5/16"118£30.00- +
3720-09-116 Starter Motor (Lucas Type M 45 G, No. 26043)118£30.00- +
38123133 Bolt, 3/8" UNF × 1 1/8"317£30.00- +
39119482 Spring Washer 3/8"33£30.00- +

Engine Mountings

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-10-112 Engine Bearer Bracket27£30.00- +
-20-10-002 Engine Bearer Bracket Assembly26£30.00- +
2119471 Plain Washer, 5/16"813£30.00- +
3123115 Nut, Nyloc, 5/16" UNF816£30.00- +
420-10-120 Engine Front Mounting210£30.00- +
520-10-116 Shim - Engine MountingA/R4£30.00- +
-25-10-181 Shim - Engine MountingA/R7£30.00- +
6119472 Plain Washer, 3/8"46£30.00- +
7123113 Nut, Nyloc, 3/8" UNF21£30.00- +
8125594 Nut, Nyloc, Thin. 3/8" UNF215£30.00- +
920-10-113 Engine Front Mounting Bracket23£30.00- +
10125519 Setscrew, 5/16" UNF × 5/8"81£30.00- +
11119481 Spring Washer, 5/16"815£30.00- +
12119471 Plain Washer, 5/16"87£30.00- +
1320-10-117 Rebound Bracket (see item 1. Used with 20-10-112)217£30.00- +
-20-10-174 Rebound Bracket (see item 1. Used with 20-10-002)23£30.00- +
14125520 Setscrew, 5/16" UNF × 1/2"618£30.00- +
15119481 Spring Washer, 5/16"66£30.00- +
1620-10-118 Rebound Rubber611£30.00- +
1720-10-119 Shim - Rebound RubberA/R9£30.00- +
1820-10-121 Shim - Rebound RubberA/R8£30.00- +
19119472 Plain Washer, 3/8"210£30.00- +
20125594 Nut, Nyloc, Thin. 3/8" UNF26£30.00- +
-25-10-006 Engine Bearer Bracket Assembly - R.H.13£30.00- +
-25-10-007 Engine Bearer Bracket Assembly - L.H.120£30.00- +
-23-10-008 Adaptor Plate211£30.00- +
-23-10-190 Mounting Bracket17£30.00- +
-23-10-191 Distance Piece111£30.00- +
-23-10-192 Engine Damper112£30.00- +
-UFB/106/20R Bolt17£30.00- +
-UFB/106/28R Bolt12£30.00- +
-125594 Nut28£30.00- +
-690919 Special Washer59£30.00- +
-42-10-192 Engine Washer115£30.00- +
-48-10-009 Fixing Plate Assembly216£30.00- +
-123115 Nut, Nyloc123£30.00- +
-UFS/107/7R Setscrew42£30.00- +
3320-10-057 Strut Assembly118£30.00- +
3420-10-172 Forward Lug120£30.00- +
-119483 Setscrew415£30.00- +
-UFS/105/7R Setscrew416£30.00- +
-119481 Spring Washer49£30.00- +
-119471 Plain Washer41£30.00- +
2120-10-055 Engine Rear Mounting Bracket Assembly16£30.00- +
22123131 Bolt, 5/16" UNF × 1"49£30.00- +
23119471 Plain Washer, 5/16"416£30.00- +
24123115 Nut, Nyloc, 5/16" UNF46£30.00- +
25690405 Stud. 5/16" UNC/UNF × 2 7/8"22£30.00- +
2620-10-165 Distance Tube25£30.00- +
27119471 Plain Washer, 5/16"25£30.00- +
28123115 Nut, Nyloc, 5/16" UNF218£30.00- +
2920-10-164 Engine Rear Mounting22£30.00- +
-20--10-176 Tightening Ring Assembly220£30.00- +
-23-10-179 Mounting Plate219£30.00- +
3020-10-166 Shim - Engine Mounting25£30.00- +
31119472 Plain Washer, 3/8"217£30.00- +
32123113 Nut, Nyloc, 3/8" UNF23£30.00- +
35122482 Locknut, 5/16" UNF211£30.00- +
36690407 Special Washer, 5/16"412£30.00- +
3720-10-173 Distance Tube26£30.00- +
3820-34-118 Rubber Bush410£30.00- +
39123115 Nut, Nyloc, 5/16" UNF28£30.00- +

Oil Pump

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-04-122 Sump113£30.00- +
-21-04-122 Sump18£30.00- +
220-04-121 Joint - Sump11£30.00- +
3121841 Locking Wire, 16 SWG6 ft.10£30.00- +
4690314 Setscrew, 5/16" UNC × 1 1/8" - Sump to Cylinder Block2620£30.00- +
5111902 Thackeray Spring Washer 5/16"261£30.00- +
620-04-111 Joint - Oill Pump15£30.00- +
720-04-001 Oil Pump Complete12£30.00- +
-48-04-001 Oil Pump Complete19£30.00- +
-690481 Adaptor - Thermo bulb15£30.00- +
-690610 Adaptor - Thermo bulb19£30.00- +
-690397 Plug - 3/8" Bsp118£30.00- +
-690610 Adaptor - Thermo gauge112£30.00- +
8690464 Stud, 5/16" UNC/UNF × 3.775"412£30.00- +
9125542 Special Washer15£30.00- +
10125443 Slotted Nut, 1/2" UNF14£30.00- +
11119528 Split Pin, 3/32" diam. × 1"115£30.00- +
12119608 Woodruff Key. No. 9120£30.00- +
13123113 Nut, Nyloc, 3/8" UNF414£30.00- +
14119472 Plain Washer, 3/8"41£30.00- +
1520-04-003 Oil Strainer Assembly113£30.00- +
-21-04-003 Oil Strainer Assembly16£30.00- +
-23-04-003 Oil Strainer Assembly11£30.00- +
16119502 Fibre Washer - for 1/2" BSP113£30.00- +
17690165 Oil Drain Plug, 1/2" BSP, Magnetic17£30.00- +
18125522 Setscrew, 5/16" UNC × 1"58£30.00- +
19119481 Spring Washer, 5/16"74£30.00- +
20125524 Sealing Ring210£30.00- +
2120-04-113 Baffle Plate - Sump118£30.00- +
-23-04-113 Baffle Plate - Sump13£30.00- +
2220-04-005 Suction Pipe Assembly110£30.00- +
23125519 Setscrew, 5/16" UNF × 5/8"28£30.00- +
24119470 Plain Washer, 1/4"73£30.00- +
25119480 Spring Washer, 1/4"712£30.00- +
26690022 Setscrew, 1/4" UNC × 1 1/8"715£30.00- +
27119471 Plain Washer, 5/16"31£30.00- +

Timing Case

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-03-002 Timing Case Complete120£30.00- +
-21-03-002 Timing Case Complete15£30.00- +
220-03-127 Joint - Timing Case to Cylinder Block18£30.00- +
-20-03-127 Joint - Timing Case to Cylinder Block19£30.00- +
320-03-130 Chain - Oil Pump Drive (76 Pitches)115£30.00- +
4125521 Bolt, 1/4" UNC × 2.55" - Chain Adjuster215£30.00- +
5119528 Split Pin, 3/32" diam. × 1" - Oil Pump Hub117£30.00- +
6125520 Setscrew, 5/16" UNF × 1/2" Hex. Head - Oil Pump Sprocket34£30.00- +
7125443 Nut, Slotted, 1/2" UNF - Oil Pump Hub110£30.00- +
8125542 Plain Washer, Special - Oil Pump Hub110£30.00- +
9119481 Spring Washer, 5/16" - Oil Pump Sprocket318£30.00- +
1020-03-125 Sprocket, Oil Pump12£30.00- +
1120-04-112 Hub, Oil Pump114£30.00- +
129bf4d70e9fe0 Locking Wire1 ft.2£30.00- +
13125401 Socket Setscrew, 1/4" UNC × 1 1/2 - Tensioner Housing219£30.00- +
14114142 Circlip, Internal17£30.00- +
1520-03-131 Adjusting Screw, Lower Tensioner13£30.00- +
16123119 Locknut, 3/8" UNC - Lower Tensioner Adjusting Screw119£30.00- +
1720-03-121 Plunger - Lower Tensioner15£30.00- +
1820-03-120 Spring - Lower Tensioner114£30.00- +
1920-03-119 Piston - Lower Tensioner118£30.00- +
2020-03-118 Housing - Lower Tensioner11£30.00- +
2120-03-113 Clevis111£30.00- +
-20-03-114 Pin112£30.00- +
2220-03-133 Distance Piece, Chain Adjuster110£30.00- +
2320-03-132 Chain Adjuster Complete117£30.00- +
24125439 Oil Seal120£30.00- +
25111302 Circlip, External112£30.00- +
2620-03-117 Pivot, Tensioner Arm113£30.00- +
2720-03-115 Tensioner Arm111£30.00- +
2820-03-111 Sprocket - Lower Tensionerr119£30.00- +
2920-03-116 Spindle - Tensioner Arm120£30.00- +
3020-03-112 Bush - Tensioner Sprocket110£30.00- +
3120-03-124 Thrust Flange - Intermediate Sprocket216£30.00- +
32123112 Dowel - Thrust Flange413£30.00- +
3320-03-123 Bush - Intermediate Sprocket110£30.00- +
3420-01-117 Spindle - Intermediate Sprocket17£30.00- +
3520-03-122 Spocket, Intermediate14£30.00- +
3620-03-129 Chain, Secondary (106 Pitches)119£30.00- +
3720-03-128 Chain, Primary (74 Pitches)113£30.00- +
3820-05-120 Joint - Water Pump to Timing Case117£30.00- +
39690027 Special Nut, 5/16" UNF Cad. Pl. - Dynamo Adjusting Link119£30.00- +
4020-05-001 Water Pump Complete14£30.00- +
4120-05-111 Housing, Water Pump (Part of Water Pump Assembly)19£30.00- +
42123130 Setscrew, 1/4" UNF × 5/8 Hex. Head - Fan46£30.00- +
43119480 Spring Washer, 1/4" - Fan412£30.00- +
4420-05-004 Fan Assembly Complete (8 Bladed)110£30.00- +
4520-05-123 Fan Belt15£30.00- +
46123116 Nut, Nyloc, 1/4" UNF - Water Pump813£30.00- +
47119470 Plain Washer, 1/4" - Water Pump818£30.00- +
48125531 Stud, 1/4" Unc/UNF × 1.475" Cad. Pl. - Water Pump810£30.00- +
49123115 Nut, Nyloc, 5/16" UNF - Timing Case142£30.00- +
50119471 Plain Washer, 5/16" - Timing Case153£30.00- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222   Parts Catalogue
90222   Parts Catalogue
90222   Parts Catalogue


£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
