DB4

Suspension and Steering

View Diagram

Front Suspension

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-23-001 Lower Wishbone Assembly - R. H.114£30.00- +
120-23-002 Lower Wishbone Assembly - L. H.16£30.00- +
220-23-114 Ball Joint - Brake Reaction Strut216£30.00- +
320-23-115 Tab Washer - Ball Joint28£30.00- +
-20-23-161 Gaiter - Brake Reaction Strut26£30.00- +
-13489 Copper Wire - GaiterA/R15£30.00- +
420-23-116 Bearing, Ball Joint - R. H. Upper - L. H. Lower214£30.00- +
520-23-117 Bearing, Ball Joint - R. H. Lower - L. H. Upper26£30.00- +
620-23-118 Retainer - Ball Joint43£30.00- +
-20-23-168 Plug - Ball Joint Housing216£30.00- +
720-23-119 Locating Bolt - Ball Joint44£30.00- +
8119480 Spring Washer, 1/4"416£30.00- +
920-23-120 Bush - Wishbone84£30.00- +
1020-23-121 Spindle - Lower Wishbone26£30.00- +
1120-23-122 Retaining Plate25£30.00- +
1220-23-123 Shim, .010" - Retaining PlateA/R2£30.00- +
1320-23-124 Lower Ball Seating - King Pin25£30.00- +
1420-23-125 Thrust Pad - King Pin413£30.00- +
1520-23-162 Shim - Lower Thrust Pad SpringA/R17£30.00- +
1620-23-126 Spring - King Pin Lower Thrust Pad219£30.00- +
1720-23-127 Lower Spring Retaining Cap211£30.00- +
1820-23-128 Gaiter - King Pin45£30.00- +
-13489 Copper WireA/R8£30.00- +
1920-23-129 Anchor Bolt - Road Spring218£30.00- +
2020-23-130 Taper Pin212£30.00- +
21122315 Nut, Nyloc, 2 BA22£30.00- +
-690524 Tension Pin213£30.00- +
-20-23-003 Front Suspension Unit Assembly220£30.00- +
2220-23-131 Shock Absorber Complete29£30.00- +
2320-23-132 Road Spring Front213£30.00- +
-20-23-169 Packing - Front Road SpringA/R16£30.00- +
2420-23-133 Upper Wishbone Arm43£30.00- +
2520-23-134 Bracket, Upeer Wishbone21£30.00- +
2620-23-135 Shim - Upper Wishbone Arm324£30.00- +
27119640 Grease Nipple, 90 1/8" BSP217£30.00- +
28119649 Grease Nipple, Straight, 1/4 BSF211£30.00- +
2920-23-136 Upper Ball Seating - King Pin21£30.00- +
3020-23-137 Bearing Cap - King Pin29£30.00- +
3120-23-138 Spring - King Pin Upper Thrust Pad216£30.00- +
3220-23-004 Upper Spring Retaining Cap Assembly213£30.00- +
4620-23-155 Ball, King Pin, Lower210£30.00- +
47125598 Slotted Nut, 5/8" UNF214£30.00- +
48119537 Split Pin, 3/8" diam. × 1 3/8"218£30.00- +
49112390 Circlip, Internal, 2 1/8"211£30.00- +
3320-23-139 Adjusting Screw220£30.00- +
34125564 Plain Nut, 3 3/8" UNF29£30.00- +
3520-23-140 Upper Wishbone Spindle217£30.00- +
36119475 Plain Washer, 5/8"418£30.00- +
37125598 Slotted Nut, 5/8" UNF43£30.00- +
38119537 Split Pin, 1/8" diam, × 1 3/8"44£30.00- +
3920-23-163 Shim, Upper Wishbone Spindle, .020"A/R17£30.00- +
4020-23-164 Shim, Upper Wishbone Spindle, .050"A/R7£30.00- +
41690000 Bolt, 5/16" UNF × 3 7/8"214£30.00- +
42690001 Bolt, 3/8" UNF × 5 1/2"218£30.00- +
43123115 Nut, Nyloc. 5/16" UNF24£30.00- +
44123113 Nut, Nyloc. 3/8" UNF27£30.00- +
-20-23-151 King Pin - R. H.118£30.00- +
-20-23-100 King Pin - R. H.110£30.00- +
4520-23-152 King Pin - L. H.17£30.00- +
-20-23-101 King Pin - L. H.15£30.00- +
5020-23-154 Ball, King Pin, Upper29£30.00- +
51125443 Slotted Nut, 1/2" UNF211£30.00- +
52119530 Split Pin, 3/32" × 1 1/4"22£30.00- +
53112390 Circlip, Internal, 2 1/8"25£30.00- +
5420-23-160 Top Gaiter218£30.00- +
5520-23-153 Stub Axle22£30.00- +
56119476 Plain Washer, 3/4"217£30.00- +
57125596 Nut, Nyloc, Thin, 3/4" UNF213£30.00- +
58122306 Oil Seal - Front Hub26£30.00- +
59122305 Taper Roller Bearings, Inner - Front Hub220£30.00- +
-20-23-157 Front Hub - R. H.11£30.00- +
6020-23-158 Front Hub - L. H.119£30.00- +
61125591 Taper Roller Bearings, Outer - Front Hub215£30.00- +
6220-23-159 "D" Washer218£30.00- +
63125598 Slotted Nut, 5/8" UNF28£30.00- +
64119537 Split Pin, 1/8" diam. × 1 3/8"210£30.00- +
6520-23-156 Steering Arm29£30.00- +
66119608 Woodruff Key, No. 9218£30.00- +
67119475 Plain Washer, 5/8"21£30.00- +
68125595 Nut, Nyloc, Thin, 5/8" UNF22£30.00- +
6920-23-141 Anti - Roll Bar112£30.00- +
7020-23-142 Rubber Bush216£30.00- +
7120-23-143 Mounting Bracket - Anti - Roll Bar218£30.00- +
7220-23-165 Shim, Mounting Bracket, .005"A/R5£30.00- +
7320-23-166 Shim, Mounting Bracket, .020"A/R11£30.00- +
7420-23-145 Upper Stop Clamp - Anti - Roll Bar21£30.00- +
7520-23-146 Lower Stop Clamp - Anti - Roll Bar213£30.00- +
76111874 Thackeray Spring Washer, 1/4"1216£30.00- +
77125588 Socket Setscrew, 1/4" UNF × 3/4" - Mounting Brackets86£30.00- +
7820-23-147 Link, Anti - Roll Bar215£30.00- +
7920-23-150 Washer, Inner417£30.00- +
8020-23-148 Rubber Bush, Anti - Roll Bar Link812£30.00- +
8120-23-149 Washer, Outer46£30.00- +
82123115 Nut, Nyloc, 5/16" UNF43£30.00- +
8320-23-167 Rebound Rubber211£30.00- +
84119472 Plain Washer, 3/8"216£30.00- +
85123113 Nut, Nyloc, 3/8" UNF215£30.00- +
86690087 Tab Washer - Lower Wishbone Spindle26£30.00- +
87123121 Bolt, 5/16" UNF × 1" - Retaining Plate42£30.00- +
88123115 Nut, Nyloc, 5/16" UNF218£30.00- +
89119481 Spring Washer, 5/16"23£30.00- +
90690002 Socket Setscrew, 1/4" UNF × 1" - Stop Clamps416£30.00- +

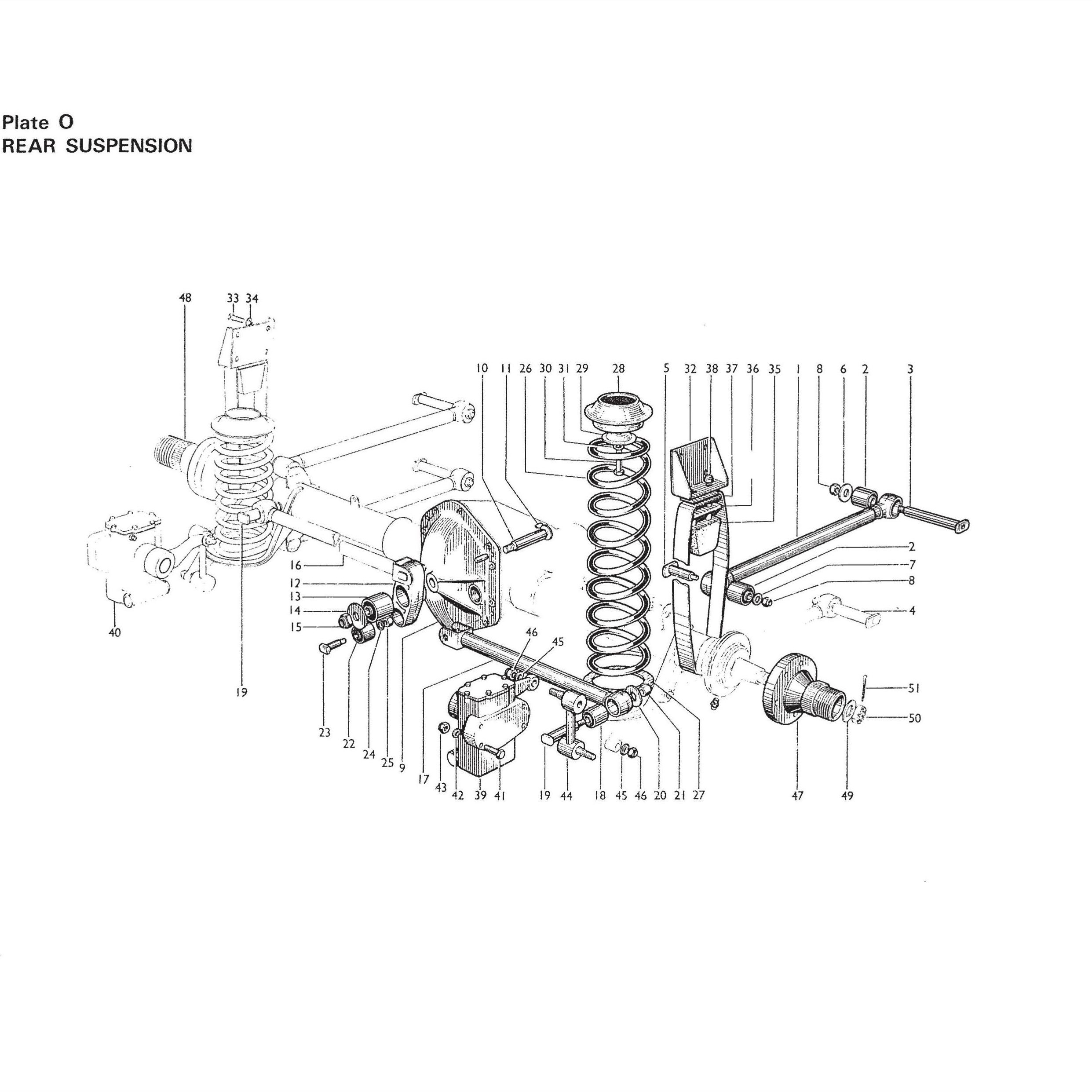

Rear Suspension

Ill. No. Part No. product name Car
Total
Stock Price Quantity
120-26-001 Radius Arm Assembly411£30.00- +
220-26-118 Bush, Radius Arms83£30.00- +
320-26-119 Bolt, Upper Radius Arm-Frame216£30.00- +
420-26-120 Bolt, Lower Radius Arm-Frame217£30.00- +
520-26-135 Bolt, Radius Arms- Axle41£30.00- +
6690326 Special Washer, 1/2"419£30.00- +
7119474 Plain Washer, 1/2"418£30.00- +
8690156 Nut, Nyloc, Thin, 1/2" UNF87£30.00- +
-20-26-004 Rear Axle Cover Assembly11£30.00- +
920-26-133 Rear Axle Cover119£30.00- +
1020-26-134 Pin, Swinging Link114£30.00- +
11119608 Woodruff Key, No. 9117£30.00- +
1220-26-139 Swinging Link114£30.00- +
1320-26-140 Bush, Swinging Link, Centre119£30.00- +
14690325 Special Washer, 5/8"14£30.00- +
15125595 Nut, Nyloc, Thin, 5/8" UNF18£30.00- +
1620-26-005 Watts Link Assembly, Upper13£30.00- +
1720-26-006 Watts Link Assembly, Lower120£30.00- +
1820-26-146 Bush, Watts Links22£30.00- +
1920-26-148 Bolt - Watts Links to Frame23£30.00- +
20690326 Special Washer, 1/2"218£30.00- +
21690156 Nut, Nyloc, Thin 1/2" UNF218£30.00- +
2220-26-141 Bush, Swinging Link, Outer24£30.00- +
2320-26-147 Bolt- Watts Links to Swinging Link210£30.00- +
24119472 Plain Washer, 3/8"218£30.00- +
25125594 Nut, Nyloc, Thin, 3/8" UNF215£30.00- +
2620-26-138 Road Spring215£30.00- +
2720-26-154 Insulating Ring218£30.00- +
2820-26-136 Metacone Spring Insulator215£30.00- +
2920-26-137 Retaining Plate219£30.00- +
30690157 Bolt, 3/8" UNF × 1 3/4"29£30.00- +
31119482 Spring Washer, 3/8"217£30.00- +
3220-26-002 Bump Stop Bracket Assembly27£30.00- +
33125519 Bolt, 5/16" UNF × 5/8"820£30.00- +
34119481 Spring Washer, 5/16"810£30.00- +
3520-26-125 Bump Stop218£30.00- +
3620-26-124 Clamping Plate22£30.00- +
3720-26-123 Check Strap24£30.00- +
38690019 Nut, Nyloc, Thin, 5/16" UNF411£30.00- +
3920-26-149 Shock Absorber and Arm - R. H.114£30.00- +
4020-26-150 Shock Absorber and Arm - L. H.16£30.00- +
41690157 Bolt, 3/8" UNF × 1 3/4"815£30.00- +
42119472 Plain Washer, 3/8"82£30.00- +
43123113 Nut, Nyloc, 3/8" UNF820£30.00- +
4420-26-155 Link Assembly, Shock Absorbers211£30.00- +
45119473 Plain Washer, 7/16"43£30.00- +
46690154 Nut, Nyloc, Thin, 7/16" UNF43£30.00- +
4720-26-152 Rear Hub - R. H.17£30.00- +
4820-26-153 Rear Hub - L. H.115£30.00- +
4920-26-760 Plain Washer, 7/8"212£30.00- +
5020-26-759 Slotted Nut, 7/8" UNF212£30.00- +
5120-26-758 Split Pin, 5/32" diam. × 1 1/2"211£30.00- +
-20-26-159 Cover Plate - Upper Link216£30.00- +
-690517 Screw, P. K. No. 4 × 1/4". Rd. Hd. Type A63£30.00- +

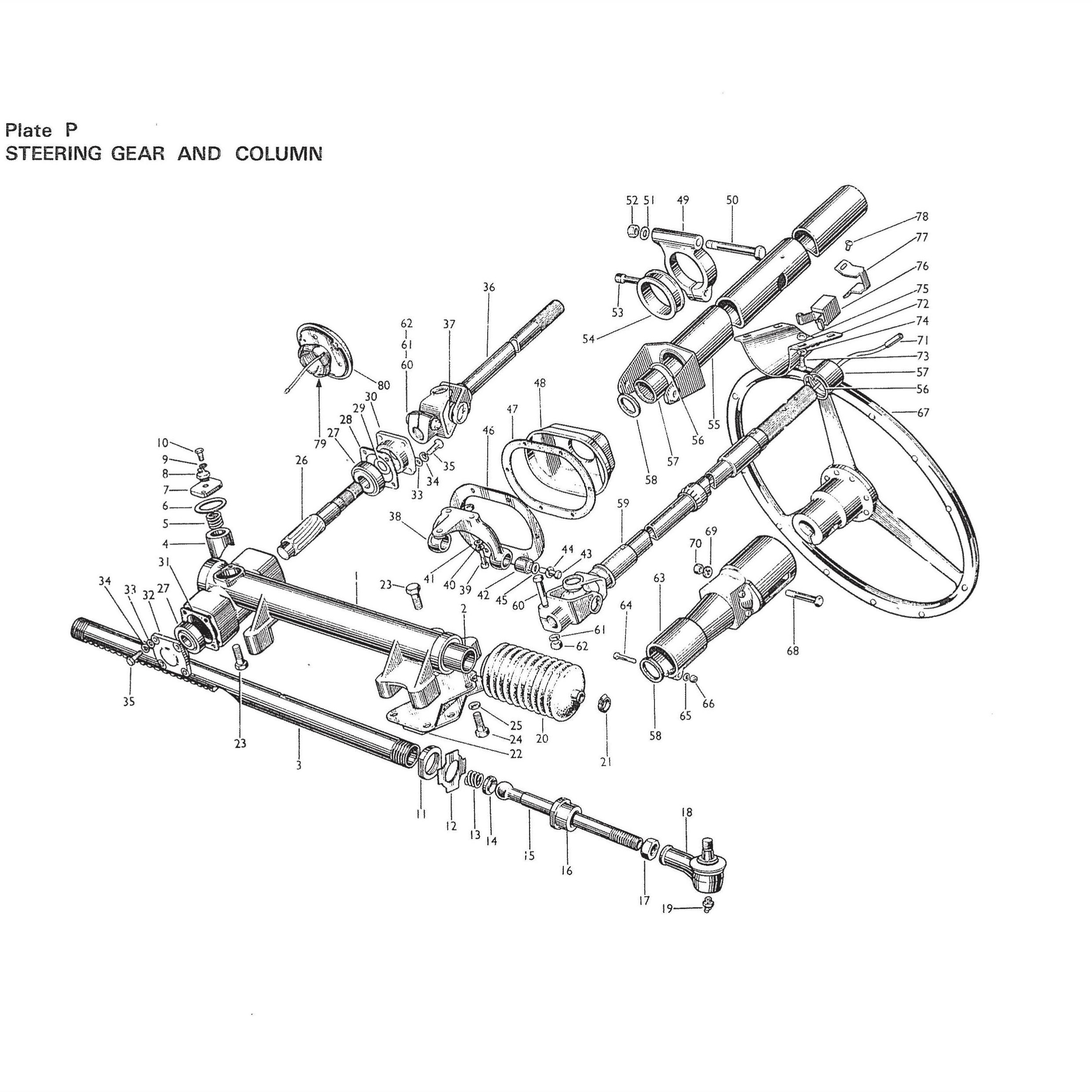

Steering Gear and Column

Ill. No. Part No. product name Car
Total
Stock Price Quantity
-20-24-001 Steering Box Assembly112£30.00- +
-25-24-001 Steering Box Assembly114£30.00- +
120-23-111 Steering Box Housing116£30.00- +
-690434 Taper Plug, 5/16" UNF218£30.00- +
220-24-117 Bush117£30.00- +
320-24-112 Steering Rack112£30.00- +
420-24-113 Damper Block119£30.00- +
520-24-114 Spring - Damper113£30.00- +
620-24-115 Shim - Damper110£30.00- +
720-24-116 Cover115£30.00- +
8111760 Grease Nipple. 1/8" BSP, 67 1/2113£30.00- +
9119480 Spring Washer, 1/4"28£30.00- +
10123128 Setscrew, 1/4" UNC × 7/8"28£30.00- +
1120-24-126 Locknut214£30.00- +
1220-24-127 Tab Washer210£30.00- +
1320-24-125 Spring - Track Rod211£30.00- +
1420-24-123 Ball Seat216£30.00- +
1520-24-129 Track Rod24£30.00- +
1620-24-124 Ball End Nut210£30.00- +
17690083 Lock Nut, 5/8" UNF24£30.00- +
1820-24-130 Ball Joint. Track Rod End22£30.00- +
19690321 Grease Nipple, 5/16" UNF, 67 1/222£30.00- +
2020-24-128 Gaiter - Track Rod23£30.00- +
21110883 Hose Clip216£30.00- +
-13489 Copper WireA/R3£30.00- +
2220-24-131 Mounting216£30.00- +
23125519 Bolt, 5/16" UNF × 5/8"1010£30.00- +
24690084 Bolt, 5/16" UNC × 7/8"63£30.00- +
25119481 Spring Washer, 5/16"1620£30.00- +
2620-24-118 Pinion119£30.00- +
27690054 Taper Roller Bearing28£30.00- +
2820-24-121 Shim - Bearing Cover, Upper13£30.00- +
29690055 "O" Ring Seal117£30.00- +
3020-24-122 Bearing Cover, Upper110£30.00- +
3120-24-119 Joint - Bearing Cover, Lower111£30.00- +
3220-24-120 Bearing Cover, Lower117£30.00- +
33119470 Plain Washer, 1/4"819£30.00- +
34119480 Spring Washer, 1/4"81£30.00- +
35123128 Setscrew, 1/4" UNC × 7/8"85£30.00- +
-20-24-132 Earth Bond - Steering Box to Frame117£30.00- +
3620-25-005 Lower Tube Assmbly, Steering Column112£30.00- +
3720-25-705 Universal Joint - Spider Assembly22£30.00- +
3820-25-137 Support Bracket, Bulkhead117£30.00- +
-20-25-149 Shim - Support BracketA/R17£30.00- +
39690035 Socket Setscrew, 1/4" UNF × 7/8"36£30.00- +
40119480 Spring Washer. 1/4"316£30.00- +
41690370 Special Plain Washer, 1/4"25£30.00- +
42690056 Flexible Bush35£30.00- +
43125581 Bolt, 1/4" UNF × 1 1/8"22£30.00- +
44119480 Spring Washer. 1/4"212£30.00- +
45119470 Plain Washer, 1/4"215£30.00- +
4620-25-141 Flanged Cover RH for R. H. D. LH for L. H. D.16£30.00- +
4720-25-143 Rubber Joint28£30.00- +
-20-25-142 Blanking Cover LH for R. H. D. RH for L. H. D.111£30.00- +
-690191 Bolt. 2 BA × 4"121£30.00- +
-119496 Plain Washer, 3/16"1215£30.00- +
-122315 Nut. Nyloc. 2 BA128£30.00- +
4820-25-140 Gaiter - Column115£30.00- +
4920-25-139 Mounting Clamp, Bulkhead120£30.00- +
50690063 Bolt, 3/8" UNF × 3 1/2"120£30.00- +
51119472 Plain Washer, 3/8"213£30.00- +
-122215 Spacing Washer, 3/8"214£30.00- +
52123113 Nut, Nyloc, 3/8" UNF12£30.00- +
53125589 Socket Setscrew, 5/16" UNF × 1 1/8" - Clamp115£30.00- +
-119481 Spring Washer, 5/16"110£30.00- +
-690371 Special Plain Washer, 5/16"15£30.00- +
5420-25-138 Rubber Sleeve19£30.00- +
5520-25-002 Outer Tube Assembly, Steering Column14£30.00- +
56690367 Circlip24£30.00- +
57123102 Needle Roller Bearing212£30.00- +
5820-25-111 Felt Ring214£30.00- +
5920-25-004 Inner Tube Assembly, Steering Column119£30.00- +
60123132 Bolt, 5/16" UNF × 1 3/8"28£30.00- +
61119481 Spring Washer, 5/16"22£30.00- +
62125557 Plain Nut, 5/16" UNF214£30.00- +
6320-25-112 Top Bearing Housing112£30.00- +
64690372 Clamp Bolt, 1/4" UNF × 2 1/415£30.00- +
65119470 Plain Washer, 1/4"13£30.00- +
66123116 Nut, Nyloc, 1/4" UNF15£30.00- +
6720-25-006 Steering Wheel and Hub Assembly15£30.00- +
68690111 Locating Bolt, 1/4" UNF × 1 3/8" Dull Chr.Pl.11£30.00- +
69690146 Thackeray Spring Washer, 1/4", Cad. Pl.111£30.00- +
70690112 Plain Nut, 1/4" UNF Dull Chr. Pl.114£30.00- +
71122070 Snap Connector, Single113£30.00- +
7220-25-144 Tie Plate, Steering Column Cut- out (RH for R. H. D.) ( LH for L. H. D.)16£30.00- +
-20-25-145 Closing Plate, Steering Column Cut-out ( LH for R. H. D.) (RH for L. H. D.)18£30.00- +
73690037 Bolt, 1/4" UNF × 1/2"88£30.00- +
74119480 Spring Washer, 1/4"86£30.00- +
75125583 Plain Nut, 1/4" UNF416£30.00- +
7620-25-150 Contact Assembly110£30.00- +
7720-25-120 Cantact Holder Bracket18£30.00- +
78114235 Screw, 2 BA × 5/16", Rd. Hd.220£30.00- +
-119488 Spring Washer, 3/16"214£30.00- +
7920-25-146 Cup, Horn Push16£30.00- +
8020-25-136 Horn Push Assembly113£30.00- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222   Parts Catalogue
90222   Parts Catalogue
90222   Parts Catalogue


£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
