DB2 & DB2_4 MKI & MKII

Chassis, Frame, Body etc

View Diagram

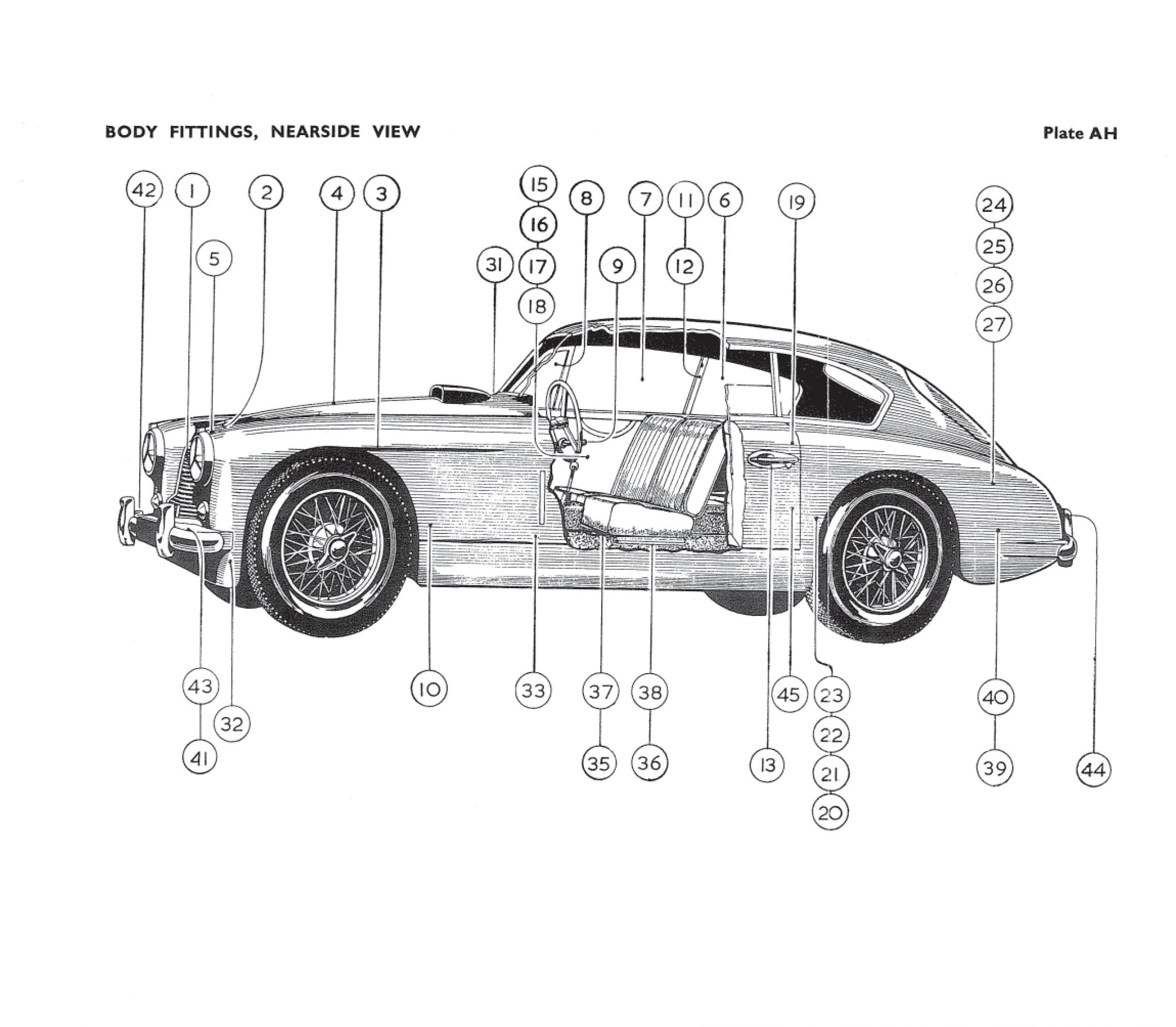

Body Fittings Near Side

Ill. No. Part No. product name Car
Total
Stock Price Quantity
159053 GRILLE, Radiator19£30.00- +
75166 Aperture Cap, (Grille)17£30.00- +
259051 Moulding, Wing220£30.00- +
76821 Moulding, Top Wing22£30.00- +
378461 Moulding, Wing, L.H.111£30.00- +
78462 Moulding, Wing, R.H.117£30.00- +
459048 MOTIF, Centre (Bonnet)115£30.00- +
77241 MOTIF, Centre (Bonnet)120£30.00- +
78452 Moulding, Centre Bonnet (Chrome)11£30.00- +
530.04.35 BADGE, Radiator120£30.00- +
659236 QUARTER LIGH O/S (Not U.S.A)115£30.00- +
72946 QUARTER LIGH O/S (U.S.A. only)116£30.00- +
78474 QUARTER LIGH O/S118£30.00- +
54182 QUARTER LIGH O/S16£30.00- +
76223 QUARTER LIGH120£30.00- +
78853 Check Strap28£30.00- +
759597 GLASS, Drop, Door25£30.00- +
59165 GLASS, Drop, Door27£30.00- +
71055 GLASS, Drop, Door27£30.00- +
77591 GLASS, Drop, Door212£30.00- +
77592 GLASS, Drop, Door214£30.00- +
78471 GLASS, Drop, Door26£30.00- +
53739 GLASS, Drop, Door219£30.00- +
878493 WINDOW, Vent, Door, Complete O/S112£30.00- +
59164 WINDOW, Vent, Door, Complete O/S112£30.00- +
56731 WINDOW, Vent, Door, Complete O/S (Alternative to 59164)115£30.00- +
56733 WINDOW, Vent, Door, Complete O/S111£30.00- +
59596 WINDOW, Vent, Door, Complete O/S112£30.00- +
52406/7 Vent, Window Catch2£30.00- +
52408 Screw20£30.00- +
958645 Regulator, Window, O/S112£30.00- +
1071766 Buffer, Dovetail, Front Wheel Arch25£30.00- +
71767 Cup for Buffer28£30.00- +
1157008 Channel Assembly, Beclawat215£30.00- +
12121536 Channel, Velvet18£30.00- +
1359177 Lock, Door, N/S117£30.00- +
59176 Handle, Outside Locking, N/S115£30.00- +
1559173 Base, Door Lock, Remote Contrl O/S119£30.00- +
1671152 Adaptor, Door Lock, Remotre Control, O/S18£30.00- +
1750759 Spring, Return, Remote Control Link, Door Lock215£30.00- +
1859218 Escutcheon Plate, Lock N/S15£30.00- +
1978001 Finisher, Door Buffer Recess N/S114£30.00- +
2078850 Nut, Dome, Squab Lock23£30.00- +
2178851 Spindle, Squab Lock26£30.00- +
2278852 Washer, Squab Lock21£30.00- +
2376062 Handle, Squab Lock29£30.00- +
2478495 Plunger Assembly119£30.00- +
2559281 Spring, Flap Opening16£30.00- +
2678487 Spring120£30.00- +
2778490 Pad, Sealing117£30.00- +
59282 Control, Filler Flap117£30.00- +
78488 Cable, Flap Operating114£30.00- +
3078696 Fork End, Operating Cable11£30.00- +
3159139 Gutter Section, Rubber (Scuttle)14£30.00- +
3255511 Body Mountings, Silentbloc218£30.00- +
3350788 Buffers, Round (Front Sill)213£30.00- +
59358 Runners, Seat (Base and Slide)416£30.00- +
3573231 Runner Assembly, Inner N/S Front Seat Slides110£30.00- +
78736 Runner Assembly, Inner N/S Front Seat Slides19£30.00- +
3673232 Runner Assembly, Outer N/S Front Seat Slides18£30.00- +
78738 Runner Assembly, Outer N/S Front Seat Slides14£30.00- +
3773233 Base, Notched, Front Seat Slides114£30.00- +
3876311 Base, Plain, Front Seat Slides116£30.00- +
3974341 Clip, Foot Pump (Front)16£30.00- +
4074345 Clip, Foot Pump (Rear)113£30.00- +
417308 Bumper, Moulding, Front N/S (5ft)118£30.00- +
427308 Bumper, Moulding, Front O/S (5ft)117£30.00- +
437308 BUMPER, Fitting Complete Assy. Front113£30.00- +
447308 Moulding Assembly, Rear Bumper N/S (9ft)19£30.00- +
b69db579fa23 Moulding Assembly, Rear Bumper O/S (9ft)11£30.00- +
72777 BUMPER ASSEMBLY, Rear110£30.00- +
78484 BUMPER ASSEMBLY, Rear115£30.00- +
4552543 Plate, Cover, Chrome, Door Pillar, N/S115£30.00- +
59246 Plate, Cover, Chrome, Door Pillar, N/S13£30.00- +
76245 Plate, Cover, Chrome, Door Pillar, N/S110£30.00- +

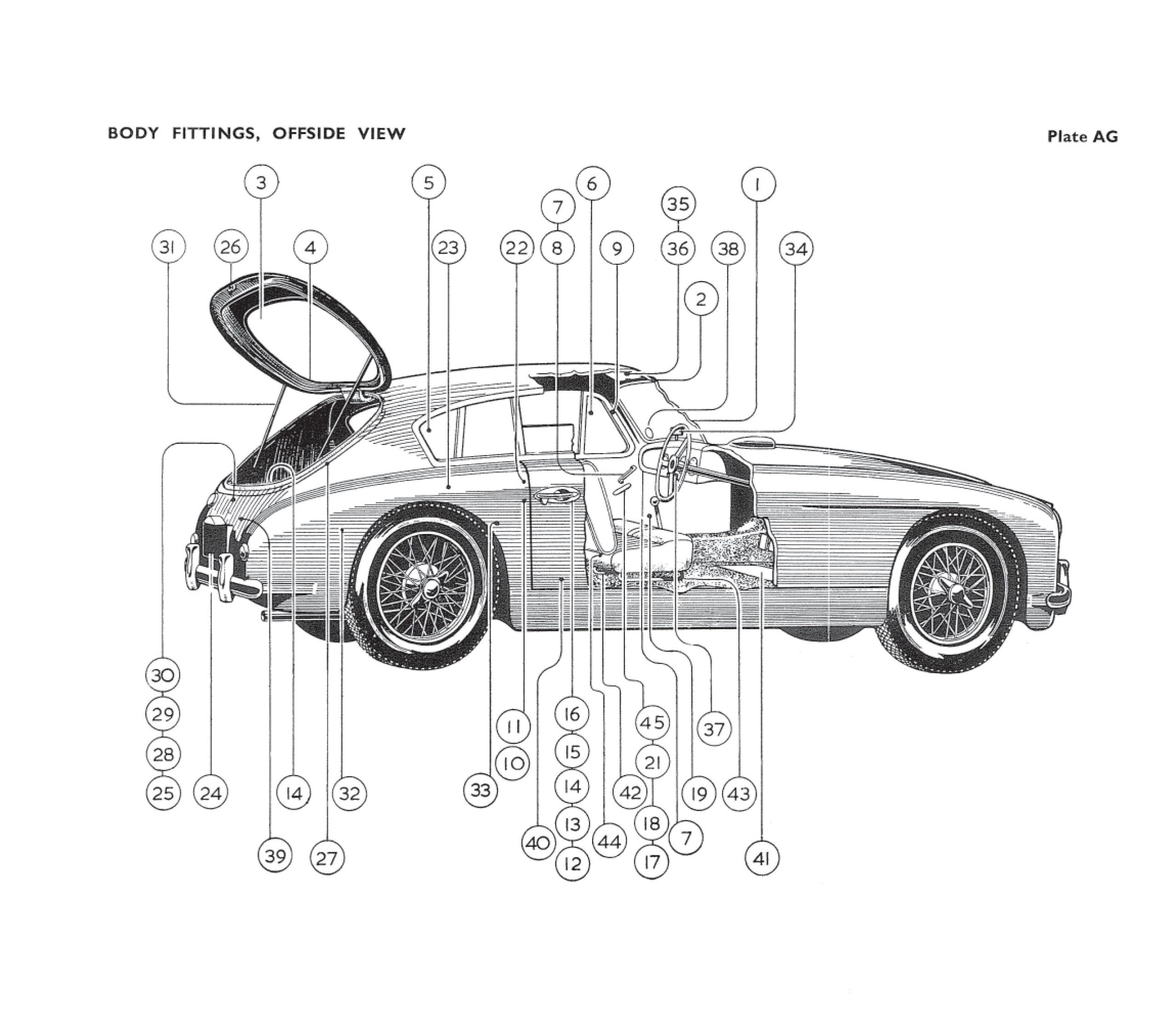

Body Fittings Off Side

Ill. No. Part No. product name Car
Total
Stock Price Quantity
158606 GLASS, Windscreen117£30.00- +
72166 GLASS, Windscreen12£30.00- +
256923 Rubber, Centre, Sealing, Windscreen12£30.00- +
59239 Rubber, Glazing, Windscreen12£30.00- +
78622 Rubber, Glazing, Windscreen114£30.00- +
372695 WINDOW, Rear (U.S.A. Only)19£30.00- +
76222 WINDOW, Rear110£30.00- +
59237 WINDOW, Rear (Not U.S.A.)114£30.00- +
78238 WINDOW, Rear120£30.00- +
54183 WINDOW, Rear112£30.00- +
459238 Rubber, Glazing, Rear Window118£30.00- +
78622 Rubber, Glazing, Rear Window19£30.00- +
122301 Rubber, Glazing, Rear Window113£30.00- +
78623 Filler, Rubber, Rear Window19£30.00- +
78493 Filler, Rubber, Rear Window113£30.00- +
78561 Rubber, Glazing, Rear Window116£30.00- +
54201 Rubber, Glazing, Rear Window17£30.00- +
559235 QUARTER LIGHT N/S (Not U.S.A)14£30.00- +
72946 QUARTER LIGHT N/S (U.S.A. only)13£30.00- +
78473 QUARTER LIGHT N/S110£30.00- +
54181 QUARTER LIGHT N/S11£30.00- +
659163 WINDOW, Vent, Door, Complete N/S115£30.00- +
56730 WINDOW, Vent, Door, Complete N/S (Alternative to 56732)118£30.00- +
56732 WINDOW, Vent, Door, Complete N/S15£30.00- +
59595 WINDOW, Vent, Door, Complete N/S (Alternative to 56732)110£30.00- +
78494 WINDOW, Vent, Door, Complete N/S13£30.00- +
759167 Handle, Window Regulator27£30.00- +
859162 Regulator, Window, N/S11£30.00- +
975188 Pivot, Door Vent Window ( Adjusting Screw for 56730/1)23£30.00- +
1059168 Escutcheon, Spring Loaded, Doors25£30.00- +
71770 Buffer, Rubber, Dovetail212£30.00- +
1159170 Striker, Door Lock22£30.00- +
110882 Screw, 2BA x 1/2in.26£30.00- +
1259179 Lock, Door, O/S118£30.00- +
1359178 Handle, Outside, Plain O/S111£30.00- +
1459184 Interscrew21£30.00- +
1559180 Rivets, ShoulderedAs req'd13£30.00- +
1659182 Shims,As req'd15£30.00- +
1759172 Base, Door Lock, Remote Control N/S119£30.00- +
1871151 Adaptor Assembly, Door Lock Remote Control N/S118£30.00- +
1959210 Check Assembly, Door N/S118£30.00- +
59211 Check Assembly, Door, O/S112£30.00- +
78853 Check Strap, Door28£30.00- +
2159219 Escutcheon, Plain, O/S11£30.00- +
2270614 Rubber, Door Check218£30.00- +
78002 Finisher, Door Buffer Recess O/S13£30.00- +
2359276 Bolt Assembly, Slide220£30.00- +
59244 Escutcheon, Rear and Stop Light N/S14£30.00- +
75624 Escutcheon, Rear and Stop Light N/S116£30.00- +
59245 Escutcheon, Rear and Stop Light O/S19£30.00- +
75625 Escutcheon, Rear and Stop Light O/S112£30.00- +
2458457 Frame, Rear No. Plate113£30.00- +
78145 Frame, Rear No. Plate120£30.00- +
54217 Frame, Rear No. Plate114£30.00- +
2559262 Lock, Rear Lid.15£30.00- +
53761 Lock Assembly, Private16£30.00- +
2659263 Plate, Lock Striker, Rear Lid112£30.00- +
2777384 Plunger Assembly, Boot Lid213£30.00- +
2853757 Striker Assembly, Boot Lock118£30.00- +
122168 Shut Rubber Lid (11ft)13£30.00- +
2976061 Cable Boot Lid117£30.00- +
54175 Lock, Boot Lid16£30.00- +
78689 Lock Scissors, Boot Lid116£30.00- +
3078000 Handle for Boot Lock Operation110£30.00- +
3176060 Quadrants, Boot Lid218£30.00- +
78934 Stay Assembly, Trunk Lid N/S15£30.00- +
78933 Stay Assembly, Trunk Lid O/S17£30.00- +
3278856 Strip Moulding, Luggage, Boot37£30.00- +
78904 Strip Moulding, Luggage, Boot Long313£30.00- +
78905 Strip Moulding, Luggage, Boot Centre315£30.00- +
78902 Strip Moulding, Luggage, Forward of Petrol Filler18£30.00- +
78903 Strip Moulding, Luggage, Rear of Petrol Filler113£30.00- +
78857 Luggage Strip, Rubber220£30.00- +
3376684 Staples, Surface Type, Luggage23£30.00- +
78854 Staples, Surface Type, Luggage216£30.00- +
3453646 MIRROR, Interior Driving116£30.00- +
59392 MIRROR, Interior Driving19£30.00- +
71707 Glass, Drivers Mirror15£30.00- +
3559396 MIRROR, Vanity111£30.00- +
3656749 Fittings, Sun Visor14£30.00- +
3759393 Ashtray11£30.00- +
3851366 Licence Holder, Barnacle12£30.00- +
78882 Licence Holder, Curvemaster14£30.00- +
3959264 Buffer, Rubber, Wheel Cover29£30.00- +
4058453 Buffer Assembly, Rubber, Door Sill214£30.00- +
4158106 Mat, Heel (Rubber)114£30.00- +
52589 Mat, Heel (Rubber)120£30.00- +
4273229 Runner Assembly, Front Seat Slides, Inner O/S19£30.00- +
78737 Runner Assembly, Front Seat Slides, Inner O/S116£30.00- +
4373230 Runner Assembly, Front Seat Slides, Outer O/S18£30.00- +
78739 Runner Assembly, Front Seat Slides, Outer O/S113£30.00- +
4459343 Screw, Adjusting, Seat416£30.00- +
78744 Screw, Adjusting, Seat47£30.00- +
4559166 Handles, Interior Lock217£30.00- +
52544 Cover Plate, Chrome, Door Pillar O/S11£30.00- +
59247 Cover Plate, Chrome, Door Pillar O/S119£30.00- +
76244 Cover Plate, Chrome, Door Pillar O/S116£30.00- +
59612 BACK LIGHT, Glass (Not U.S.A.)27£30.00- +
72917 WINDOW, Rear, Vybak Zip (U.S.A. Only)120£30.00- +
78859 BACK LIGHT, Vybak117£30.00- +
58398 EXTENSION, Door Glass N/S116£30.00- +
59498 Moulding, Rear Body15£30.00- +
78124 Moulding, Centre, Boot Lid110£30.00- +
50855 Grommet, Screen Wiper Cable16£30.00- +
78005 Grammet, No. Plate Trafficator and Heater16£30.00- +
78006 Grammet, Heater Cable Speedo, Rev. Counter, Oil Pressure Pipe18£30.00- +
78008 Grammet, Washer Tubes16£30.00- +
110955 Fasteners, CarpetAs req'd2£30.00- +
59558 Catches, Toggle, Head Lock312£30.00- +
78143 Catche, Toggle, Head Lock312£30.00- +
78144 Hook Plate, Catch, Head Lock Toggle315£30.00- +
59559 Plate, Backing, Head Lock33£30.00- +
59561 Hook, Head Lock, Centre18£30.00- +
59562 Hook, Head Lock, N/S113£30.00- +
59563 Hook, Head Lock, O/S112£30.00- +
59616 Strap, Loop Hood Fixing214£30.00- +
59617 Staple, Hood Fixing Straps210£30.00- +
70622 Buffer, Vent (Rubber Button)218£30.00- +

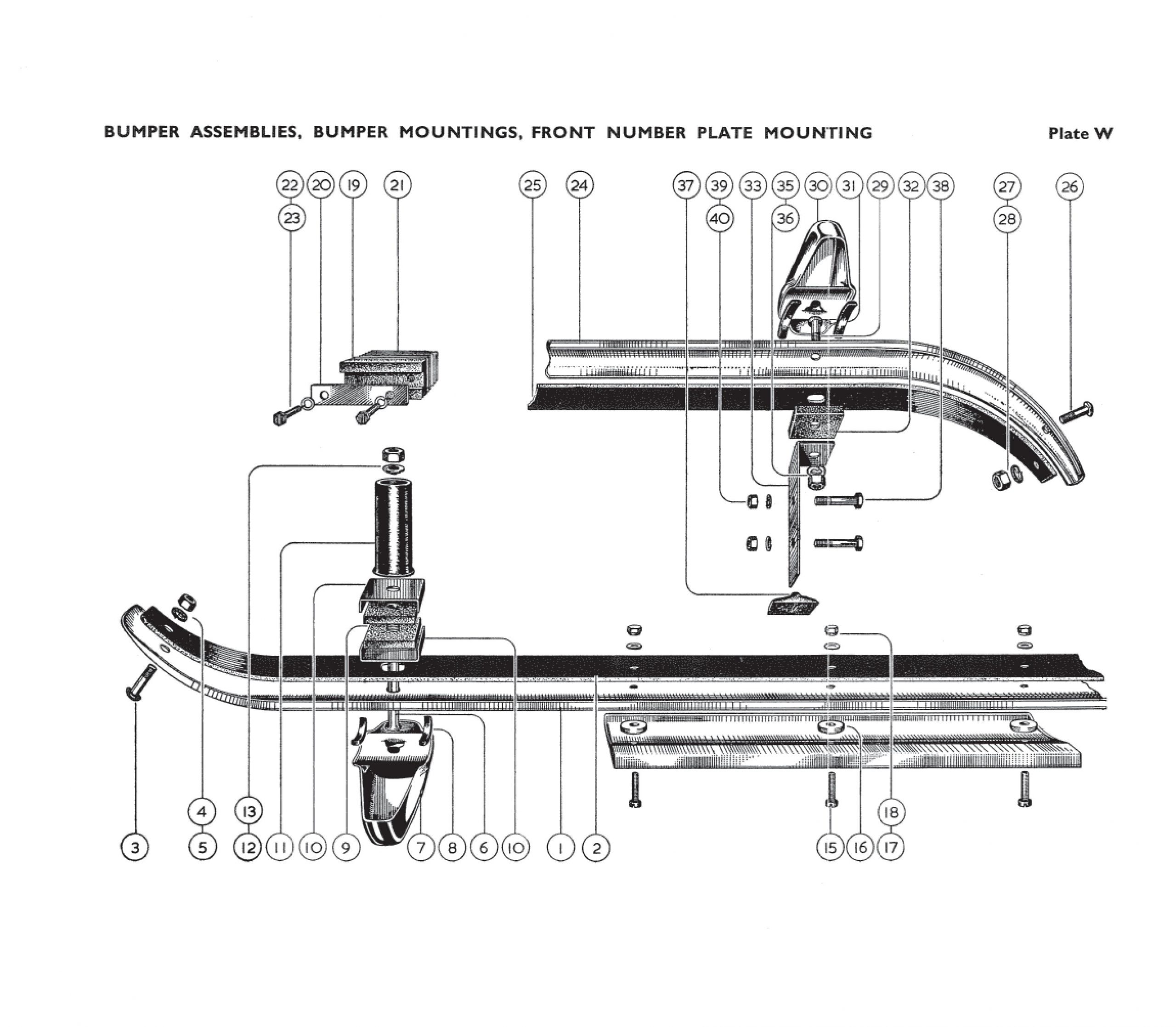

Bumpers

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172769 BUMPE,Front110£30.00- +
274404 Stiffener,Front Bumper19£30.00- +
6121913 Bolt, 3/8in. BSF27£30.00- +
1078920 Plate, Bearing, Rubber Block27£30.00- +
1173375 Distance Piece, Assembly28£30.00- +
1273398 Washer, Taper215£30.00- +
13111935 Nut, Oddie 3/8in. BSF217£30.00- +
1473189 Box, Number Plate Carrier120£30.00- +
15110807 Screw, Set, 2BA x 1in. Ch. Hd.313£30.00- +
1673190 Spacer, Number Plate Carrier38£30.00- +
17119496 Washer, Plain 3/16in.38£30.00- +
18112127 Nut, Oddie Thin 2BA318£30.00- +
1973396 Buffer, Rubber, Support Channel27£30.00- +
2074600 Plate, Backing, Support Channel28£30.00- +
26122022 Bolt, Special 5/16in. BSF211£30.00- +
39119481 Washer, Spring 5/16in.47£30.00- +
40119402 Nut, Plain 5/16in. BSF42£30.00- +
3072749 OVERRIDER23£30.00- +
3174403 Packing, Overrider211£30.00- +
3272292 Rubber Block219£30.00- +
2173395 Shim, Support Channel BufferNom.67£30.00- +
22110807 Screw, Set, 2BA x 1in. Hex. Hd.44£30.00- +
23119488 Washer, Spring 3/16in.420£30.00- +
2472750 BUMPER, Rear16£30.00- +
2574493 Stiffener, Rear Bumper110£30.00- +
29122019 Bolt, 3/8in. BSF215£30.00- +
3372293 Bracket, Rear217£30.00- +
76891 Bracket, Rear24£30.00- +
35119482 Washer, Spring 3/8in.29£30.00- +
36119403 Nut, Plain 3/8in. BSF215£30.00- +
3774609 Grommet, Rear Bracket22£30.00- +
38119230 Bolt, 5/16in. BSF x 2in.43£30.00- +

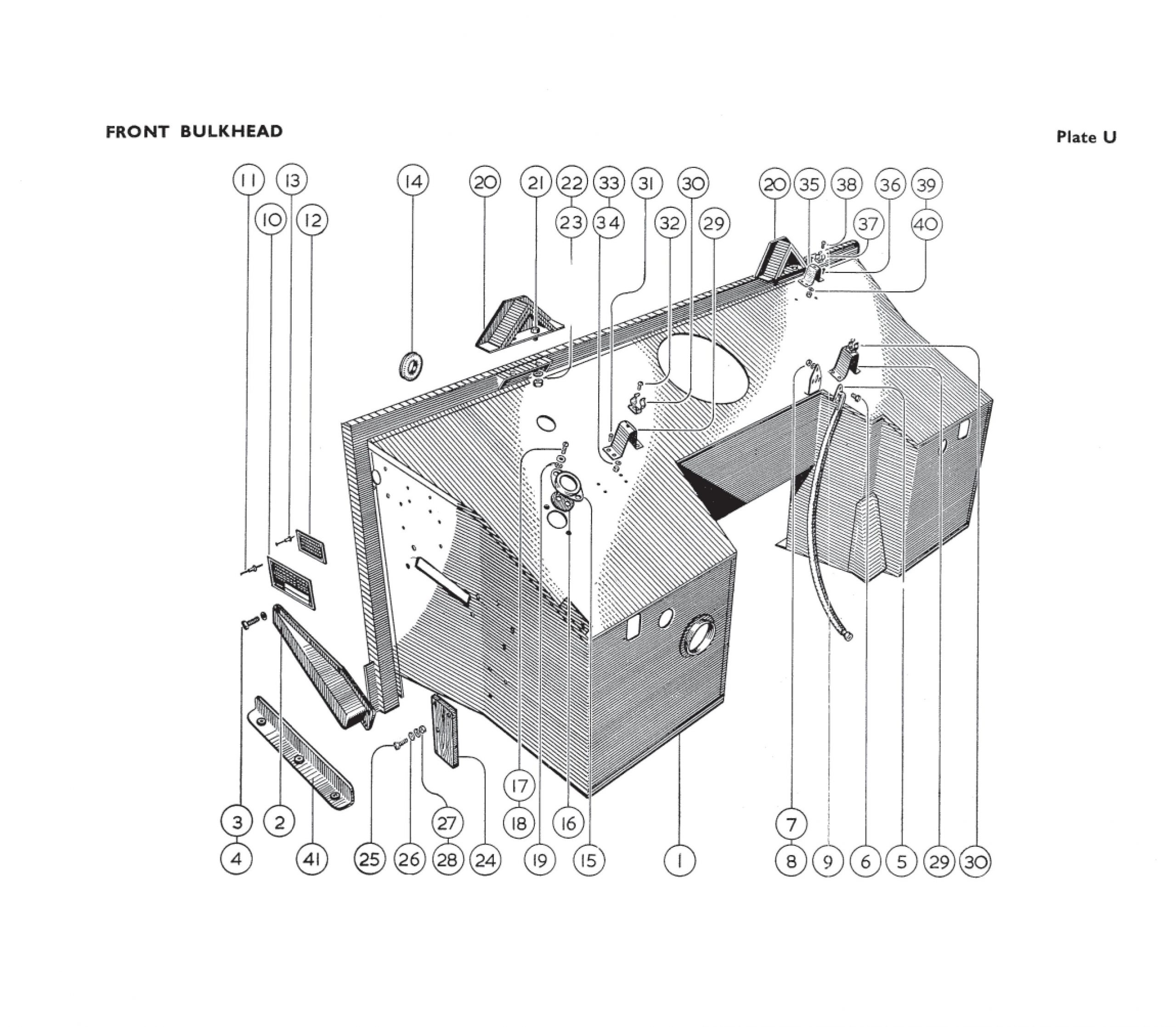

Front Bulkhead

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172709 BULKHEAD, Welded Assembly, RHD115£30.00- +
73208 BULKHEAD, Welded Assembly, LHD116£30.00- +
58715 BULKHEAD, Welded Assembly, RHD120£30.00- +
58747 BULKHEAD, Welded Assembly, LHD18£30.00- +
272935 Bracket, Box Assy, H.B. Front Mounting RHD16£30.00- +
72934 Bracket, Box Assy, H.B. Front Mounting LHD18£30.00- +
55415 Bracket, Box Assy, H.B. Front Mounting117£30.00- +
3111894 Setscrew, 2BA x 3/8in. Ch. Hd.84£30.00- +
4119488 Washer, Spring, 3/16in.817£30.00- +
551480 Pipe, Oil Pressure Gauge, Conn.16£30.00- +
6112100 Setscrew, 5BA x 3/8in. Ch. Hd.37£30.00- +
7119487 Washer, Spring, 1/8in.318£30.00- +
8119419 Nut, Plain, 5 BA312£30.00- +
974219 Hose, Oil Pressure Gauge119£30.00- +
50309 Hose, Oil Pressure Gauge120£30.00- +
1057719 Plate, Chassis & Engine Number11£30.00- +
11110859 Rivet, Pop, 1/8in. X 1/4in. Rd. Hd.416£30.00- +
1271618 Plate, Manufacturing Licence118£30.00- +
13110859 Rivet, Pop, 1/8in. X 1/4in. Rd. Hd.415£30.00- +
14122078 Grommet, 3/8in. Bore117£30.00- +
1551483 Housing, Cables118£30.00- +
1672298 Joint, Sealing15£30.00- +
17111730 Setscrew, 2BA x 3/8in. Ch. Hd.23£30.00- +
18119496 Washer, Plain, 3/16in.21£30.00- +
1951451 Washer, Fan Disc, 3/16in.215£30.00- +
2073380 Angle, Bonnet Locating212£30.00- +
21119200 Setscrew, 1/4in. BSF x 5/8in. Hex. Hd.416£30.00- +
22119480 Washer, Spring, 1/4in.41£30.00- +
23119401 Nut, Plain, 1/4in. BSF47£30.00- +
2473397 Packing Piece, Waser Jar117£30.00- +
25121947 Setscrew, 2BA x 7/8in. Rd. Hd.31£30.00- +
26119488 Washer, Spring, 3/16in.35£30.00- +
27119496 Washer, Plain, 3/16in.314£30.00- +
28111109 Nut, Plain, 2BA317£30.00- +
2977694 Bracekt, Mounting, Long216£30.00- +
3055810 Clip, Starting Handle216£30.00- +
31110858 Rivet, 1/8in x 5/16in. Rd. Hd.88£30.00- +
32111730 Setscrew, 2BA x 3/8in. Rd. Hd.212£30.00- +
33119488 Washer, Spring, 3/16in.218£30.00- +
34111109 Nut, Plain, 2BA220£30.00- +
3574518 Bracekt, Mounting, Short119£30.00- +
36110858 Rivet, 1/8in. Dia. x 5/16in. Rd. Hd.419£30.00- +
3755810 Clip, Starting Handle18£30.00- +
38111730 Setscrew, 2BA x 3/8in. Rd. Hd.119£30.00- +
39119488 Washer, Spring, 3/16in.12£30.00- +
40111109 Nut, Plain, 2BA18£30.00- +
4155376 Support, Valance, Rear Assembly27£30.00- +

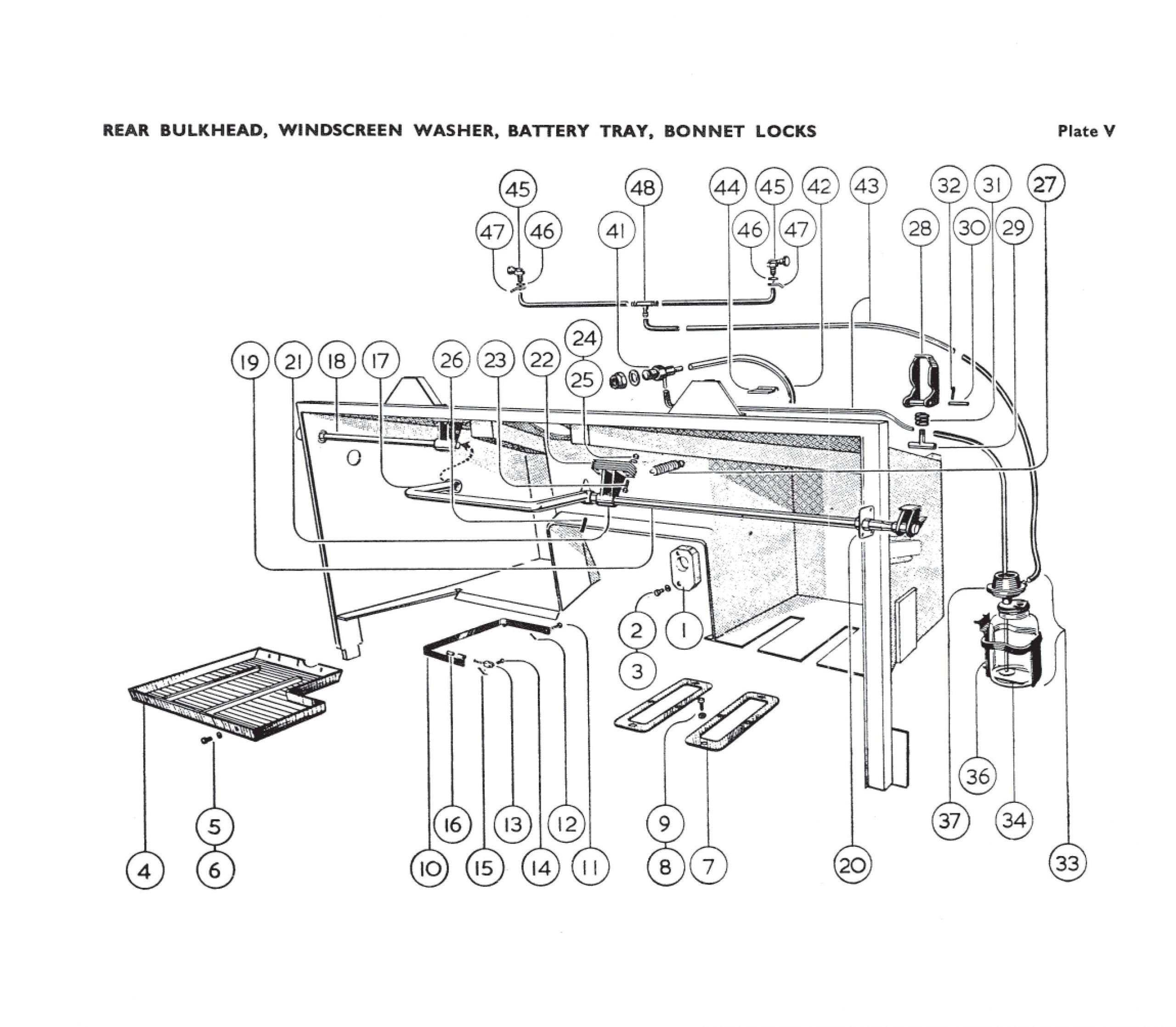

Rear Bulkhead

Ill. No. Part No. product name Car
Total
Stock Price Quantity
174184 Block, Packing, Dipper switch118£30.00- +
2113441 Bolt, 2BA x 1in. Hex. Hd.27£30.00- +
3119488 Washer, Spring, 3/16in.27£30.00- +
473667 FOOTBOARD, Bulkhead RHD110£30.00- +
7366 FOOTBOARD, Bulkhead LHD115£30.00- +
55392 FOOTBOARD, Bulkhead RHD111£30.00- +
57640 FOOTBOARD, Bulkhead LHD17£30.00- +
5111730 Screw, Set, 2BA x 3/8in. Rd. Hd.615£30.00- +
6119488 Washer, Spring, 3/16in.64£30.00- +
772597 Plate, Clamping Pedal Gaiters28£30.00- +
8119375 Screw, Set, 1/4in. BSF x 1/2in. Rd. Hd.812£30.00- +
9119480 Washer, Spring, 1/4in.87£30.00- +
1057624 STRAP ASSEMBLY, Battery15£30.00- +
78163 Strap, Battery11£30.00- +
1156752 Pin, Hinge, Battery Strap113£30.00- +
12111934 Pin, Split, 1/16in. X 5/8in.118£30.00- +
1357621 Bolt, Battery Strap Adjuster112£30.00- +
1457625 Pin, Battery Strap Adjuster118£30.00- +
15119520 Pin, Split, 1/16in. x 1/2in.116£30.00- +
1651467 Nut, Battery Strap118£30.00- +
1771136 HANDLE ASSEMBLY, Bonnet Lock19£30.00- +
1871087 CROSS TUBE ASSEMBLY, N/S18£30.00- +
1971088 CROSS TUBE ASSEMBLY, O/S19£30.00- +
2071129 Bracket Assembly, Outer Bearing214£30.00- +
110887 Rivet, 1/8in. Dia. x 1/4in. Flat Head1018£30.00- +
2171131 Bracket Assembly, Inner Bearing N/S116£30.00- +
71132 Bracket Assembly, Inner Bearing O/S118£30.00- +
2271134 Shim, Bearing BracketNom.106£30.00- +
23111927 Screw, Set, 2BA x 5/8in. Hex. Hd.816£30.00- +
24119488 Washer, Spring, 3/16in.82£30.00- +
25111109 Nut, Plain 2BA811£30.00- +
26110792 Pin, Grooved 5/32in. X 1.1/4in. Mills GPI22£30.00- +
2755258 Spring, Tension213£30.00- +
2871095 CATCH ASSEMBLY, Bonnet Lock29£30.00- +
2957164 Retainer, Spring22£30.00- +
3057167 Pin, Pivot213£30.00- +
3171223 Spring, Compression25£30.00- +
32119522 Pin, Split 1/16in. X 3/4in.28£30.00- +
3351933 JAR AND PUMP ASSEMBLY (Screenwash)19£30.00- +
3477557 Jar119£30.00- +
3651934 Bracket and Strap Assembly14£30.00- +
3777558 Pump Assembly114£30.00- +
57536 Rubber Hose, 15in. x 11/32in. O/D24£30.00- +
57537 Rubber Hose, 10in. x 11/32in. O/D24£30.00- +
57538 Rubber Hose, 14in. x 11/32in. O/D23£30.00- +
57539 Rubber Hose, 14in. x 15/64in. O/D23£30.00- +
4157356 Control Valve119£30.00- +
4257357 Supply Line, Water 25in. x 3/16in. O/D x 22g.29£30.00- +
52468 Supply Line, Water 25in. x 3/16in. O/D x 22g.220£30.00- +
4357358 Supply Line, Water 36in. x 3/16in. O/D x 22g.213£30.00- +
52469 Supply Line, Water 36in. x 3/16in. O/D x 22g.215£30.00- +
4451846 Clip, Supply Line to BulkheadAs req'd14£30.00- +
4551941 Jet Assembly214£30.00- +
4651944 Gasket29£30.00- +
4751945 Nut, Wing28£30.00- +
4876884 Tee Piece Trico X.87223/1114£30.00- +

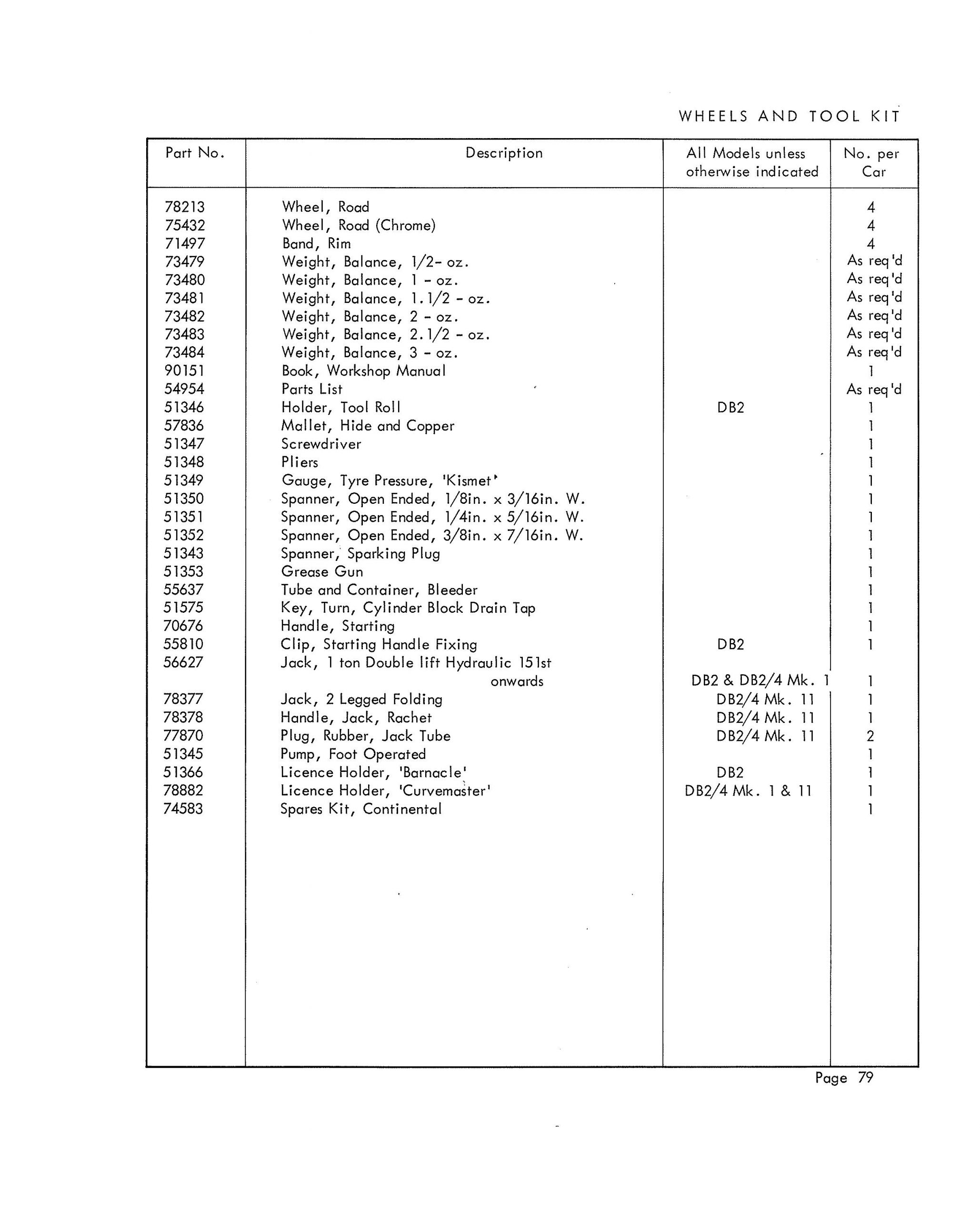

Wheels and Tool Kit

Ill. No. Part No. product name Car
Total
Stock Price Quantity
78213 Wheel, Road414£30.00- +
75432 Wheel, Road (Chrome)412£30.00- +
71497 Band, Rim416£30.00- +
73479 Weight, Balance, 1/2-oz.As req'd15£30.00- +
73480 Weight, Balance, 1 - oz.As req'd14£30.00- +
73481 Weight, Balance, 1.1/2 - oz.As req'd9£30.00- +
73482 Weight, Balance, 2 - oz.As req'd14£30.00- +
73483 Weight, Balance, 2.1/2 - oz.As req'd1£30.00- +
73484 Weight, Balance, 3 - oz.As req'd10£30.00- +
90151 Book, Workshop Manual117£30.00- +
54954 Parts ListAs req'd18£30.00- +
51346 Holder, Tool Roll116£30.00- +
57836 Mallet, Hide and Copper116£30.00- +
51347 Screwdriver12£30.00- +
51348 Pliers14£30.00- +
51349 Gauge, Tyre Pressure, 'Kismet'110£30.00- +
51350 Spanner, Open Ended, 1/8in. x 3/16in. W.114£30.00- +
51351 Spanner, Open Ended, 1/4in. x 5/16in. W.19£30.00- +
51352 Spanner, Open Ended, 3/8in. x 7/16in. W.118£30.00- +
51343 Spanner, Sparking Plug11£30.00- +
51353 Grease Gun115£30.00- +
55637 Tube and Container, Bleeder120£30.00- +
51575 Key, Turn, Cylinder Block Drain Tap16£30.00- +
70676 Handle, Starting111£30.00- +
55810 Clip, Starting Handle Fixing119£30.00- +
56627 Jack, 1 ton Double lift Hydraulic 151st onwards19£30.00- +
78377 Jack, 2 Legged Folding120£30.00- +
78378 Handle, Jack, Rachet111£30.00- +
77870 Plug, Rubber, Jack Tube212£30.00- +
51345 Pump, Foot Operated111£30.00- +
51366 Licence Holder, 'Barnacle'18£30.00- +
78882 Licence Holder, 'Curvemaster'120£30.00- +
74583 Spares Kit, Continental17£30.00- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222   Parts Catalogue
90222   Parts Catalogue
90222   Parts Catalogue


£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
