DB2 & DB2_4 MKI & MKII

Suspension and Steering

View Diagram

Front Suspension Cross Member Assembly, Bell Crank

Ill. No. Part No. product name Car
Total
Stock Price Quantity
155072 CENTRE SECTION17£30.00- +
2119591 Plug, 1/8in. BSP212£30.00- +
3119504 Washer, Fibre213£30.00- +
4119590 Plug, 3/8in. BSP15£30.00- +
5119500 Washer, Fibre111£30.00- +
655073 Bracket, Rad. And Bell Crank113£30.00- +
755076 Spindle117£30.00- +
855078 Distance Piece, Upper113£30.00- +
9113421 Bearing, Needle Roller22£30.00- +
1055079 Washer, Thrust, Spindle21£30.00- +
1155077 Distance Piece, Lower111£30.00- +
12113428 Circlip, Bell Crank Spindle111£30.00- +
13113419 Seal, Oil, Bell Crank Spindle118£30.00- +
1455075 Lever, Bell Crank, (RHD)13£30.00- +
58655 Lever, Bell Crank, (RHD)15£30.00- +
56250 Lever, Bell Crank, (LHD)15£30.00- +
15119474 Washer, Plain, 1/2in.114£30.00- +
16119454 Nut, Slotted, 1/2in. BSF116£30.00- +
17119530 Pin, Split, 3/32in. X 1.1/4in.114£30.00- +
18113413 Stud, 1/4in. BSF x 1.1/4in.28£30.00- +
1955081 Shim, Bell Crank15£30.00- +
2055080 Cover, Bell Crank19£30.00- +
21119470 Washer, Plain, 1/4in.29£30.00- +
22113480 Nut, Simmonds, 1/4in. BSF27£30.00- +
23119233 Bolt, 5/16in. BSF x 2.3/4in.411£30.00- +
24119471 Washer, Plain, 5/16in.45£30.00- +
25113410 Nut, Simmonds, 15/16in. BSF414£30.00- +
2655083 OUTER SECTION, Cross Member27£30.00- +
27113414 Bearing, Needle Roller211£30.00- +
2855087 Washer, Oil Seal220£30.00- +
2955612 Ring, Oil Seal21£30.00- +
3055088 Ring, Retainer, Oil Seal219£30.00- +
3155084 Shaft, Trailing Link28£30.00- +
32119115 Bearing, Ball215£30.00- +
33113429 Circlip23£30.00- +
3455085 Nut, Inner, Trailing Link Shaft28£30.00- +
3555086 Tab, Locking, Inner Nut214£30.00- +
36111894 Setscrew, 2BA x 3/8in. Ch. Hd.25£30.00- +
3755001 Link, Trailing29£30.00- +
3855082 Spigot Tube, Outer and Centre Sections22£30.00- +
3975840 Shim .005in.As req'd11£30.00- +
75841 Shim .010in.As req'd20£30.00- +
4055092 Bolt, 1/4in. BSF2414£30.00- +
4155093 Washer, Plain246£30.00- +
42113480 Nut, Simmonds245£30.00- +
4355089 Bar, Anti-Roll111£30.00- +
4455091 Washer, Lock, Outer Nut21£30.00- +
4555090 Nut, Outer Trailing Link Shaft23£30.00- +
4655094 BRACKET, Angle213£30.00- +
47119255 Bolt, 3/8in. BSF x 3.1/2in.820£30.00- +
48119472 Washer, Plain, 3/8in.816£30.00- +
49113411 Nut, Simmonds812£30.00- +
50119252 Bolt, 3/8in. x 2.3/4in.63£30.00- +
51119472 Washer, Plain67£30.00- +
52113411 Nut, Simmonds610£30.00- +
5355096 Packing Piece, Frame213£30.00- +
54111993 Bolt, 3/8in. BSF x 5.3/4in.81£30.00- +
5577570 SHOCK ABSORBER, N/S11£30.00- +
77571 SHOCK ABSORBER, O/S18£30.00- +
5657027 Bracket, Aux. Trailing Link O/S116£30.00- +
57029 Bracket, Aux. Trailing Link N/S16£30.00- +
119472 Washer, Plain, 3/8in.812£30.00- +
58113411 Nut, Simmonds811£30.00- +

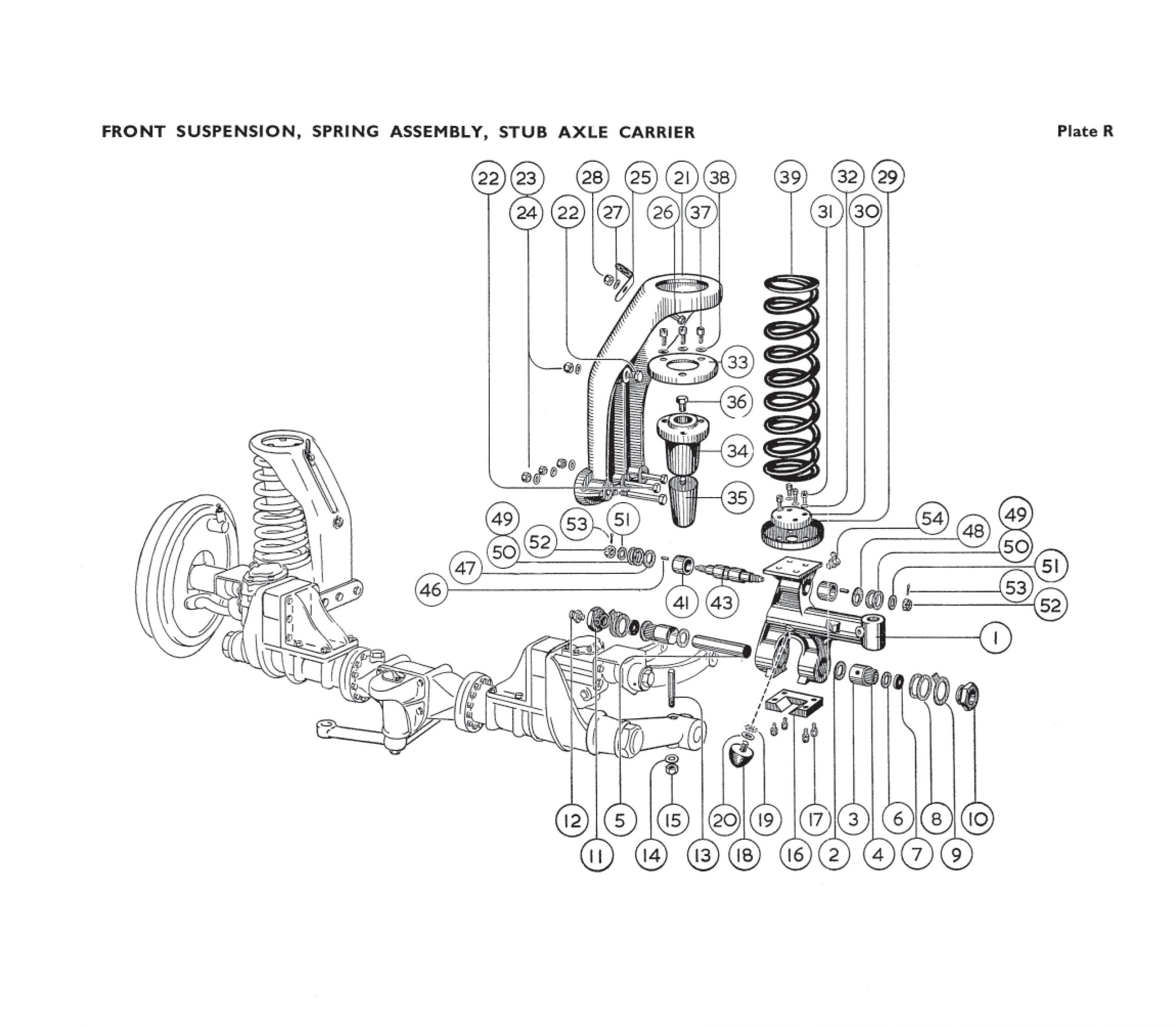

Front Suspension Spring Assembly, Stub Axle Carrier

Ill. No. Part No. product name Car
Total
Stock Price Quantity
155002 CARRIER, Stub Axle28£30.00- +
255006 Seal, Oil Trailing Link Pin47£30.00- +
355007 Track, Outer, Needle Roller411£30.00- +
455008 Roller, Needle11613£30.00- +
555003 Pin, Trailing Link22£30.00- +
655005 Washer, Retaining, Needle Rollers820£30.00- +
755009 Washer, Thurst42£30.00- +
855012 ShimAs req'd4£30.00- +
955013 Washer, Lock, End Plug45£30.00- +
1055011 Plug, End, outer219£30.00- +
1155010 Plug, End, inner217£30.00- +
12119640 Nipple, Grease, End Plug217£30.00- +
1355004 Pin, Cotter, Trailing Link23£30.00- +
14119470 Washer, Plain 1/4in.210£30.00- +
15113480 Nut, Simmonds, 1/4in. BSF219£30.00- +
1655014 Pad, Jacking22£30.00- +
17113469 Screw, Socket Cap, 1/4in. BSF86£30.00- +
1855042 Rebound Rubber213£30.00- +
19113471 Washer, Shakeproof 3/8in.28£30.00- +
2055043 Washer, Rebound rubber218£30.00- +
2155044 BRACKET, Front Road Spring211£30.00- +
22119234 Bolt, 5/16in. x 3in.81£30.00- +
23119471 Washer, Plain 5/16in.816£30.00- +
24113410 Nut, Simmonds, 5/16in. BSF812£30.00- +
2574857 Bracket, Front Brake Hose N/S113£30.00- +
74858 Bracket, Front Brake Hose O/S113£30.00- +
26119223 Bolt, 5/16in. BSF x 1.1/8in.213£30.00- +
27119471 Washer, Plain 5/16in.220£30.00- +
28113410 Nut, Simmonds, 5/16in. BSF29£30.00- +
2955037 Cup, Spring, Lower28£30.00- +
3055038 Pad, Bump220£30.00- +
3156027 Screw, Socket Cap, 5/16in. x 5/8in.816£30.00- +
32119481 Washer, Spring, Cap Screw88£30.00- +
3355039 Cap, Spring, Upper213£30.00- +
3455040 Support, Bump Stop27£30.00- +
355154 Bump Stop24£30.00- +
36111936 Nut, Oddie 1/4in. BSf29£30.00- +
3756028 Screw, Socket Cap 1/4in. BSF x 3/4in.67£30.00- +
38119480 Washer, Spring, Cap Screw619£30.00- +
3972509 ROAD SPRING, Front217£30.00- +
4154616 Bush, Stub Axle Carrier26£30.00- +
4354615 Spindle, eccentric, top trailing link23£30.00- +
54819 Excluder, dust, top trailing link411£30.00- +
5055026 Shim, outer, .010in.As req'd12£30.00- +
71753 Shim, outer, .036in.As req'd4£30.00- +
51119474 Washer, Plain 1/2in.418£30.00- +
52119454 Nut, Slotted 1/2in. BSF43£30.00- +
53119530 Pin, Split 3/32in. x 1.1/4in.419£30.00- +

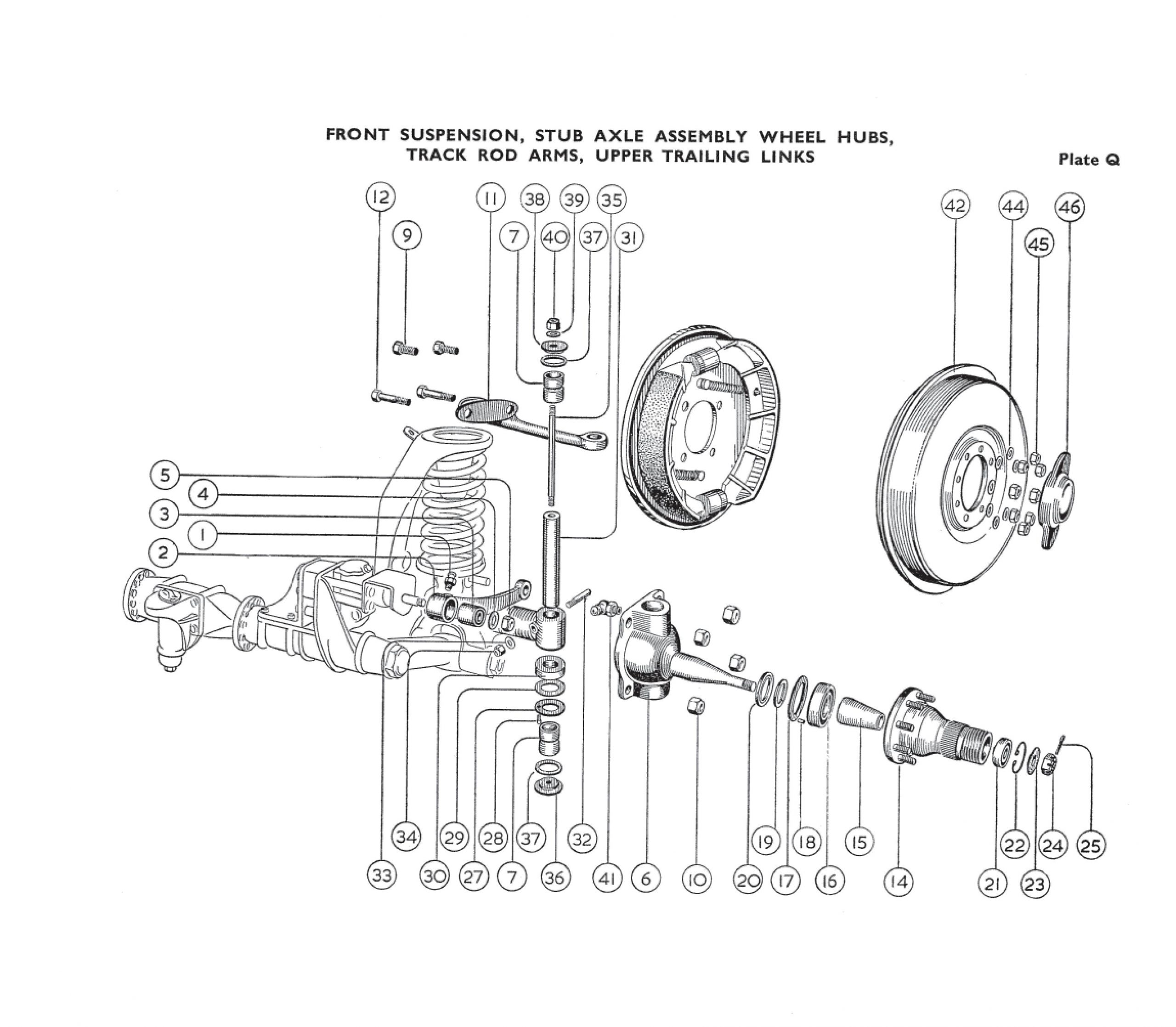

Front Suspension Stub Axle, Wheel Hubs, Track Rods

Ill. No. Part No. product name Car
Total
Stock Price Quantity
1113426 Greaser.1/8in. BSP 35 degree27£30.00- +
271633 LINK, Auxiliary Top Trailing O/S112£30.00- +
71634 LINK, Auxiliary Top Trailing N/S117£30.00- +
357028 Bush, Auxiliary Trailing Link28£30.00- +
4119473 Washer, Plain 7/16in.217£30.00- +
5111941 Nut, Oddie, Thin 7/16in. BSF218£30.00- +
655046 STUB AXLE21£30.00- +
774382 Bush, King Pin41£30.00- +
9119241 Bolt, 3/8in. BSF x 1in.420£30.00- +
10113411 Nut, Simmonds, 3/8in. BSF86£30.00- +
1155068 Arm, Track Rod, N/S112£30.00- +
55069 Arm, Track Rod, O/S17£30.00- +
12119247 Bolt, 3/8in. BSF x 1.3/4in.413£30.00- +
1455061 HUB, Inner N/S19£30.00- +
55062 HUB, Inner O/S112£30.00- +
1555066 Distance Piece, Long23£30.00- +
1651019 Bearing, Ball (Hoffman 335)27£30.00- +
1755063 Ring, Bearing N/S (LH thread)112£30.00- +
55064 Ring, Bearing O/S (LH thread)13£30.00- +
18113436 Grub screw, Socket 2BA x 3/8in.220£30.00- +
1955065 Distance Piece, Short218£30.00- +
20113418 Seal, Oil Gits G.2501873121£30.00- +
21113420 Bearing, Roller (Hoffman R. 317)210£30.00- +
22113446 Circlip, Seeger Internal 47mm.216£30.00- +
2355058 Washer, Stub Axle Nut211£30.00- +
24119455 Nut, Slotted5/8in. BSF216£30.00- +
25119537 Pin, Split 1/8in. X 1.3/8in.25£30.00- +
2671861 Stud, 5/16in. BSF x 1.3in.1610£30.00- +
2755050 Washer, Thrust418£30.00- +
2855051 Dowel, Thrust Washer417£30.00- +
2977086 Shroud, Thrust Washer215£30.00- +
3076802 Washer, Thrust, Centre219£30.00- +
55050 Washer, Thrust (Supersedes items 27,28,29 and 30)49£30.00- +
55051 Dowel, Thrust Washer (Supersedes items 27,28,29 and 30)415£30.00- +
77086 Shroud, Thrust Washer (Supersedes items 27,28,29 and 30)216£30.00- +
76802 Thrust Washer, Centre (Supersedes items 27,28,29 and 30)212£30.00- +
3155047 KING PIN23£30.00- +
3255048 Pin, Cotter, King Pin215£30.00- +
33119471 Washser, Plain 5/16in.211£30.00- +
34113410 Nut, Simmonds, 5/16in. BSF214£30.00- +
3555057 Stud, King Pin28£30.00- +
3655056 Cap, Lower, King Pin219£30.00- +
3756031 Washer, Sealing210£30.00- +
3855054 Cap, Upper, King Pin216£30.00- +
39119470 Washer, Plain 1/4in.212£30.00- +
40113480 Nut, Simmonds, 1/4in. BSF218£30.00- +
41111760 Nipple, Grease, Stub Axle45£30.00- +
4256026 DRUM, Brake (Cast Iron)29£30.00- +
58985 DRUM, Brake (Al-ffin) (Alternative to56026)24£30.00- +
44119471 Washer, Plain 5/16in.164£30.00- +
45113410 Nut, Simmonds, 5/16in. BSF1611£30.00- +
4620.36.119 Hub, Cap, N/S (RH thread)119£30.00- +
20.36.120 Hub, Cap, O/S (RH thread)115£30.00- +

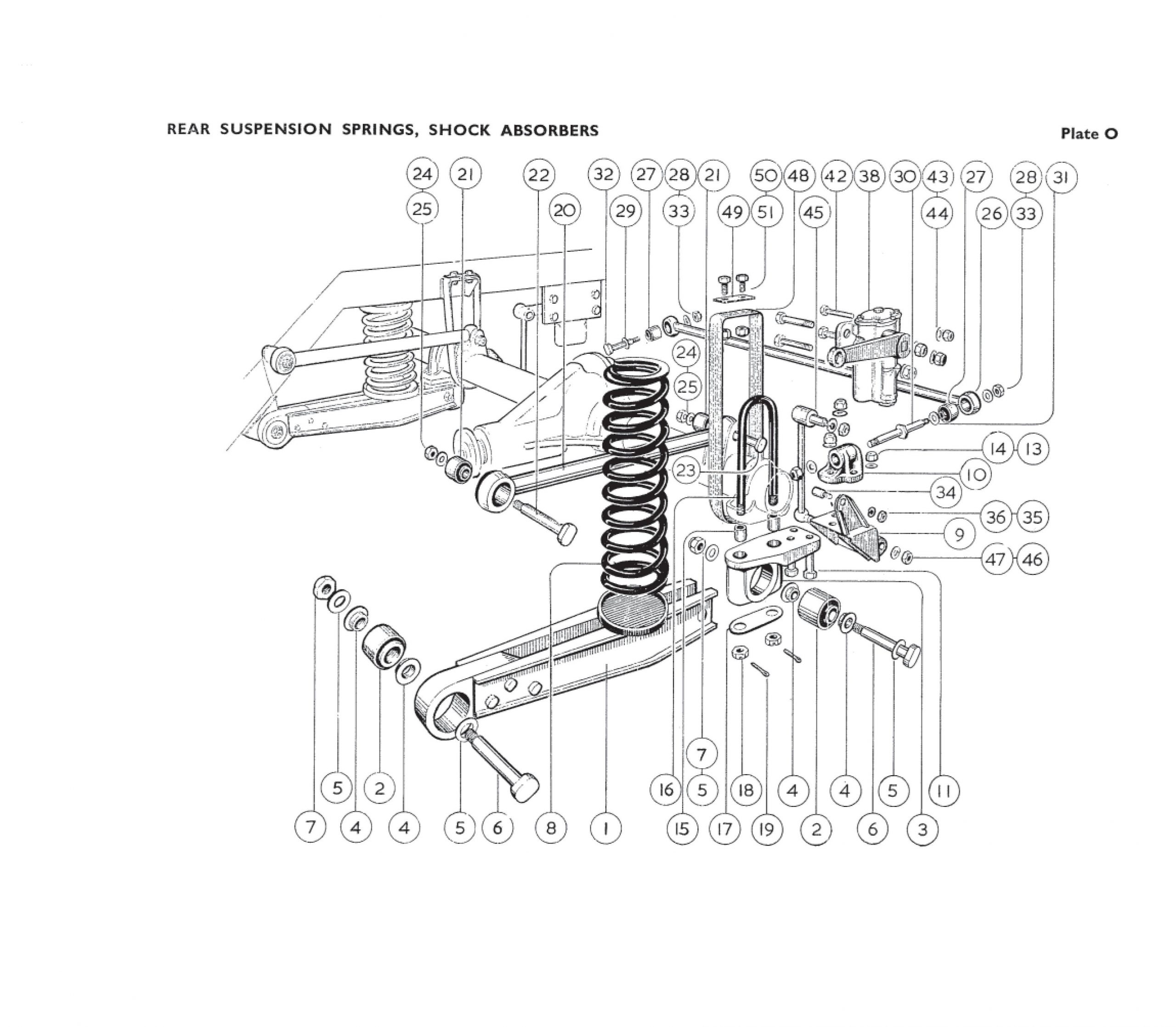

Rear Suspension

Ill. No. Part No. product name Car
Total
Stock Price Quantity
155140* LINK ASSEMBLY lower nearside18£30.00- +
90623* Eye end18£30.00- +
55151* LINK ASSEMBLY lower offside114£30.00- +
255147* Bush, Silentbloc, lower link49£30.00- +
355164 Bracket, Axle, lower link215£30.00- +
77467 Bracket, Axle, lower link26£30.00- +
455148* Adaptor, Silentbloc815£30.00- +
555150* Washer, lower link811£30.00- +
655149* Bolt, lower link420£30.00- +
90335 Link assembly (Alternative to items marked thus *)26£30.00- +
90621 Eye end (Alternative to items marked thus *)220£30.00- +
90331 Bush, Silentbloc, lower link (Alternative to items marked thus *)45£30.00- +
90332 Adaptor, Silentbloc (Alternative to items marked thus *)813£30.00- +
90364 Washer, lower link (Alternative to items marked thus *)86£30.00- +
90333 Bolt lower link (Alternative to items marked thus *)412£30.00- +
7113415 Nut, Simmonds, 1/2in. BSF, Lower Link413£30.00- +
876356 Spring, Suspension210£30.00- +
55041 Spring, Suspension (Sold in Pairs only)21£30.00- +
972833 Bracket, Rear S/Absorber link, N/S113£30.00- +
77657 Bracket, Rear S/Absorber link, N/S14£30.00- +
72832 Bracket, Rear S/Absorber link, O/S117£30.00- +
77656 Bracket, Rear S/Absorber link, O/S114£30.00- +
1055169 Bracket, Anti-sway Bar116£30.00- +
72881 Bracket, Anti-sway Bar114£30.00- +
11119225 Bolt, 5/16in. BSF x 1.3/8in.. N/S34£30.00- +
119223 Bolt, 5/16in. BSF x 1.1/8in.. O/S37£30.00- +
13111907 Washer, Plain, 5/16in.98£30.00- +
14113410 Nut, Simmonds, 5/16in. BSF618£30.00- +
1555167 Dowe, 'U' Bolt to Axle Bracket44£30.00- +
1655166 U' Bolt, Lower Link to Axle220£30.00- +
77465 U' Bolt, Lower Link to Axle29£30.00- +
1755168 Plate, Reinforcing216£30.00- +
77466 Plate, Reinforcing21£30.00- +
18119468 Nut, Castle, 1/2in. BSF411£30.00- +
19119530 Pin, Split, 3/32in. x 1.1/4in.23£30.00- +
2055153 LINK ASSEMBLY, Upper211£30.00- +
2155157 Bush, Silentbloc212£30.00- +
2255156 Bolt, Upper Link, Frame End220£30.00- +
2355158 Bolt, Upper Link, Axle End28£30.00- +
24119473 Washer, Upper Link416£30.00- +
25113443 Washer, 7/16in. Antiu-sway Bar48£30.00- +
2655159 BAR ASSEMBLY, Anti-sway111£30.00- +
2755157 Bush, Silentbloc, Anti-sway Bar21£30.00- +
28119473 Washer, Anti-sway Bar316£30.00- +
2956743 Washer, Anti-sway Bar12£30.00- +
3055161 Stud, Anti-sway Bar116£30.00- +
3155162 Collar, Anti-sway Bar14£30.00- +
3255163 Bolt, Anti-sway Bar15£30.00- +
33113443 Nut, Simmond, 7/16in. BSF320£30.00- +
3473335 Bolt, Taper29£30.00- +
119243 Bolt, 3/8in. x 1.1/4in. BSF23£30.00- +
35119482 Washer, Spring, 3/8in.22£30.00- +
36119403 Nut, Plain, 3/8in. BSf25£30.00- +
3874855 SHOCK ABSORBER & ARM N/S14£30.00- +
74856 SHOCK ABSORBER & ARM O/S11£30.00- +
77572 SHOCK ABSORBER & ARM N/S112£30.00- +
77573 SHOCK ABSORBER & ARM O/S14£30.00- +
42119246 Bolt, Shock Absorber Fixing, 3/8in. BSF82£30.00- +
119270 Bolt, Shock Absorber Fixing411£30.00- +
43119472 Washer, Plain, 3/8in.818£30.00- +
119473 Washer, Plain, 7/16in.413£30.00- +
44111935 Nut, Oddie, 3/8in.820£30.00- +
113443 Nut, Simmonds, 7/16in. BSF44£30.00- +
4590094 Link Assembly218£30.00- +
46113540 Washer, Spring, 7/16in.41£30.00- +
47119404 Nut, Plain, 7/16. BSF420£30.00- +
4855175 Strap, Check217£30.00- +
4955177 Plate, Upper217£30.00- +
50119221 Bolt, 5/16in. BSF x 7/8in.417£30.00- +
51111937 Nut, Oddie, 5/16in. BSf417£30.00- +

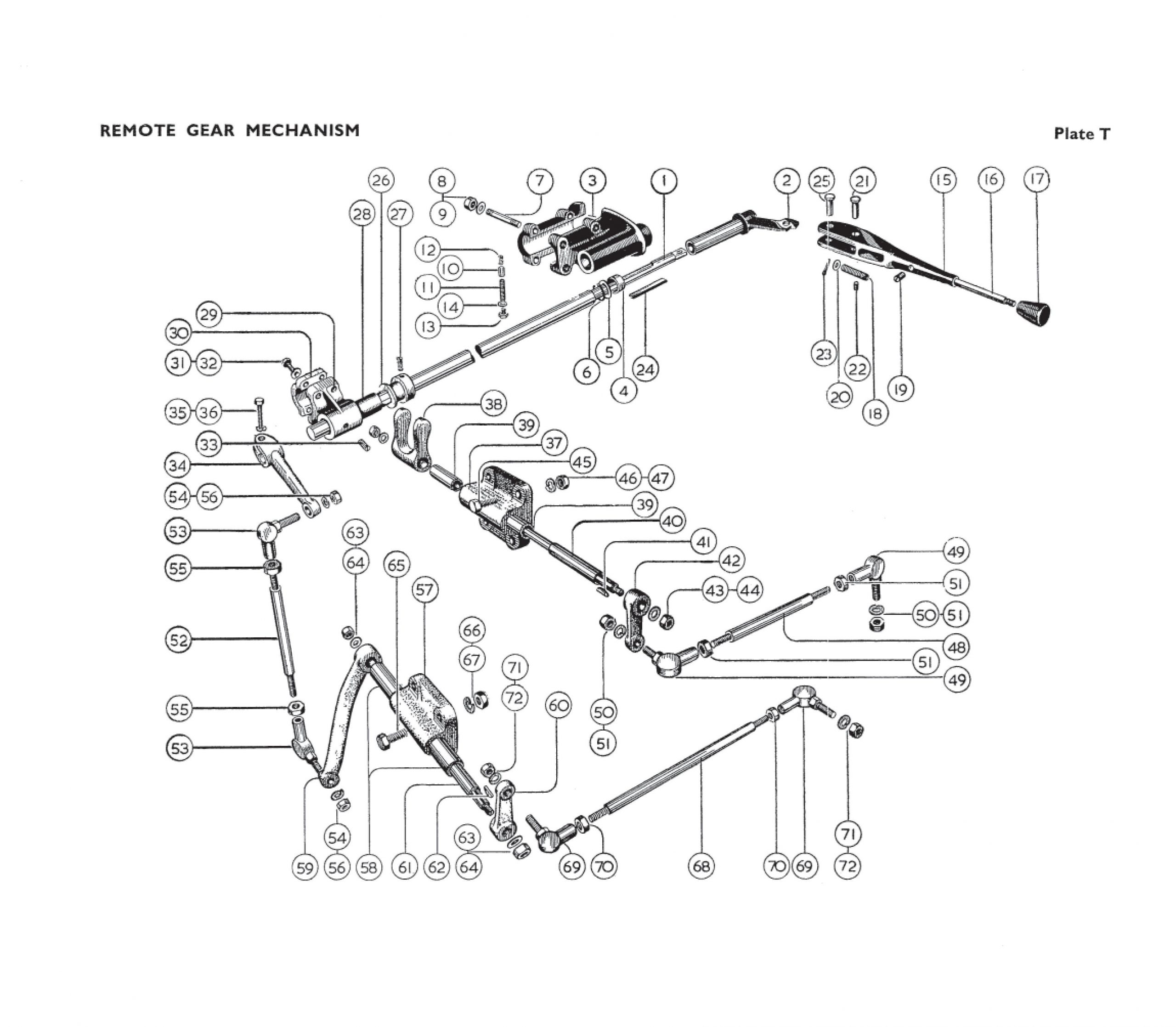

Remote Gear Mechanism

Ill. No. Part No. product name Car
Total
Stock Price Quantity
155214 SHAFT ASSEMBLY, Control120£30.00- +
251316 Bracket, Pivot118£30.00- +
355205 Bracket, Top, Gear Change Control12£30.00- +
451206 Bush, Pivot Bracket16£30.00- +
551207 Washer120£30.00- +
6112310 Circlip, Seeger, 13/16in. Ex13£30.00- +
7113417 Stud, 1/4in. BSF x 1.1/2in.418£30.00- +
8111874 Washer, Thackeray, 1/4in.412£30.00- +
9119401 Nut, Plain, 1/4in. BSF416£30.00- +
1051210 Plunger, Neutral Location15£30.00- +
1151211 Spring, Neutral Location12£30.00- +
12113438 Grubscrew, Socket, 1/4in. BSF x 5/8in.114£30.00- +
1355206 Screw, Retaining, Plunger16£30.00- +
1455207 Washer, Retaining, Screw114£30.00- +
1551315 LEVER, Gear Change, Hand113£30.00- +
1651317 Rod, Selector, Reverse Control14£30.00- +
1751318 KNOB, Reverse Control18£30.00- +
1851319 Spring, Reverse Control15£30.00- +
19112110 Grubscrew, Slotted, 1/4in. BSF x 7/16in.118£30.00- +
2051320 Washer, Locating, Reverse Spring114£30.00- +
2151321 Pin, Pivot, Hand Lever15£30.00- +
2251322 Screw, Locking, Pivot Pin116£30.00- +
23111934 Pin, Split, 1/16in. x 5/8in.119£30.00- +
2451324 Key, Pivot Bkt. To Control Shaft118£30.00- +
2551325 Pin, Control Shaft110£30.00- +
2655217 Sleeve, Control Shaft112£30.00- +
27112109 Grubscrew, Socket, 2BA x 3/8in.119£30.00- +
2855211 Bush, Bottom Bkt.119£30.00- +
2955209 Bracket, Bottom17£30.00- +
3055210 Cap, Bottom Bkt.110£30.00- +
31119202 Bolt, 1/4in. BSF x 7/8in.114£30.00- +
32119480 Washer, Spring, 1/4in.118£30.00- +
33113437 Grubscrew, Socket, 1/4in. x 3/8in.120£30.00- +
3455218 Lever, Gear Change, Control Shaft118£30.00- +
35119202 Bolt, 1/4in. BSF x 7/8in.115£30.00- +
36119480 Washer, Spring, 1/4in.112£30.00- +
3755180 Bracket, Selector Shaft15£30.00- +
3855182 Lever, Selector, Shaft, Control Shaft112£30.00- +
3950977 Bush, Frame Bkt.22£30.00- +
4055183 Shaft, Selector Levers110£30.00- +
41119604 Key, Woodruff, No.50218£30.00- +
4256064 Lever, Selector, Long114£30.00- +
43119472 Washer, Plain, 3/8in.217£30.00- +
44119403 Nut, Plain, 3/8in. BSF22£30.00- +
45119200 Bolt, 1/4in. BSF x 5/8in.415£30.00- +
46119480 Washer, Spring, 1/4in.414£30.00- +
47119401 Nut, Plain, 1/4in. BSF419£30.00- +
4855184 Rod, Selector Adjustment18£30.00- +
4971079 Ball Joint, 5/16in. BSF218£30.00- +
50119481 Washer, Spring, 5/16in.24£30.00- +
51119441 Nut, Lock, 5/16in. BSF410£30.00- +
5255185 Rod, Gear Change Adj., Short16£30.00- +
5371080 Ball Joint, 3/8in. BSF210£30.00- +
54119482 Washer, Spring, 3/8in.21£30.00- +
55119442 Nut, Lock, 3/8in. BSF28£30.00- +
56119403 Nut, Plain, 3/8in. BSF217£30.00- +
5755186 Bracket, Gear Change Shaft118£30.00- +
5851340 Bush, Bracket26£30.00- +
5951338 Lever, Gear Change, Long12£30.00- +
6051339 Lever, Gear Change, Short18£30.00- +
6156065 Shaft, Change Lever11£30.00- +
62119604 Key, Woodruff, No.50218£30.00- +
63119472 Washer, Plain, 3/8in.218£30.00- +
64119403 Washer, Spring, 5/16.211£30.00- +
65119346 Bolt, 5/16in. BSF x 5/8in.420£30.00- +
66119481 Washer, Spring, 5/16in.414£30.00- +
67119402 Nut, Plain, 5/16. BSF412£30.00- +
6856066 Rod, Gear Change Adj., Long14£30.00- +
6971080 Ball Joint, 3/8in. BSF219£30.00- +
70119442 Nut, Lockk, 3/8in. BSF212£30.00- +
71119482 Washer, Spring, 3/8in.217£30.00- +
72119403 Nut, Plain, 3/8in. BSF216£30.00- +

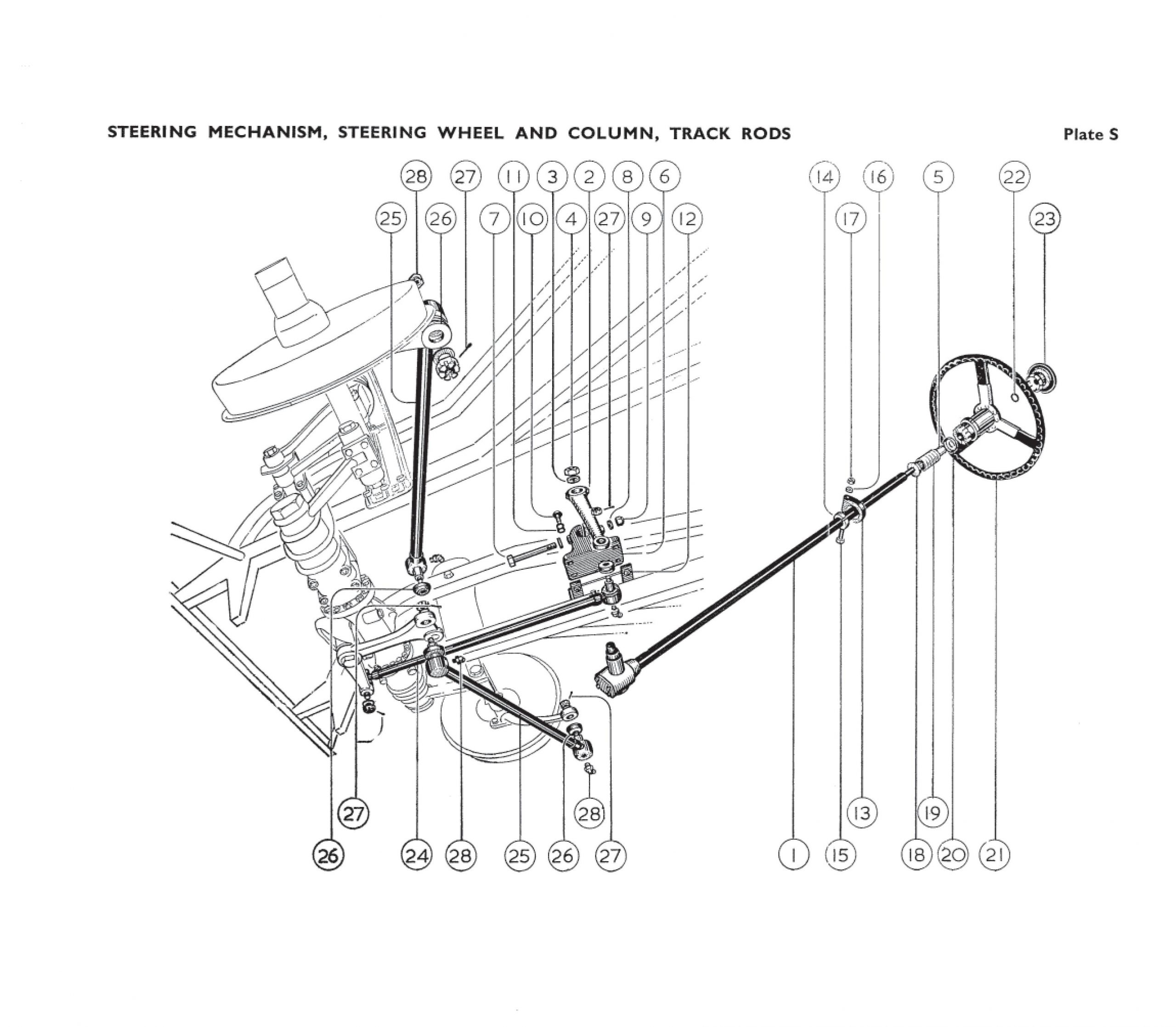

Steering Mechanism

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172922 STEERING COLUMN AND BOX ASSEMBLY17£30.00- +
72533 STEERING COLUMN AND BOX ASSEMBLY19£30.00- +
55200 STEERING COLUMN AND BOX ASSEMBLY114£30.00- +
56242 STEERING COLUMN AND BOX ASSEMBLY111£30.00- +
255201 DROP ARM, 7in.115£30.00- +
73152 DROP ARM, 7in.15£30.00- +
3111713 Washer, Spring111£30.00- +
4122313 Nut117£30.00- +
556223 Bush, Tufnol112£30.00- +
655202 Bracket, Mounting16£30.00- +
7119213 Bolt, 1/4in. BSF x 2.1in.24£30.00- +
8119470 Washer, Plain, 1/4in.410£30.00- +
9113480 Nut, Simmonds, 1/4in. BSF27£30.00- +
10119242 Bolt, 3/8in. BSF x 1.1/8in.411£30.00- +
11111115 Washer, Thackeray, 3/8in.418£30.00- +
1255203 Plate Assemblyk, Steering Anchor213£30.00- +
1355212 Clip, Steering Column Support113£30.00- +
1455213 Clip, Split Bush, Rake Adj.219£30.00- +
15111938 Bolt, 3/8in. BSF x 2.7/8in.14£30.00- +
16119472 Washer, Plain, 3/8in.113£30.00- +
17113411 Nut, Simmonds, 3/8in. BSF12£30.00- +
1872815 Washer, Bottom110£30.00- +
1972813 Cover, Dust (Spring Type)113£30.00- +
2072814 Washer, Top19£30.00- +
2172811 WHEEL, Steering115£30.00- +
51202 WHEEL, Steering16£30.00- +
2272812 Circlip16£30.00- +
2351220 Button, Horn116£30.00- +
2455818 LINK, Drag (First 150 cars)15£30.00- +
58664 LINK, Drag (151st onwards)11£30.00- +
2555819 ROD, Track (First 150 Cars)26£30.00- +
57760 ROD, Track N/S (151st onwards)112£30.00- +
58665 ROD, Track O/S (151st onwards)112£30.00- +
90257 Ball Joint (with side greaser) R.H. thread, nearside track rod inner (Spares for 57760)117£30.00- +
90258 Ball Joint (with end greaser) R.H. thread, offside track rod and draglink (Spares for 58665)215£30.00- +
90259 Ball Joint (with end greaser) L.H. thread, track rod and draglink (Spares for 57760, 58665)311£30.00- +
2676935 Gaiter, Track Rod and Drag Link62£30.00- +
27119530 Pin, Split, 3/32in. x 1.1/4in.616£30.00- +
28113426 Nipple Grease, O/S Track Rod Inner11£30.00- +
111760 Nipple Grease, N/S Track Rod Inner111£30.00- +
119640 Nipple, Grease, Drag Link & Track Rod Outer418£30.00- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222   Parts Catalogue
90222   Parts Catalogue
90222   Parts Catalogue


£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
