Engine

View Diagram

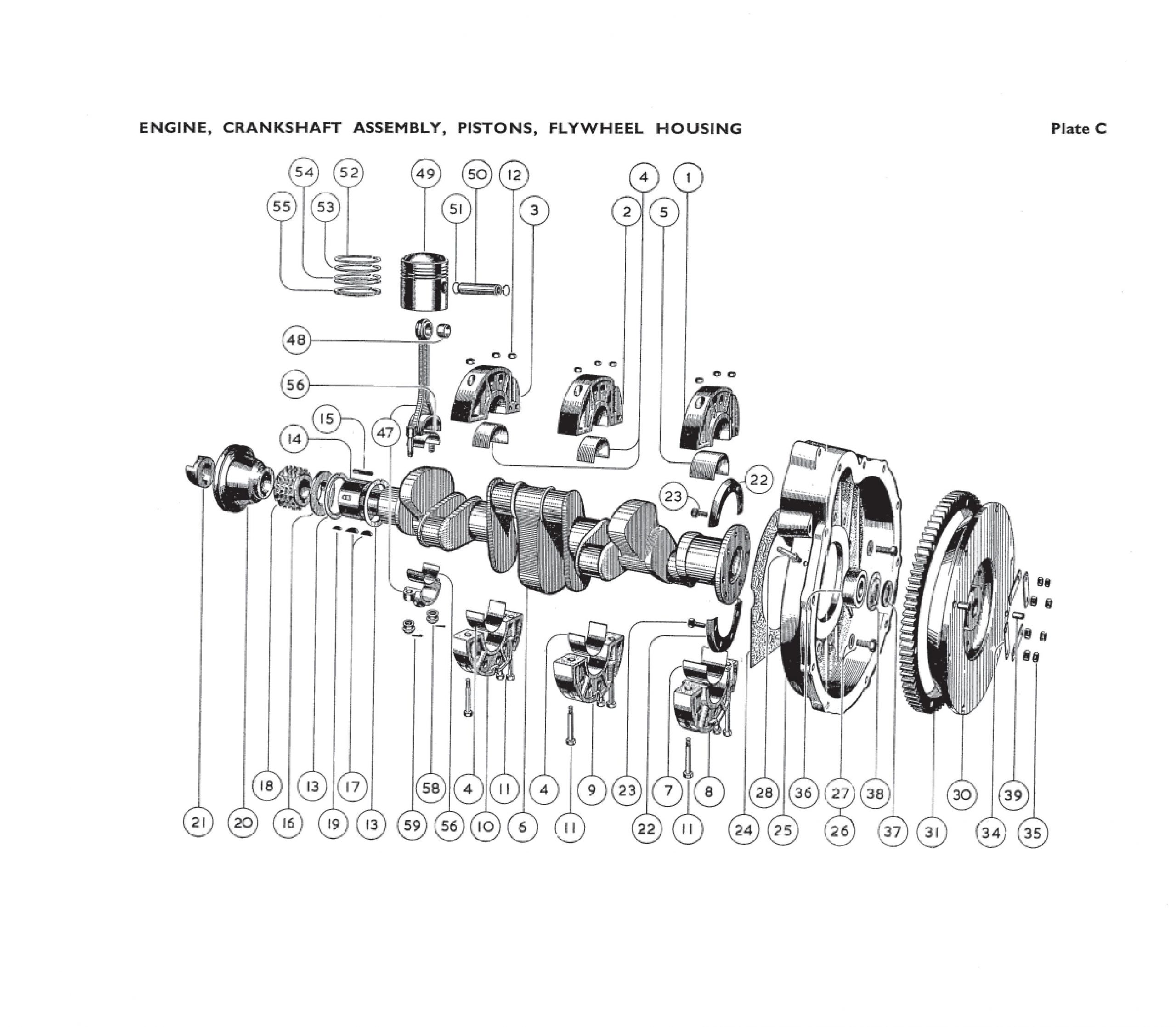

Engine Crankshaft

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	50103	Housing, Top Rear Main Bearing (Supplied only with Bottom Housing)	1	17	£30.00	- +
2	50105	Housing, Top, Inter. Main Brg. Rear (Supplied only with Bottom Housing)	1	15	£30.00	- +
3	50107	Housing, Top, Inter. Main Brg. Front (Supplied only with Bottom Housing)	1	3	£30.00	- +
4	71534	SHELL, Inter, Main Bearing	4	16	£30.00	- +
	77630	SHELL, Inter, Main Bearing (.010in. Undersize)		11	£30.00	- +
	77631	SHELL, Inter, Main Bearing (.020in. Undersize)	4	7	£30.00	- +
5	71535	SHELL, Inter, Rear Main Bearing, Top Half	1	15	£30.00	- +
	77632	SHELL, Inter, Rear Main Bearing, Top Half (.010in. Undersize)	1	2	£30.00	- +
	77633	SHELL, Inter, Rear Main Bearing, Top Half (.020in. Undersize)	1	10	£30.00	- +
6	77890	CRANKSHAFT	1	12	£30.00	- +
7	71536	SHELL, Rear Main Bearing, Bottom Half	1	14	£30.00	- +
	77634	SHELL, Rear Main Bearing Bottom Half (.010in. Undersize)	1	18	£30.00	- +
	77635	SHELL, Rear Main Bearing Bottom Half (.020in. Undersize)	1	10	£30.00	- +
8	50104	Housing, Bottom, Rear Main Bearing (Supplied only with Top Housing)	1	9	£30.00	- +
9	50106	Housing, Bottom, Rear Inter, Main Bearing (Supplied only with Top Housing)	1	15	£30.00	- +
10	50108	Housing, Bottom, Front Inter. Main Bearing (Supplied only with Top Housing)	1	9	£30.00	- +
11	50111	Bolt, Main Bearing Housing	9	5	£30.00	- +
12	111878	Nut, Pinnacle 2BA	9	9	£30.00	- +
13	50114	Washer, Thrust, Front Main Bearing	2	18	£30.00	- +
14	71533	SHELL, Front Main Bearing	1	4	£30.00	- +
	77628	SHELL, Front Main Bearing (.010in. Undersize)	1	4	£30.00	- +
	77629	SHELL, Front Main Bearing (.020in. Undersize)	1	20	£30.00	- +
15	50115	Dowel, Thrust Washer	1	2	£30.00	- +
16	50116	Washer, Locating, Crankshaft	1	13	£30.00	- +
17	119614	Key, Woodruff No. 150	2	17	£30.00	- +
18	50117	SPROCKET, Timing Chains	1	18	£30.00	- +
19	119608	Key, Woodruff No. 90	1	8	£30.00	- +
20	73703	Pulley, Crankshaft	1	16	£30.00	- +
21	50119	Dog, Starting Handle	1	4	£30.00	- +
22	50120	Ring, Oil Flinger	2	20	£30.00	- +
23	50121	Bolt, Flywheel to Crankshaft	8	7	£30.00	- +
24	50293	Washer, Joint, Bell Housing to Crankshaft	1	11	£30.00	- +
25	71709	BELL HOUSING	1	4	£30.00	- +
	50289	BELL HOUSING	1	14	£30.00	- +
26	122081	Bolt, 7/16in. BSF x 7/8in.	12	15	£30.00	- +
27	119473	Washer, Plain 7/16in.	12	17	£30.00	- +
28	74057	Pin, Timing	1	4	£30.00	- +
29	111899	Stud, 5/16in. BSF x 1.5/8in.	3	10	£30.00	- +
30	71649	FLYWHEEL	1	6	£30.00	- +
31	50281	RING, Starter	1	1	£30.00	- +
34	50282	Washer, Tab	4	3	£30.00	- +
35	119402	Nut, Plain 5/16in. BSF	8	7	£30.00	- +
36	119107	Bearing, Clutch shaft Spigot	1	6	£30.00	- +
37	50277	Plate, Retaining, Seal King	1	13	£30.00	- +
38	50276	Ring, Seal, Spigot Bearing	1	20	£30.00	- +
39	50279	Dowel, Flywheel to Clutch	2	20	£30.00	- +
47	76399	CONNECTING ROD, Complete	6	11	£30.00	- +
	50394	CONNECTING ROD, Complete	6	8	£30.00	- +
48	90352	Bush, Small End	6	8	£30.00	- +
49	76009	PISTON 90695	6	15	£30.00	- +
	51807	PISTON 90681	6	14	£30.00	- +
	73342	PISTON 90687	6	2	£30.00	- +
50	74524	Pin, Gudgeon	6	10	£30.00	- +
	51816	Pin, Gudgeon	6	15	£30.00	- +
	53215	Pin, Gudgeon	6	16	£30.00	- +
51	113029	Circlip	12	20	£30.00	- +
	11903	Circlip	12	2	£30.00	- +
52	76011	Ring No. 1 Compression 90690	6	19	£30.00	- +
	52216	Ring No. 1 Compression 90682	6	20	£30.00	- +
53	76012	Ring No. 2 Compression 90691	6	3	£30.00	- +
	51818	Ring No. 2 Compression 90683	6	16	£30.00	- +
54	76013	Ring Scraper 90693	12 prs.	13	£30.00	- +
	76225	Ring Scraper 90685	12 prs.	13	£30.00	- +
56	71537	SHELL, Connecting Rod Bearing	halves 12	20	£30.00	- +
	77626	SHELL, Connecting Rod Bearing (.010in. Undersize)	halves 12	18	£30.00	- +
	77627	SHELL, Connecting Rod Bearing (.020in. Undersize)	halves 12	12	£30.00	- +
58	75939	Nut, Connecting Rod	12	17	£30.00	- +
	50425	Nut, Connecting Rod	12	18	£30.00	- +
59	119524	Pin, Split 1/16in. x 1in.	12	5	£30.00	- +

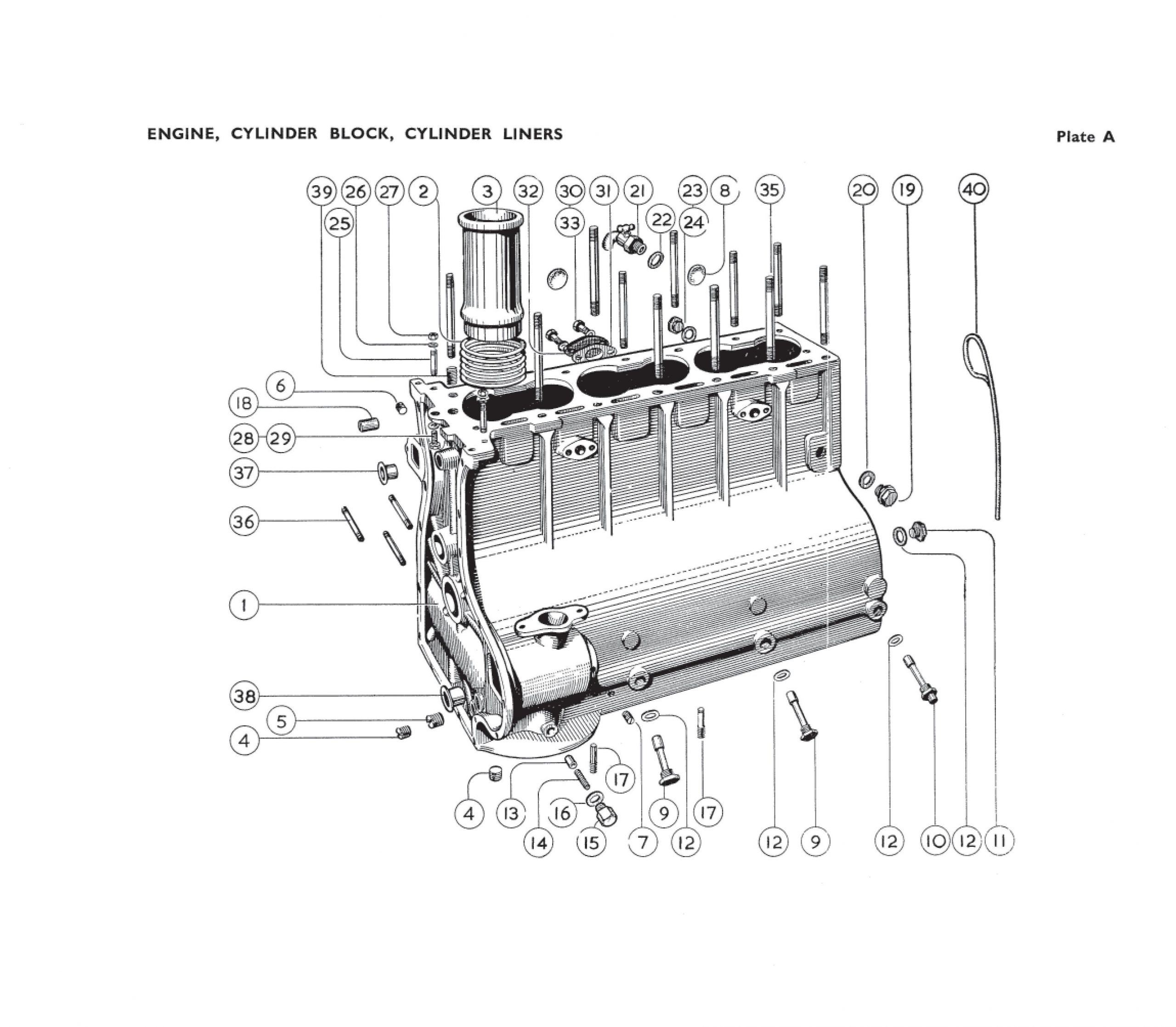

Engine Cylinder Block

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	f8f6bdc08673	CYLINDER BLOCK	1	7	£30.00	- +
	46c3b4cb5691	CYLINDER BLOCK	1	14	£30.00	- +
2	d7c75c01bbb2	Joint, Cylinder Liner. (.009in.)	6	12	£30.00	- +
	7912a48e8338	Joint, Cylinder Liner. (.012in.)	6	17	£30.00	- +
	110989309ea5	Joint, Cylinder Liner. (.014in.)	6	6	£30.00	- +
	41a7a6474273	Joint, Cylinder Liner. (.015in.)	6	8	£30.00	- +
	f4537171b6e5	Joint, Cylinder Liner. (.017in.)	6	5	£30.00	- +
	e37c31d9c611	Joint, Cylinder Liner. (.024in.)	6	19	£30.00	- +
	74dfe870b596	Joint, Cylinder Liner. (.004in.)	6	5	£30.00	- +
	d6602ac88cb4	Joint, Cylinder Liner. (.006in.)	6	12	£30.00	- +
	5b81df530708	Joint, Cylinder Liner. (.009in.)	6	2	£30.00	- +
	c045d6db2c5d	Joint, Cylinder Liner. (.012in.)	6	12	£30.00	- +
	11bb1d15f989	Joint, Cylinder Liner. (.014in.)	6	15	£30.00	- +
3	86aa204e8637	LINER, Cylinder	6	1	£30.00	- +
	8d89944a71e6	LINER, Cylinder	6	6	£30.00	- +
4	171cc78dc262	Plug, Core 1/2in. BSF	2	4	£30.00	- +
5	7995a6c4c3a5	Plug, Core 3/4in. BSF	1	3	£30.00	- +
6	250572386e18	Plug, Core 3/8in. BSF	1	5	£30.00	- +
7	916d0cd014a4	Plug, Core 1/4in. BSF	1	12	£30.00	- +
8	ad2c36872f45	Plug, Welch, 1in. dia.	2	11	£30.00	- +
9	0eb0f5ca3436	Bolt, Oil Transfer, Main Bearing	2	4	£30.00	- +
10	ab82312feeeb	Bolt, Oil Transfer, Rear Main Bearing	1	8	£30.00	- +
11	3fb7f4c51e4b	Plug, Oil, Crankcase	1	14	£30.00	- +
12	a87a32d4fdb4	Washer, Oil Transfer Bolt and Oil Plug	4	8	£30.00	- +
13	3e248995c5c7	VALVE, Relief	1	8	£30.00	- +
14	ae00116975bf	Spring, Relief Valve	1	12	£30.00	- +
15	5ee02b974fb0	Plug, Relief Valve	1	16	£30.00	- +
16	b81322a3e039	Washer, Relief Valve Plug	1	12	£30.00	- +
17	3324bbddd28e	Dowel, Locating, Main Brg. Hsg.	2	7	£30.00	- +
18	dd383c02ed27	Dowel Timing Case	2	13	£30.00	- +
19	bf9281e2d923	Plug, Drain, Cylinder Block	1	12	£30.00	- +
20	4d97080fe467	Washer, Cylinder Block Drain Plug	1	3	£30.00	- +
21	60e0d8dd1458	Top, Drain	1	3	£30.00	- +
22	419cc922fce0	Washer, Fibre, 1/2in. Gas	1	10	£30.00	- +
23	31459fd1bf7f	Plug, 1/2in. Gas, Hex. Hd.	1	12	£30.00	- +
24	2c16f81a53b6	Washer, Fibre, 1/2in. Gas	1	19	£30.00	- +
25	c1a283a40179	Stud, 1/4in. BSF x 1in.	2	12	£30.00	- +
26	482ba3bf3274	Washer, Spring 1/4in.	4	14	£30.00	- +
27	7fcc3b7e465c	Nut, Plain, 1/4in. BSF	4	16	£30.00	- +
28	4a36a43197f3	Setscrew, 1/4in. BSF x 3/4in.	1	8	£30.00	- +
39	3ec3735347e8	Plug, Oil Restrictor	1	5	£30.00	- +
40	92086cf413f8	DIPSTICK	1	18	£30.00	- +
	4df5b047b151	Rubber Ring to Restrictor	1	10	£30.00	- +
29	51b325efd85b	Washer, Plain, 1/4in.	1	1	£30.00	- +
30	f37f305dd68c	Stud, 1/4in. BSF x 13/16in.	2	16	£30.00	- +
31	d1043b578fd2	Gasket	1	8	£30.00	- +
32	bb1c87003e73	Cover, plate	1	15	£30.00	- +
33	de29180e8a1c	Washer, Spring	2	10	£30.00	- +
34	96b5023f5c52	Nut, Plain, 1/4in. BSF	2	8	£30.00	- +
35	f78b641ce175	Stud, Cylinder Head (VB6J 10 only)	14	16	£30.00	- +
36	fd61630203e6	Stud, 1/4in. BSF x 2.1/8in.	3	3	£30.00	- +
	48f368e044a3	Stud, 1/4in. BSF x 1.7/8in.	1	1	£30.00	- +
	1e8abc375d31	Stud, 1/4in. BSF x 1.1/8in.	2	4	£30.00	- +
37	2c8ae206894b	Bush, Water Pump Drive Spindle	1	13	£30.00	- +
38	2f7622a4ef8c	Bush, Oil Pump Gear Shaft	1	13	£30.00	- +

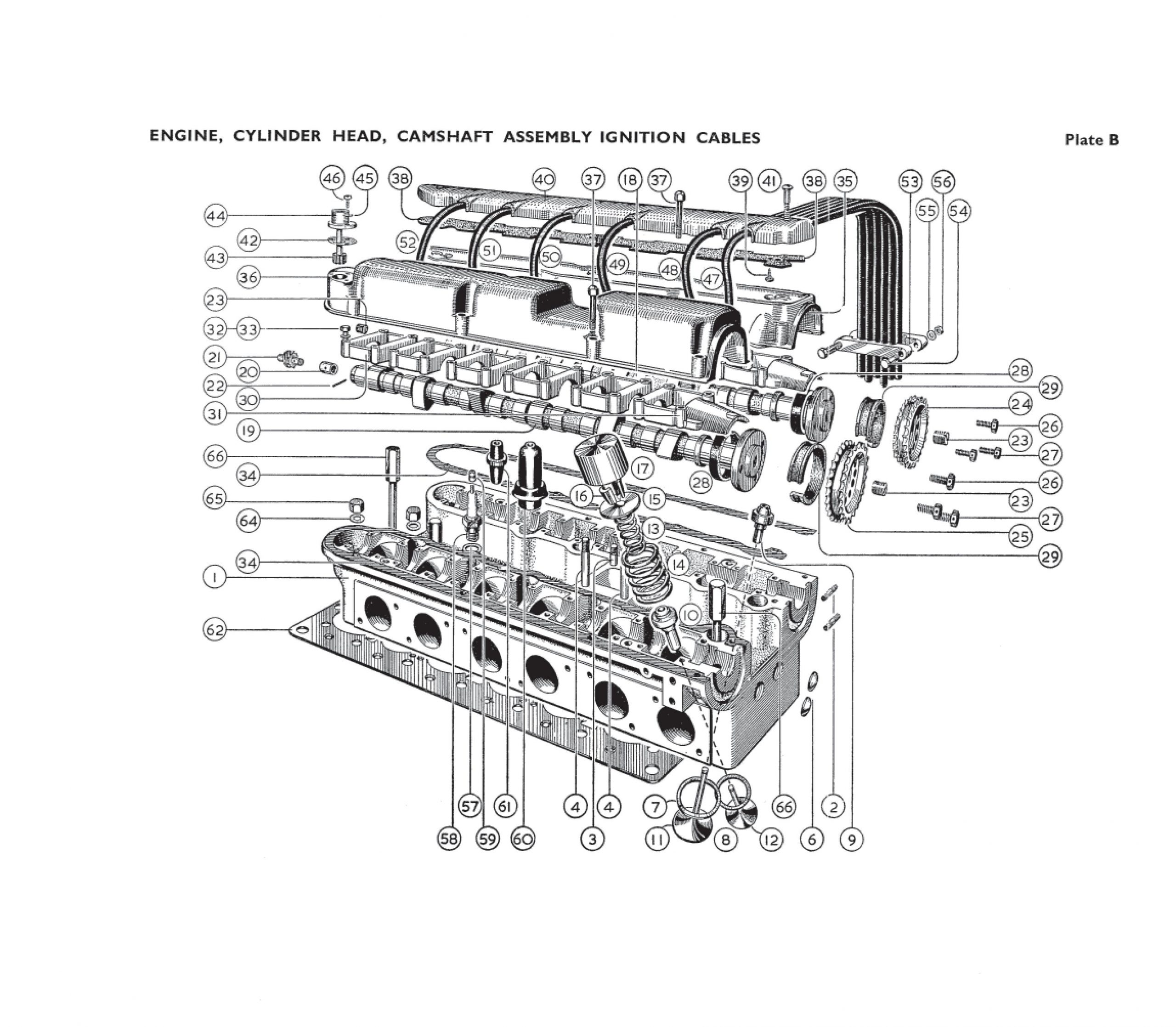

Engine Cylinder Head

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	72019	HEAD, Cylinder	1	6	£30.00	- +
	50134	HEAD, Cylinder	1	11	£30.00	- +
2	111868	Stud, 1/4in. BSF x 1 in.	24	11	£30.00	- +
3	111883	Stud, 1/4in. BSF x 1.3/8in.	2	18	£30.00	- +
4	112119	Stud, 1/4in. BSF x 2.3/4in.	2	3	£30.00	- +
5	122202	Stud, 5/16in. BSF x 1.9/16in.	12	20	£30.00	- +
6	111997	Plug, Welch 7/8in. dia.	2	17	£30.00	- +
7	50135	Seat, Valve, Inlet	6	13	£30.00	- +
8	50136	Seat, Valve, Exhaust	6	3	£30.00	- +
9	54878	Guide, Valve, Inlet	6	4	£30.00	- +
10	50138	Guide, Valve, Exhaust	6	18	£30.00	- +
	122498	Valve Rubber	6	13	£30.00	- +
11	51983	Valve, Inlet	6	18	£30.00	- +
	50146	Valve, Inlet	6	4	£30.00	- +
12	51984	Valve, Exhaust	6	7	£30.00	- +
	50156	Valve, Exhaust	6	7	£30.00	- +
13	50148	SPRING, Valve, Inner	12	11	£30.00	- +
14	50149	SPRING, Valve, Outer	12	3	£30.00	- +
15	50150	Cap, Valve Spring	12	14	£30.00	- +
16	20.06.129	Cotter, Valve	12	17	£30.00	- +
17	51838	Tappet, Valve (.1275in. Hd. Thckns.)	12	19	£30.00	- +
	52170	Tappet, Valve (.1275in.) (.030in. Oversize on dia.)	12	16	£30.00	- +
	51839	Tappet, Valve (.1295in. Hd. Thckns.)	12	5	£30.00	- +
	52171	Tappet, Valve (.1295in.) (.030in. Oversize on dia.)	12	8	£30.00	- +
	51840	Tappet, Valve (.1315in. Hd. Thckns.)	12	14	£30.00	- +
	52172	Tappet, Valve (.1315in.) (.030in. Oversize on dia.)	12	12	£30.00	- +
	51841	Tappet, Valve (.1335in. Hd. Thckns.)	12	19	£30.00	- +
	52173	Tappet, Valve (.1335in.) (.030in. Oversize on dia.)	12	5	£30.00	- +
18	50422	CAMSHAFT Inlet	1	4	£30.00	- +
	50421	CAMSHAFT Inlet	1	5	£30.00	- +
19	51678	CAMSHAFT Exhaust	1	17	£30.00	- +
20	51674	Sleeve	1	9	£30.00	- +
21	51672	Gear, Driving, Rev. Counter	1	13	£30.00	- +
22	51715	Pin, 3/32.in. x 1.1in.	1	20	£30.00	- +
23	50159	Plug, Camshaft	3	2	£30.00	- +
24	50160	Sprocket, Inlet Camshaft	1	14	£30.00	- +
25	50160	Sprocket, Exhaust Camshaft	1	18	£30.00	- +
26	50164	Screw, Set, Camshaft Sprocket Large	2	11	£30.00	- +
27	50163	Screw, Set, Camshaft Sprocket Small	4	11	£30.00	- +
28	50402	Housing, Oil Seal, Valve Cover	2	16	£30.00	- +
29	50403	Strip, Sealing, Valve Cover Oil Seal	2	7	£30.00	- +
30	50169	Cap, Cam Bearing	10	20	£30.00	- +
31	50167	Cap, Cam Bearing, Front	2	15	£30.00	- +
32	119204	Bolt, 1/4in. BSF x 1.1/8in.	48	5	£30.00	- +
33	119470	Washer, Plain1/4in.	48	5	£30.00	- +
34	50172	Joint, Valve Cover	2	20	£30.00	- +
35	50170	Cover, Valve N/S.	1	16	£30.00	- +
36	51685	Cover, Valve O/S.	1	13	£30.00	- +
37	50173	Screw, Set, Valve Cover (50210 Nut)	16	15	£30.00	- +
38	50175	Plate, Base, Conduit	1	10	£30.00	- +
39	111882	Screw, P.K. type Z No. 6 x 3/8in.	3	5	£30.00	- +
40	50174	Conduit, Ignition Leads	1	9	£30.00	- +
41	111881	Screw, Set, 1/4in. BSF x 1in. Rd. Hd.	3	6	£30.00	- +
42	51671	Joint, Rev. Counter Drive	1	4	£30.00	- +
43	51673	Gear, Driven, Rev. Counter	1	4	£30.00	- +
44	51679	Housing, Rev. Counter Drive	1	18	£30.00	- +
45	119488	Washer, Spring 3/16in.	3	10	£30.00	- +
46	111894	Screw, Set, 2BA x 3/8in. Ch. Hd.	3	20	£30.00	- +
47	4ebe7a843c10	(Lead, Ignition No. 1)	1	18	£30.00	- +
48	3a477e66cda9	(Lead, Ignition No. 2)	1	19	£30.00	- +
49	122246	(Lead, Ignition No. 3)	1	4	£30.00	- +
50	12a63ce29b71	(Lead, Ignition No. 4)	1	1	£30.00	- +
51	2df05cbefef9	(Lead, Ignition No. 5)	1	14	£30.00	- +
52	5aecc7bb4163	(Lead, Ignition No. 6)	1	12	£30.00	- +
53	50304	Clamp, Ignition Lead	2	8	£30.00	- +
54	119394	Bolt, 2BA x 3/4in.	2	13	£30.00	- +
55	119496	Washer, Plain 3/16in.	2	13	£30.00	- +
56	111109	Nut, Plain 2BA	2	11	£30.00	- +
57	50295	Washer, Sparking Plug	6	8	£30.00	- +
58	51900	PLUG, Sparking (KLG. P. Ten L.80 Fast 10 m.m.)	6	5	£30.00	- +
	54949	PLUG, Sparking (KLG. P. Ten L.70) Traffic	6	13	£30.00	- +
	74467	PLUG, Sparking (KLG. P. Ten L 50)	6	7	£30.00	- +
59	50296	Termina, Sparking Plug	6	7	£30.00	- +
60	21.07.135	Shroud, Sparking Plug	6	2	£30.00	- +
61	112700	Suppressor, Radio (Tube Type) (Lucas 78105A)	6	7	£30.00	- +
62	77565	Gasket, Cylinder Head	1	16	£30.00	- +
	51896	Gasket, Cylinder Head	1	12	£30.00	- +
63	74844	Ring, Seal,Camshaft Oil Feed	1	18	£30.00	- +
64	50140	Washer, Cylinder Head	14	15	£30.00	- +
65	50139	Nut, Cylinder Head (10 VB6J)	14	20	£30.00	- +
66	76008	Bolt, Cylinder Head	4	7	£30.00	- +

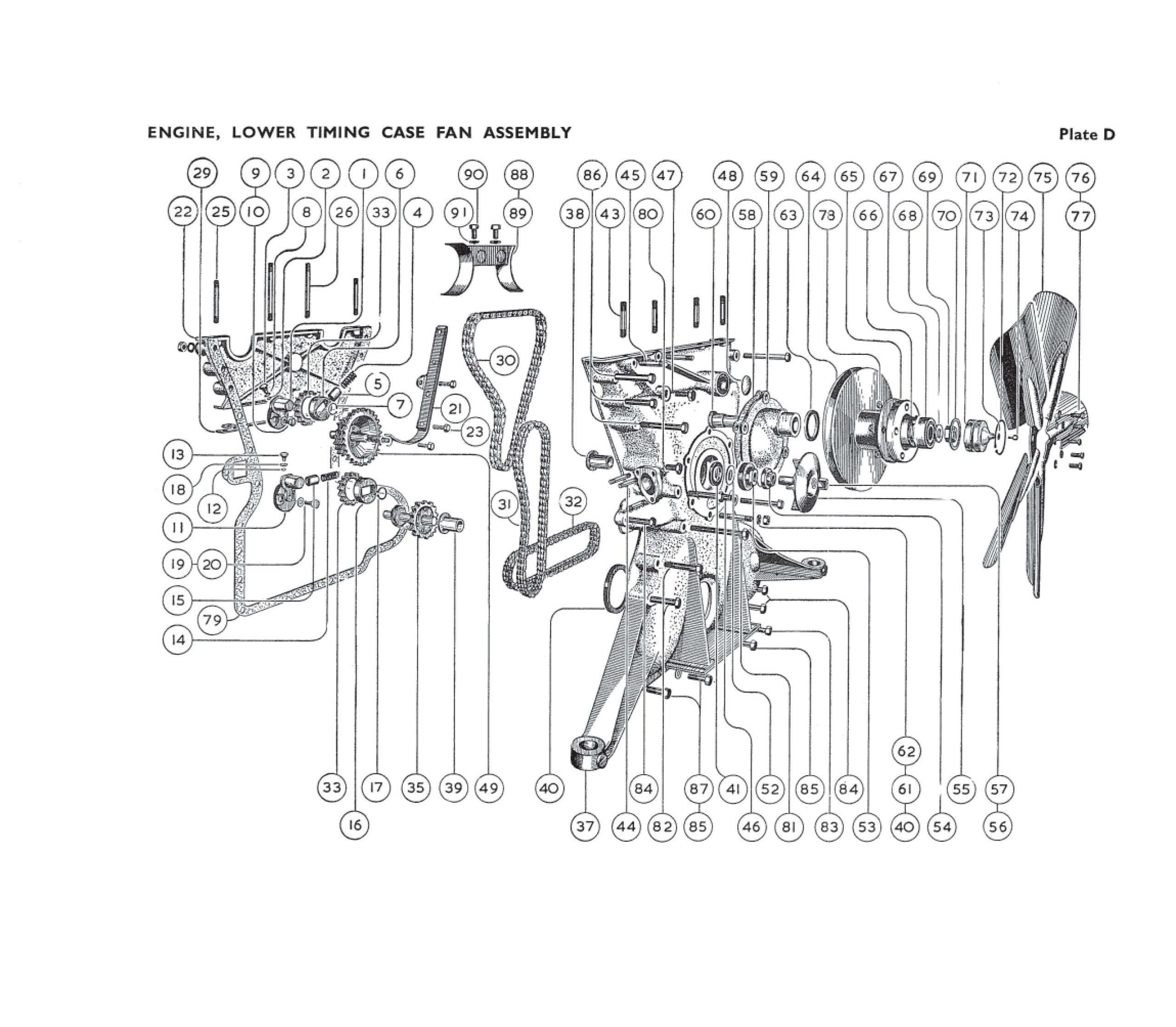

Engine Lower Timing Case

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	51929	Bracket, Chaing Tensioner, Top	1	4	£30.00	- +
	50213	Bracket, Chaing Tensioner, Top (Up to VB6E126B)	1	18	£30.00	- +
2	50214	Disc, Valve	1	6	£30.00	- +
3	50216	Plug, Valve, Chain Tensioner	1	7	£30.00	- +
4	50218	Spring, Chain Tensioner	1	2	£30.00	- +
5	50411	Plunger	1	5	£30.00	- +
6	50220	Journal Bearing, Sprocket, Chain Tensioner	1	1	£30.00	- +
7	111908	Circlip, Seeger	1	13	£30.00	- +
8	50221	Ring, Seal, Chain Tensioner Valve Plug	1	6	£30.00	- +
9	111896	Setscrew, 1/4in.BSF x 3/4in.	2	14	£30.00	- +
10	119470	Washer, Plain, 1/4in.	2	13	£30.00	- +
11	50222	Bracket, Chain Tensioner, Bottom	1	6	£30.00	- +
12	50214	Disc, Valve	1	10	£30.00	- +
13	50216	Plug, Valve, Chain Tensioner	1	8	£30.00	- +
14	50218	Spring, Chain Tensioner	1	17	£30.00	- +
15	50411	Plunger, Chain Tensioner	1	3	£30.00	- +
16	50220	Journal Bearing, Sprocket, Chain Tensioner	1	12	£30.00	- +
17	111908	Circlip, Seeger	1	4	£30.00	- +
18	50221	Ring, Seal, Chain Tensioner Valve Plug	1	10	£30.00	- +
19	111896	Setscrew, 1/4in.BSF x 3/4in.	2	16	£30.00	- +
20	119470	Washer, Plain, 1/4in.	2	8	£30.00	- +
21	50235	Rubbing Strip and 4 Rivets 119671	1	6	£30.00	- +
22	50200	TIMING CASE, Top, Rear Half (Up to VB6E1268)	1	2	£30.00	- +
	72887	TIMING CASE, Top, Rear Half (From VB6E1269)	1	14	£30.00	- +
23	111897	Setscrew, 1/4in.BSF x 1/2in.	3	19	£30.00	- +
24	11892	Stud, 1/4in. BSF x 1.1/2in.	2	3	£30.00	- +
25	111893	Stud, 1/4in. BSF x 2.1/4in.	2	13	£30.00	- +
26	11920	Stud, 1/4in. BSF x 3.1/4in.	2	19	£30.00	- +
27	119480	Washer, Plain, 1/4in.	2	1	£30.00	- +
28	119401	Nut, Plain, 1/4in.BSF	2	14	£30.00	- +
29	50201	Joint, Rear Timing Case	1	17	£30.00	- +
30	51930	CHAIN, Comshaft Drive (84 links) (From VB6E1269)	1	8	£30.00	- +
	50227	CHAIN, Comshaft Drive (104 links) (Up to VB6E1268))	1	7	£30.00	- +
31	50226	CHAIN, Water Pump Drive	1	11	£30.00	- +
32	50228	CHAIN, Oil Pump & Distributor Drive	1	19	£30.00	- +
33	50225	SPROCKET, Jockey	2	18	£30.00	- +
35	54749	Gear Shaft	1	13	£30.00	- +
	50071	Sprocket	1	20	£30.00	- +
	112118	Rivets	1	6	£30.00	- +
37	50192	TIMING CASE, Front	1	20	£30.00	- +
38	50193	Bush, W.P. & Jockey Sprocket Spindle	1	9	£30.00	- +
39	50038	Bush, Oil Pump & Dist. Drive	1	17	£30.00	- +
40	111891	Seal, Oil, Front Crankshaft	1	6	£30.00	- +
41	50198	Seal, Oil, Water Pump	1	13	£30.00	- +
42	111884	Stud, 1/4in. BSF x 1.1/4in.	6	15	£30.00	- +
43	111887	Stud, 1/4in. BSF x 1.5/8in.	4	3	£30.00	- +
44	111918	Stud, 1/4in. BSF x 1in.	3	10	£30.00	- +
45	111919	Stud, 5/16in. BSF x 1.1/8in.	2	14	£30.00	- +
46	50269	Bolt, Dynamo Adjusting Link Assembly	1	11	£30.00	- +
47	50196	Bolt, Dynamo Front Bracket	1	12	£30.00	- +
48	111272	Plug, Welch	1	1	£30.00	- +
	119590	Plug, Flanged	1	15	£30.00	- +
	119500	Washer, Fibre (for flanged Plug)	1	7	£30.00	- +
49	50271	SPINDLE ASSEMBLY, Water Pump Drive	1	19	£30.00	- +
	50272	Spindle	1	3	£30.00	- +
52	50268	Flinger, W.P. Spindle	1	20	£30.00	- +
53	20.05.115	Seal, Water Pump	1	17	£30.00	- +
54	50369	Ring, Thrust, W.P. Seal	1	3	£30.00	- +
55	50368	Impellor, W.P	1	14	£30.00	- +
56	50142	Ring, Seal, W.P. Cap Nut	1	19	£30.00	- +
57	50267	Ring, Seal, W.P. Spindle	1	2	£30.00	- +
58	50270	Joint, W.P. Cover	1	8	£30.00	- +
59	50353	Cover, W.P.	1	3	£30.00	- +
60	50355	Spindle, Fan	1	13	£30.00	- +
61	119480	Washer, Spring 1/4in.	6	7	£30.00	- +
62	119401	Nut, Plain, 1/4in.BSF	6	4	£30.00	- +
63	111898	Seal, Oil	1	5	£30.00	- +
64	76571	PULLEY, Fan	1	6	£30.00	- +
	50406	PULLEY, Fan	1	11	£30.00	- +
65	76572	Spacer, Fan	1	9	£30.00	- +
66	119113	Bearing, Roller	1	19	£30.00	- +
67	119114	Bearing, Ball	1	3	£30.00	- +
68	119473	Washer, Plain, 7/16in.	1	13	£30.00	- +
69	111912	Nut, Oddie 7/16.in. BSF	1	18	£30.00	- +
70	50405	Ring, Seal, Fan Spindle	1	3	£30.00	- +
71	50404	End Cap, Fan Spindle	1	2	£30.00	- +
72	111911	Circlip	1	9	£30.00	- +
73	112115	Washer, Fibre, 3/16in.	1	14	£30.00	- +
74	111929	Setscrew, 2BA x 1/4in.	1	4	£30.00	- +
	112114	Setscrew, 2BA x 3/8in.	1	14	£30.00	- +
75	71716	FAN ASSEMBLY	1	11	£30.00	- +
76	119203	Bolt, 1/4in. BSF x 1in.	5	15	£30.00	- +
	119201	Bolt, 1/4in. BSF x 3/4in.	5	15	£30.00	- +
77	119480	Washer, Spring 1/4in.	5	17	£30.00	- +
78	119401	Nut, Plain, 1/4in.BSF	5	2	£30.00	- +
79	50199	Joint, Timing Case Front	1	7	£30.00	- +
80	111888	Bolt, 1/4in. BSF x 4.1/4in.	1	14	£30.00	- +
81	119219	Bolt, 1/4in. BSF x 4in.	4	13	£30.00	- +
82	111890	Bolt, 1/4in. BSF x 2.3/8in.	6	13	£30.00	- +
83	119210	Bolt, 1/4in. BSF x 1.7/8in.	1	8	£30.00	- +
84	119208	Bolt, 1/4in. BSF x 1.5/8in.	3	12	£30.00	- +
85	119201	Bolt, 1/4in. BSF x 3/4in.	6	14	£30.00	- +
86	119215	Bolt, 1/4in. BSF x 3in.	5	20	£30.00	- +
87	119470	Washer, Plain, 1/4in.	17	12	£30.00	- +
88	78569	Bracket,Stop, Ex. Camshaft Sprocket	1	14	£30.00	- +
	50229	Bracket,Stop, Inlet & Exhaust Camshaft (Up to VB6E 1268)	1	7	£30.00	- +
89	78570	Bracket,Stop, Inlet Camshaft Sprocket	1	16	£30.00	- +
90	111897	Setscrew,1/4in.BSF x 1/2in.	2	20	£30.00	- +
91	119470	Washer, Plain, 1/4in.	2	14	£30.00	- +
	50194	Bush, Jockey Sprocket Spindle (Up to VB6E/1268)	2	13	£30.00	- +
	50202	Boss, Fan Sprocket Retaining (Up to VB6E/1268)	1	20	£30.00	- +
	50245	JOCKEY SPROCKET Assembly (Up to VB6E/1268)	1	20	£30.00	- +

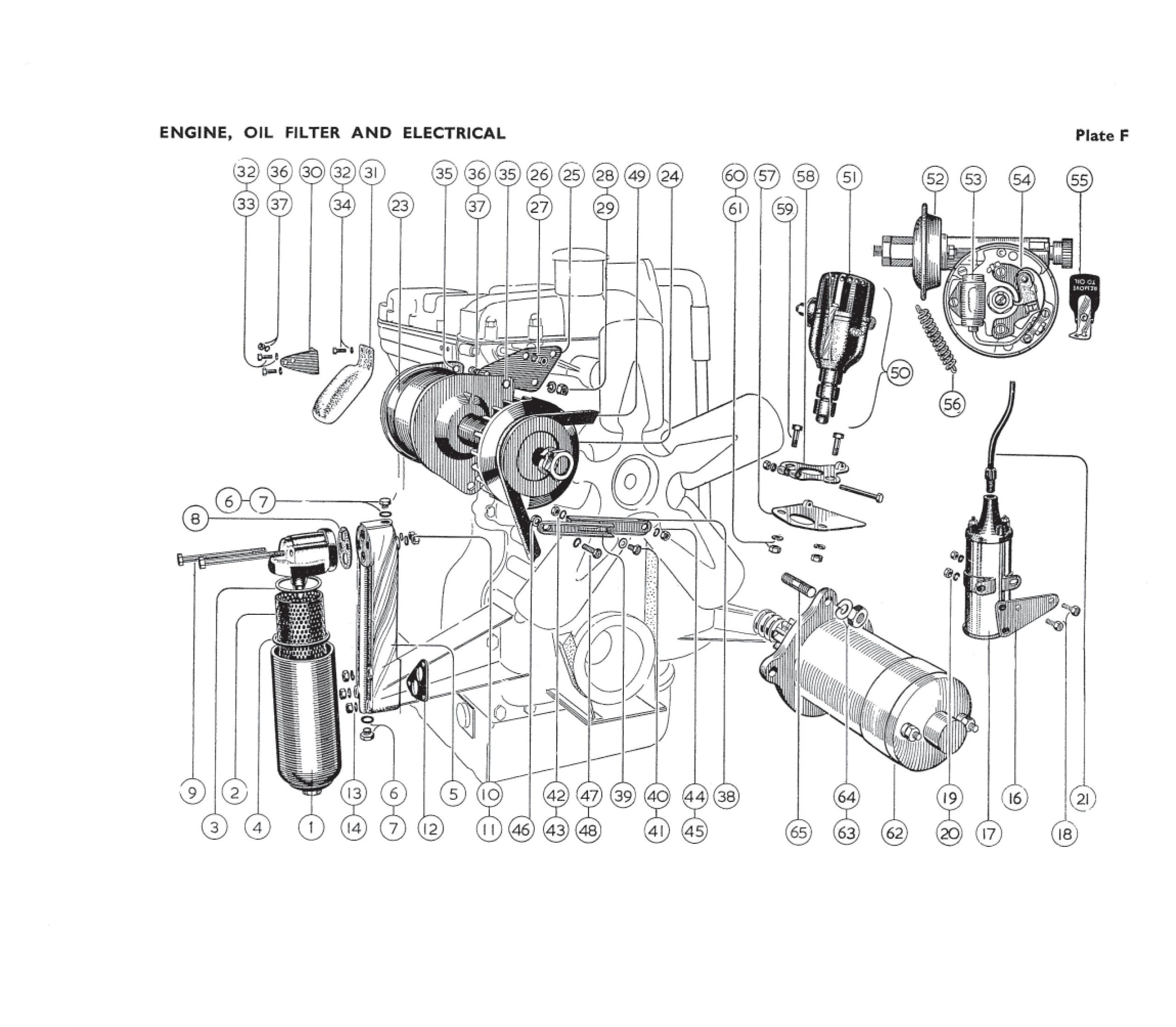

Engine Oil Filter & Electrical Accessories

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	20.01.131	FILTER, OIL, PUROLATOR	1	12	£30.00	- +
2	20.01.746	Element, Filter	1	12	£30.00	- +
3	75828	Washer, Top, Filter Element	1	2	£30.00	- +
4	75829	Washer, Bottom, Filter Element	1	18	£30.00	- +
5	52189	Adaptor, Oil Filter	1	14	£30.00	- +
6	119581	Plug, Flanged 1/4in. BSP	2	11	£30.00	- +
7	119501	Washer, Fibre, 1/4in. BSP	2	11	£30.00	- +
8	52193	Joint, Filter to Adaptor	1	1	£30.00	- +
9	119687	Bolt 3/8in. BSF x 5.1/4in.	2	19	£30.00	- +
10	119482	Washer, Spring 3/8in.	2	19	£30.00	- +
11	119403	Nut, Plain 3/8in. BSF	2	2	£30.00	- +
12	50077	Joint, Adaptor to Crankcase	1	1	£30.00	- +
13	119480	Washer, Spring 1/4in.	3	16	£30.00	- +
14	119401	Nut, Plain 1/4in. BSF	3	9	£30.00	- +
16	50306	Bracket, Ignition Coil	1	15	£30.00	- +
17	50305	IGNITION COIL	1	19	£30.00	- +
18	111544	Bolt, 1/4in. BSF x 1/2in.	2	3	£30.00	- +
19	119480	Washer, Spring 1/4in.	2	13	£30.00	- +
20	119401	Nut, Plain 1/4in. BSF	2	15	£30.00	- +
21	50307	Lead, Coil to Distributor	1	10	£30.00	- +
23	52028	DYNAMO (Type C45 PVS/5)	1	17	£30.00	- +
	50253	DYNAMO (Type RA.5)	1	18	£30.00	- +
24	52027	Pully, Dynamo	1	19	£30.00	- +
25	50348	Bracket, Dynamo Front Mounting	1	3	£30.00	- +
26	119481	Washer, Spring, 5/16in.	2	9	£30.00	- +
27	119402	Nut, Plain 5/16in. BSF	2	20	£30.00	- +
28	119482	Washer, Spring 3/8in.	1	5	£30.00	- +
29	119403	Nut, Plain 3/8in. BSF	1	1	£30.00	- +
30	52026	Bracket, Dynamo Rear Mounting	1	18	£30.00	- +
31	50350	Shield, Dynamo	1	3	£30.00	- +
32	119346	Bolt, 5/16in.BSF x 5/8in.	3	9	£30.00	- +
33	50260	Washer, Dynamo Rear Bracket	2	5	£30.00	- +
34	119481	Washer, Spring 5/16in.	1	7	£30.00	- +
35	119224	Bolt, 5/16in.BSF x 1.1/4in.	2	10	£30.00	- +
36	119481	Washer, Spring 5/16in.	2	12	£30.00	- +
37	119402	Nut, Plain 5/16in. BSF	2	10	£30.00	- +
38	50351	Link, Inner, Dynamo Adjustment	1	6	£30.00	- +
39	50352	Link, Outer, Dynamo Adjustment	1	7	£30.00	- +
40	119346	Bolt, 5/16in. BSF x 5/8in.	1	13	£30.00	- +
41	119471	Washer, Plain 5/16in.	1	8	£30.00	- +
42	119481	Washer, Spring 5/16in.	1	14	£30.00	- +
43	119402	Nut, Plain 5/16in. BSF	1	11	£30.00	- +
44	119480	Washer, Spring 1/4in.	1	5	£30.00	- +
45	119401	Nut, Plain 1/4in. BSF	1	18	£30.00	- +
46	52025	Distance Wahser	1	7	£30.00	- +
47	119480	Washer, Spring 1/4in.	1	7	£30.00	- +
48	121888	Bolt	1	18	£30.00	- +
49	50347	BELT, Dynamo & Fan V. 108 (40.1/2in. Int. Circ.)	1	1	£30.00	- +
	76749	BELT, Dynamo & Fan V. 120 (42.1/4in. Int. Circ.)	1	16	£30.00	- +
	50058	DISTRIBUTOR, Anti-Clockwise	1	18	£30.00	- +
	52020	DISTRIBUTOR, Anti-Clockwise (72524)	1	7	£30.00	- +
	57197	Stud, 3/8in. (To 72523/4 only)	2	12	£30.00	- +
51	56118	Cover Assembly, Distributor (Lucas No. 407288)	1	18	£30.00	- +
52	56123	Vaccum Unit, (Lucas No. 400876/S)	1	12	£30.00	- +
53	56122	Condenser, (Lucas No. 407044)	1	18	£30.00	- +
54	56121	Contact Set (Lucas No. 407050)	1	7	£30.00	- +
55	56120	Rotor Arm (Lucas No. 407106)	1	15	£30.00	- +
56	56126	Spring, Auto Advance (Lucas No. 417177)	2	20	£30.00	- +
57	57188	Plate Assembly, Anchor, Man. Ignition Control	1	9	£30.00	- +
58	57192	Plate Assembly, Clamping, Man. Ignition Control	1	9	£30.00	- +
59	111544	Bolt, 1/4in. BSF x 1/2in. (To 50058 & 52020 only)	2	12	£30.00	- +
60	119480	Washer, Spring 1/4in.	2	11	£30.00	- +
61	112126	Nut, Oddie, Thin 3/8in. BSF	2	8	£30.00	- +
62	37420	STARTER MOTOR (Lucas No. 26043A)	1	11	£30.00	- +
63	119403	Nut, Plain 3/8in. BSF	3	14	£30.00	- +
64	119482	Washer, Spring 3/8in.	3	16	£30.00	- +
65	111921	Stud, 3/8in. BSF x 1.3/4in.	3	1	£30.00	- +
	50072	OIL FILTER, AutoKleen (Up to engine LB6B/561 & VB6B/1106)	1	1	£30.00	- +
	50073	Element, Oil Filter (Up to engine LB6B/651 & VB6B/1106)	1	14	£30.00	- +
	50074	Joint, Filter to Crankcase (Up to engine LB6B/651 & VB6B/1106)	1	15	£30.00	- +
	111134	Stud, 1/4in.BSF x 1.1/8in.	4	3	£30.00	- +
	119401	Nut, Plain 1/4in. BSF (Up to engine LB6B/651 & VB6B/1106)	3	2	£30.00	- +
	111873	Plug, Brass (Up to engine LB6B/651 & VB6B/1106)	1	4	£30.00	- +
	119480	Washer, Spring 1/4in. (Up to engine LB6B/651 & VB6B/1106)	1	15	£30.00	- +
	50076	Washer, Copper (Up to engine LB6B/651 & VB6B/1106)	1	19	£30.00	- +
	50040	Plug, Core 1/2in.BSF (Up to engine LB6B/651 & VB6B/1106)	1	9	£30.00	- +
	50077	Joint, Filter Body (Up to engine LB6B/651 & VB6B/1106)	1	2	£30.00	- +
	111874	Washer, Thackeray 1/4in. (Up to engine LB6B/651 & VB6B/1106)	3	12	£30.00	- +

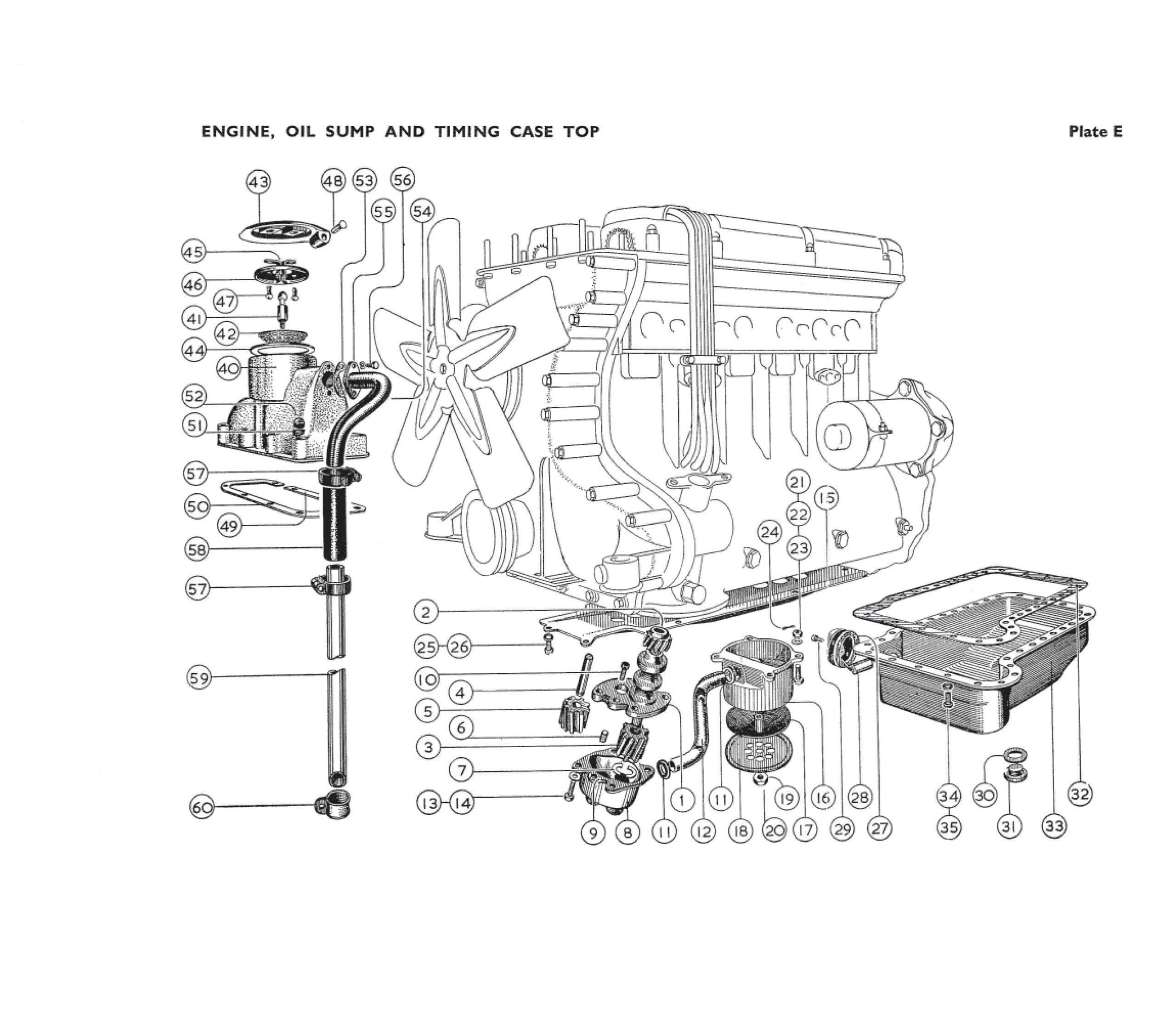

Engine Oil Sump and Timing Case Top

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
	50002	OIL PUMP, Complete	1	13	£30.00	- +
1	50060	Body, Upper, Oil Pump	1	11	£30.00	- +
2	54748	SHAFT & GEAR, Driven, Oil Pump	1	17	£30.00	- +
3	50062	Gear, Driving, Oil Pump	1	9	£30.00	- +
4	50064	Spindle, Idler, Oil Pump	1	18	£30.00	- +
5	50063	Gear, Driven, Oil Pump	1	18	£30.00	- +
6	50057	Dowel	2	13	£30.00	- +
7	50065	Washer, Oil Pump	2	14	£30.00	- +
8	50059	Body, Main Oil Pump	Halves 2	16	£30.00	- +
9	50066	Joint, Oil Pump	1	17	£30.00	- +
10	111872	Screw, Set, 1/4in.BSF Ch. Hd	2	9	£30.00	- +
11	50067	Ring, Seal, Oil Suction Pipe	2	16	£30.00	- +
12	50101	Pipe, Suction, Oil Filter	1	16	£30.00	- +
13	111916	Bolt, 1/4in.BSF x 1.1/8in.	4	13	£30.00	- +
14	119470	Washer, Plain 1/4in.	4	17	£30.00	- +
15	50100	Plate, Baffle, Sump	1	15	£30.00	- +
16	50085	Body, Suction Filter	1	11	£30.00	- +
17	50087	FILTER ASSEMBLY	1	1	£30.00	- +
18	50086	Disc, Oil Suction Filter	1	15	£30.00	- +
19	119450	Nut, Slotted, 1/4in.BSF	1	7	£30.00	- +
20	111875	Pin, Split 3/64in. x 5/8in.	1	3	£30.00	- +
21	111877	Bolt, 1/4in.BSF x 7/8in.	4	2	£30.00	- +
22	119470	Washer, Plain 1/4in.	4	6	£30.00	- +
23	119450	Nut, Slotted, 1/4in.BSF	4	5	£30.00	- +
24	111875	Pin, Split 3/64in. x 5/8in.	4	18	£30.00	- +
25	111544	Bolt, 1/4in.BSF x 1/2in.	9	17	£30.00	- +
26	119480	Washer, Spring 1/4in.	9	5	£30.00	- +
27	50097	Joint, Oil Level Indicator Unit	1	15	£30.00	- +
28	50096	Unit, Oil Level Indicator	1	1	£30.00	- +
29	111876	Screw, Set, 3BA. x 3/8in. Ch. Hd	6	12	£30.00	- +
30	119502	Washer	1	5	£30.00	- +
31	111873	Plug, Drain	1	13	£30.00	- +
32	50098	Joint, Crankcase & Sump	1	19	£30.00	- +
33	50084	SUMP ASSEMBLY (Welded)	1	15	£30.00	- +
34	119200	Bolt, 1/4in.BSF x 5/8in.	33	15	£30.00	- +
35	50099	Washer, Sump Bolt	33	9	£30.00	- +
40	50203	COVER AND OIL FILLER, Timing Case	1	5	£30.00	- +
41	50204	Pin, Oil Filler Cap	1	8	£30.00	- +
42	50205	Baffle Oil	1	14	£30.00	- +
43	50206	Cap, Oil Filler	1	11	£30.00	- +
44	73922	Washer, Filler Cap	1	13	£30.00	- +
45	50207	Spring, Oil Filler Cap	1	7	£30.00	- +
46	73923	Washer, Oil Filler Cap	1	10	£30.00	- +
47	111730	Screw, Set, 2BA x 3/8in. Rd. Hd.	2	7	£30.00	- +
48	111332	Rivet, 1/8in. x 1.1/8in. Csk. Hd.	1	18	£30.00	- +
49	50212	Joint, Timing Case, Top	1	12	£30.00	- +
50	50211	Joint, Timing Case, Top	1	7	£30.00	- +
51	111874	Washer, Thackeray, 1/4in.	8	2	£30.00	- +
52	50210	Nut, Timing Case Cover	8	3	£30.00	- +
53	50320	Washer, Joint, Breather Pipe	1	7	£30.00	- +
54	50317	BREATHER PIPE ASSEMBLY	1	15	£30.00	- +
55	119488	Washer, Spring 3/16in.	2	20	£30.00	- +
56	112213	Screw, Set, 2BA	2	3	£30.00	- +
57	50181	Clip, Jubilee No. OX	2	6	£30.00	- +
58	50432	Hose, Breather Pipe Extension	1	13	£30.00	- +
59	50431	Pipe, Breather	1	6	£30.00	- +
60	74931	Clip	1	8	£30.00	- +

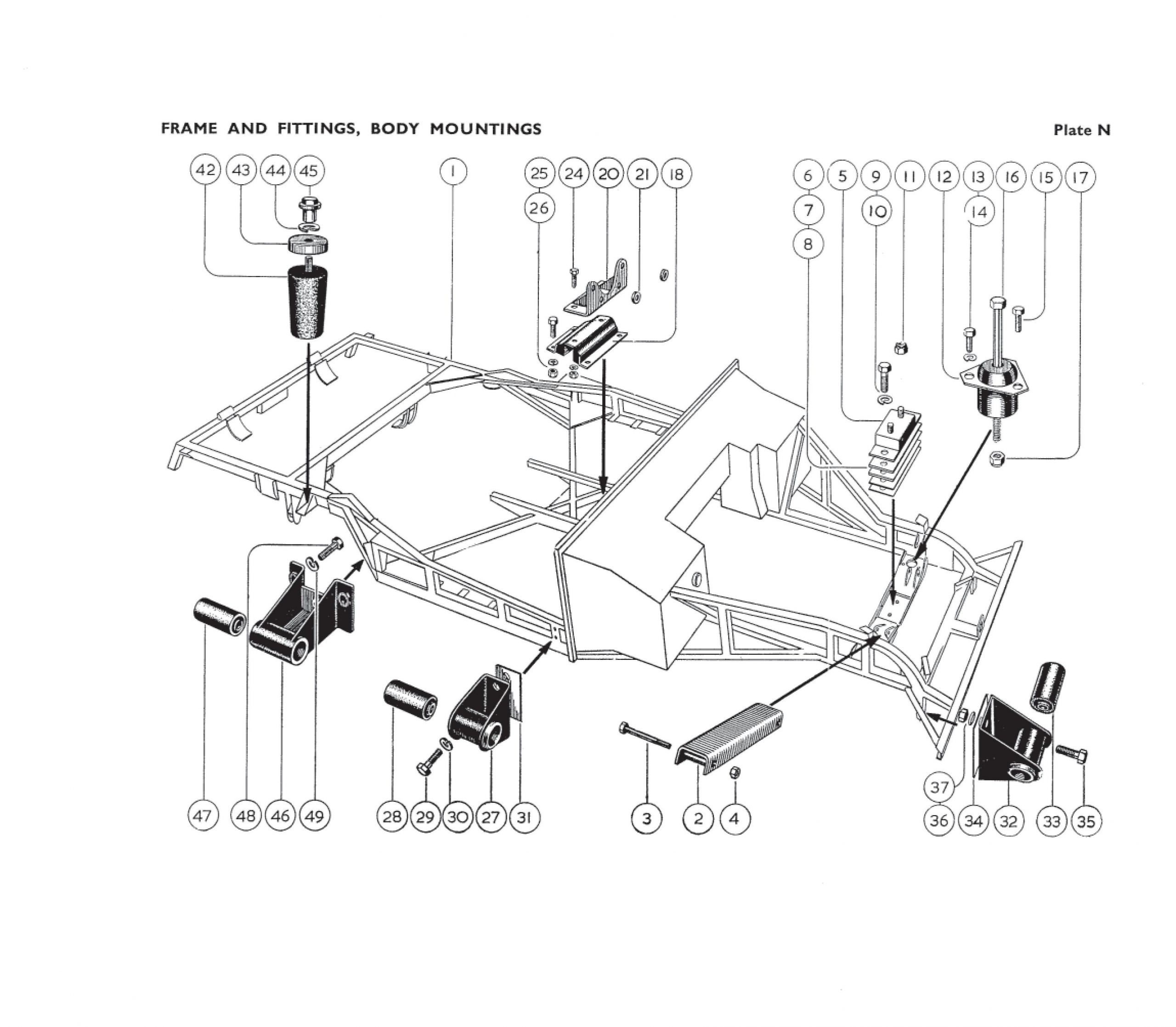

Frame & Fittings Engine Mountings

Ill. No.	Part No.	product name	Car Total	Stock	Price	Quantity
1	58714	CHASSIS FRAME, Welded Assembly	1	3	£30.00	- +
	71566	CHASSIS FRAME, Welded Assembly	1	10	£30.00	- +
	58746	CHASSIS FRAME, Welded Assembly	1	13	£30.00	- +
	72165	CHASSIS FRAME, Welded Assembly	1	17	£30.00	- +
	72172	CHASSIS FRAME, Welded Assembly	1	6	£30.00	- +
	73207	CHASSIS FRAME, Welded Assembly	1	16	£30.00	- +
	78643	CHASSIS FRAME, Welded Assembly	1	13	£30.00	- +
	52547	CHASSIS FRAME, Welded Assembly	1	6	£30.00	- +
2	57084	Tie Bar Assembly, O/S Front Engine	1	9	£30.00	- +
	57085	Tie Bar Assembly, N/S Front Engine	1	10	£30.00	- +
	53435	FRONT CHASSIS SUB ASSEMBLY	1	9	£30.00	- +
3	119358	Bolt, 3/8in. BSF x 1.7/8in.	4	5	£30.00	- +
4	113411	Nut, Simmonds, 3/8in. BSF	4	3	£30.00	- +
5	51566	MOUNTING ASSEMBLY, Engine, Front Centre	1	13	£30.00	- +
6	56322	Packing Piece, Engine Mounting, Front Centre	2	16	£30.00	- +
7	73562	Shim, Packing Piece, Engine Mounting, Front Centre	Nom.4	18	£30.00	- +
8	73561	Shim, Packing Piece, Engine Mounting, Front Centre	Nom.2	11	£30.00	- +
9	19222	Bolt, 5/16in. BSF x 1in.	2	16	£30.00	- +
	119221	Bolt, 5/16in. BSF x 7/8in.	2	14	£30.00	- +
10	119481	Washer, Spring, 5/16in.	2	17	£30.00	- +
11	113410	Nut, Simmonds, 5/16in.	2	14	£30.00	- +
	77289	Cable, Tie, Engine	1	13	£30.00	- +
12	55520	MOUNTING ASSEMBLY, Engine, Side	2	11	£30.00	- +
13	119346	Bolt, 5/16in. BSF x 5/8in.	4	13	£30.00	- +
14	119481	Washer, Spring, 5/16in.	4	12	£30.00	- +
15	111574	Setscrew, 5/16in. BSF x 5/8in.	4	19	£30.00	- +
16	113107	Bolt, 3/8in. BSF x 4.1/4in.	2	4	£30.00	- +
17	113411	Nut, Simmonds, 3/8in. BSF	2	18	£30.00	- +
18	50702	MOUNTING, Engine, Rear, Rubber	1	15	£30.00	- +
20	72038	BRACKET ASSEMBLY, Rear Enging, Mounting, 2.6 litre	1	6	£30.00	- +
	74531	BRACKET ASSEMBLY, Rear Enging, Mounting, 3 litre	1	1	£30.00	- +
21	74608	Distance Piece	2	5	£30.00	- +
24	119346	Bolt, 5/16in. x 5/8in.	6	1	£30.00	- +
25	119481	Washer, Spring, 5/16in.	6	18	£30.00	- +
26	119402	Nut, Plain, 5/16in. BSF	6	16	£30.00	- +
27	55513	BRACKET ASSEMBLY, Body Mounting, Front	2	13	£30.00	- +
28	55511	Bush, Silentbloc, E. 1090	2	3	£30.00	- +
29	119222	Bolt, 5/16in. x 1in.	4	10	£30.00	- +
30	119481	Washer, Spring, 5/16in.	4	15	£30.00	- +
31	55515	Plate, Front Body Mounting Bolts	2	2	£30.00	- +
32	70575	BRACKET ASSEMBLY, Bonnet Pivot	2	15	£30.00	- +
33	55511	Bush, Silentbloc, Bonnet Pivot, E. 1090	2	8	£30.00	- +
	119253	Bolt, 5/16in. BSF x 3.1/4in.	2	20	£30.00	- +
	119402	Nut	2	20	£30.00	- +
34	70582	Shim, Bonnet Pivot	Nom.8	17	£30.00	- +
35	119220	Bolt, 5/16in. BSF x 3/4in.	4	14	£30.00	- +
36	111902	Washer, Spring, 5/16in.	4	8	£30.00	- +
37	119441	Nut, Plain, 5/16in. BSF	4	20	£30.00	- +
	55530	BUMPER ASSEMBLY, Front	2	10	£30.00	- +
42	55519	Bump Stop, Rubber, Rear	2	8	£30.00	- +
	51554	Bump Stop, Rubber, Rear	2	18	£30.00	- +
43	76436	Spacer, Bump Stop	2	3	£30.00	- +
44	122208	Washer, Spring, 1/2in.	2	11	£30.00	- +
45	76444	Nut, Special, 1/4in. BSF	2	11	£30.00	- +
46	55517	BRACKET ASSEMBLY, Rear Body Mounting	2	3	£30.00	- +
47	55511	Bush, Silentbloc, E. 1090	2	9	£30.00	- +
48	119222	Bolt, 5/16in. BSF x 1in.	6	5	£30.00	- +
49	119481	Washer, Spring, 5/16in.	6	20	£30.00	- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222 Parts Catalogue
90222 Parts Catalogue
90222 Parts Catalogue

£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
