DB2 & DB2_4 MKI & MKII

Fuel, cooling and Exhaust

View Diagram

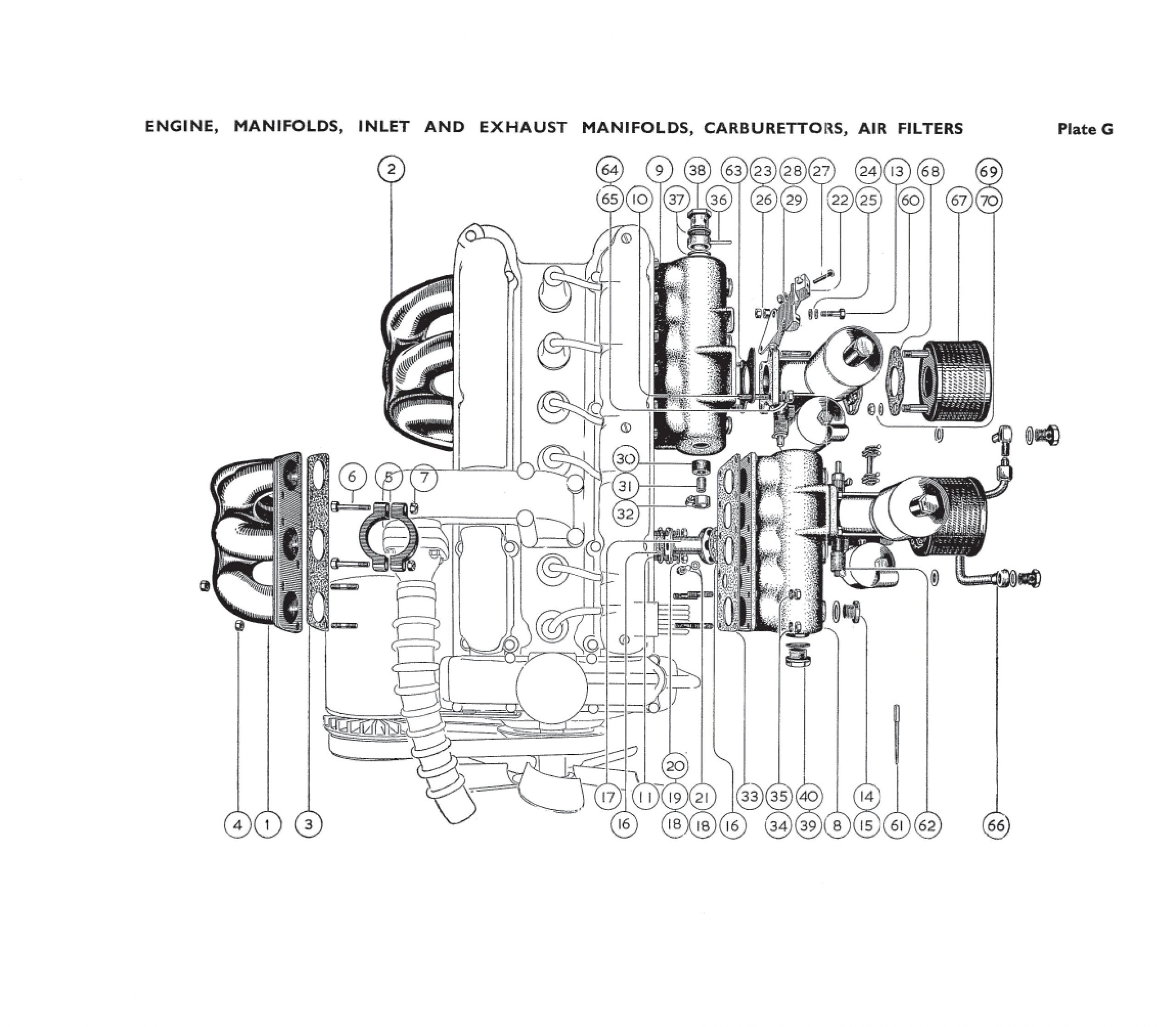

Engine Inlet and Exhaust Manifolds and Carburetors and Air Filters

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172246 MANIFOLD, Exhaust, Front115£30.00- +
272247 MANIFOLD, Exhaust, Rear116£30.00- +
350191 Gasket, Exhaust Manifold26£30.00- +
4122079 Nut, 5/16in.BSF123£30.00- +
550190 Clip, Exhaust Down PipePairs 216£30.00- +
6119229 Bolt, 5/16in.BSF x 1.7/8in.46£30.00- +
7122079 Nut, 5/16in.BSF47£30.00- +
851688 MANIFOLD, Induction, Front12£30.00- +
50178 MANIFOLD, Induction, Front13£30.00- +
951687 MANIFOLD, Induction, Rear18£30.00- +
50179 MANIFOLD, Induction, Rear18£30.00- +
10122257 Stud, 5/16in. BSF x 1.11/16in.817£30.00- +
111910 Stud, 3/8in. BSF x 1.7/8in.83£30.00- +
113479 Stud, 5/16in. BSF x 1.1/2in.45£30.00- +
11111883 Stud, 1/4in. BSF x 1.3/8in.48£30.00- +
111868 Stud, 1/4in. BSF x 1in.215£30.00- +
13119205 Bolt, 1/4in. BSF x 1.1/4in.212£30.00- +
14119502 Washer, Fibre618£30.00- +
15113482 Plug, Gas, 1/2in.611£30.00- +
1650186 Joint, Water Connection418£30.00- +
1750185 Connection, Water215£30.00- +
18119470 Washer, Plain, 1/4in.49£30.00- +
19119480 Washer, Spring, 1/4in.416£30.00- +
20119401 Nut, Plain, 1/4in. BSF414£30.00- +
21119202 Bolt, 1/4in. BSF x 7/8in.419£30.00- +
2270624 Bracket, Throttle and Choke Control12£30.00- +
50183 Bracket, Throttle and Choke Control110£30.00- +
2377594 Packing Piece21£30.00- +
24119470 Washer, Plain, 1/4in.214£30.00- +
25111874 Washer, Thackeray, 1/4in.21£30.00- +
26119401 Nut, Plain, 1/4in. BSF27£30.00- +
27111886 Bolt, 4 BA x 7/8in.114£30.00- +
28111885 Washer, Spring, 5/32in.119£30.00- +
29119418 Nut, Plain, 4BA16£30.00- +
3078523 Seal, Balance Pipe16£30.00- +
3178524 Pipe Balance16£30.00- +
3250181 Clip, (No. O. Cheney)14£30.00- +
3350182 Gasket, Induction Manifold215£30.00- +
34111874 Washer, Thackeray2419£30.00- +
35119401 Nut, Plain, 1/4in. BSF2410£30.00- +
6376961 Insulation Block, Carb. To Manifold22£30.00- +
50330 Insulation Block, Carb. To Manifold25£30.00- +
51899 Insulation Block, Carb. To Manifold218£30.00- +
64119481 Washer, Spring, 5/16in.820£30.00- +
119482 Washer, Spring, 3/8in.89£30.00- +
65119402 Nut, Plain, 5/16in. BSF816£30.00- +
3671359 Banjo Assembly110£30.00- +
3750329 Washer, Fibre211£30.00- +
3850328 Bolt, Banjo, 1/2in. BSP111£30.00- +
39111873 Plug, Flanged, 1/2in. BSP17£30.00- +
4050329 Washer, Fibre112£30.00- +
6057031 CARBURETTOR29£30.00- +
50321 CARBURETTOR213£30.00- +
51898 CARBURETTOR214£30.00- +
6176915 Needle, Carburettor, 'G.B.' Type213£30.00- +
73576 Needle, Carburettor, 'R.J.' Type28£30.00- +
75530 Needle, Carburettor, 'S.V.' Type23£30.00- +
76918 Jet213£30.00- +
90467 Jet27£30.00- +
6251796 Spring, Throttle return217£30.00- +
119403 Nut, Plain, 3/8in. BSF815£30.00- +
119442 Nut, Lock,3/8in. BSF89£30.00- +
6651778 Pipe Assembly118£30.00- +
6751985 Filter Assembly, Air Intake210£30.00- +
51877 Filter Assembly, Air Intake219£30.00- +
6852019 Joint, Air Cleaner to Carbs.216£30.00- +
51830 Joint, Air Cleaner to Carbs.214£30.00- +
69119481 Washer, Spring417£30.00- +
70119402 Nut, Plain42£30.00- +
50322 Pipes, Conn. Starting Carbs. to T. Piece28£30.00- +
50323 Pipes, Conn. T. to Manifold18£30.00- +
50326 T Piece26£30.00- +
50327 Nut, Union22£30.00- +
111904 Olive, 1/2in. dia.28£30.00- +
50331 Pipe, Conn., Vacuum Control19£30.00- +
50332 Nut, Conn.,28£30.00- +
111905 Olive, 5/32in. Pipe215£30.00- +

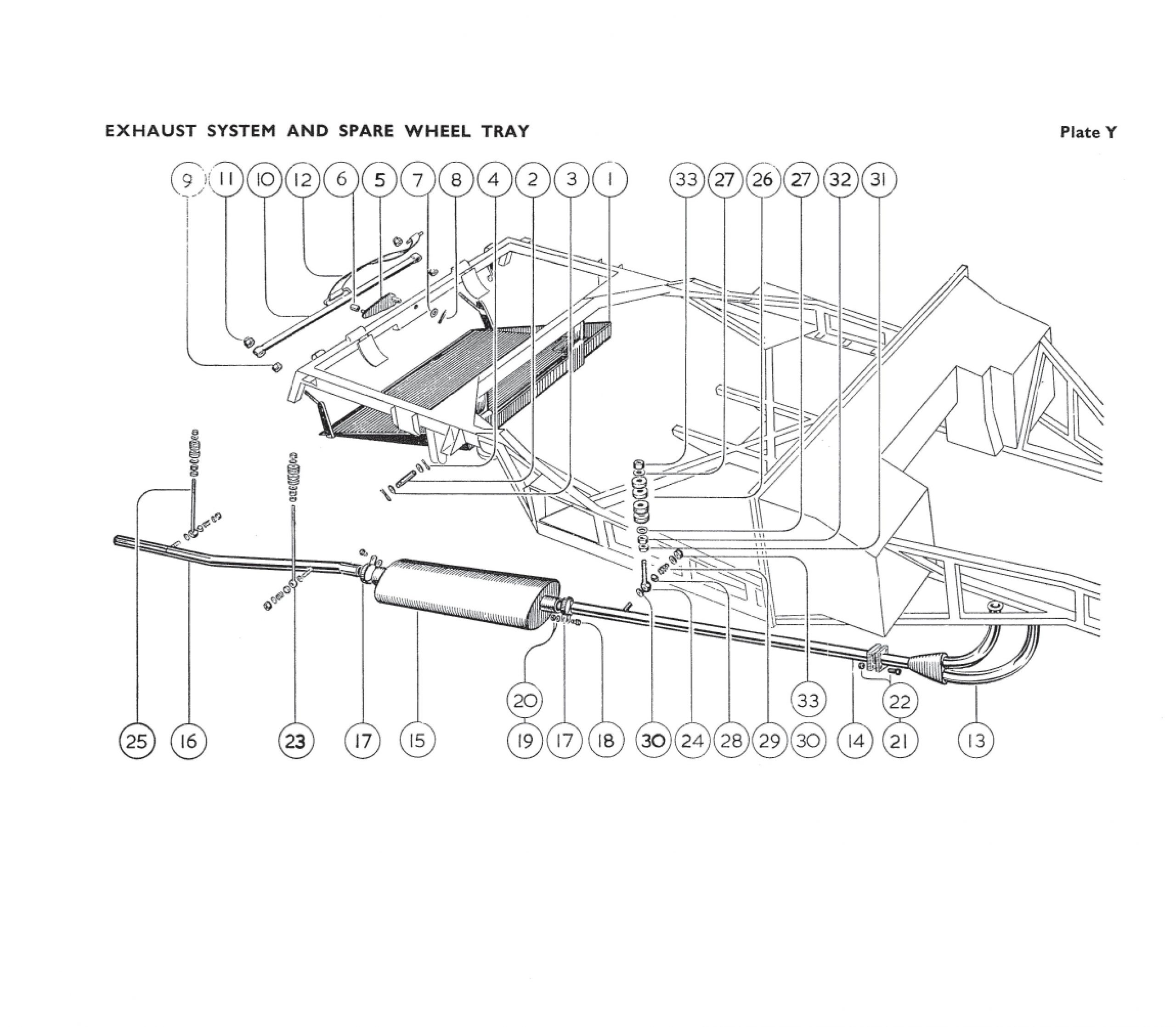

Exhaust System and Spare Wheel Tray

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172780 TRAY, Spare Wheel120£30.00- +
53091 TRAY, Spare Wheel113£30.00- +
275503 Pin, Angle Channel213£30.00- +
52725 Pin, Angle Channel23£30.00- +
3119471 Washer, Plain, 5/16in.44£30.00- +
119475 Washer, Plain, 5/8in.162£30.00- +
4119522 Pin, Split, 1/16in.411£30.00- +
574643 Handle Assembly, Operating19£30.00- +
6122241 Tube, Rubber, 1/2in.115£30.00- +
7119472 Washer, Plain, 3/8in.211£30.00- +
8119535 Pin, Split, 1/8in.14£30.00- +
9119444 Nut, Lock, 1/2in. BSF216£30.00- +
1074650 Bar Assembly, Support15£30.00- +
11122068 Nut, Oddie 'Thin', 1/2in. BSF26£30.00- +
1272799 Strap Assembly, Lifting119£30.00- +
1355219 PIPE ASSEMBLY, Down114£30.00- +
1455220 Exhaust Pipe, Down Pipe to Silencer15£30.00- +
1590387 SILENCER, Exhaust14£30.00- +
1672151 Pipe, Tail112£30.00- +
55222 Pipe, Tail118£30.00- +
78799 Flange, for D.55219 (To be welded)28£30.00- +
1755223 Clip, Silencer213£30.00- +
18119200 Bolt, 1/4in. BSF x 5/8in.21£30.00- +
19119480 Washer, Spring, 1/4in.215£30.00- +
20119401 Nut, 1/4in. BSF21£30.00- +
21119203 Bolt, 1/4in. BSF x 1in.415£30.00- +
22111936 Nut, Oddie, 1/4in. BSF415£30.00- +
2372613 Link, Susp. Midship, Mtg. Ex. Pipe11£30.00- +
55224 Link, Susp. Midship, Mtg. Ex. Pipe18£30.00- +
2472612 Link, Susp. Front, Mtg. Ex. Pipe110£30.00- +
50930 Link, Susp. Front, Mtg. Ex. Pipe16£30.00- +
2572614 Link, Susp. Rear, Mtg. Ex. Pipe111£30.00- +
55831 Link, Susp. Rear, Mtg. Ex. Pipe119£30.00- +
2650315 Rubber, Suspension Link1212£30.00- +
2750911 Washer68£30.00- +
2850932 Ball, Ex. Pipe Mtg.310£30.00- +
2950933 Spring, Ex. Pipe Mtg.318£30.00- +
3050934 Washer, Ex. Pipe Mtg.62£30.00- +
31119441 Nut, Lock, 5/16in. BSF31£30.00- +
32119402 Nut, Plain, 5/16in. BSF316£30.00- +
33111937 Nut, Oddie, 5/16in. BSF69£30.00- +

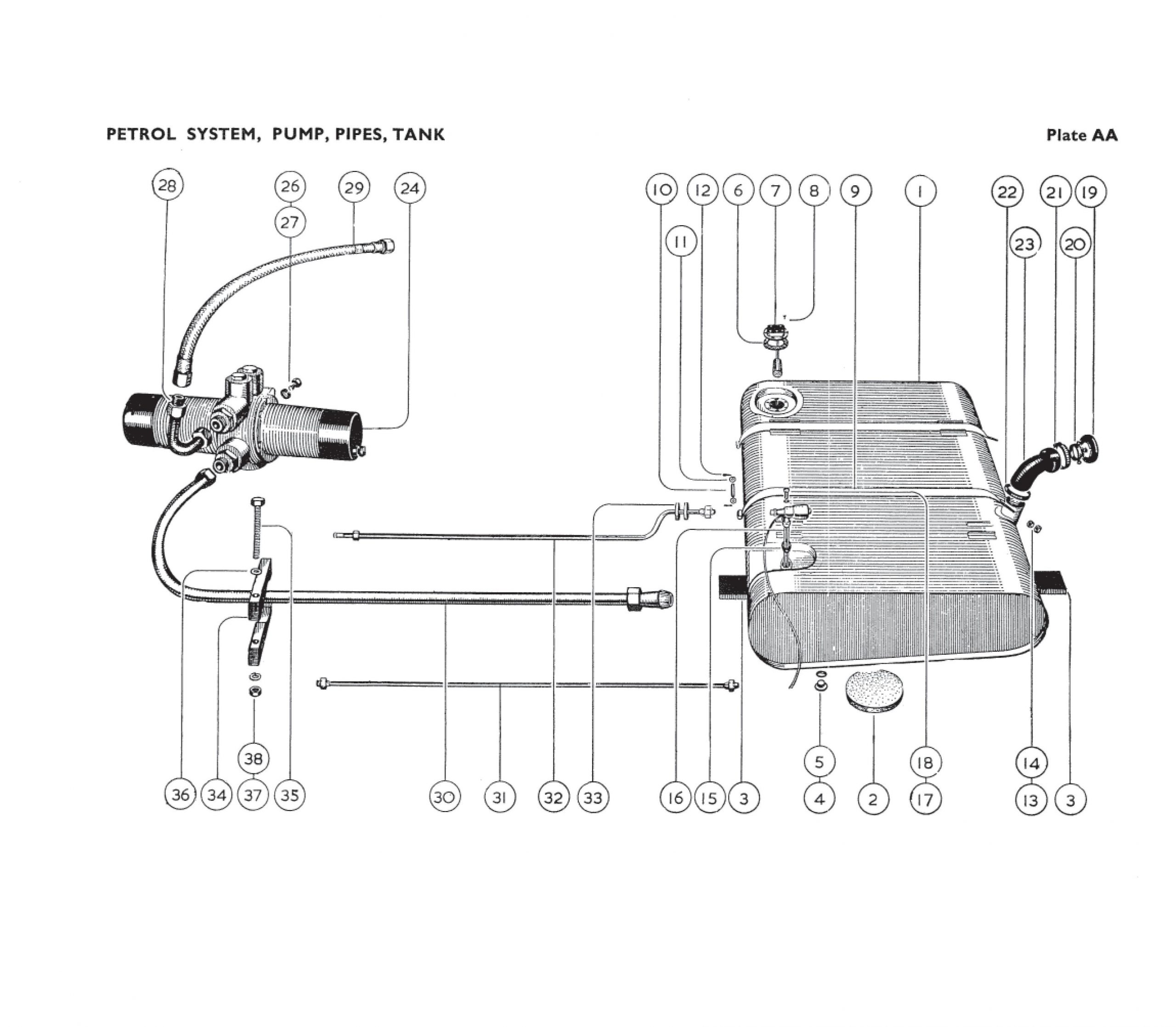

Fuel System

Ill. No. Part No. product name Car
Total
Stock Price Quantity
172091 PETROL TANK ASSEMBLY111£30.00- +
75942 PETROL TANK ASSEMBLY111£30.00- +
55820 PETROL TANK ASSEMBLY13£30.00- +
78194 PETROL TANK ASSEMBLY120£30.00- +
274388 Rubbing Pad, Hub114£30.00- +
350822 Rubbing Pad, Petrol Tank Support48£30.00- +
4119500 Washer, 3/8in. BSP11£30.00- +
511590 Plug, 3/8in. BSP112£30.00- +
650097 Joint, Indicator Unit118£30.00- +
772818 Gauge Unit, Petrol Tank18£30.00- +
55611 Gauge Unit, Petrol Tank117£30.00- +
8121717 Screw, Set, 3BA x 3/8in. Ch. Hd.64£30.00- +
111924 Screw, Set, 3BA x 1/2in. Ch. Hd.64£30.00- +
972084 Strap Assembly, Petrol Tank27£30.00- +
55535 Tank Protector and Cable Assembly26£30.00- +
1072817 Pin, Tank Strap210£30.00- +
52724 Pin, Tank Strap24£30.00- +
11119470 Washer, Plain 1/4in49£30.00- +
12119520 Pin, Split 1/16in. X 1/2in.411£30.00- +
13119401 Nut, Plain 1/4in. BSF216£30.00- +
14119440 Lock Nut,1/4In. BSF28£30.00- +
119402 Nut, Plain 5/16in. BSF811£30.00- +
1577072 Joint, Petrol Reserve Valve120£30.00- +
1672093 Valve, Petrol Reserve113£30.00- +
55275 Valve, Petrol Reserve114£30.00- +
17119488 Washer, Spring, 3/16in.217£30.00- +
18113442 Screw, Set, 2BA x 5/8in.23£30.00- +
1974475 Cap Assembly, Petrol Filler110£30.00- +
55538 Cap Assembly, Petrol Filler15£30.00- +
2074966 Plate Assembly, Securing113£30.00- +
2150850 Clip, Jubilee No. 3113£30.00- +
50850 Clip, Jubilee No. 342£30.00- +
22113445 Clip, Jubilee No. 2118£30.00- +
113445 Clip, Jubilee No. 224£30.00- +
55540 Adaptor, Filler Cap19£30.00- +
55541 Elbow, Filler Adaptor114£30.00- +
57560 Grommet, Filler Adaptor111£30.00- +
55542 Hose Connection, Petrol Filler13£30.00- +
2374474 Hose Connection, Petrol Filler18£30.00- +
76154 Hose Connection, Petrol Filler Top114£30.00- +
76156 Extension Tube, Petrol Filler18£30.00- +
76155 Hose Connection, Petrol Filler Bottom12£30.00- +
2422.34.105 PETROL PUMP, Dual117£30.00- +
26119346 Bolt, 5/16in. BSF x 5/8in.24£30.00- +
27119481 Washer, Spring 5/16in.218£30.00- +
2855551 Petrol Pipe Assembly, Pump to Flex16£30.00- +
2955550 Hose, Flexible, Pump to Carbs.110£30.00- +
73547 Hose, Flexible, Pump to Carbs.15£30.00- +
3072820 Petrol Pipe Assembly, Front115£30.00- +
73539 Petrol Pipe Assembly, Front114£30.00- +
55543 Petrol Pipe Assembly, Front111£30.00- +
3155544 Petrol Pipe Assembly, Midship115£30.00- +
3272822 Petrol Pipe Assembly, Rear116£30.00- +
55829 Petrol Pipe Assembly, Rear119£30.00- +
55545 Petrol Pipe Assembly, Rear to Tank111£30.00- +
33122010 Grommet216£30.00- +
3457689 Block, Clamp, Petrol Pipes1014£30.00- +
57689 Block, Clamp, Petrol Pipes1212£30.00- +
35121701 Screw, Set, 2BA x 1.1/4in.59£30.00- +
113441 Bolt, 2BA x 1in.617£30.00- +
36119496 Washer, Plain 3/16in.517£30.00- +
119496 Washer, Plain 3/16in.617£30.00- +
37119488 Washer, Spring 3/16in.516£30.00- +
38111109 Nut, Plain 2BA51£30.00- +
56318 Pipe, Breather111£30.00- +
51717 Clip, Jubilee No. OX25£30.00- +
110766 Clip, Breather Pipe to Body11£30.00- +
56315 End Fitting Assembly, Breather Pipe18£30.00- +
119200 Bolt, 1/4in. BSF x 5/8in.27£30.00- +
119401 Nut, Plain 1/4in. BSF29£30.00- +

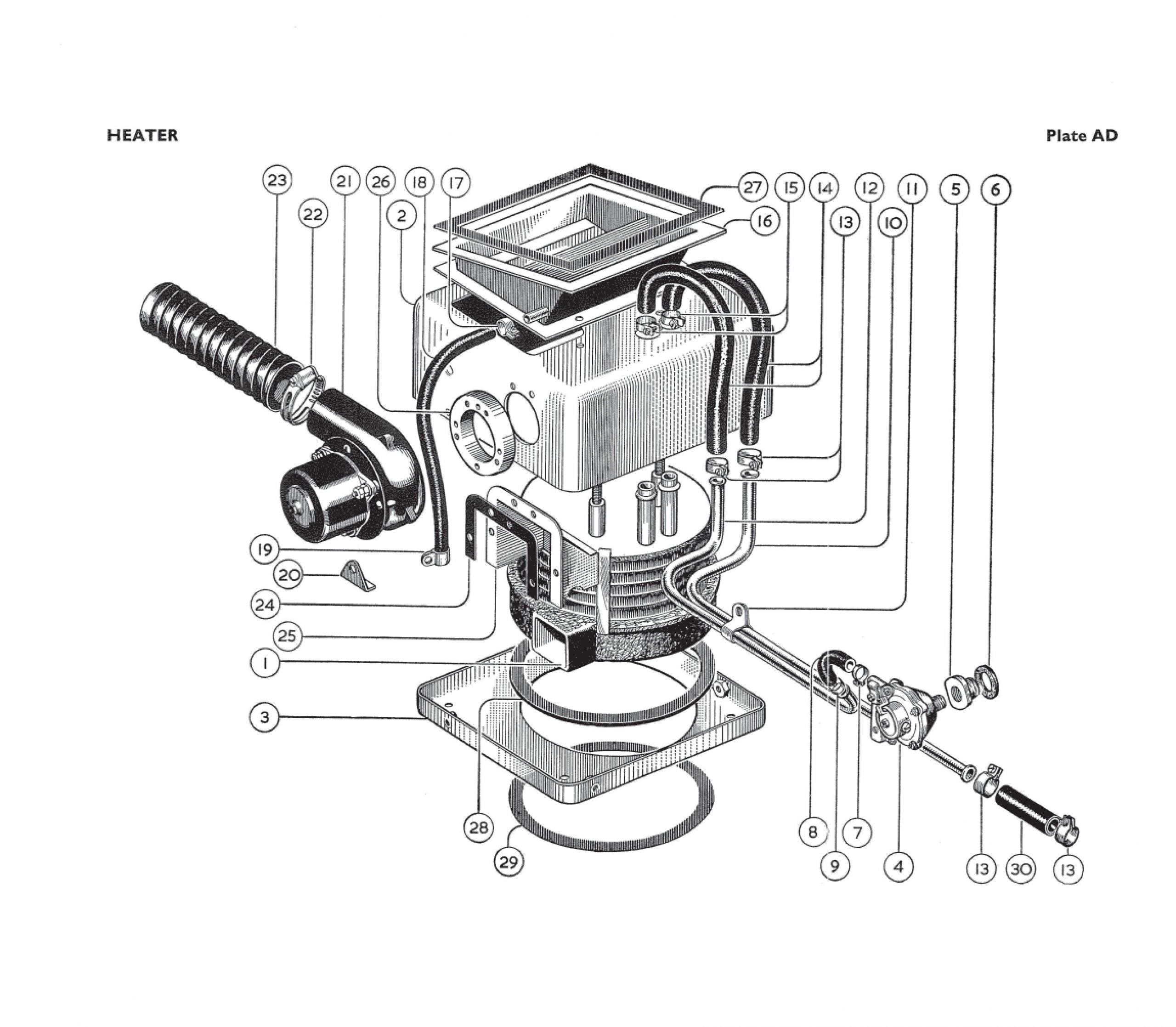

Heater

Ill. No. Part No. product name Car
Total
Stock Price Quantity
155263 HEATER, Recirculating Type118£30.00- +
255266 Cover, Heater18£30.00- +
73381 Cover, Heater115£30.00- +
355264 Pan, Heater117£30.00- +
455837 VALVE, Water16£30.00- +
557723 Adaptor, Water Valve16£30.00- +
658867 Washer, Fibre, Water Valve18£30.00- +
7110883 Clip, Water Hose112£30.00- +
875400 Elbow, 1/2in. Bore, Water11£30.00- +
9110883 Clip, Water Hose18£30.00- +
1055192 Pipe, Return, Water114£30.00- +
57736 Pipe, Return, Water119£30.00- +
1157737 Clip, Water Return Pipe119£30.00- +
1257735 Pipe, Heater Inlet114£30.00- +
13110883 Clip, Water Hose48£30.00- +
1457683 Hose, Connection, Inlet and Outlet110£30.00- +
15110883 Clip, Water Hose22£30.00- +
1655271 Duct, Heater119£30.00- +
17110883 Clip, Water Hose19£30.00- +
1874967 Pipe, Heater Pan, Water Drain118£30.00- +
1951446 Clip, Water Drain Pipe118£30.00- +
2073384 Bracket, Steady113£30.00- +
2173390 BOOSTER UNIT112£30.00- +
2250278 Clip, Jubilee, No. 1X26£30.00- +
2355270 Hose, Air, Demister Conn.111£30.00- +
74577 Hose, Booster, to Demister19£30.00- +
2473387 Strip, Sealing, Booster Duct15£30.00- +
2573382 Duct, Booster114£30.00- +
2674241 Ring, Support, Booster113£30.00- +
27122351 36in. 1/2in. X 1/4in. Sponge RubberAs req'd18£30.00- +
2855268 Ring, Seal, Heater17£30.00- +
73383 Ring, Seal, Heater18£30.00- +
2955269 Ring, Seal, External119£30.00- +
3051730 Hose, Water, 1/2in. Bore17£30.00- +
55195 Elbow, Assembly, Heater Water Valve119£30.00- +
55196 Flange, Elbow Assembly116£30.00- +
50855 Grommet, Control Cable118£30.00- +
55198 Ring, Sealing, Water Valve119£30.00- +

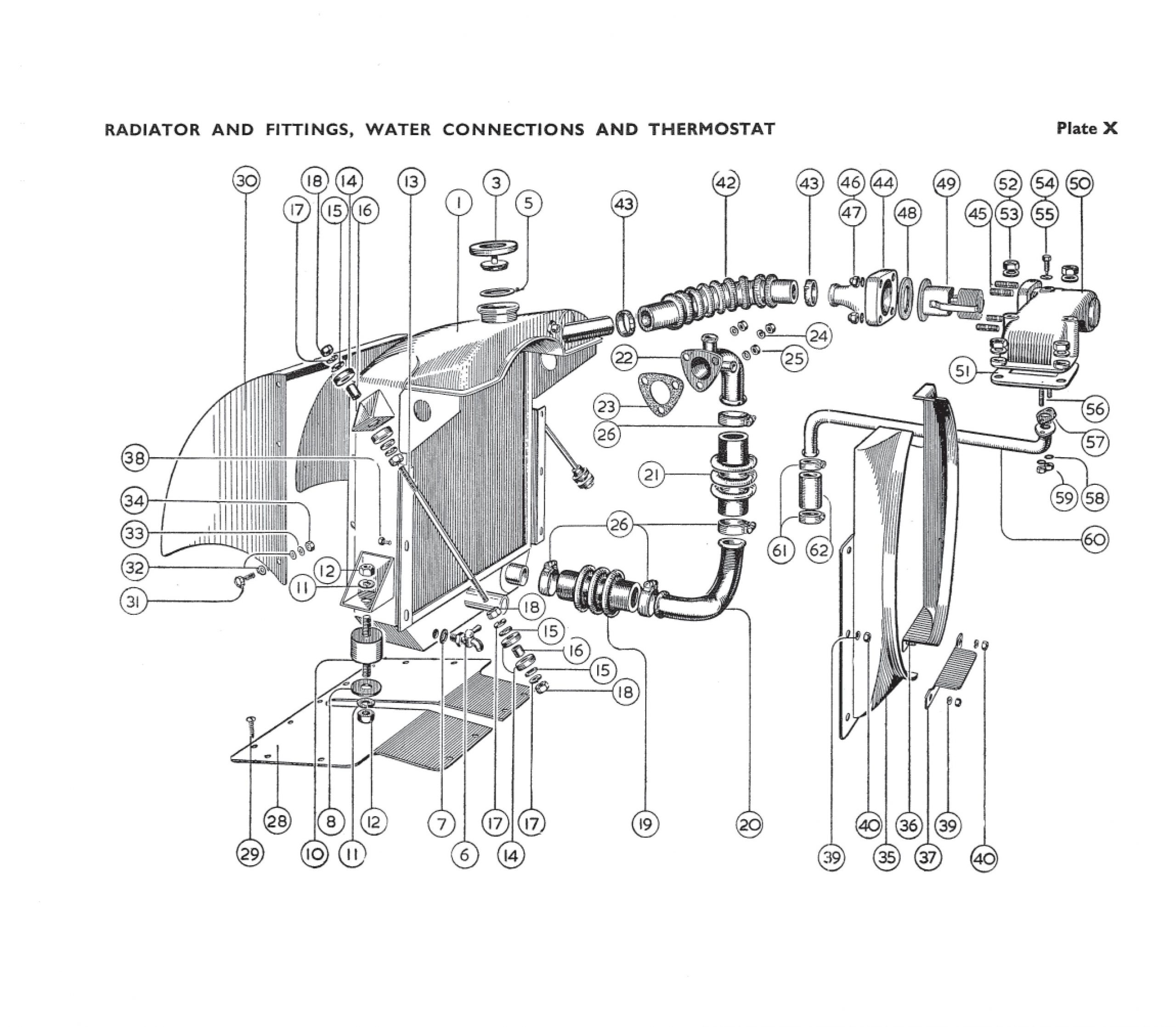

Radiator and Fixings

Ill. No. Part No. product name Car
Total
Stock Price Quantity
156734 RADIATOR (Quick Release Filler)11£30.00- +
78223 RADIATOR (Less Thermometer Housing)16£30.00- +
376920 Cap, Radiator, Filler (Screw on Type)118£30.00- +
76536 Cap, Radiator Filler (Quick Release)12£30.00- +
576919 Washer, Filler Cap (Screw on Type)14£30.00- +
90578 Washer, Filler Cap (Quick Release)110£30.00- +
6113542 Tap, Drain18£30.00- +
7119501 Washer, Fibre, 1/4in. BSP14£30.00- +
873604 Packing Piece, Radiator214£30.00- +
1050908 Mounting, Radiator, Rubber219£30.00- +
11119482 Washer, Spring, 3/8in.411£30.00- +
12119403 Nut, Plain, 3/8in. BSF413£30.00- +
1355191 Rod, Tie, Radiator27£30.00- +
1450910 Washer, Rubber, Tie Rod81£30.00- +
1550911 Washer, Radiator, Tie Rod820£30.00- +
1650912 Spacer, Radiator, Tie Rod415£30.00- +
17119481 Washer, Spring, 5/16in.819£30.00- +
18119402 Nut, Plain, 5/16in. BSF816£30.00- +
19113431 Hose, Connection, Radiator Outlet115£30.00- +
2055832 Pipe, Radiator to Water Pump Inlet Pipe18£30.00- +
21113435 Hose, Connection, Water Pipe to Water Pump14£30.00- +
2251736 Pipe Assembly, Water Pump Inlet18£30.00- +
2350341 Joint12£30.00- +
24119480 Washer, Spring, 1/4in.32£30.00- +
25119401 Nut, Plain, 1/4in. BSF320£30.00- +
2656323 Clip, Jubilee, No. 2A410£30.00- +
2856993 Pane, Baffle, Bottom110£30.00- +
29110727 Screw, Parker, Kalon, No. 6 x 1/2in. Rd. Hd.1320£30.00- +
3071081 Panel, Baffle, Top Assembly110£30.00- +
31112213 Setscrew, 2 BA x 1/2in. Hex. Rd.814£30.00- +
32119496 Washer, Plain, 3/16in.1611£30.00- +
33119488 Washer, Spring, 3/16.86£30.00- +
34111109 Nut, Plain, 2BA86£30.00- +
3574915 COWL ASSEMBLY, Fan, N/S115£30.00- +
3674916 COWL ASSEMBLY, Fan, O/S113£30.00- +
3774914 Bridge Piece, Fan Cowl18£30.00- +
38111963 Setscrew, 2 BA x 5/16in. Hex. Rd.68£30.00- +
39119488 Washer, Spring, 3/16in.819£30.00- +
40111109 Nut, Plain, 2BA86£30.00- +
42113434 Hose, Connection, Radiator to Thermostat113£30.00- +
4356323 Clip, Jubilee, No. 2A211£30.00- +
4451681 Connection, Thermostat Housing114£30.00- +
45111909 Stud, 1/4in. BSF x 1.3/8in.420£30.00- +
46119470 Washer, Plain, 1/4in.419£30.00- +
4750210 Nut, Dome, 1/4in. BSF42£30.00- +
4851677 Joint, Thermostat113£30.00- +
4950083 THERMOSTAT115£30.00- +
5051686 Housing, Thermostat118£30.00- +
5150144 Joint, Thermostat Housing115£30.00- +
52111874 Washer, Thackeray, 1/4in.418£30.00- +
53119401 Nut, Plain, 1/4in. BSF419£30.00- +
5450359 Screw, Thermostat, Locating113£30.00- +
5550360 Washer, Locating Screw119£30.00- +
56111918 Stud, 1/4in. BSF x 1in.213£30.00- +
5750250 Joint, By-pass Pipe18£30.00- +
58119480 Washer, Spring, 1/4in.218£30.00- +
59119401 Nut, Plain, 1/4in. BSF216£30.00- +
6051684 Pipe Assembly, Thermostat By-pass19£30.00- +
6151717 Clip, Jubilee, No. OX29£30.00- +
6250252 Hose, Connection112£30.00- +
78231 Adaptor, Thermostat Housing (Only used with Radiator 78223 and 4 in 1 Instruments 78233/5)13£30.00- +
119500 Washer, Fibre, 3/8in. BSP (Only used with Radiator 78223 and 4 in 1 Instruments 78233/5)118£30.00- +

Technical Publications

For all Parts Catalogues, Workshop Manuals and Instruction Books please follow the link to the technical publications page.

DB2/4 MkIII

90222   Parts Catalogue
90222   Parts Catalogue
90222   Parts Catalogue


£ 29 EA

Can't Find What You're Looking For?

INTERNATIONAL SHIPPING AVAILABLE

All payments should be made in UK Pounds Sterling (£) either by Cash, Cheque, Credit/Debit Card or Bank Transfer.
