DB2 & DB2_4 MKI & MKII

Electrical and Instruments

View Diagram

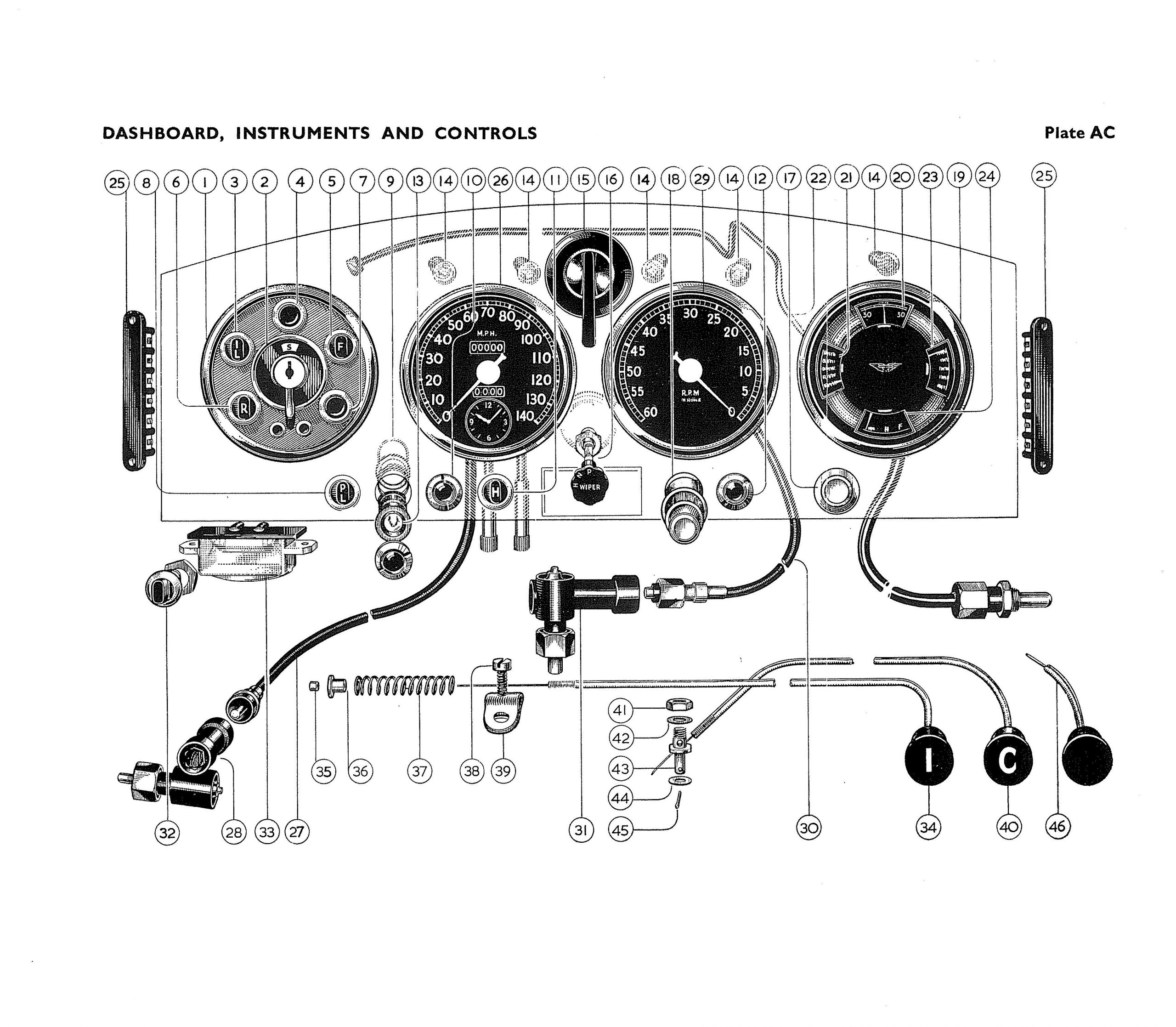

Dashboard

Ill. No. Part No. product name Car
Total
Stock Price Quantity
151432 SWITH PANEL (Lucas No. 30119A)19£30.00- +
251428 SWITH BOX, Lighting & Ignition (Lucas No. 34035A)113£30.00- +
357365 Switch, Engine Inspection Lamp (Lucas No. 31327A)112£30.00- +
451429 Switch, Starter (Lucas No. 317075A)119£30.00- +
551913 Switch, Fog Lamp (Lucas No. 31320A)117£30.00- +
651911 Switch, Petrol Reserve (Lucas No. 31319A)116£30.00- +
751436 Switch, Petrol/Oil Gauge (Lucas No. 314187)116£30.00- +
851912 Switch, Panel Lamp (Lucas No. 31321A)14£30.00- +
53943 Switch, Panel Lamp (Lucas No. 76688)13£30.00- +
951435 Warning Light, Petrol Reserve (Lucas No. 38018B)111£30.00- +
1051434 Warning Light, Ignition (Lucas No. 38015A)118£30.00- +
1151916 Switch, Heater Fan (Lucas No. 31328A)11£30.00- +
1273558 Warning Light, Main Beam (Lucas No. 38018B)13£30.00- +
1371640 Bulb, Warning Light (Lucas No. 970)110£30.00- +
1471639 Bulb, Panel Light (Lucas No. 987)As req'd3£30.00- +
1551431 Switch, Flasher17£30.00- +
77046 Switch, Flasher117£30.00- +
1675266 Switch, Windscreen Wiper (Lucas No. 31302B)15£30.00- +
1757356 Control Valve, Windscreen Washer110£30.00- +
1875035 Cigar Lighter11£30.00- +
76079 Element119£30.00- +
1978235 INSTRUMENT, 4 in 1116£30.00- +
2051437 AMMETER (Lucas No. 36144A)118£30.00- +
2176248 GAUGE, Oil Pressure19£30.00- +
2273422 Pipe Assembly, Oil Pressure Gauge112£30.00- +
2376249 GAUGE, Water Temperature14£30.00- +
2476247 GAUGE, Petrol and Oil Level119£30.00- +
2557548 Six-way Terminal Bar Assembly (Lucas No. 37101)217£30.00- +
2675283 SPEEDO AND CLOCK, 140 m.p.h.17£30.00- +
75284 SPEEDO AND CLOCK, 240 k.p.h.117£30.00- +
78975 SPEEDO AND CLOCK, 140 m.p.h.17£30.00- +
53946 SPEEDO AND CLOCK, 240 k.p.h.111£30.00- +
55604 SPEEDO AND CLOCK, 140 m.p.h.11£30.00- +
55605 SPEEDO AND CLOCK, 240 m.p.h.117£30.00- +
76252 Clock for all Speedo's110£30.00- +
2755606 Cable, Speedo111£30.00- +
2855607 Right Angle Drive (Speedo)19£30.00- +
2955608 REV. COUNTER17£30.00- +
77079 REV. COUNTER113£30.00- +
3073915 Cable, Rev, Counter118£30.00- +
74168 Cable, Rev, Counter15£30.00- +
55609 Cable, Rev, Counter116£30.00- +
3155607 Right Angle Drive Rev. Counter113£30.00- +
3251430 Switch, Map Lamp (Lucas No. 314129A)15£30.00- +
3355856 Map Lamp (Lucas No. 39006A)17£30.00- +
78648 Map Lamp15£30.00- +
3472294 Cable, Ignition Control RHD116£30.00- +
72295 Cable, Ignition Control LHD14£30.00- +
3572600 Ferrule, Manual Ignition Control12£30.00- +
3672604 Ferrule, Ignition Cable Retainer111£30.00- +
3772747 Spring, Retaining, Ignition Control18£30.00- +
38119201 Bolt, 1/4in. BSF x 3/4in.110£30.00- +
3957345 Clip, Wiring 3/16in.210£30.00- +
4072296 Cable, Mixture Control RHD120£30.00- +
72297 Cable, Mixture Control LHD116£30.00- +
41112124 Nut, Oddie, Thin 1/4in. BSF17£30.00- +
42119496 Washer, Plain 3/16in.115£30.00- +
4370806 Bolt, Pivot, Choke Control Cable117£30.00- +
44119470 Washer, Plain 1/4in.25£30.00- +
45119520 Pin, Split 1/16in. x 1/2in.16£30.00- +
4655283 Cable, Heater Control113£30.00- +
51915 Switch, Choke Warning Light (Lucas No. 3132A)19£30.00- +
51439 Warning Light, Carburetter (Lucas No. 38019B)118£30.00- +
73516 Lead, Petrol Gauge Tank Unit (Lucas No. 824663)110£30.00- +

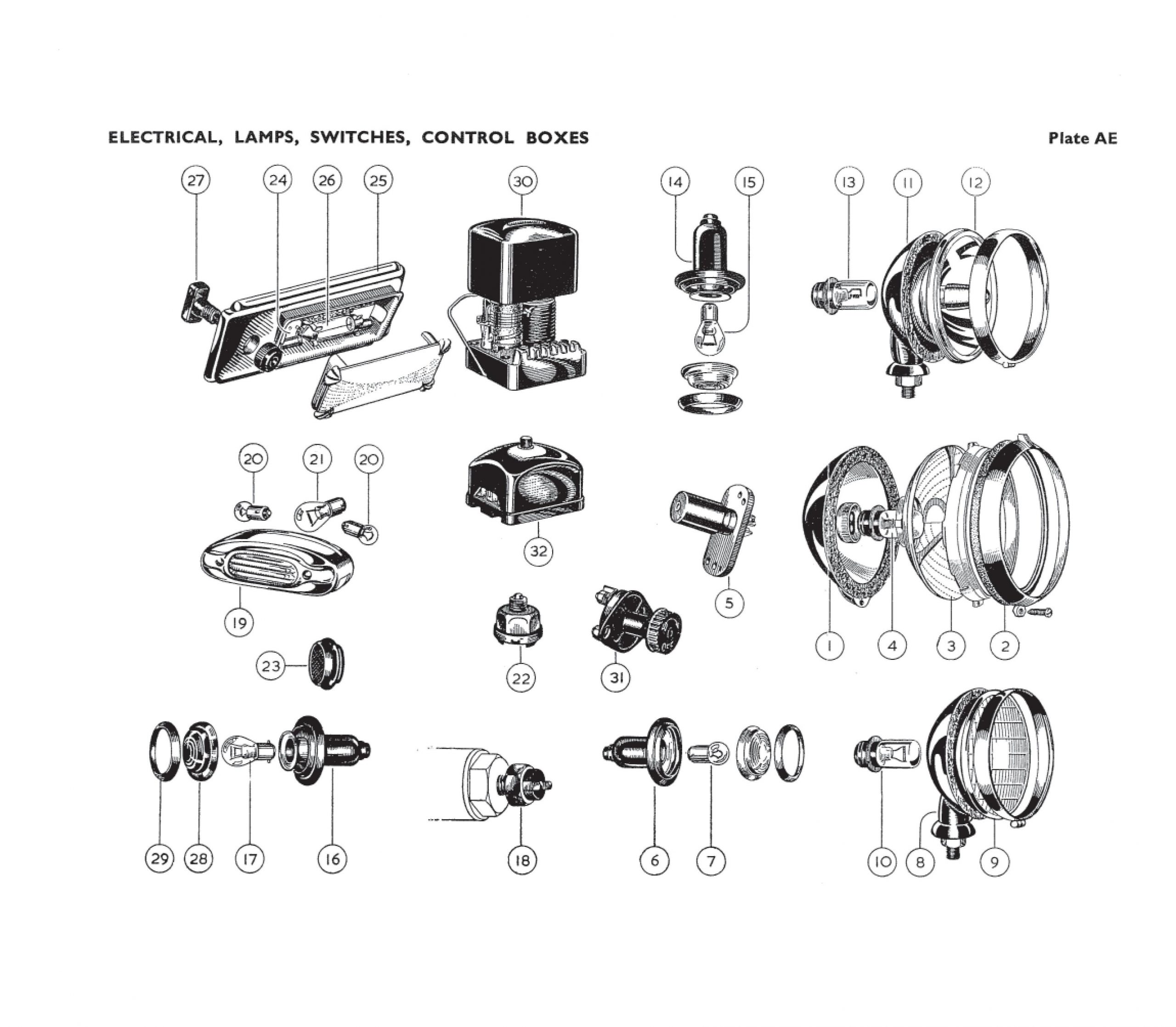

Electrical, Lamps, Switches and Control Boxes

Ill. No. Part No. product name Car
Total
Stock Price Quantity
159054 HEDLAMP, Complete (U.K. & Belgium) (Lucas No. 056601)29£30.00- +
74453 HEDLAMP, Complete (Not U.S.A) (Lucas No. 057183)213£30.00- +
252887 Rim, Headlamp (Lucas No. 553978)213£30.00- +
376932 Light Unit, Headlamp (Lucas No. 553961)21£30.00- +
78192 Light Unit, Le-Mans215£30.00- +
456874 Bulb, Headlamp Double Dip (Lucas No. 302)217£30.00- +
76900 Bulb, Headlamp (Le Mans) (Lucas No. 370)219£30.00- +
76570 Bulb, Headlamp (Yellow Le Mans) (Lucas No. 371)215£30.00- +
551415 Switch, Dipper, Foot (Lucas No. 360007)112£30.00- +
655850 LAMP, Side (Lucas No. 52240B)29£30.00- +
778782 Bulb, Side Lamp (Lucas No. 380)220£30.00- +
851894 LAMP, Fog (Lucas No. 53135B)As req'd13£30.00- +
974936 Light Unit, (For 51894) (Lucas No. 534702)As req'd10£30.00- +
1172809 LAMP, Spot (Pencil Beam) (Lucas No. 053185)As req'd18£30.00- +
1274935 Light Unit, (For 72809)As req'd5£30.00- +
1372489 Bulb, Fog Lamp (Lucas No. 323)As req'd17£30.00- +
1455850 LAMP, Bonnet Interior (Lucas No. 522040B)120£30.00- +
78454 LAMP, Bonnet Interior11£30.00- +
1571637 Bulb, Bonnet Interior (Lucas No. 221)28£30.00- +
48.37.835 Bulb, Bonnet Interior (Lucas No. 207)112£30.00- +
78454 Inspection Lamp119£30.00- +
1655851 LAMPS, Rear and Stop (Lucas No. 052626)22£30.00- +
77045 LAMPS, Rear and Stop (Lucas No. 53330A)22£30.00- +
1771636 Switch, Stop Tail (Lucas No. 380)216£30.00- +
1855747 Switch, Stop Lamp120£30.00- +
1957775 LAMP, No. Plate Illuminating (Lucas No. 524442E)17£30.00- +
2071638 Bulb, No. Plate Illuminating (Lucas No. 989)219£30.00- +
2171637 Bulb, Reverse Lamp (Lucas No. 199)114£30.00- +
2251452 Switch, Reverse Light (Lucas No. 31077E)17£30.00- +
2372751 Reflector, Rear (Lucas No. 57035)215£30.00- +
2457121 LAMP, Interior17£30.00- +
78649 LAMP, Interior119£30.00- +
2571056 Escutcheon, Interior Lamp118£30.00- +
2652618 Bulb, Interior Lamp (Lucas No. 254)113£30.00- +
2757184 Switch, Interior Lamp111£30.00- +
55857 HEADLAMP, Conversios Set (U.S.A.)214£30.00- +
73529 HEADLAMP, Conversios Set (U.S.A.) (Lucas No. 51067A)214£30.00- +
74454 HEADLAMP, Le Mans Unit 770/700 (Lucas No. 0.57184)214£30.00- +
73305 HEADLAMP, (Mexico only) (Lucas No. 057266)28£30.00- +
2871706 Glass, for 55851 (Lucas No. 0.55851)216£30.00- +
2976025 Rim, Rear and Stop Lamp26£30.00- +
3070388 CONTROL BOX, (Model RB106) (Lucas No. 37139A)120£30.00- +
51420 CONTROL BOX, (Model RF95) (Lucas No. 37105A)110£30.00- +
3151573 Switch, Master (Lucas No. 76605)118£30.00- +
3270389 Fuse Box, Regulator (for 70388)111£30.00- +
73535 Fuse Box, Regulator (Lucas No. 37137A) (for 70388)114£30.00- +
55841 HARNESS, Main, RHD (Lucas No. 979480)12£30.00- +
55843 HARNESS, Chassis (Lucas No. 997411)15£30.00- +
70776 HARNESS, Boot (Lucas No. 996802)17£30.00- +
72699 Lead, No. Plate Lamp (Lucas No. 996803)18£30.00- +
71695 Lead, Engine Lamp (Lucas No. 835875)12£30.00- +
55846 Lead, Dipper Switch, RHD (Lucas No. 806235)19£30.00- +
73514 Horness, Main RHD (Lucas No. 824661)119£30.00- +
73521 Lead, Battery, Positive to Master Switch (Lucas No. 810615)110£30.00- +
73522 Earth Bond, Master Switch to Chassis (Lucas No. 979493)14£30.00- +
73528 Lead, Dipper Switch (Lucas No. 861409)14£30.00- +
74959 Lead, Dipper Switch LHD114£30.00- +
52921 Lead, Dipper Switch LHD113£30.00- +
50764 Grommet, Main Harness (Lucas No. 858065)18£30.00- +
74063 LAMPS, Twin Reverse (Lucas No. 052672)115£30.00- +

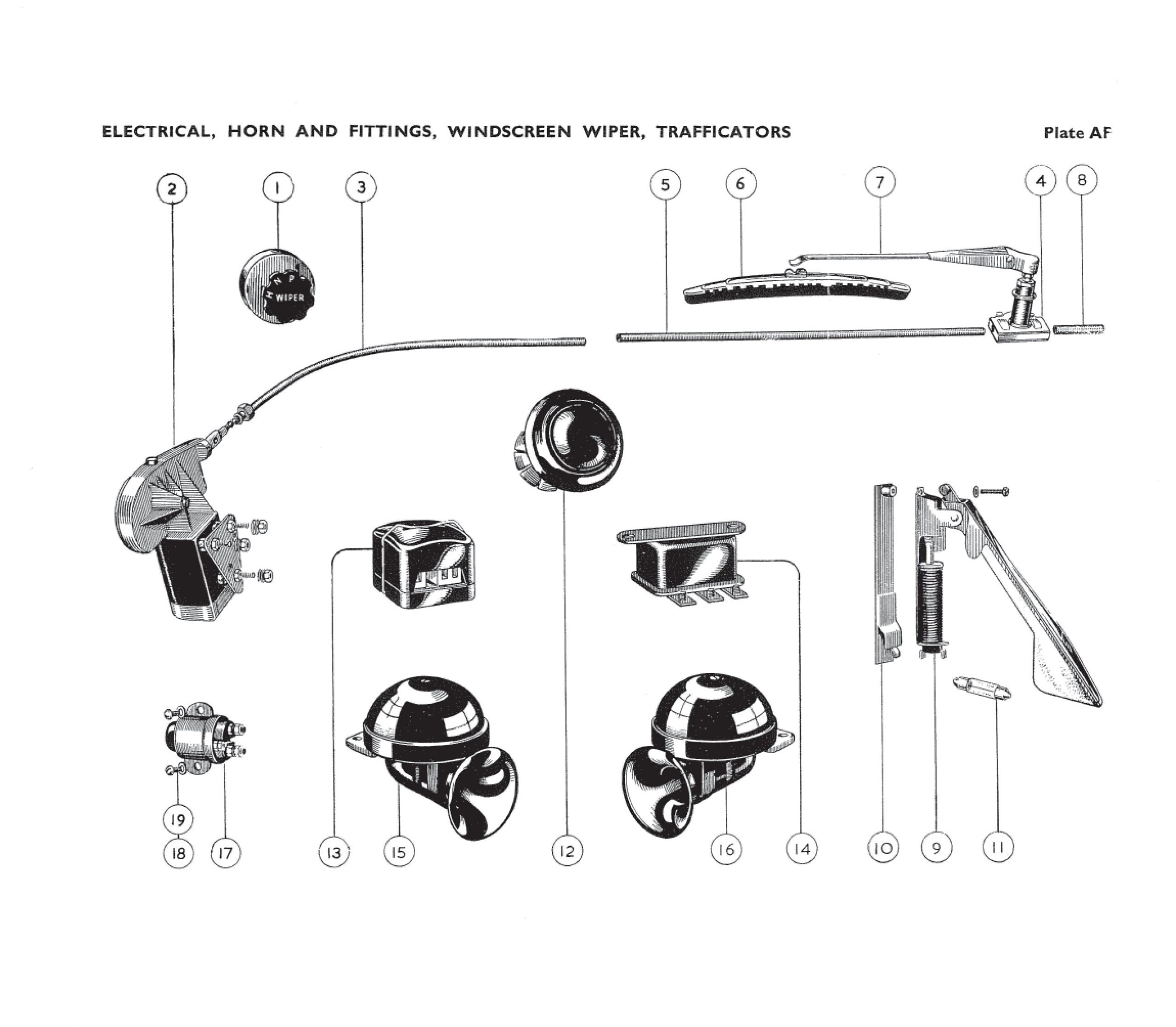

Electrical, Windscreen Wipers, Horns, Trafficator

Ill. No. Part No. product name Car
Total
Stock Price Quantity
151914 Switch, Windscreen Wiper (Lucas No. 31322A)114£30.00- +
75266 Switch, Windscreen Wiper (Lucas No. 31302B)13£30.00- +
255853 MOTOR, Windscreen Wiper (Lucas No. 072734)11£30.00- +
73416 MOTOR AND CABLE RACK (Lucas No. 72954)110£30.00- +
373417 Outer Tube, Motor to Wheelbox (Lucas No. 740954)113£30.00- +
473983 Wheelboxex, (Lucas No. 72639D)26£30.00- +
573418 Outer Tube, Wheelbox to Wheelbox (Lucas No. 745005)117£30.00- +
656067 BLADE, 9in. Screen Wiper (Lucas No. 736412)23£30.00- +
73420 BLADE, 11in. Rainbow (Lucas No. 736412)214£30.00- +
756068 Arm, Screen Wiper (Lucas No. 737517)27£30.00- +
73421 Arm, 10in. Screen Wiper (Lucas No. 745080)29£30.00- +
873984 Outer Tube, Short End (Lucas No. 740746)116£30.00- +
951419 TRAFFICATOR, (Lucas No. 54039)216£30.00- +
70696 TRAFFICATOR, (Lucas No. 54044D)211£30.00- +
1075701 Adaptor Bracket Assembly (Lucas No. 582080)210£30.00- +
1171641 Bulb, Trafficator Festoon (Lucas No. 256)216£30.00- +
1351422 Fuse Box, Horns (Lucas No. 37107A)116£30.00- +
1457700 Hom Relay, RHD (Lucas No. 33116B)111£30.00- +
55858 Flasher Relay (Lucas No. 33117)19£30.00- +
73534 Horn Relay, 4 terminal118£30.00- +
1551408 Horn, Wind Tone (Low) (Lucas No. 69046A)112£30.00- +
1651409 Horn, Wind Tone (High) (Lucas No. 69047A)120£30.00- +
1751525 Switch, Starter Solenoid (Lucas No. 76411)12£30.00- +
73742 Switch, Starter Solenoid (Lucas No. 76411D)116£30.00- +
18112121 Screw, Set 2BA x 1/2in. Rd. Hd.26£30.00- +
1951451 Washer, Fan Disc210£30.00- +
55842 Lead, Trafficator (Lucas No. 860236)22£30.00- +
55279 BATTERY, (1st 150 DB2) (Lucas No. 4010600F)13£30.00- +
37623 BATTERY, (After 1st 150 DB2) (Lucas No. 4018757F)110£30.00- +
73519 Lead, Horn Push Button (Lucas No. 824664)119£30.00- +
73520 Lead, Battery, Negative to Solenoid (Lucas No. 812730)111£30.00- +
73523 Cable, Starter Solenoid to Starter RHD (Lucas No. 999610)16£30.00- +
73524 Bond, Earth, Frame to Engine (Lucas No. 979492)117£30.00- +
51406 Grammet, Battery Cable (Lucas No. 859061)114£30.00- +
51597 Flasher, Warning Light (U.S.A) (Lucas No. 38052B)120£30.00- +
73559 Thermal Unit, Flasher (Lucas No. 35003A)17£30.00- +
